2020 Sany SY205C-8

1/6
Buy Sany SY205C-8 Used Excavator / 1
Buy Sany SY205C-8 Used Excavator / 2
Buy Sany SY205C-8 Used Excavator / 3
Buy Sany SY205C-8 Used Excavator / 4
Buy Sany SY205C-8 Used Excavator / 5
Buy Sany SY205C-8 Used Excavator / 6

Product Description

This 2020 Sany SY205C-8 crawler excavator offers reliable performance for mid-sized earthmoving and construction applications. With approximately 20 tons operating weight and a robust Isuzu engine, this model delivers efficient digging power and fuel economy. The SY205C-8 features hydraulic pilot controls, reinforced undercarriage components, and an operator cabin designed for extended workdays.

Currently located in Zhejiang, China, this unit comes with detailed documentation and operational video available for review. The machine has been maintained according to standard service intervals and shows typical wear consistent with its age.

Key features include:

  • Hydraulic system optimized for simultaneous multi-function operation
  • Durable boom and arm construction for demanding jobsite conditions
  • Spacious ROPS/FOPS certified cabin with ergonomic layout
  • Standard bucket and quick coupler compatibility

Suitable for general excavation, trenching, grading, and material handling tasks across construction, infrastructure, and industrial sites.

SpecificationsValue
No.1173623
Tonnage (tons)20
Working weight (kg)20300
Bucket capacity (m³)0.83
Country of originKunshan in Jiangsu Province
powerTraditional power
manufacturerMade in China
bucketbackhoe

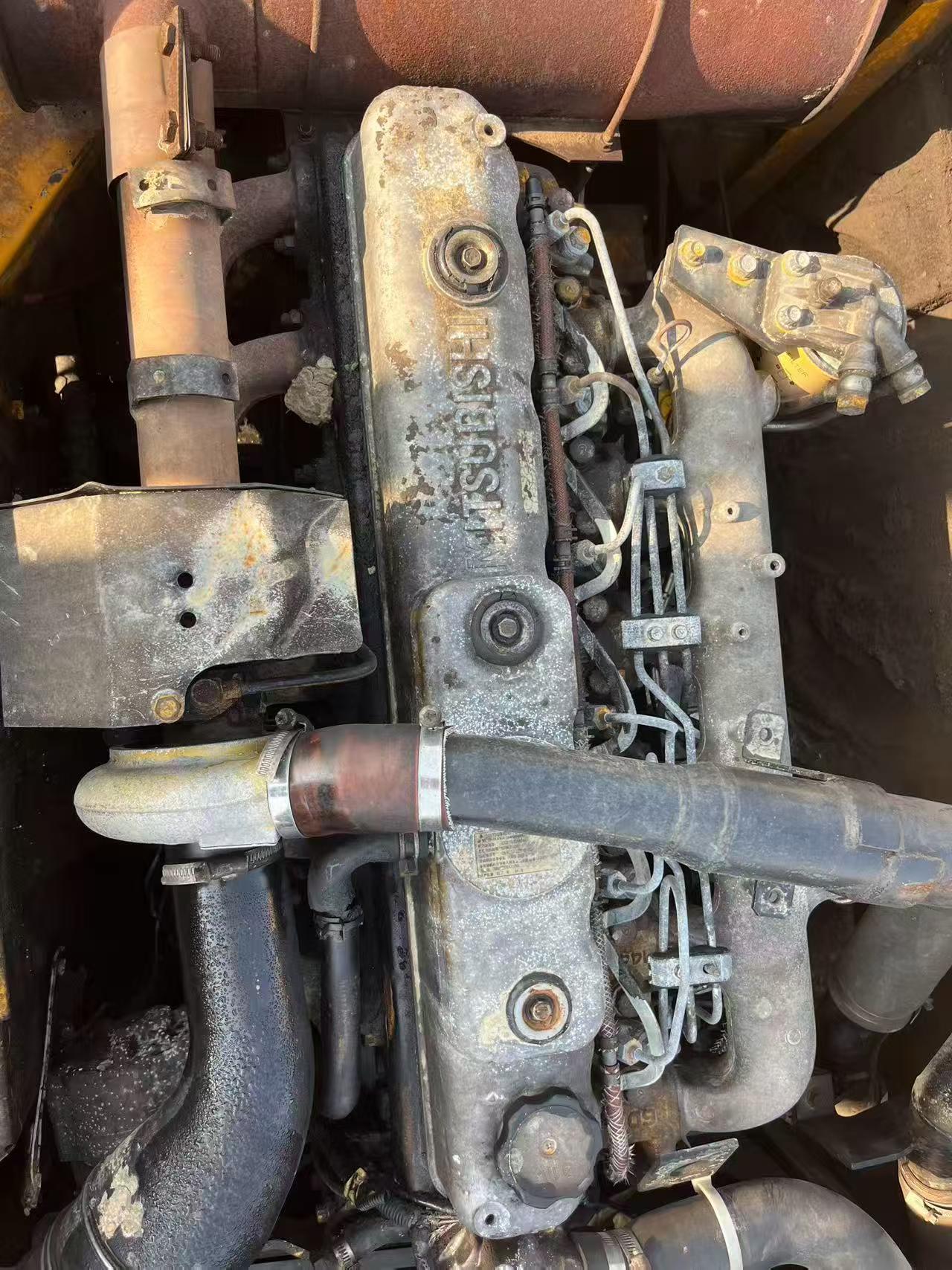

Engine typeMitsubishi 6D34TL-20
Rated power (kw/rpm)114/2050
Cooling modewater-cooling
Ground specific pressure (Kpa)44.8
Rotation speed (rpm)12.5
Climbing ability (%)70/35 °
Bucket digging force (kN)138
Travel speed (km/h)3.2/5.5
Main overflow set pressure (Mpa)34.3
Maximum flow of main pump (l/min)2 x 210
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25.5
Control Hydraulic Circuit (Mpa)3.9
Hydraulic crushing pipeline is standardno
Total transport length (mm)9397
Total transport width (mm)2800
Total transport height (mm)2956
Full cab height (mm)2930
Minimum ground clearance (mm)440
Back end turning radius (mm)2750
Total track length (mm)4064
Track gauge (mm)2200
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3260
Maximum digging radius (mm)9885
Maximum digging depth (mm)6630
Maximum excavation height (mm)9305
Maximum unloading height (mm)6475
Maximum vertical digging depth (mm)5980
Bulldozer lift or depth (mm)There is no
see more

Overview

No.1173623

Brand Name:

Sany

Model Number:

SY205C-8

Year:

2020

Location:

Zhejiang China

Pub Date:
