2013 Sany SY215C

1/7

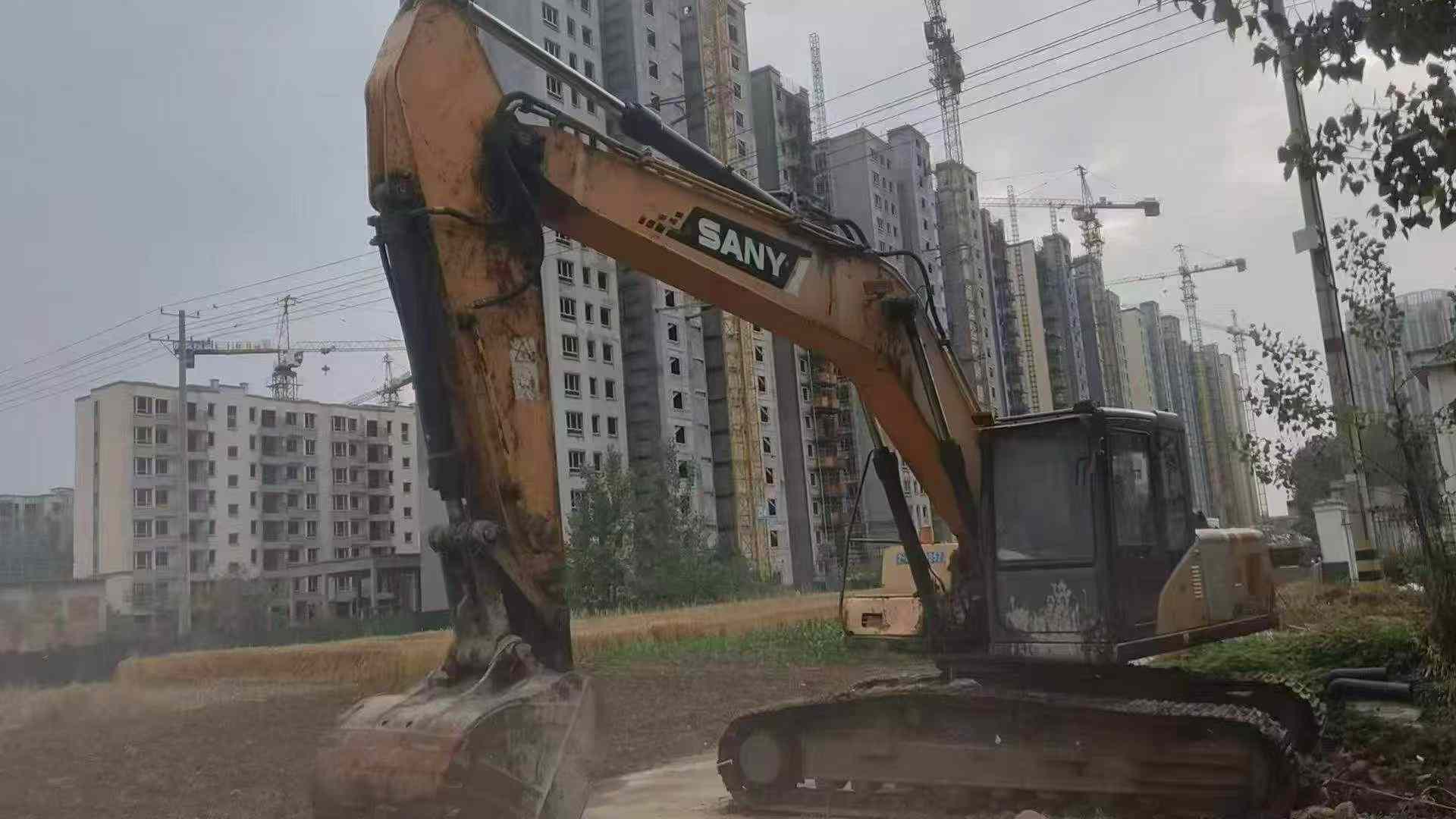

Buy Sany SY215C Used Excavator / 1

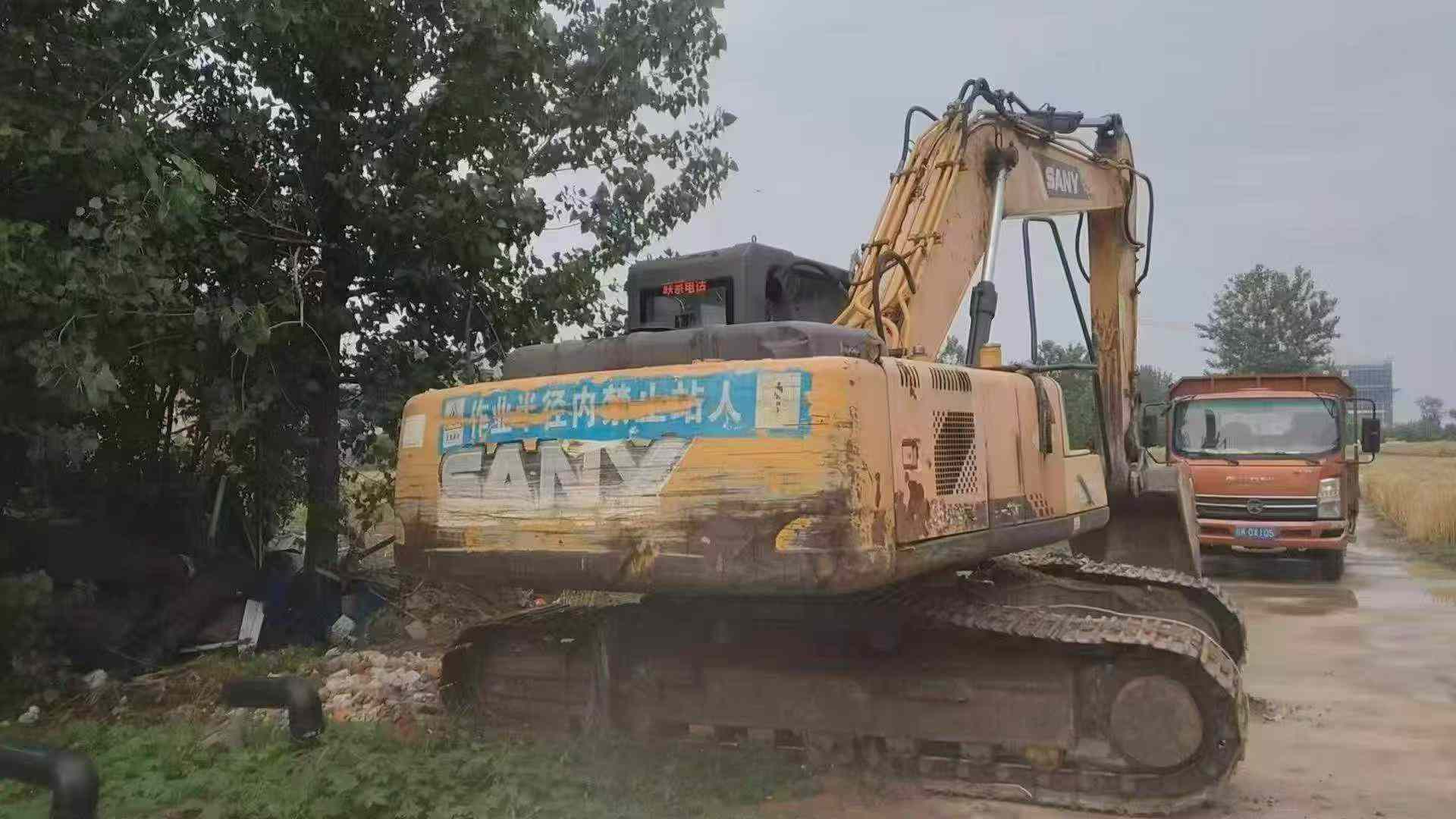

Buy Sany SY215C Used Excavator / 2

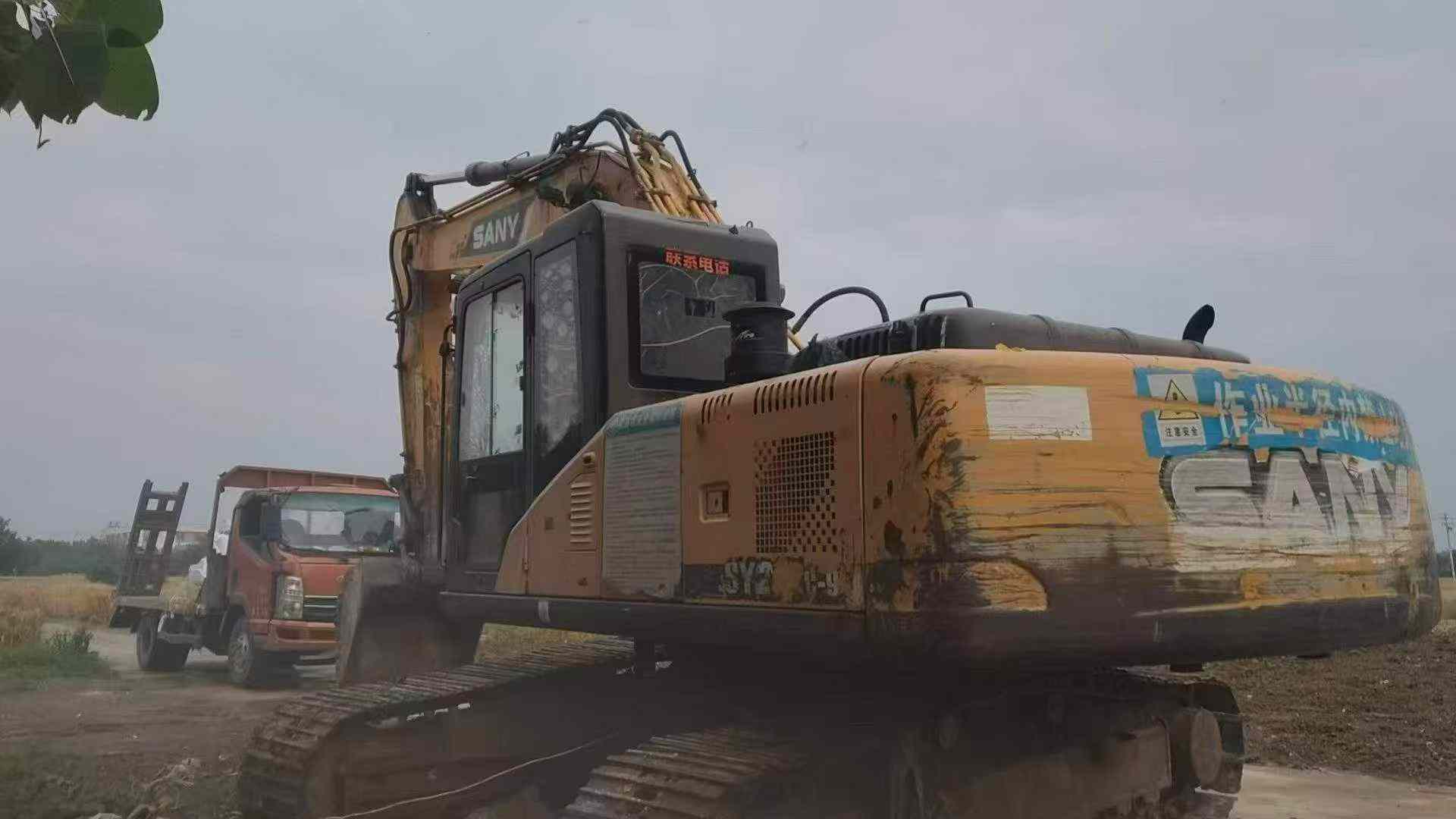

Buy Sany SY215C Used Excavator / 3

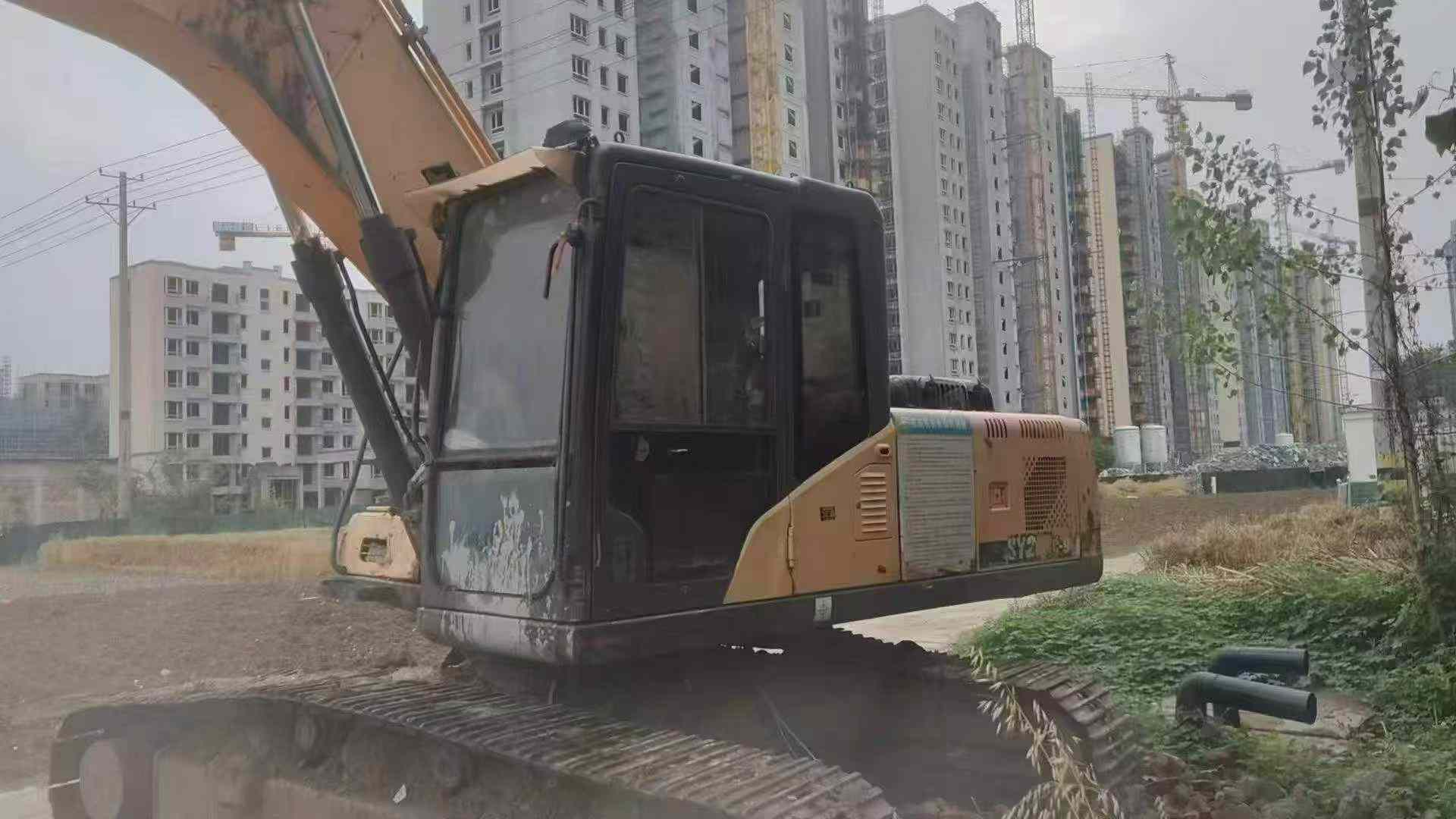

Buy Sany SY215C Used Excavator / 4

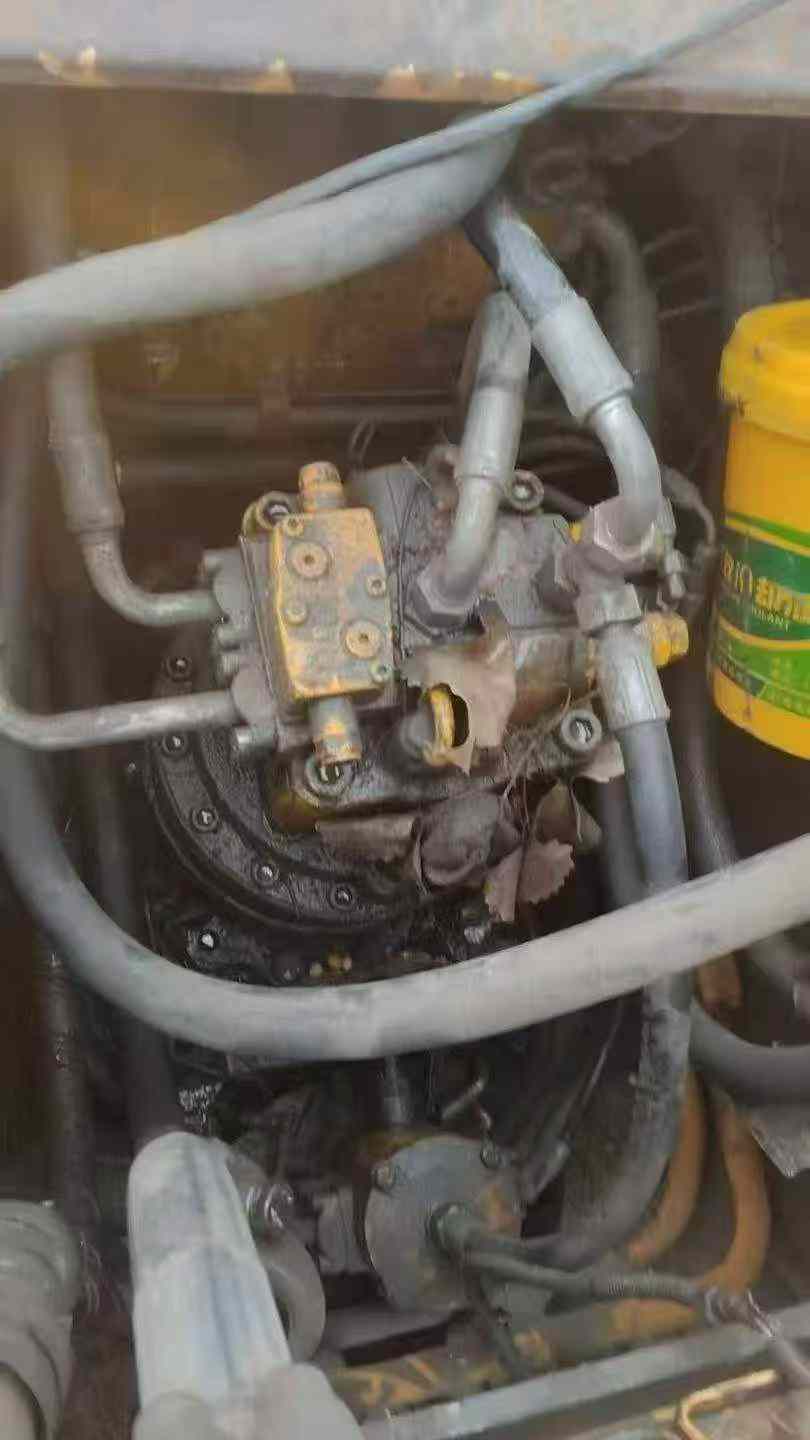

Buy Sany SY215C Used Excavator / 5
Buy Sany SY215C Used Excavator / 6
Buy Sany SY215C Used Excavator / 7

Product Description

This 2013 Sany SY215C hydraulic excavator offers proven performance for mid-range earthmoving and construction applications. Located in Zhejiang, China, this machine represents Sany's established 21-ton class platform with reliable operation and straightforward maintenance protocols.

The SY215C delivers practical digging force and reach for general excavation, site preparation, and material handling tasks. Its operator station provides essential controls and visibility for standard jobsite conditions.

  • Year: 2013
  • Model: Sany SY215C
  • Location: Zhejiang, China
  • Documentation: Detailed photos and video available
  • Condition: Used, operational

Comprehensive visual documentation is provided to support your evaluation. This excavator is ready for inspection by qualified buyers seeking a cost-effective solution for medium-duty excavation work.

SpecificationsValue
No.1076921
Tonnage (tons)21
Working weight (kg)21900
Bucket capacity (m³)1.1 (0.8~1.2)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeMitsubishi 4M50
Rated power (kw/rpm)118/2000
Cooling modewater-cooling
Maximum torque (N.m)580/1600
Number of cylinders (PCS)4
Displacement (L)4.9
Ground specific pressure (Kpa)47.4
Rotation speed (rpm)11
Climbing ability (%)70% (35°)
Bucket digging force (kN)138
Rod digging force (kN)103
Travel speed (km/h)5.4/3.3
Fuel Tank (L)390
Hydraulic Tank (L)239
Engine Oil changes (L)22
Total transport length (mm)9680
Total transport width (mm)2980
Total transport height (mm)3440
Full cab height (mm)3075
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)3730
Back end turning radius (mm)2900
Onboard width (mm)2875
Total track length (mm)4250
Track gauge (mm)2380
Track plate width (mm)600
Track ground length (mm)3445
Maximum height at minimum turning radius (mm)7680
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)8
Number of track plates (single side) (PCS)47
Maximum digging radius (mm)10280
Maximum digging depth (mm)6600
Maximum excavation height (mm)9600
Maximum unloading height (mm)6730
