Product Description

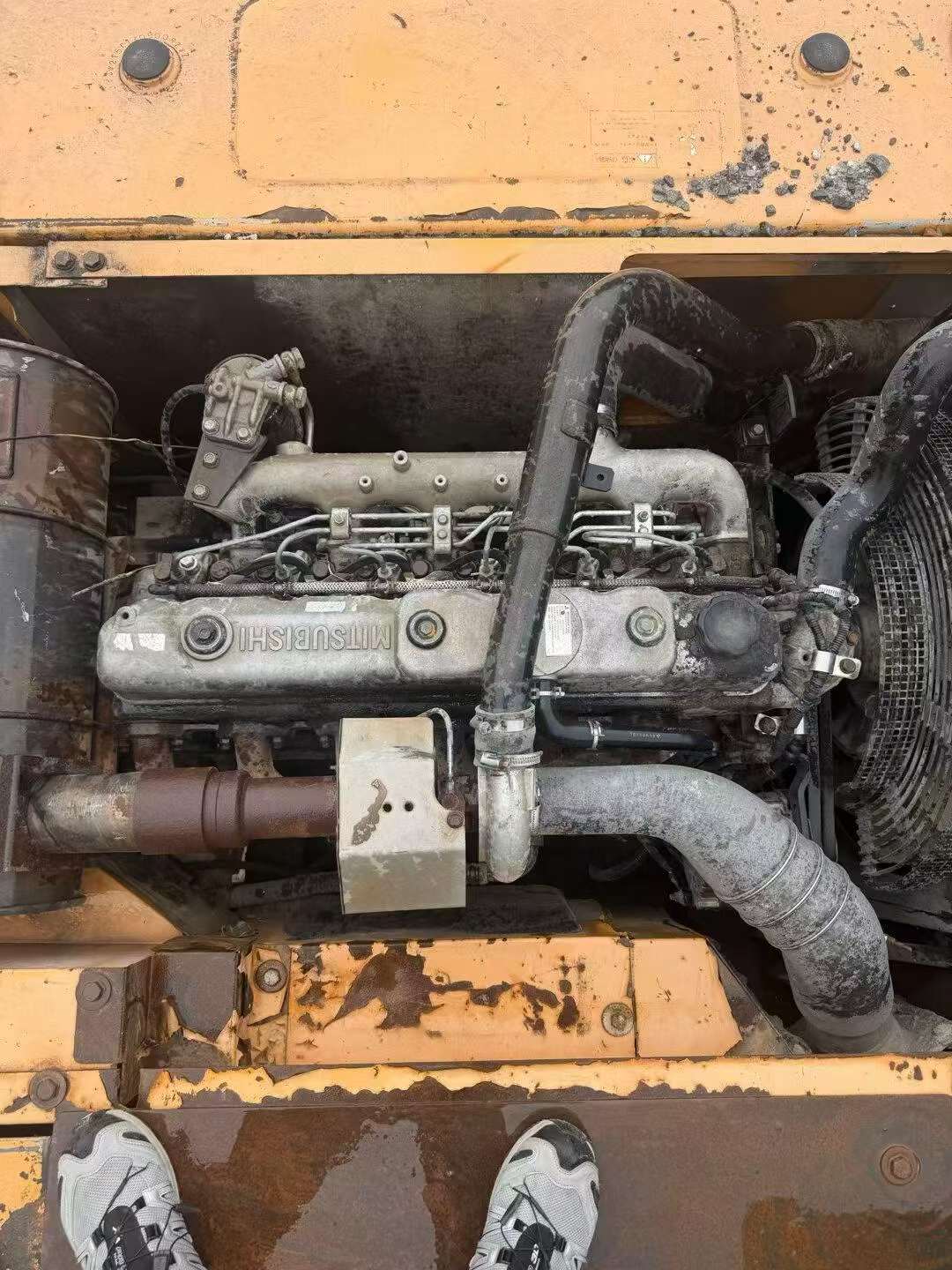

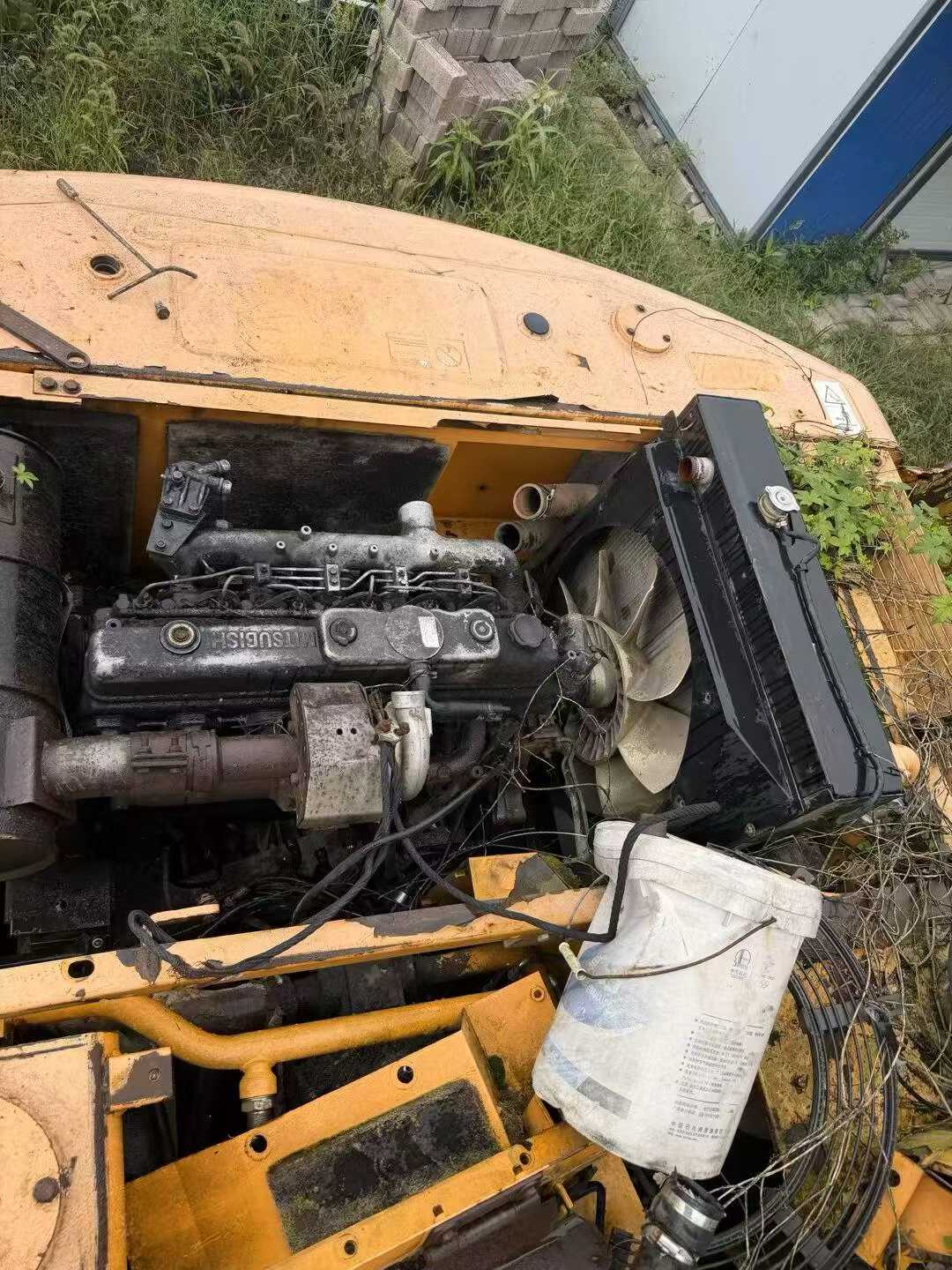

Built for serious work and priced for smart buyers, this 2014 Sany SY215C 21-ton hydraulic excavator delivers proven mid-size performance at a fraction of new equipment cost. Powered by a Mitsubishi 4M50 water-cooled diesel engine producing 118 kW at 2,000 RPM and 580 N·m of peak torque, this machine handles demanding dig cycles without compromise. Located in Zhejiang, China, it is ready for direct export worldwide.
- Engine: Mitsubishi 4M50, 4-cylinder, 4.9L displacement, 118 kW / 2,000 RPM
- Operating Weight: 21,900 kg | Ground Pressure: 47.4 kPa
- Bucket Capacity: 1.1 m³ (range: 0.8–1.2 m³) — backhoe configuration
- Digging Force: Bucket 138 kN | Arm 103 kN
- Maximum Digging Depth: 6,600 mm | Digging Radius: 10,280 mm
- Maximum Excavation Height: 9,600 mm | Unloading Height: 6,730 mm
- Travel Speed: 5.4 / 3.3 km/h | Climbing Ability: 70% (35°)
- Fuel Tank: 390 L | Hydraulic Tank: 239 L
- Transport Dimensions: 9,680 × 2,980 × 3,440 mm
Purchasing used means acquiring full SY215C capability — robust hydraulics, strong digging force, and reliable Mitsubishi power — while keeping capital expenditure firmly under control. Ideal for contractors, rental fleets, and infrastructure operators who demand output, not overhead.
| Specifications | Value |
|---|---|
| No. | 1136985 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21900 |
| Bucket capacity (m³) | 1.1 (0.8~1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 580/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 390 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3445 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
