Product Description

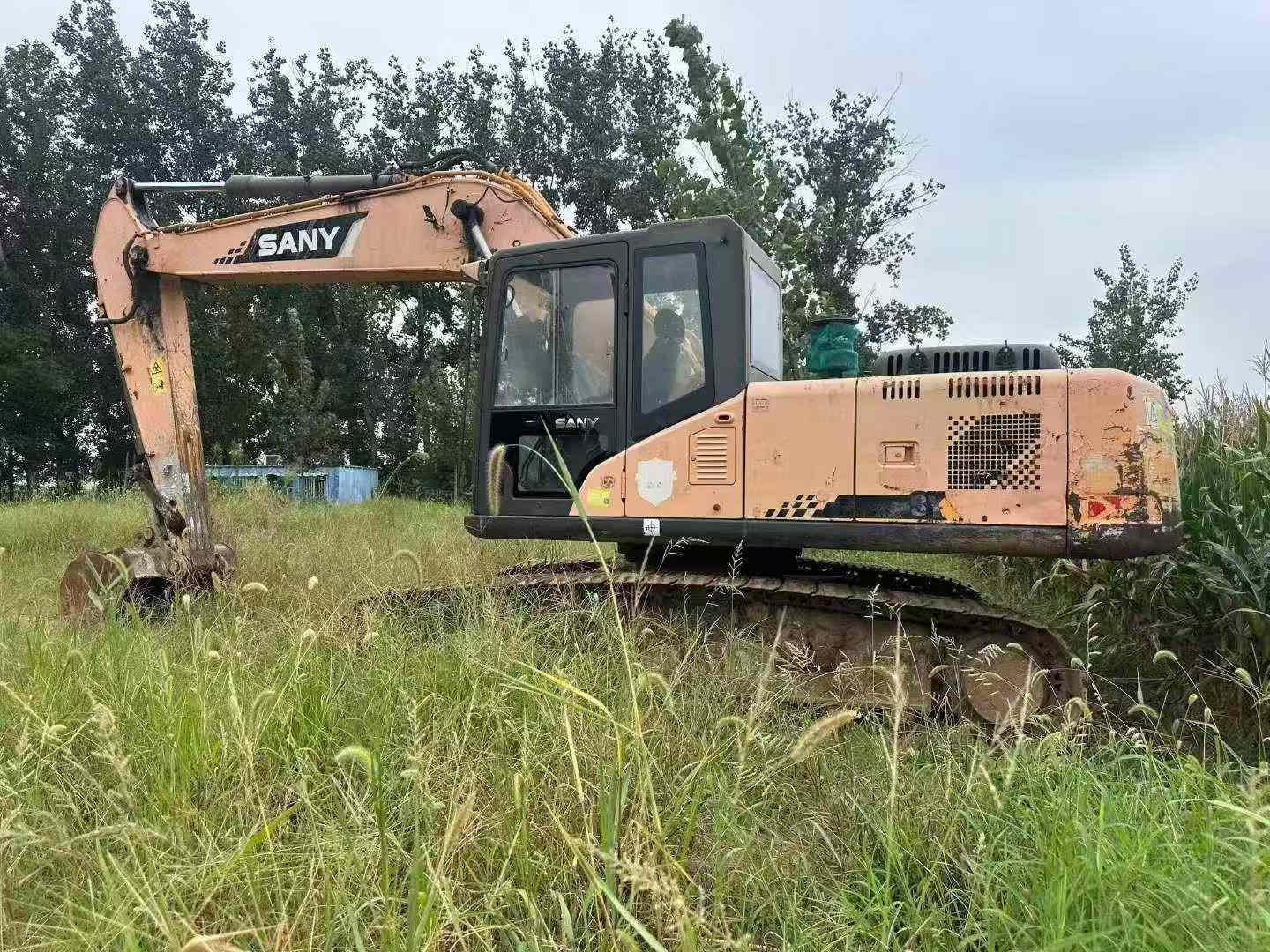

This 2014 Sany SY215C excavator represents a reliable mid-size solution for construction and earthmoving operations. Currently located in Jiangsu, China, this machine features original factory specifications throughout, ensuring authentic performance and compatibility with standard Sany parts and service protocols.
The SY215C series is known for its 21-ton operating weight class, delivering balanced digging force and fuel efficiency for general construction, trenching, and material handling applications. This unit maintains its original configuration, which simplifies maintenance planning and parts sourcing for international buyers.
- Year of Manufacture: 2014
- Model: Sany SY215C
- Current Location: Jiangsu Province, China
- Condition: Original factory specification maintained
- Suitable for: Earthmoving, excavation, and construction projects
Available for inspection and international shipping arrangements. Contact us for detailed technical specifications and current operational status.
| Specifications | Value |
|---|---|
| No. | 1138728 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21900 |
| Bucket capacity (m³) | 1.1 (0.8~1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

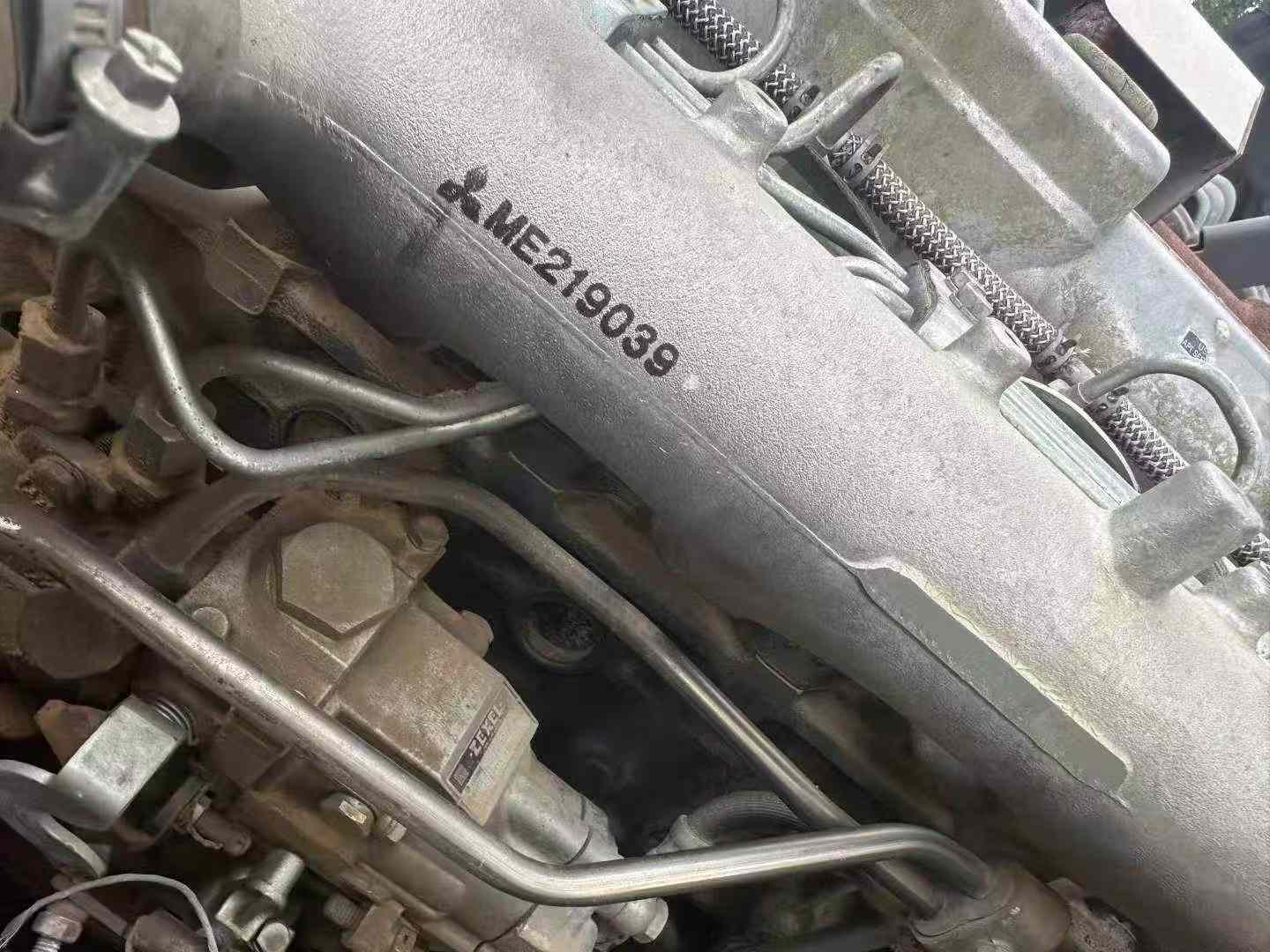

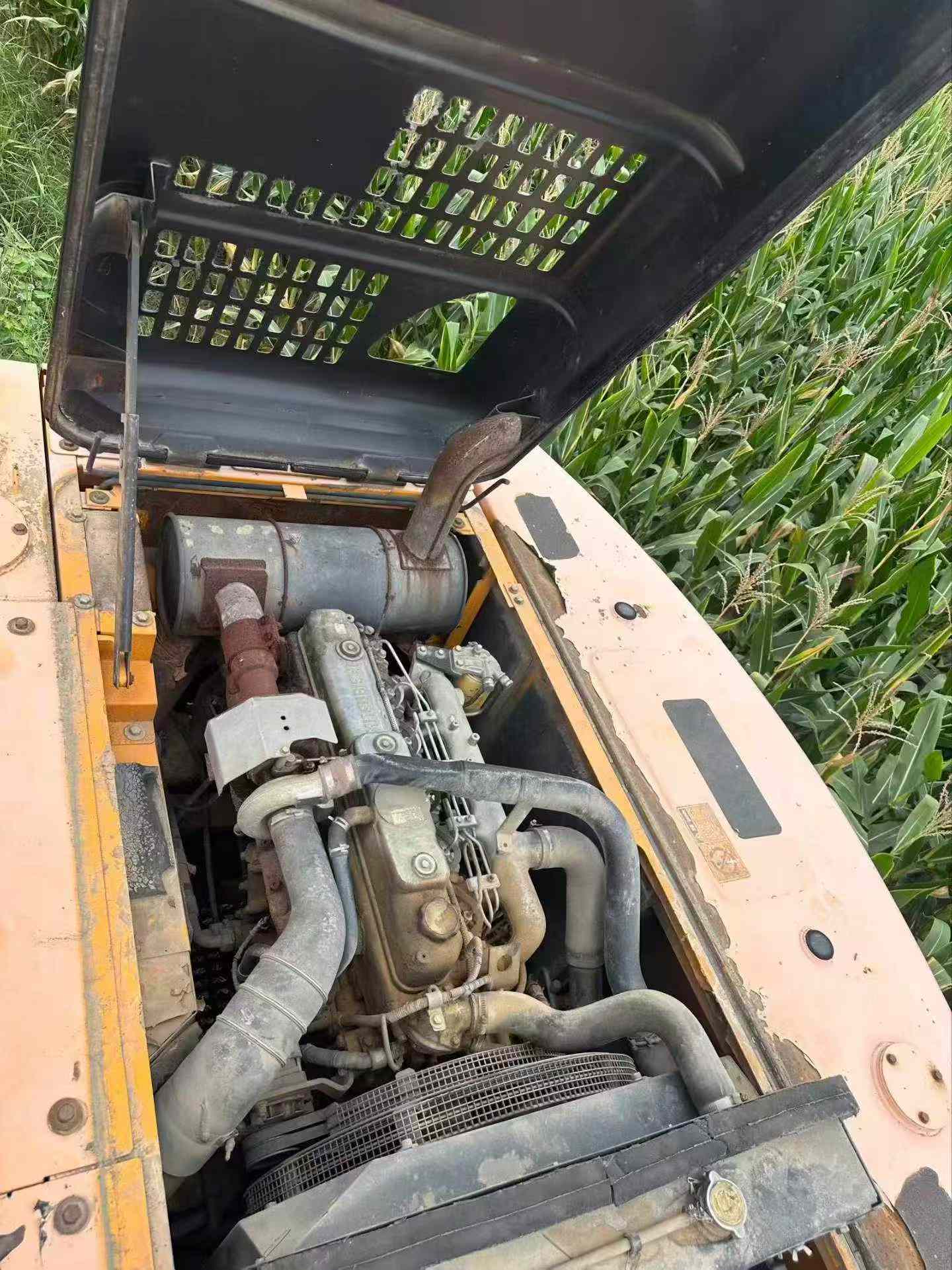

| Engine type | Mitsubishi 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 580/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 390 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3445 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
