Product Description
Engineered with Mitsubishi's proven 4M50 four-cylinder engine, this 2017 Sany SY215C delivers 118 kW of rated power at 2000 rpm and 580 N·m maximum torque, providing consistent performance for demanding excavation tasks. Operating at 21 tons with a 21,900 kg working weight, this medium-class excavator combines robust hydraulic capacity with precision control—bucket digging force reaches 138 kN while rod digging force achieves 103 kN, enabling efficient material handling across diverse job sites.
- Hydraulic Performance: 1.1 m³ bucket capacity (0.8-1.2 m³ range), 10,280 mm maximum digging radius, 6,600 mm digging depth

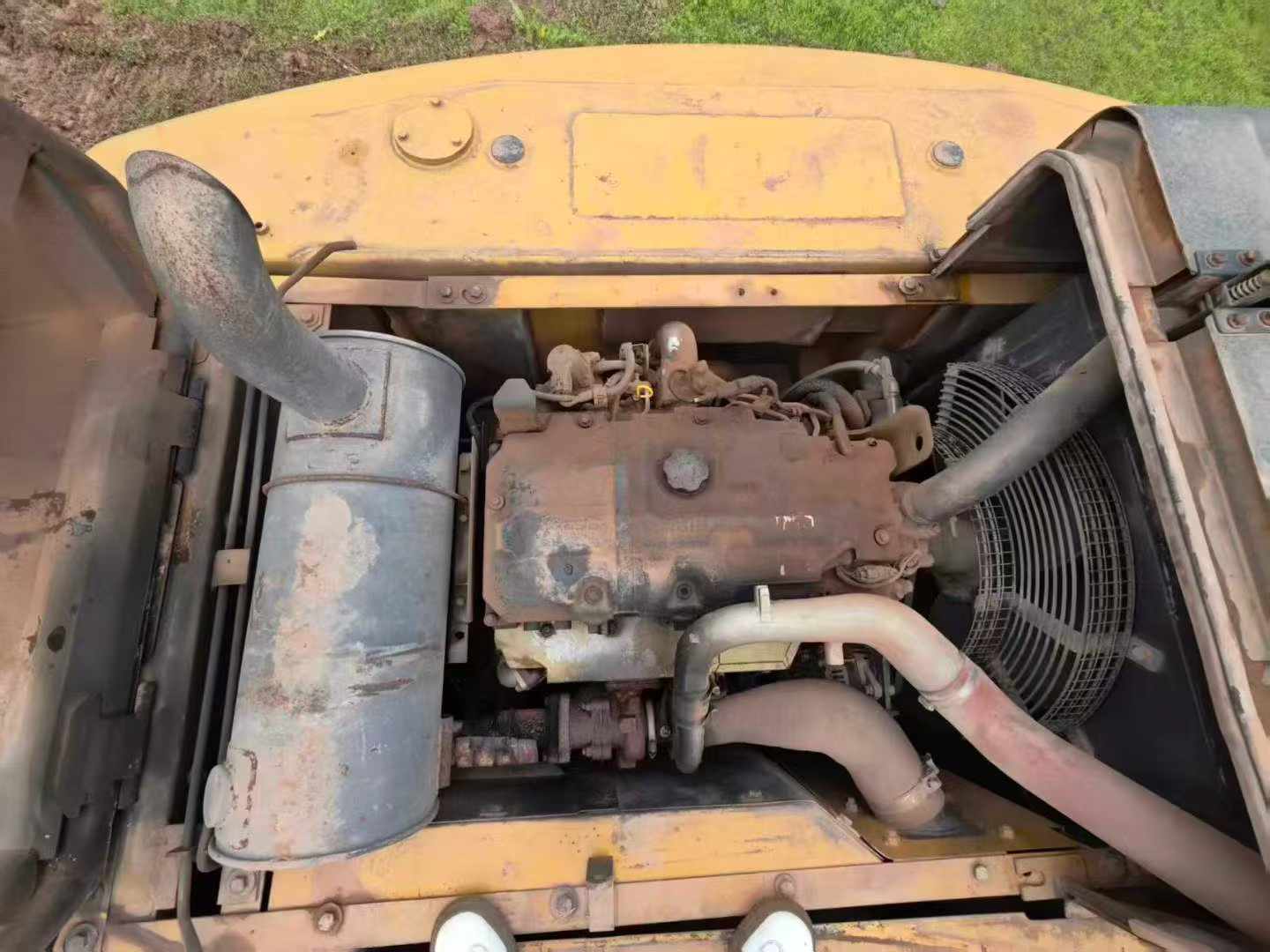

- Powertrain: Water-cooled Mitsubishi 4M50, 4.9L displacement, 390L fuel tank for extended operation
- Mobility: 70% (35°) climbing ability, 5.4/3.3 km/h travel speed, 2,900 mm rear turning radius
- Dimensions: 9,680 mm transport length, 2,980 mm width, 600 mm track plates
- Location: Fujian Putian, China—ready for international shipping
Built to Chinese manufacturing standards with Japanese engine reliability, this SY215C represents proven mid-size excavator technology for contrac
| Specifications | Value |
|---|---|
| No. | 1043258 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21900 |
| Bucket capacity (m³) | 1.1 (0.8~1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 580/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 390 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3445 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
