2017 Sany SY215C

1/5

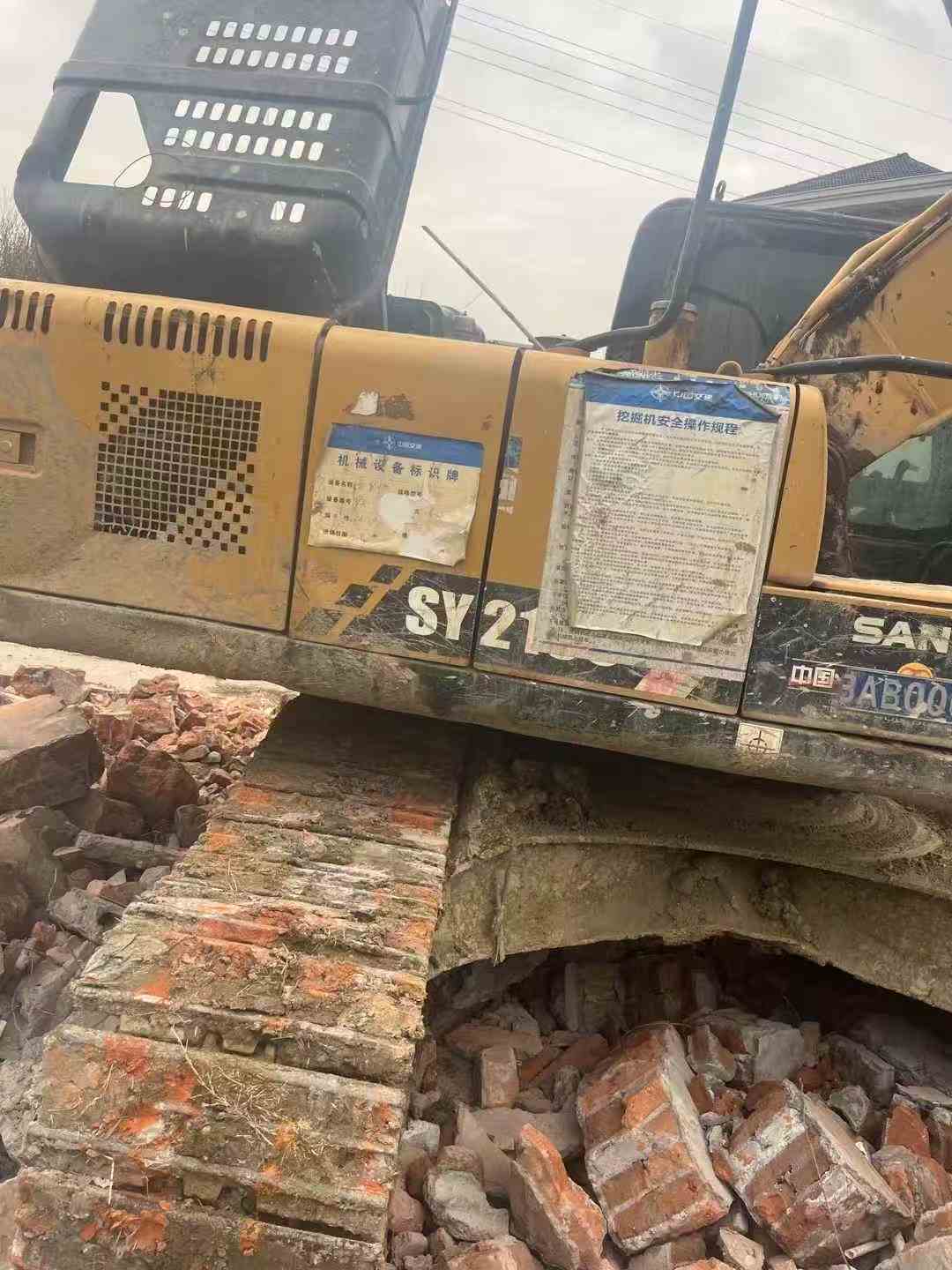

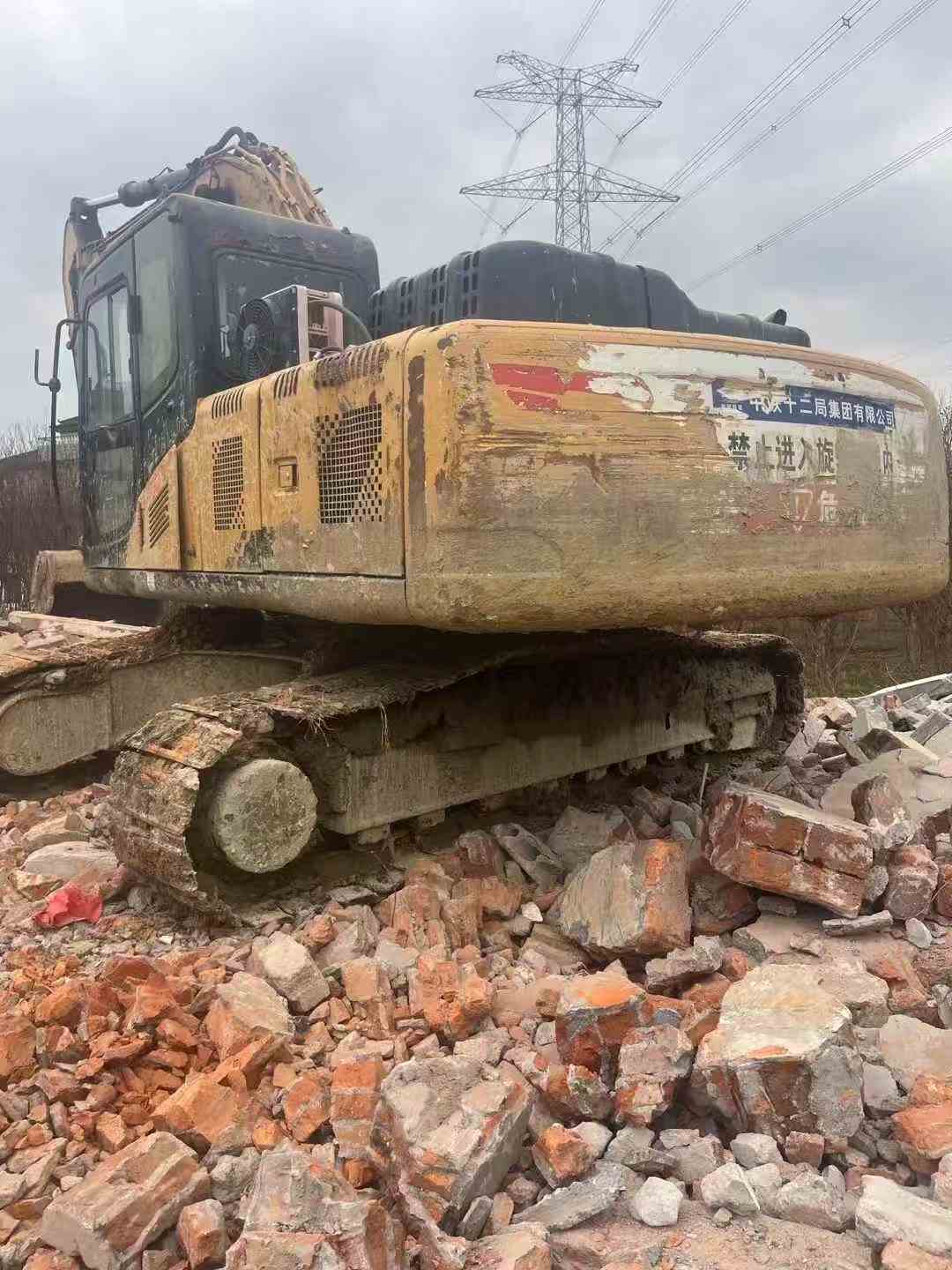

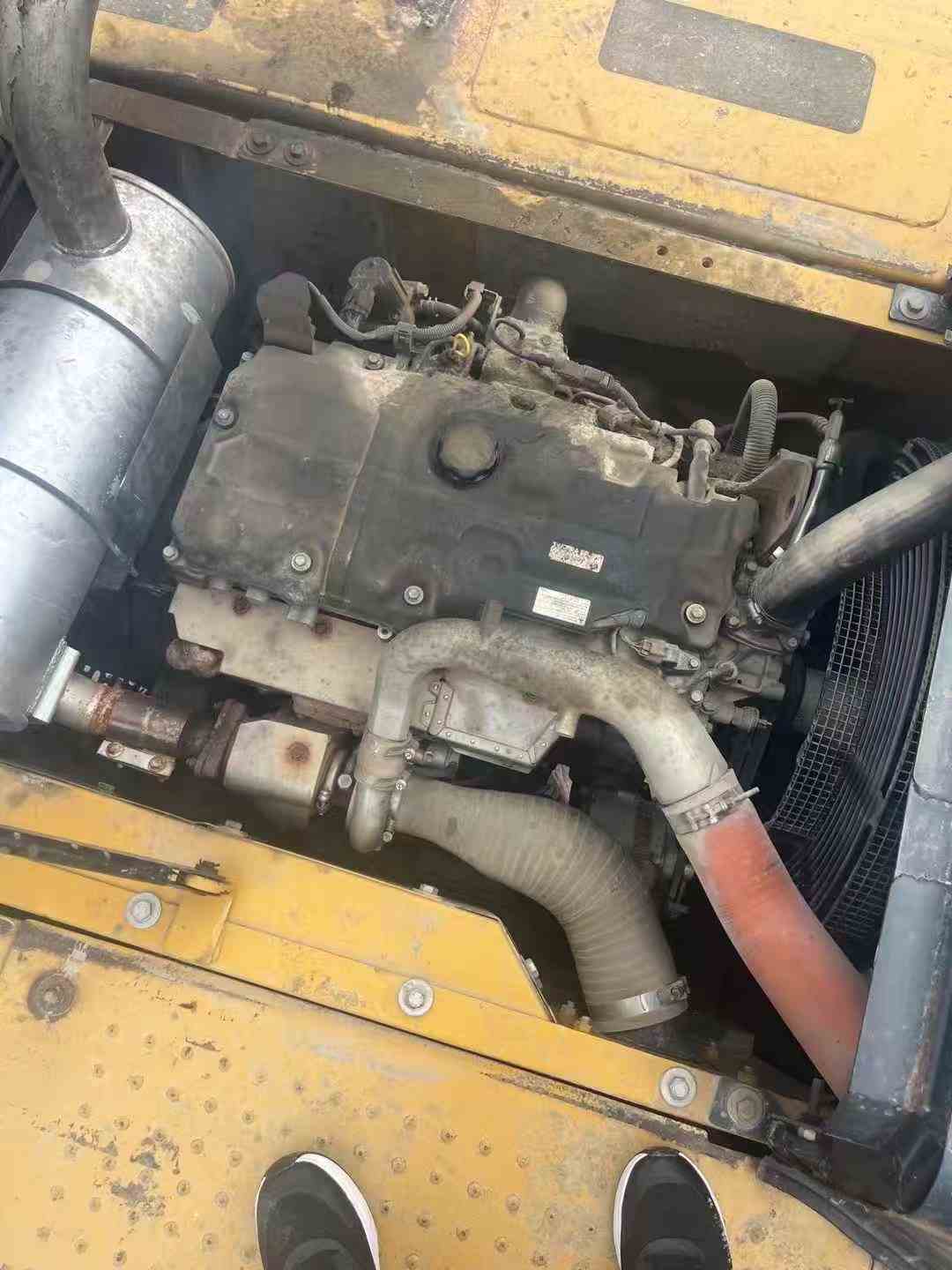

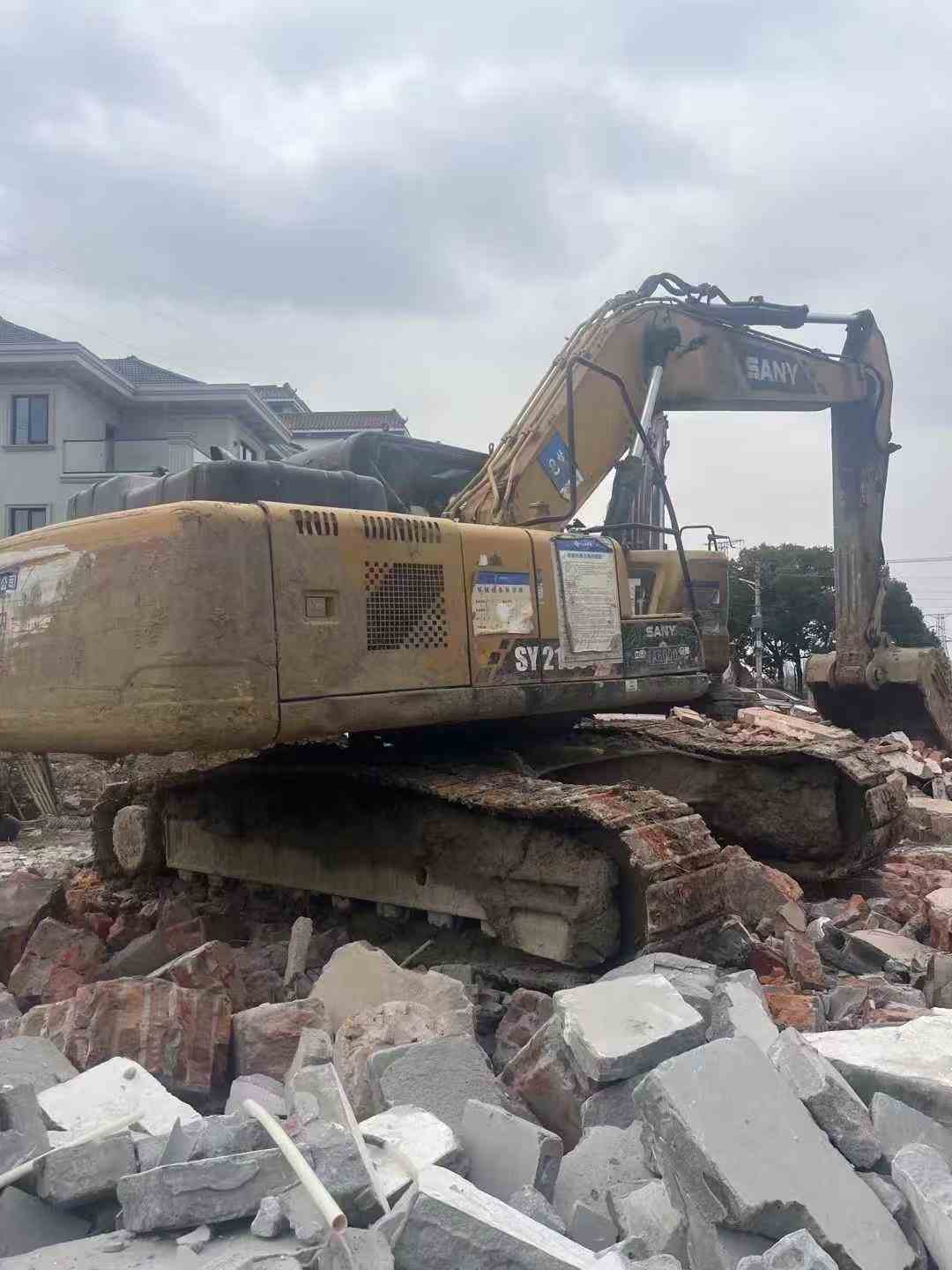

Buy Sany SY215C Used Excavator / 1
Buy Sany SY215C Used Excavator / 2
Buy Sany SY215C Used Excavator / 3
Buy Sany SY215C Used Excavator / 4
Buy Sany SY215C Used Excavator / 5

Product Description

With a powerful Mitsubishi 4M50 engine, the Sany SY215C excavator delivers 118 kW at 2000 rpm, ensuring robust performance for demanding tasks. In 浙江省杭州市, this 2017 model stands out with its 21-ton capacity and 21,900 kg working weight, providing excellent stability and handling. The backhoe bucket, with a capacity of 1.1 m³, is ideal for a variety of excavation needs.

  • Water-cooled engine for reliable and efficient operation
  • Maximum torque of 580 N.m at 1600 rpm for tough digging conditions
  • Full cab height of 3075 mm and minimum ground clearance of 440 mm, enhancing operator visibility and safety
  • Travel speed up to 5.4 km/h and 3.3 km/h, facilitating swift movement on site
  • Hydraulic and fuel tanks with capacities of 239 L and 390 L, respectively, for extended operational hours

Designed with the operator in mind, the SY215C offers a comfortable and well-ventilated cabin, reducing fatigue during long shifts. Its minimum turning radius of 3730 mm and back end turning radius of 2900 mm ensure maneuverability in confined spaces. This machine is built to handle challenging terrains with a climbing ability of 70% (35°).

SpecificationsValue
No.1045147
Tonnage (tons)21
Working weight (kg)21900
Bucket capacity (m³)1.1 (0.8~1.2)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeMitsubishi 4M50
Rated power (kw/rpm)118/2000
Cooling modewater-cooling
Maximum torque (N.m)580/1600
Number of cylinders (PCS)4
Displacement (L)4.9
Ground specific pressure (Kpa)47.4
Rotation speed (rpm)11
Climbing ability (%)70% (35°)
Bucket digging force (kN)138
Rod digging force (kN)103
Travel speed (km/h)5.4/3.3
Fuel Tank (L)390
Hydraulic Tank (L)239
Engine Oil changes (L)22
Total transport length (mm)9680
Total transport width (mm)2980
Total transport height (mm)3440
Full cab height (mm)3075
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)3730
Back end turning radius (mm)2900
Onboard width (mm)2875
Total track length (mm)4250
Track gauge (mm)2380
Track plate width (mm)600
Track ground length (mm)3445
Maximum height at minimum turning radius (mm)7680
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)8
Number of track plates (single side) (PCS)47
Maximum digging radius (mm)10280
Maximum digging depth (mm)6600
Maximum excavation height (mm)9600
Maximum unloading height (mm)6730
