Product Description

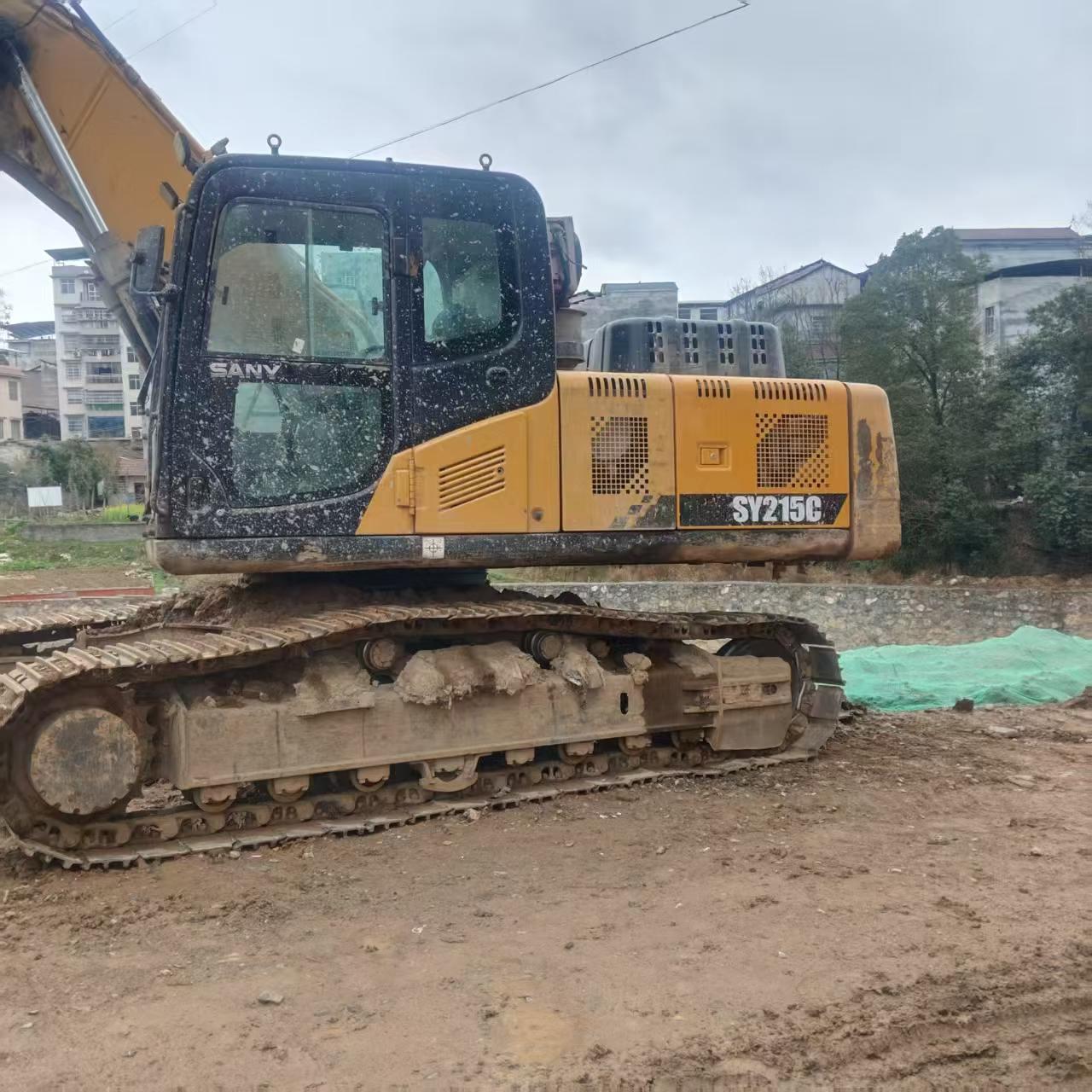

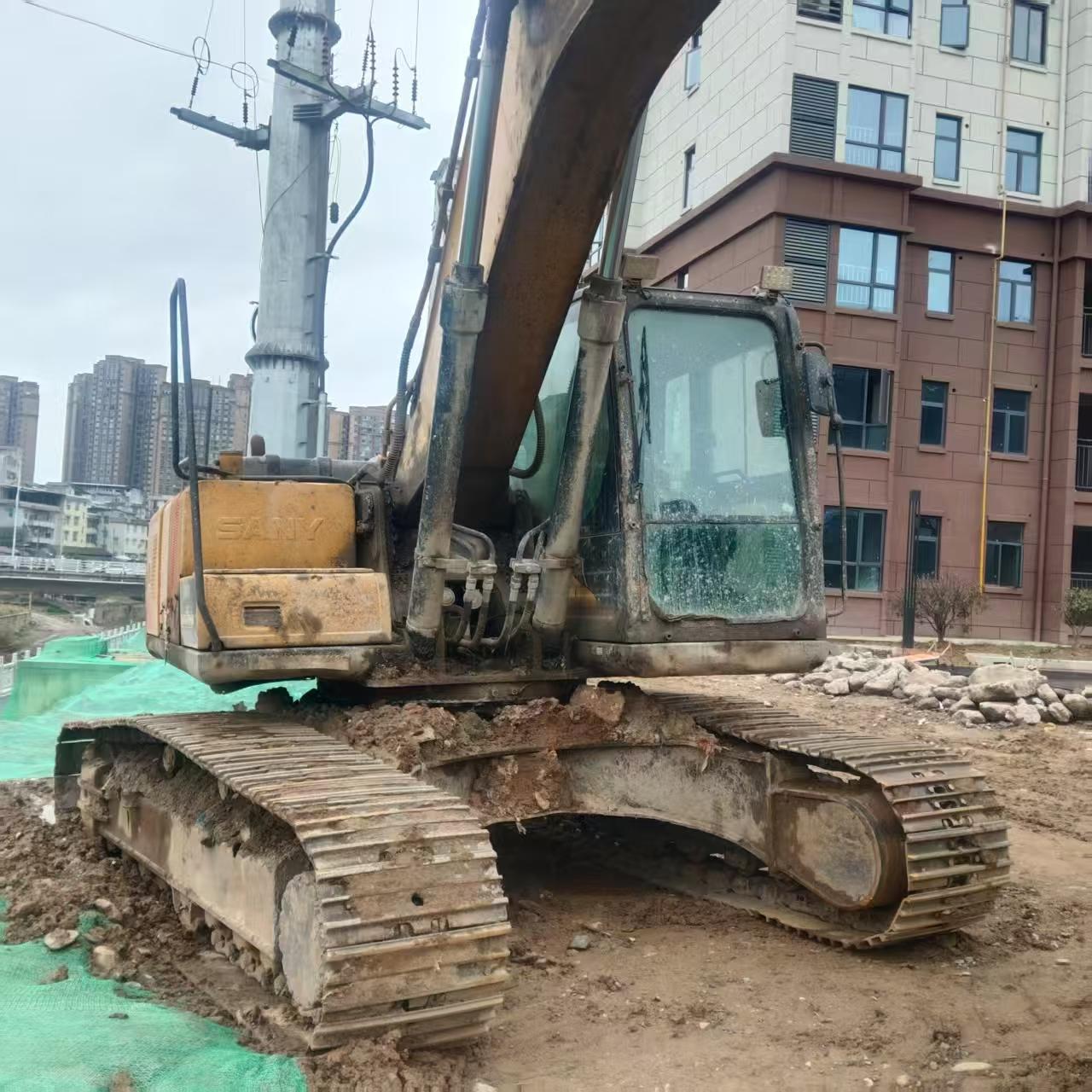

Expand your operational capacity with this 2018 Sany SY215C excavator, a proven 21-ton workhorse engineered for contractors managing multiple jobsites. Powered by a reliable Mitsubishi 4M50 engine delivering 118 kW at 2000 rpm, this machine integrates seamlessly into mixed-fleet environments where consistent performance and parts availability matter. Currently located in Anhui, China, this unit offers the digging depth and reach busy contractors demand without the premium attached to newer models.

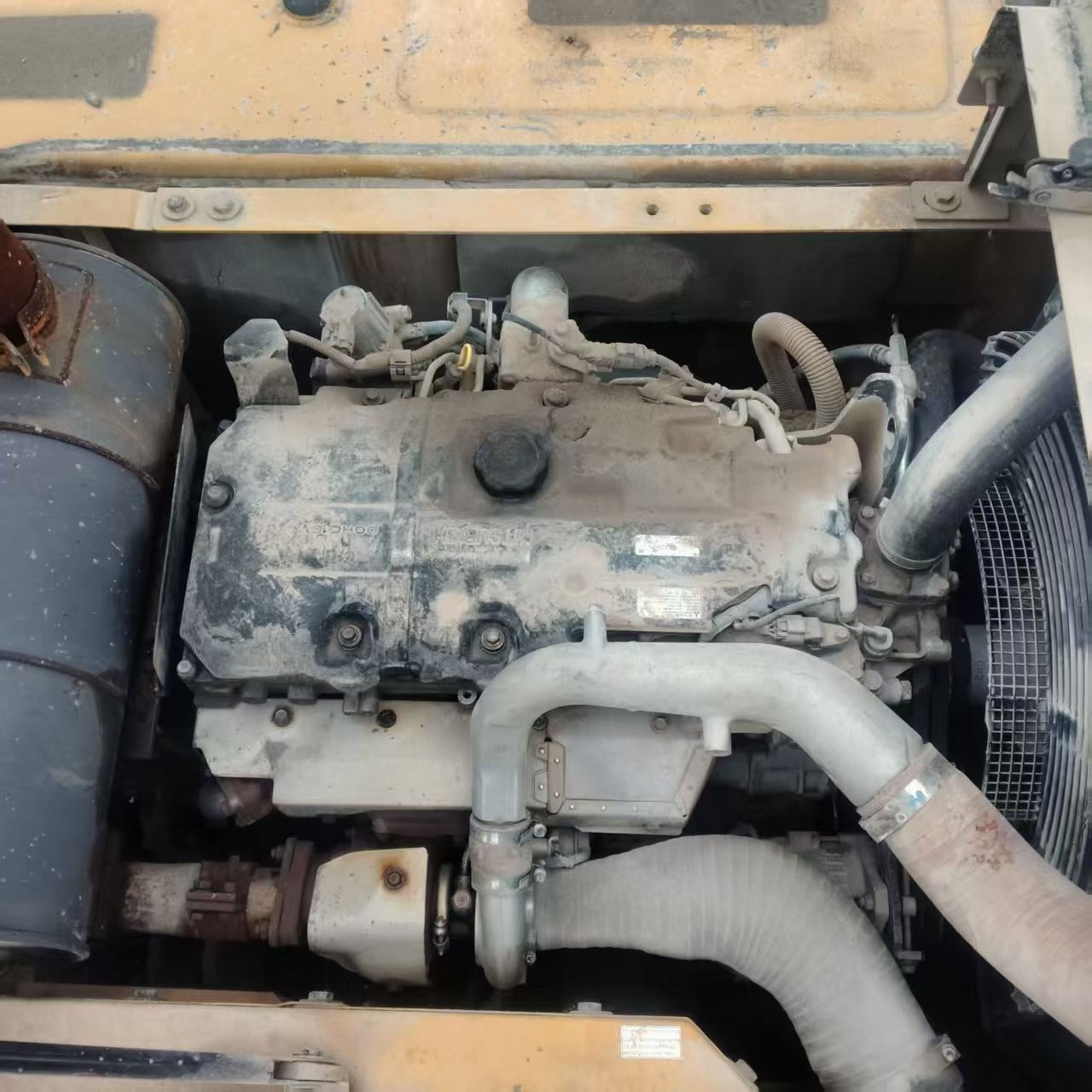

- Mitsubishi 4M50 Engine: 118 kW rated power with 580 N.m max torque ensures dependable productivity across varied applications
- Versatile Bucket System: 1.1 m³ standard capacity (adjustable 0.8–1.2 m³) handles trenching, loading, and site prep efficiently
- Operational Range: 10,280 mm max digging radius and 6,600 mm digging depth tackle most excavation requirements
- Fleet-Ready Specs: 390L fuel tank and water-cooled system minimize downtime between rotations
- Transport Dimensions: 9,680 mm × 2,980 mm × 3,440 mm for straightforward logistics
Built for contractors seeking reliable backup c
| Specifications | Value |
|---|---|
| No. | 1019372 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21900 |
| Bucket capacity (m³) | 1.1 (0.8~1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 580/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 390 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3445 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
