2018 Sany SY215C

1/4

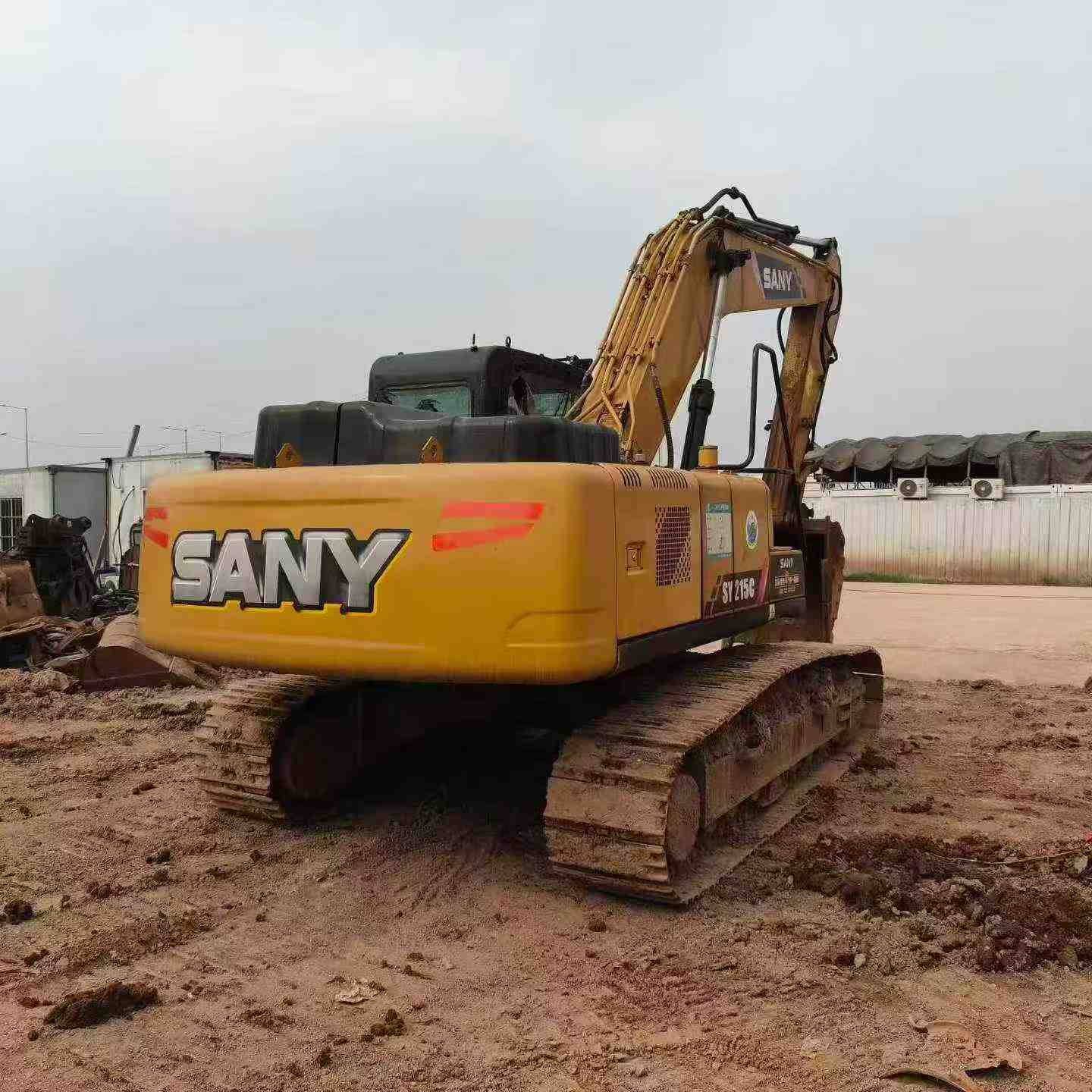

Buy Sany SY215C Used Excavator / 1

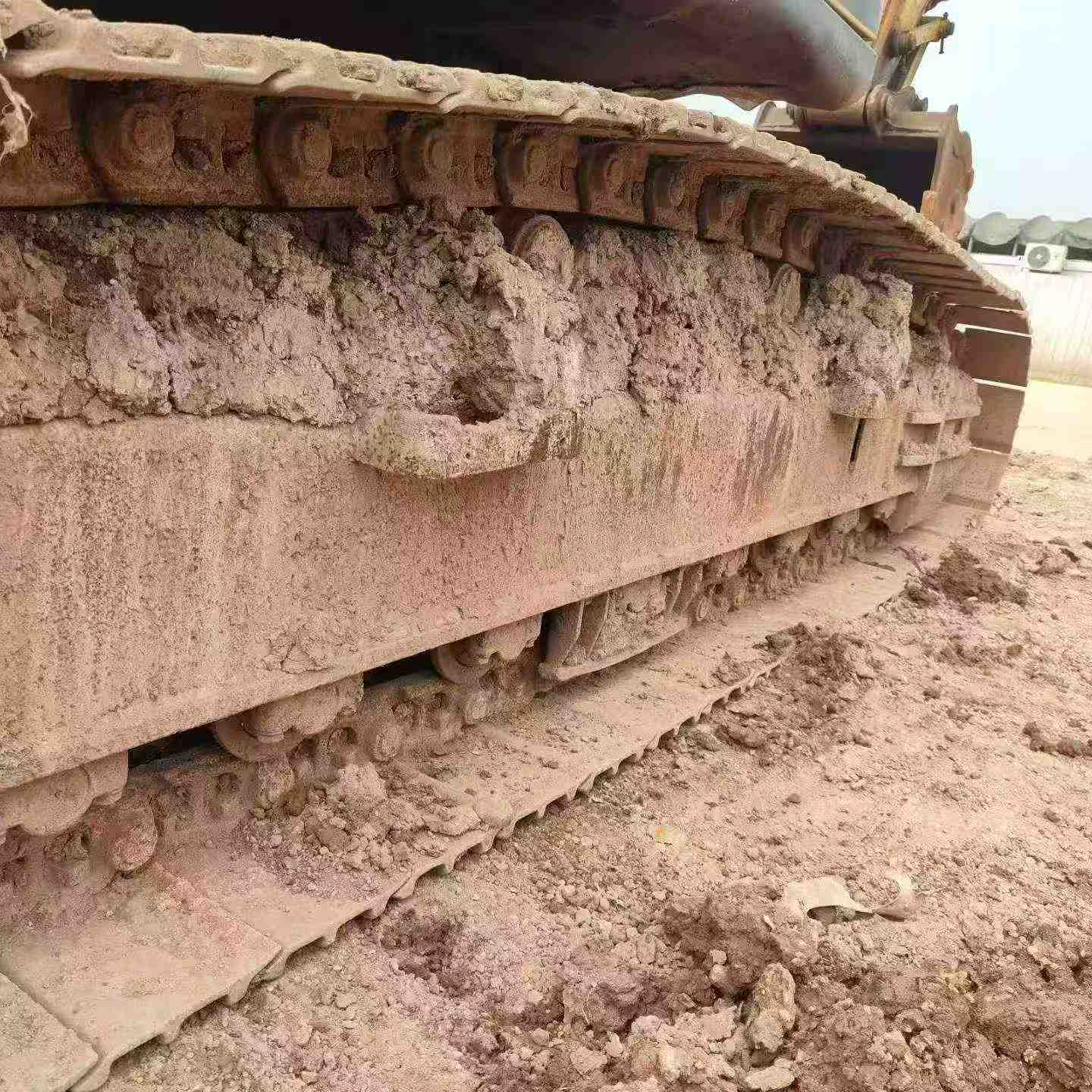

Buy Sany SY215C Used Excavator / 2

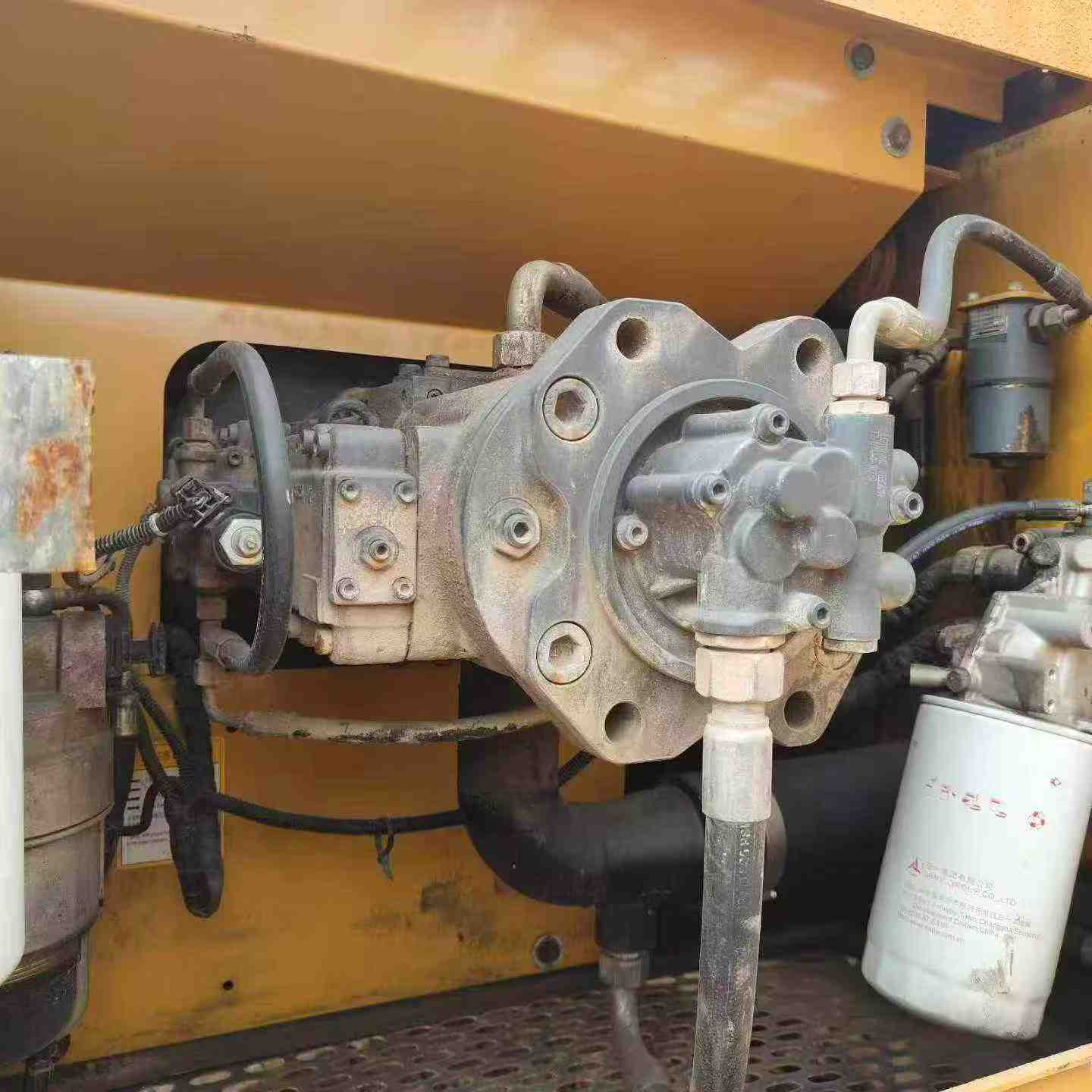

Buy Sany SY215C Used Excavator / 3

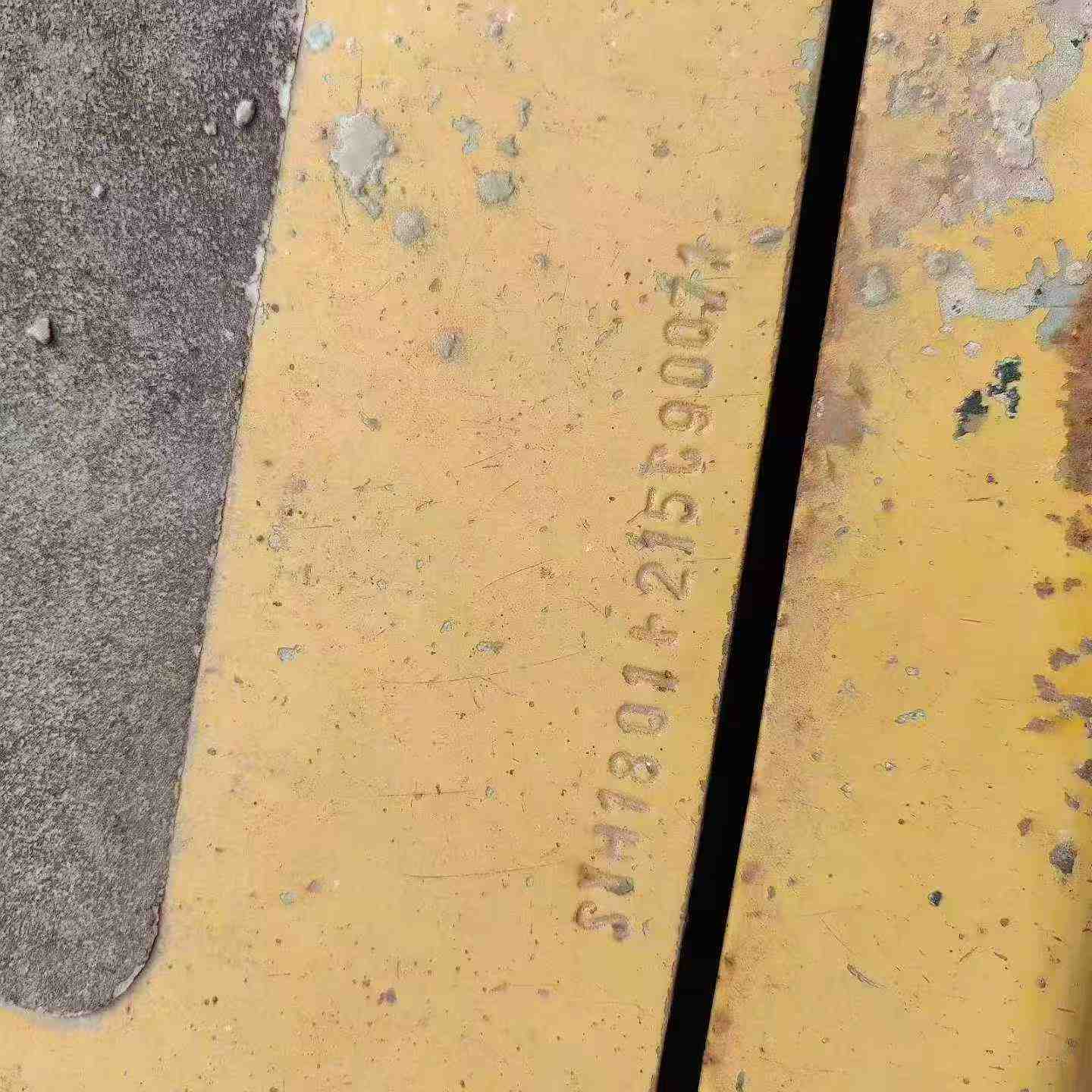

Buy Sany SY215C Used Excavator / 4

Product Description

Built for serious ground work, this 2018 Sany SY215C is a 21-ton hydraulic excavator sourced directly from Sichuan, China — inspected, available, and ready to move dirt from day one. Powered by a Mitsubishi 4M50 water-cooled diesel engine producing 118 kW at 2,000 rpm and 580 N·m of peak torque, it delivers consistent performance across digging, grading, trenching, and light demolition applications.

  • Bucket digging force: 138 kN — handles compacted soil and dense material without hesitation
  • Maximum digging depth: 6,600 mm — suited for utility trenching and foundation excavation
  • Maximum digging radius: 10,280 mm — wide reach for efficient material placement
  • Bucket capacity: 1.1 m³ (0.8–1.2 m³ range) — adaptable to varying load requirements
  • Travel speed: 5.4 / 3.3 km/h — stable movement across job site terrain
  • Climbing ability: 70% (35°) — capable on graded and uneven ground
  • Fuel tank: 390 L — extended run time between refuels on demanding shifts

At 21,900 kg operating weight with a ground pressure of just 47.4 kPa, this machine balances stability with surface protection. Transport dimensions of 9,680 × 2,980 × 3,440 mm keep logistics straightforward. A proven platform for contractors who need a mid-size excavator that performs without compromise.

SpecificationsValue
No.1058658
Tonnage (tons)21
Working weight (kg)21900
Bucket capacity (m³)1.1 (0.8~1.2)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeMitsubishi 4M50
Rated power (kw/rpm)118/2000
Cooling modewater-cooling
Maximum torque (N.m)580/1600
Number of cylinders (PCS)4
Displacement (L)4.9
Ground specific pressure (Kpa)47.4
Rotation speed (rpm)11
Climbing ability (%)70% (35°)
Bucket digging force (kN)138
Rod digging force (kN)103
Travel speed (km/h)5.4/3.3
Fuel Tank (L)390
Hydraulic Tank (L)239
Engine Oil changes (L)22
Total transport length (mm)9680
Total transport width (mm)2980
Total transport height (mm)3440
Full cab height (mm)3075
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)3730
Back end turning radius (mm)2900
Onboard width (mm)2875
Total track length (mm)4250
Track gauge (mm)2380
Track plate width (mm)600
Track ground length (mm)3445
Maximum height at minimum turning radius (mm)7680
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)8
Number of track plates (single side) (PCS)47
Maximum digging radius (mm)10280
Maximum digging depth (mm)6600
Maximum excavation height (mm)9600
Maximum unloading height (mm)6730
see more

Overview

No.1058658

Brand Name:

Sany

Model Number:

SY215C

Year:

2018

Location:

Sichuan China
