Product Description

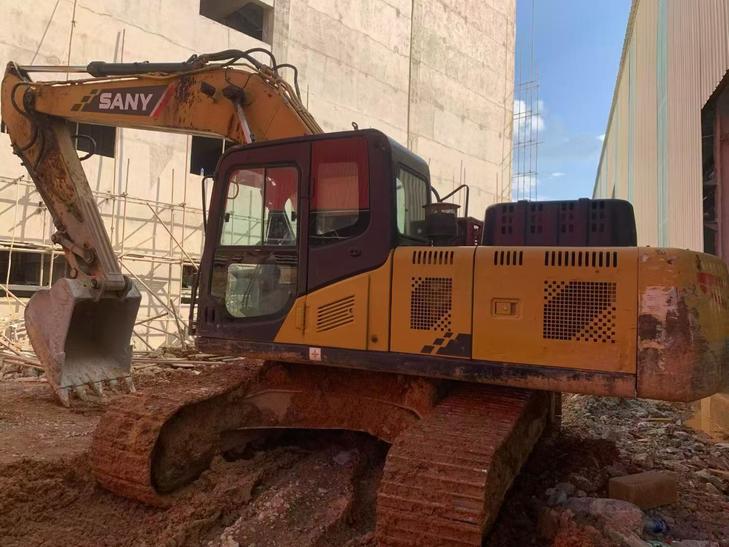

This 2018 Sany SY215C excavator represents a well-maintained mid-sized crawler unit currently located in Yunnan, China. With approximately six years of service, this machine offers proven reliability from one of Asia's leading heavy equipment manufacturers. The SY215C is designed for versatility across construction, earthmoving, and infrastructure projects, delivering consistent performance in demanding applications.
- Year of Manufacture: 2018
- Model: Sany SY215C
- Machine Type: Hydraulic Crawler Excavator
- Operating Weight Class: 21-22 metric tons
- Current Location: Yunnan Province, China
- Condition: Well-maintained with documented service history
This unit is available for immediate inspection and purchase. Suitable for contractors and fleet operators seeking dependable mid-range excavation capacity. Export arrangements and technical documentation can be facilitated upon request.
| Specifications | Value |
|---|---|
| No. | 1173025 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21900 |
| Bucket capacity (m³) | 1.1 (0.8~1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 580/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 390 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3445 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
