Product Description

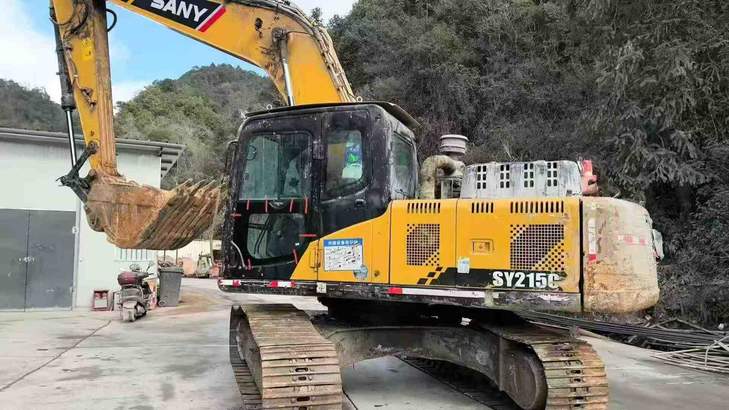

Proven performance defines this 2019 Sany SY215C excavator, currently located in Luzhou, Sichuan. Operating at 21 tons with a robust Mitsubishi 4M50 engine delivering 118kW at 2000rpm, this mid-sized workhorse has demonstrated exceptional reliability since its manufacture. The water-cooled 4.9L displacement engine generates 580 N.m of maximum torque, providing consistent power for demanding excavation work across varied terrain.
Built for longevity, this machine features impressive digging capabilities with 138kN bucket force and 103kN arm force, reaching a maximum depth of 6,600mm and radius of 10,280mm. The 1.1m³ backhoe bucket (adjustable 0.8-1.2m³) handles substantial material volumes efficiently. With a 70% climbing ability and 440mm ground clearance, this excavator tackles challenging jobsites with confidence. The spacious 390L fuel tank and 239L hydraulic reservoir minimize downtime, while the 2,980mm transport width ensures practical mobility between locations.
After years in operation, this Sany SY215C continues to deliver the durability Chinese manufacturing is known for—a genuine workhorse ready for your next project.
| Specifications | Value |
|---|---|
| No. | 1019448 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21900 |
| Bucket capacity (m³) | 1.1 (0.8~1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 580/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 390 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3445 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
