Product Description

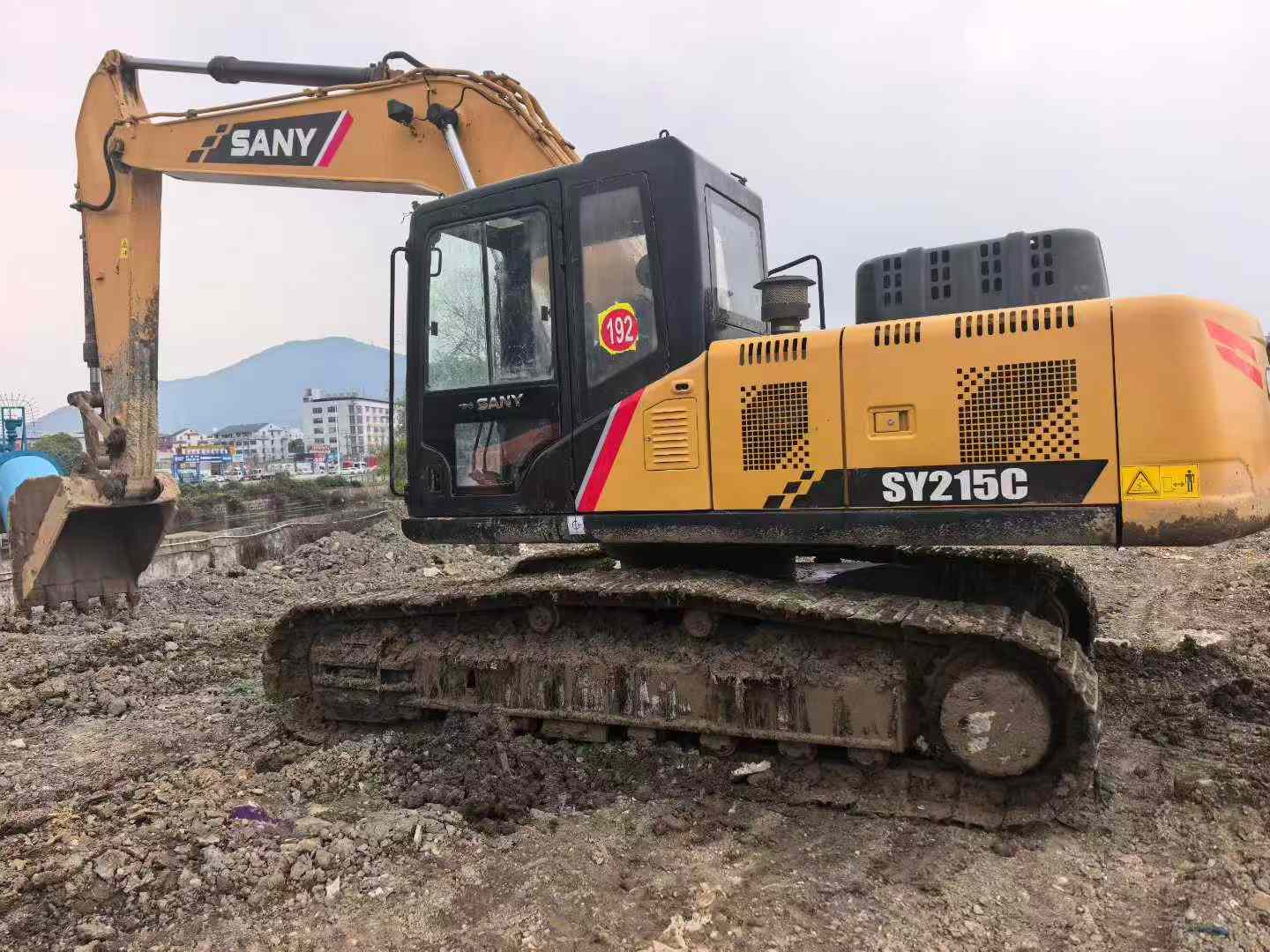

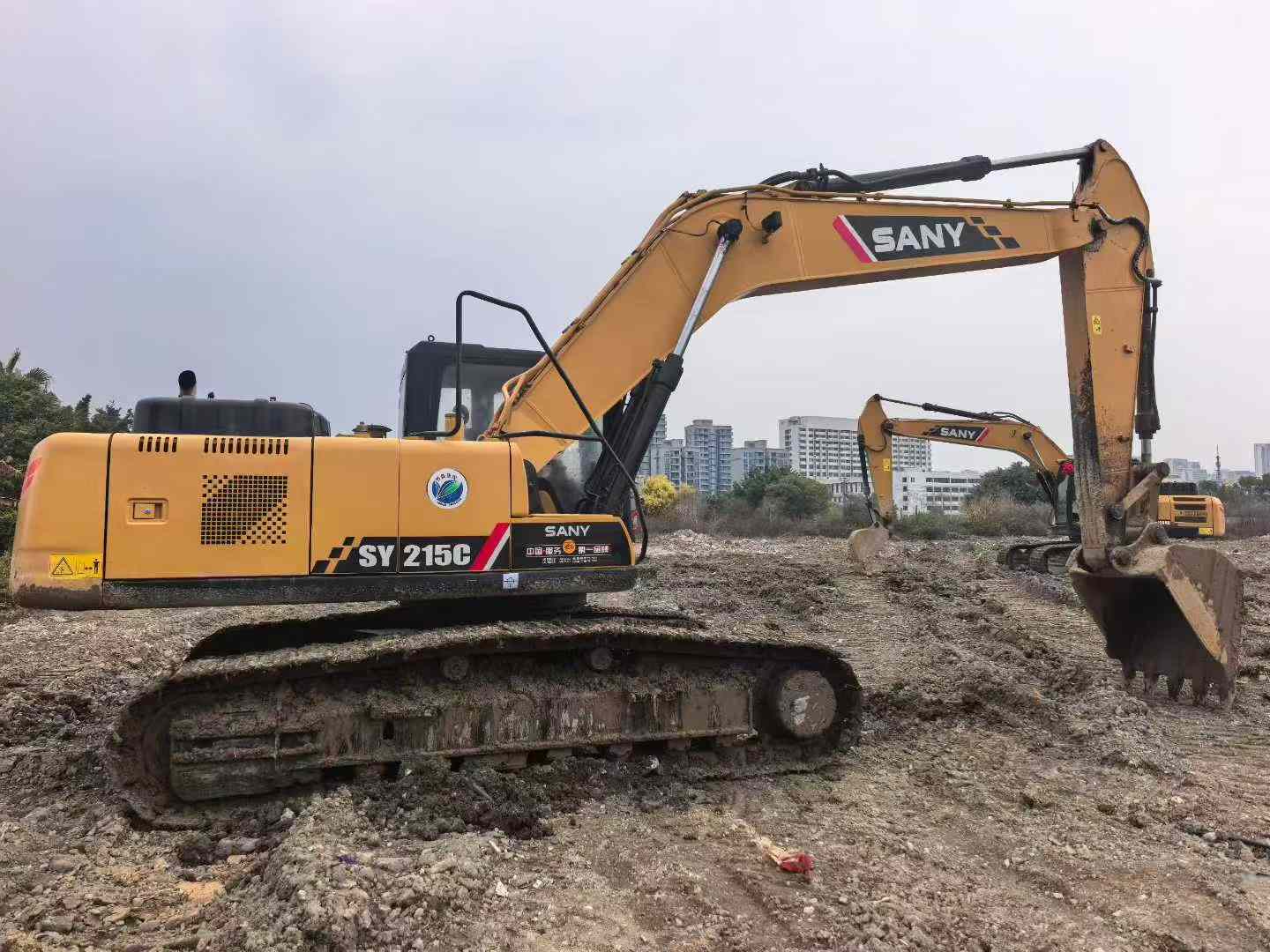

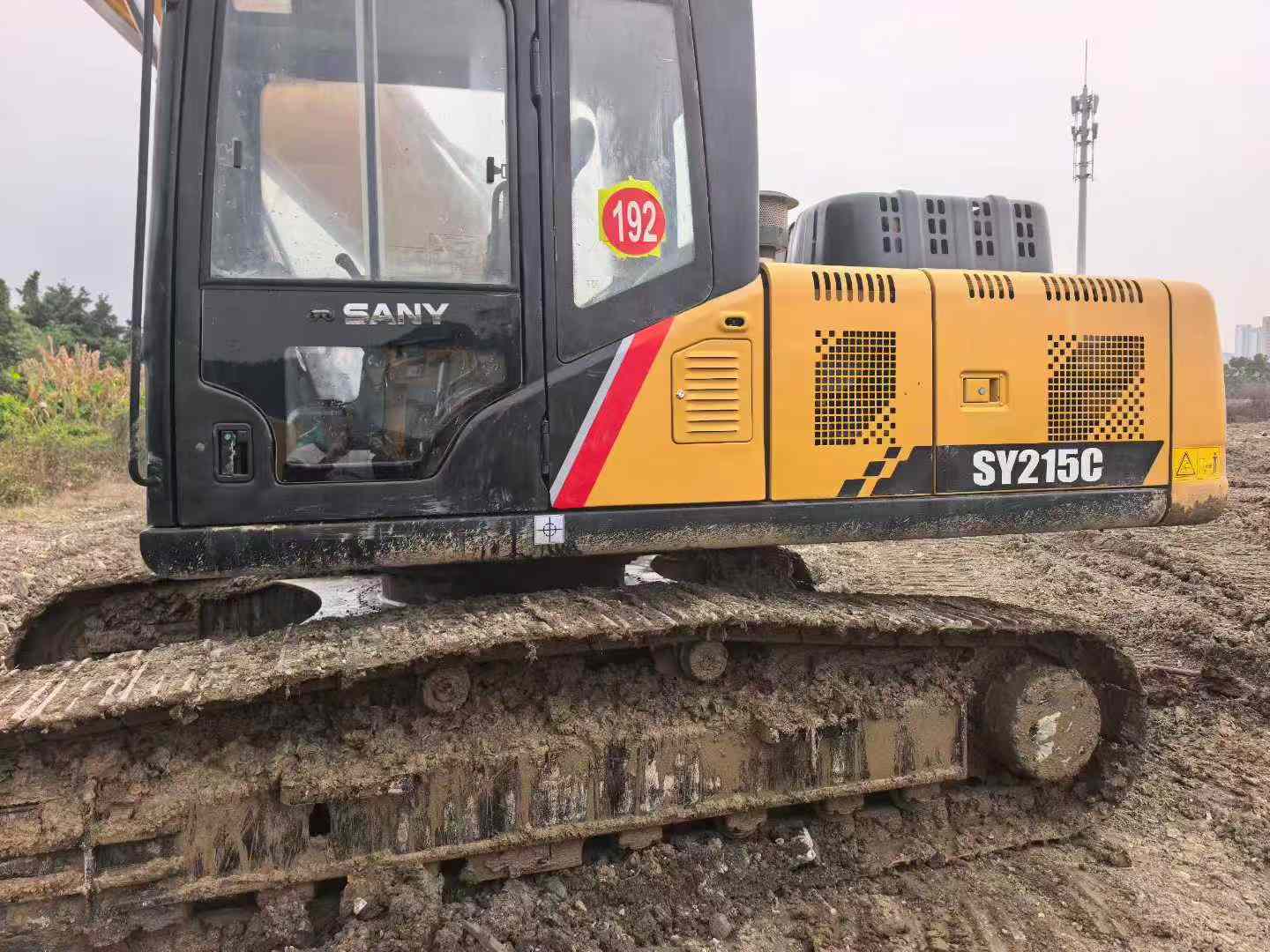

Engineered with a Mitsubishi 4M50 engine delivering 118 kW at 2000 rpm and 580 N·m maximum torque, this 2019 Sany SY215C excavator represents robust hydraulic performance for demanding construction and excavation projects. Operating at 21 tons working weight with a 1.1 m³ bucket capacity, the machine combines substantial digging force—138 kN bucket force and 103 kN arm force—with a maximum digging reach of 10,280 mm and depth of 6,600 mm.

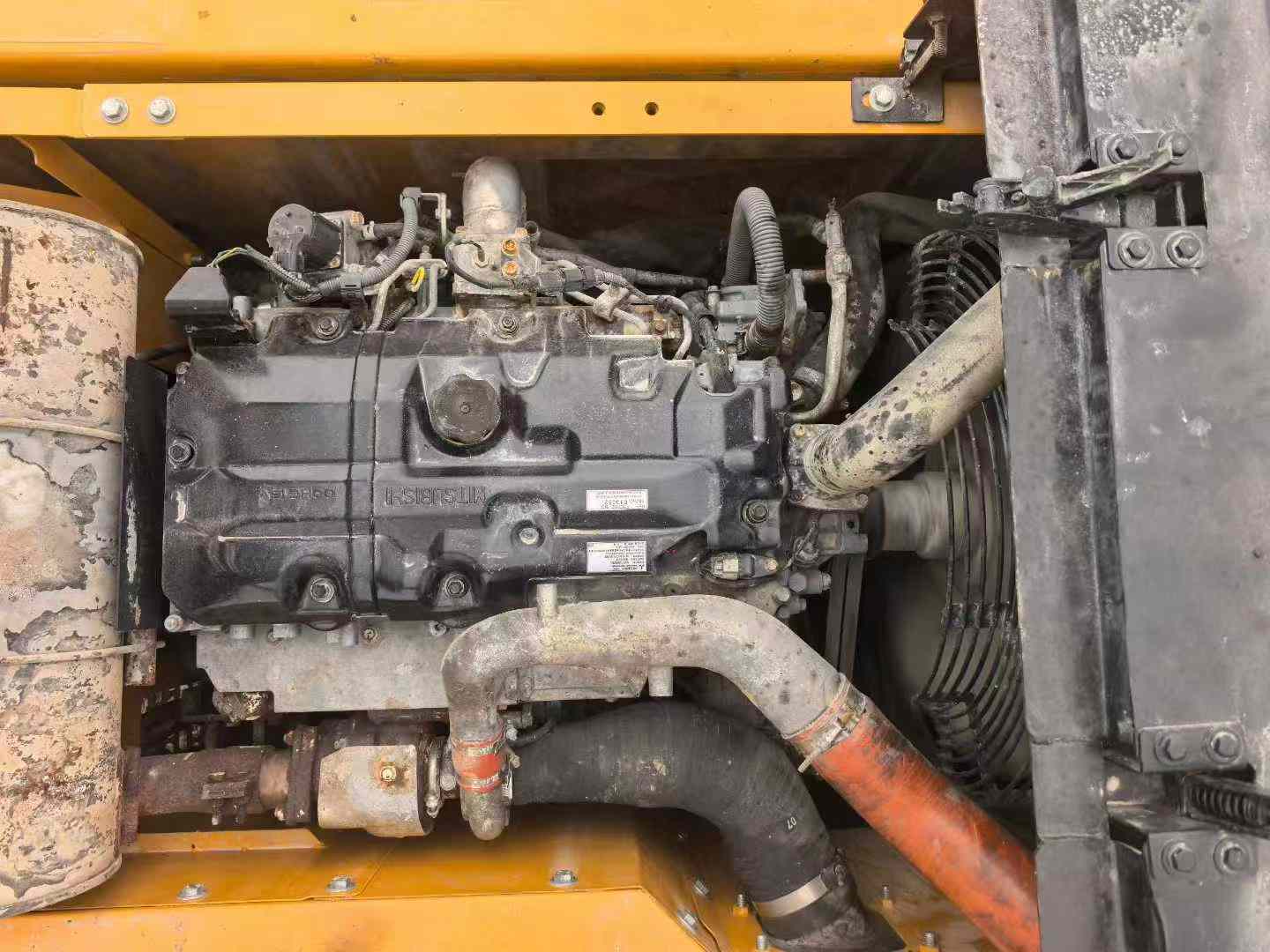

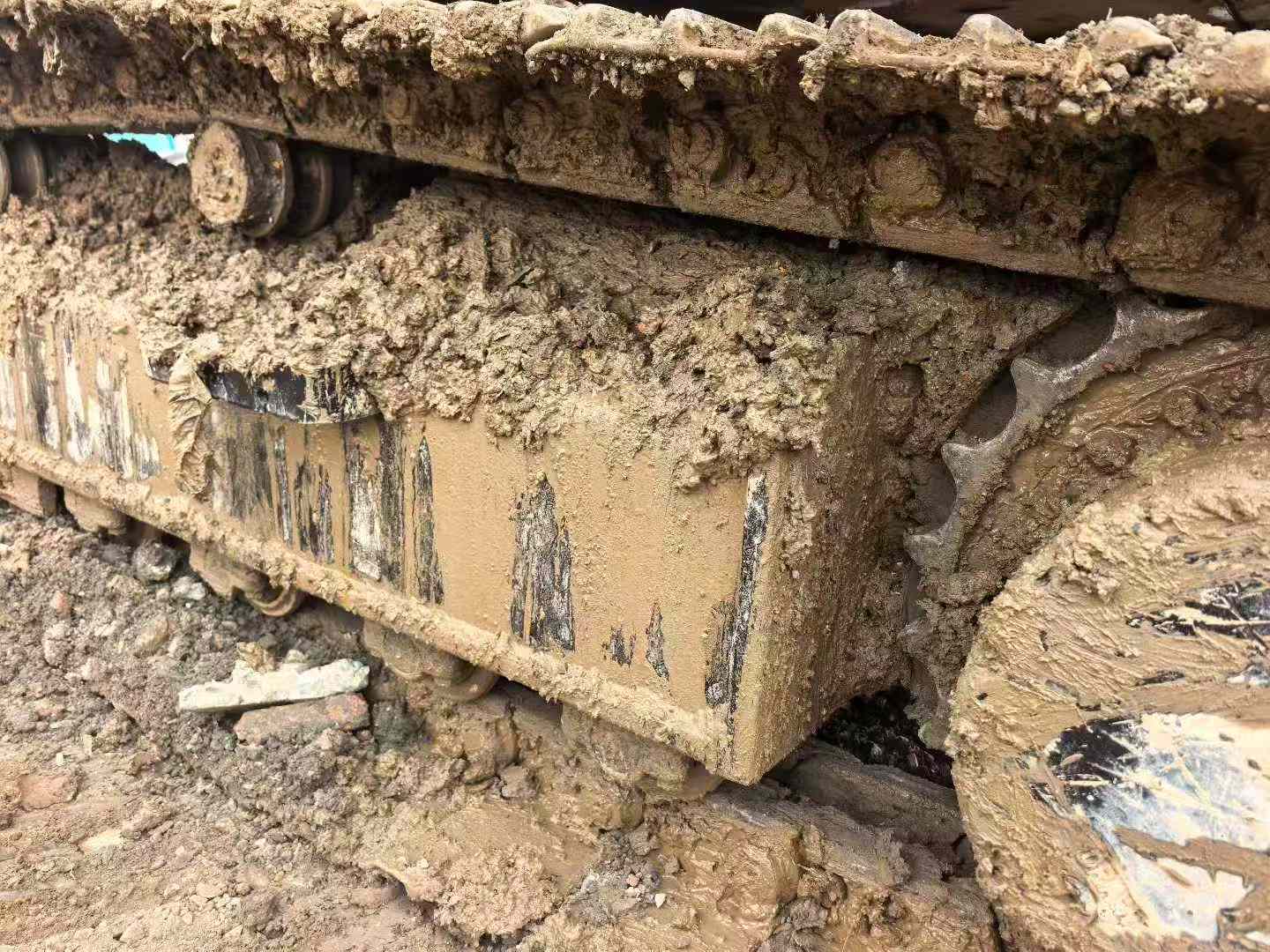

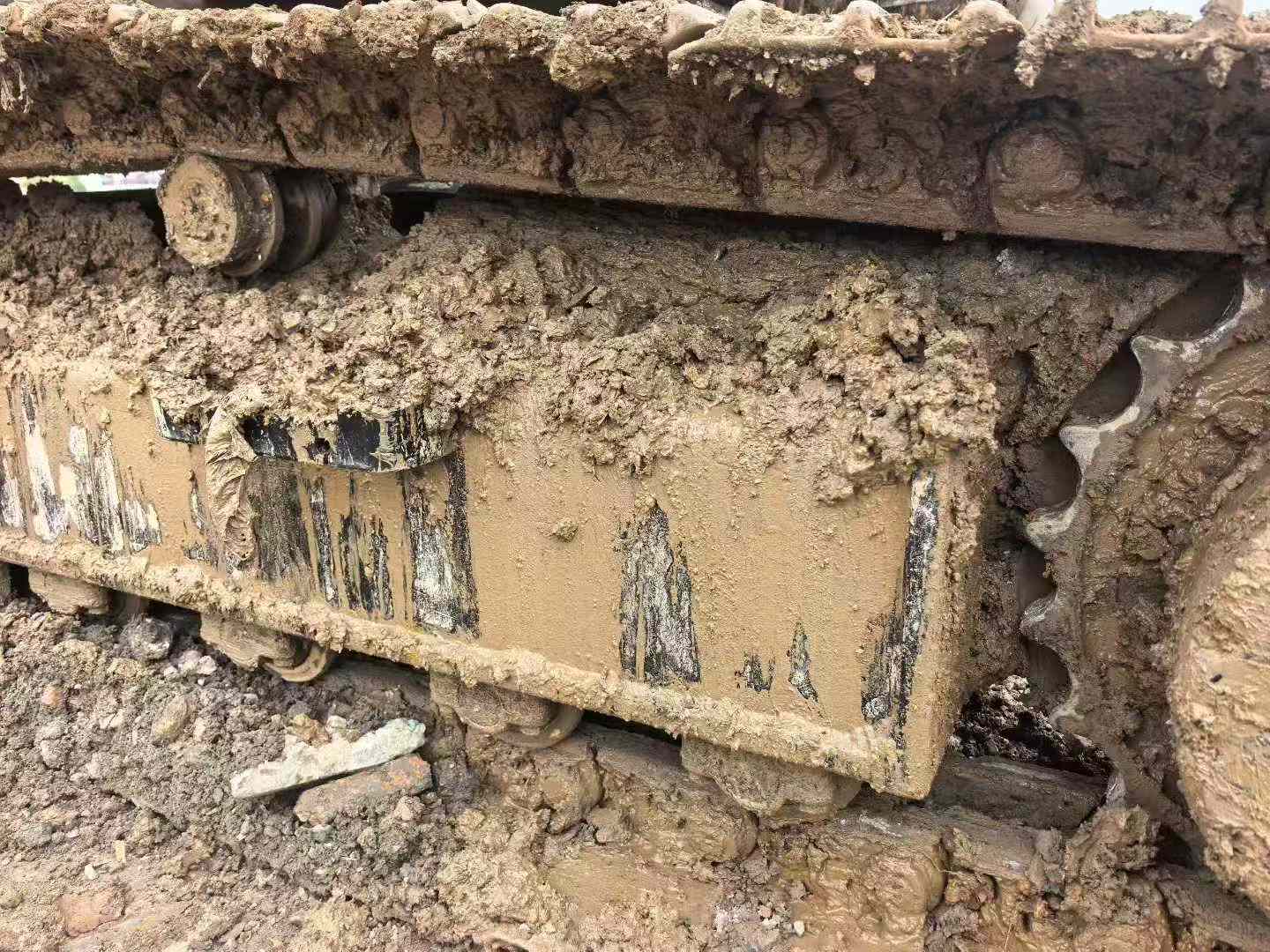

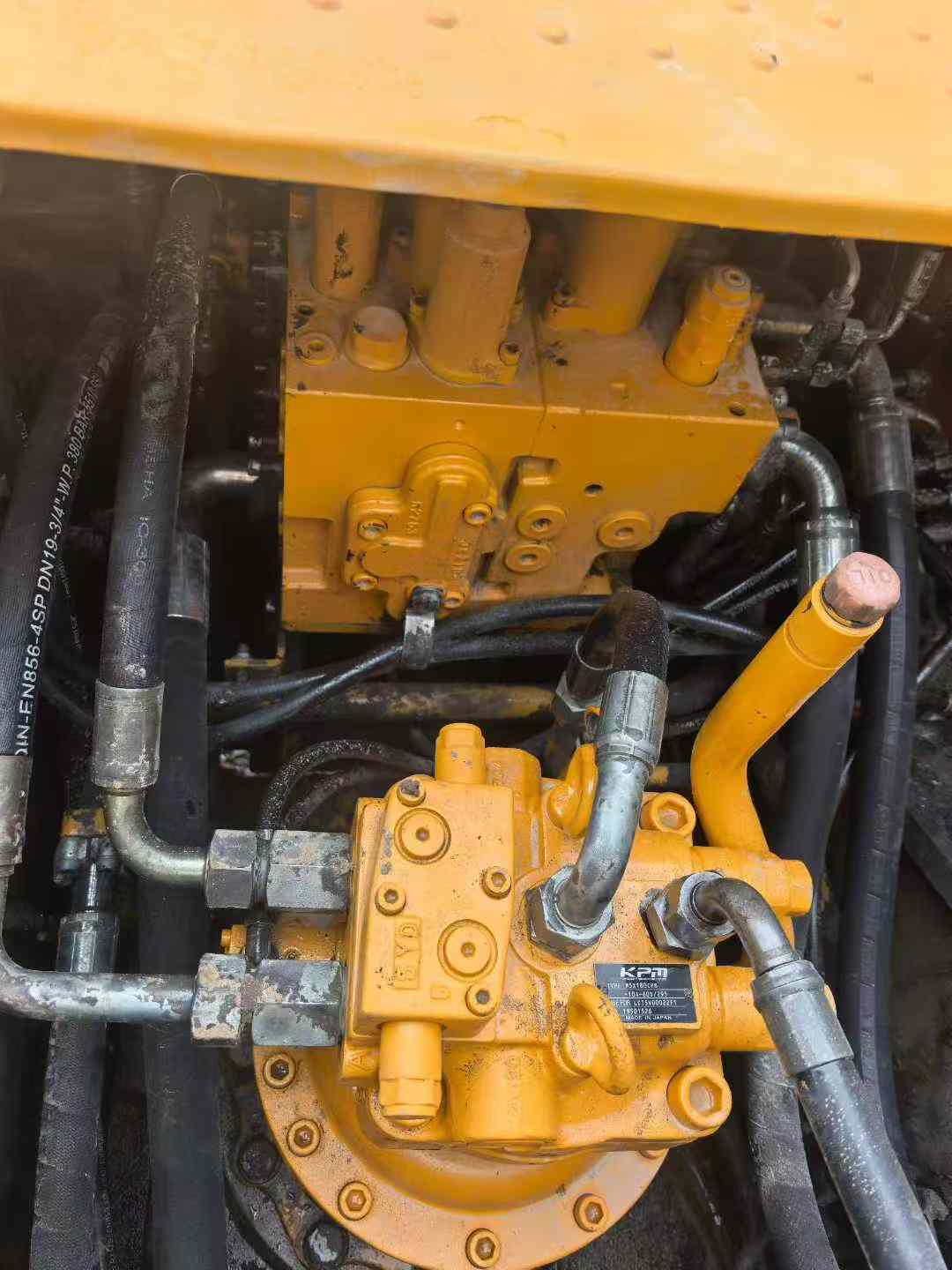

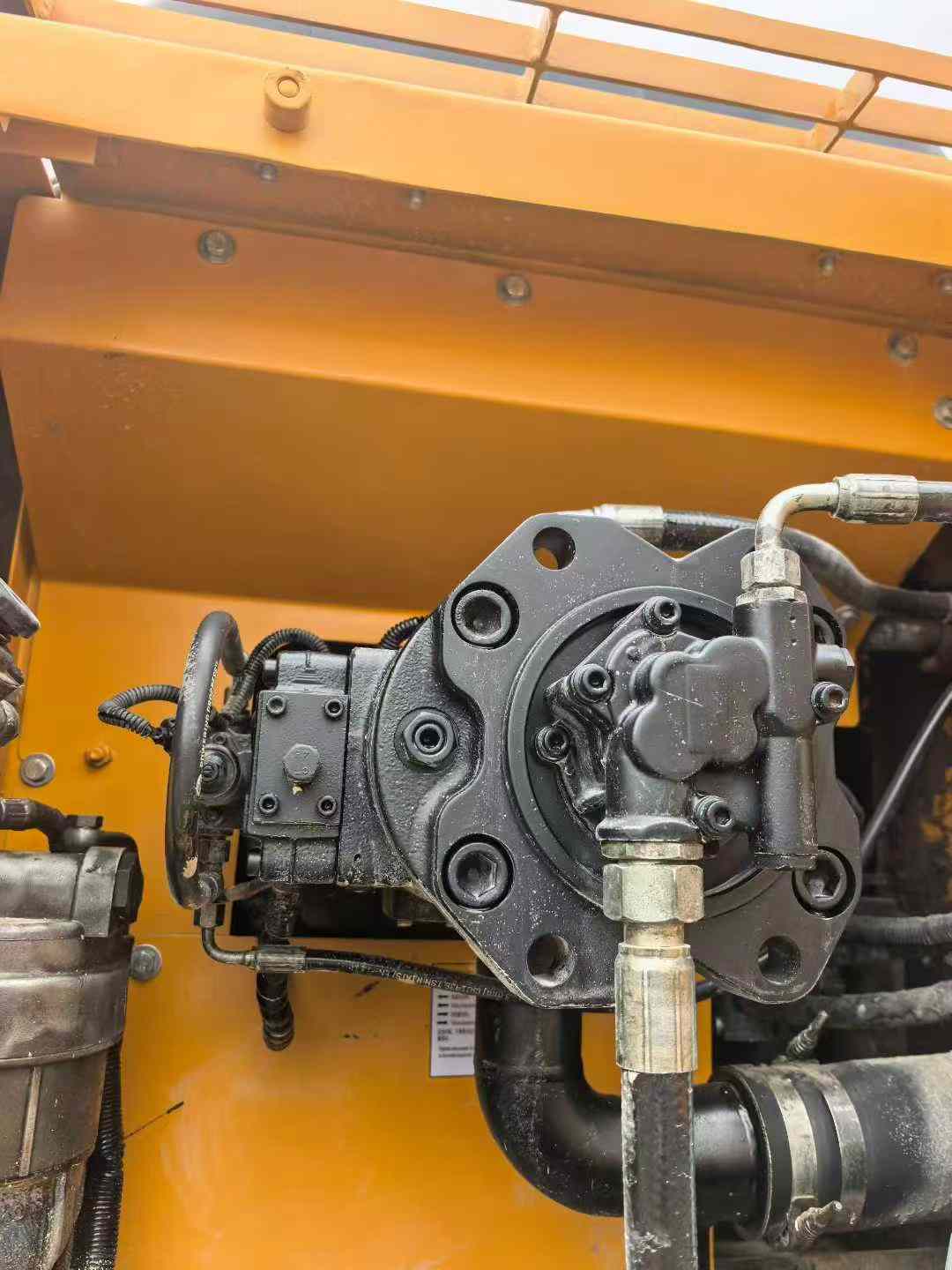

Built on Sany's proven mid-size platform, the SY215C features water-cooled efficiency through its 4.9L displacement engine, paired with a 390L fuel tank for extended operation cycles. The undercarriage spans 4,250 mm track length with 600 mm plates, distributing ground pressure to just 47.4 kPa while maintaining 70% gradeability. Hydraulic system capacity of 239L supports responsive control across all functions.
Currently located in Zhejiang, China, this unit offers:
- Maximum digging height: 9,600 mm with 6,730 mm unloading clearance
- Compact transport dimensions: 9,680 × 2,980 × 3,440 mm
- 11 rpm rotation speed with 2,900 mm rear turning radius
- Dual-speed travel: 5.4/3.3 km/h for site mobility
| Specifications | Value |
|---|---|
| No. | 1026824 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21900 |
| Bucket capacity (m³) | 1.1 (0.8~1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 580/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 390 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3445 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
