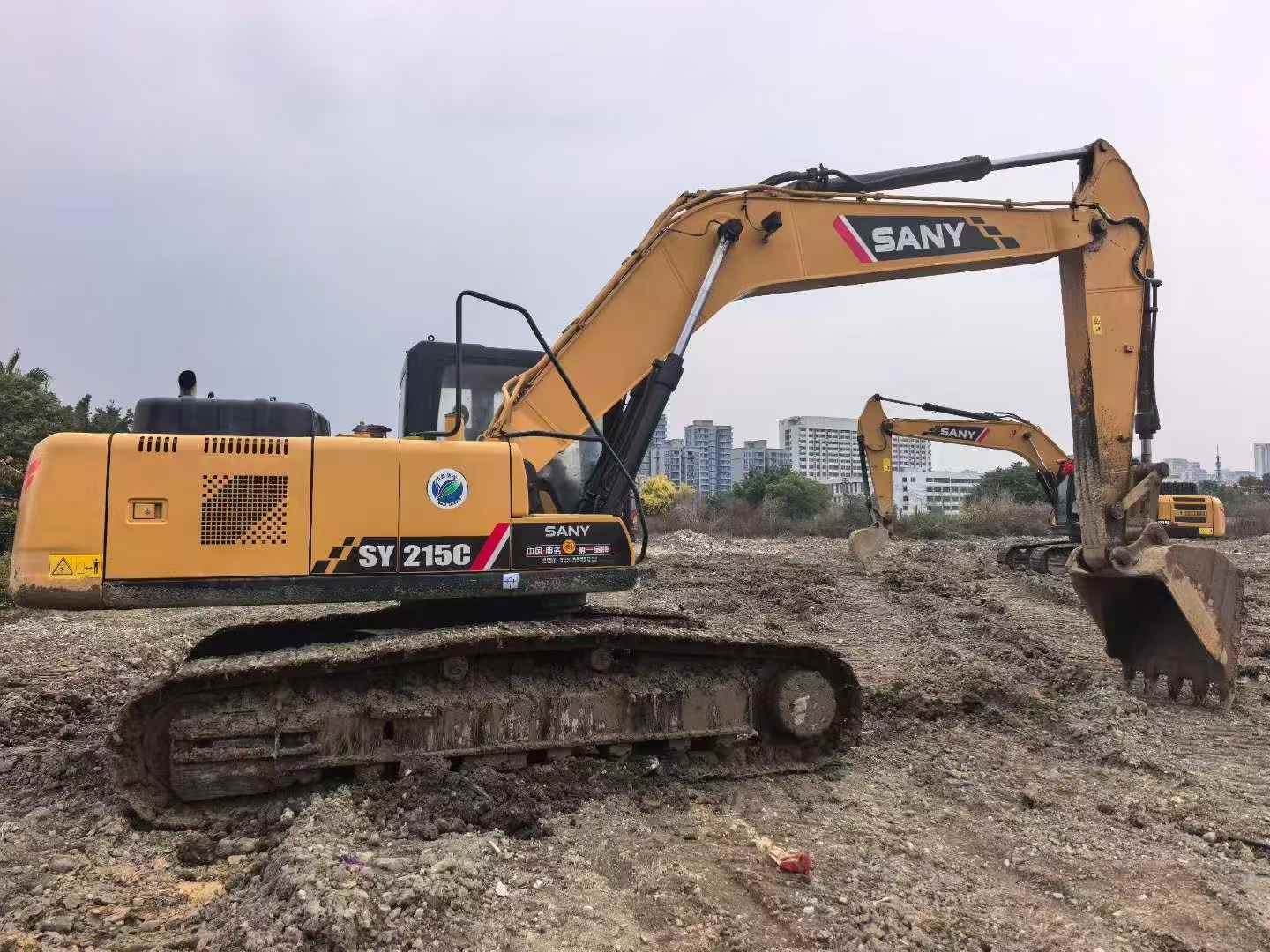

2019 Sany SY215C

1/9
Buy Sany SY215C Used Excavator / 1

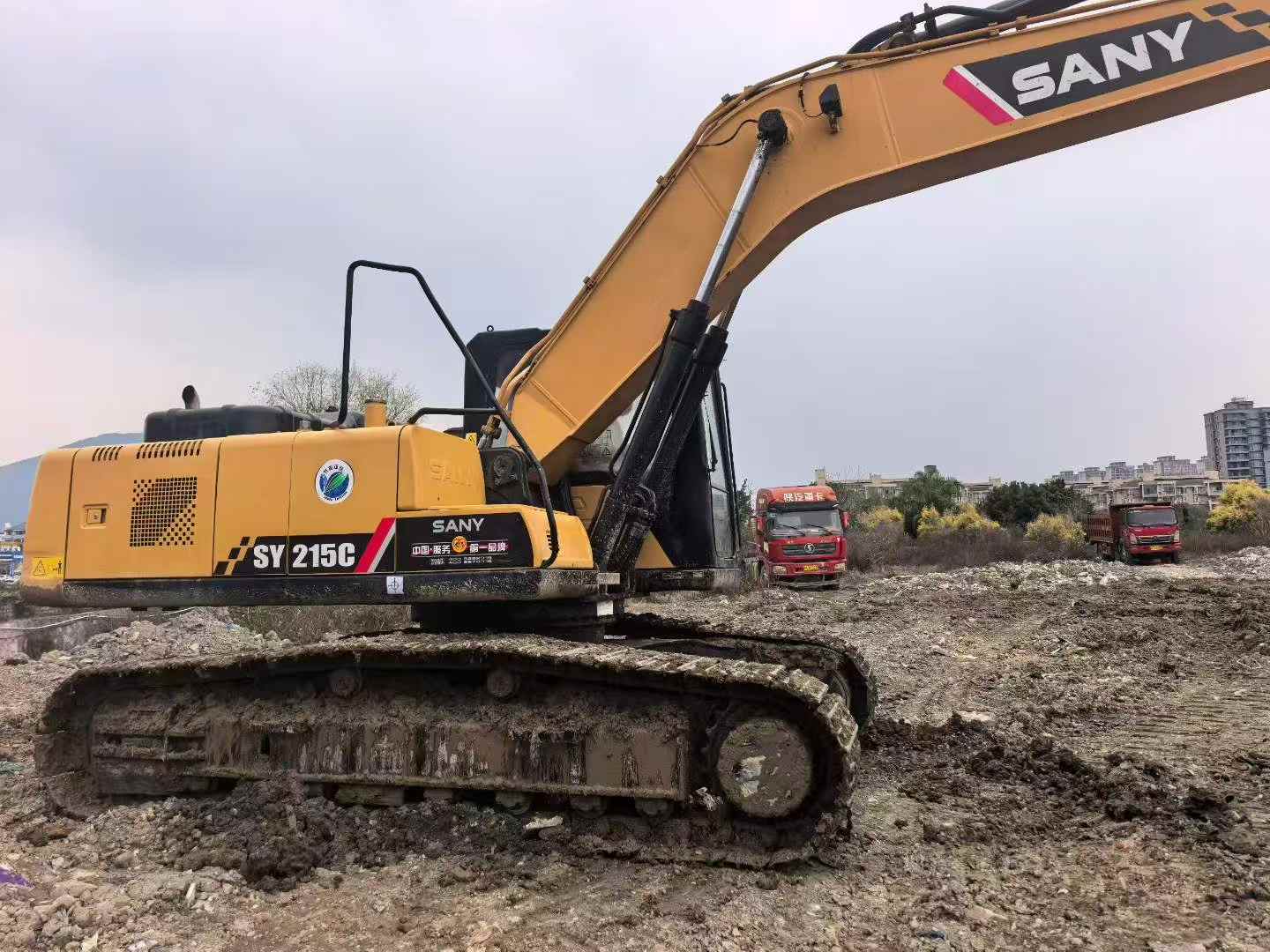

Buy Sany SY215C Used Excavator / 2

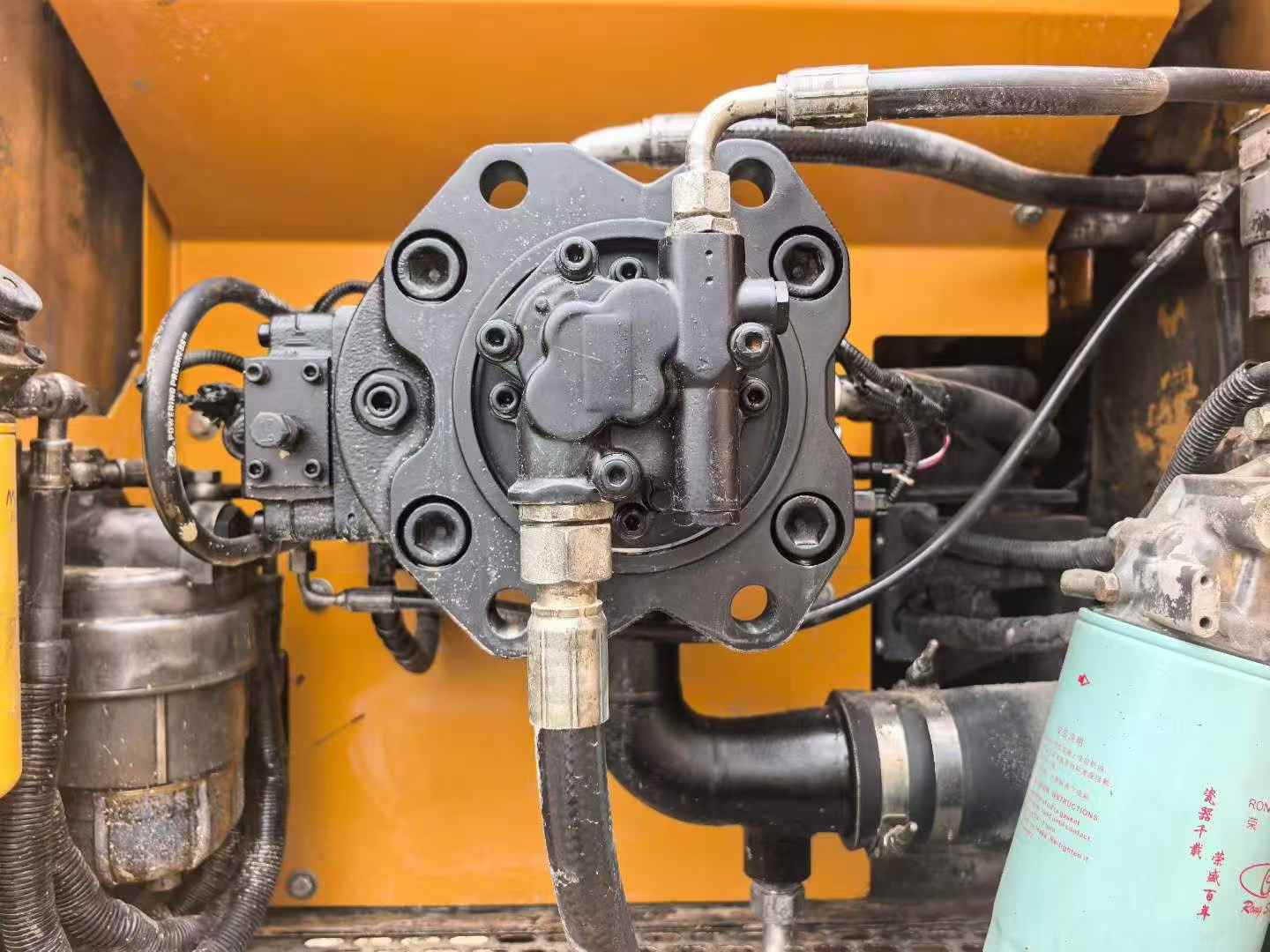

Buy Sany SY215C Used Excavator / 3

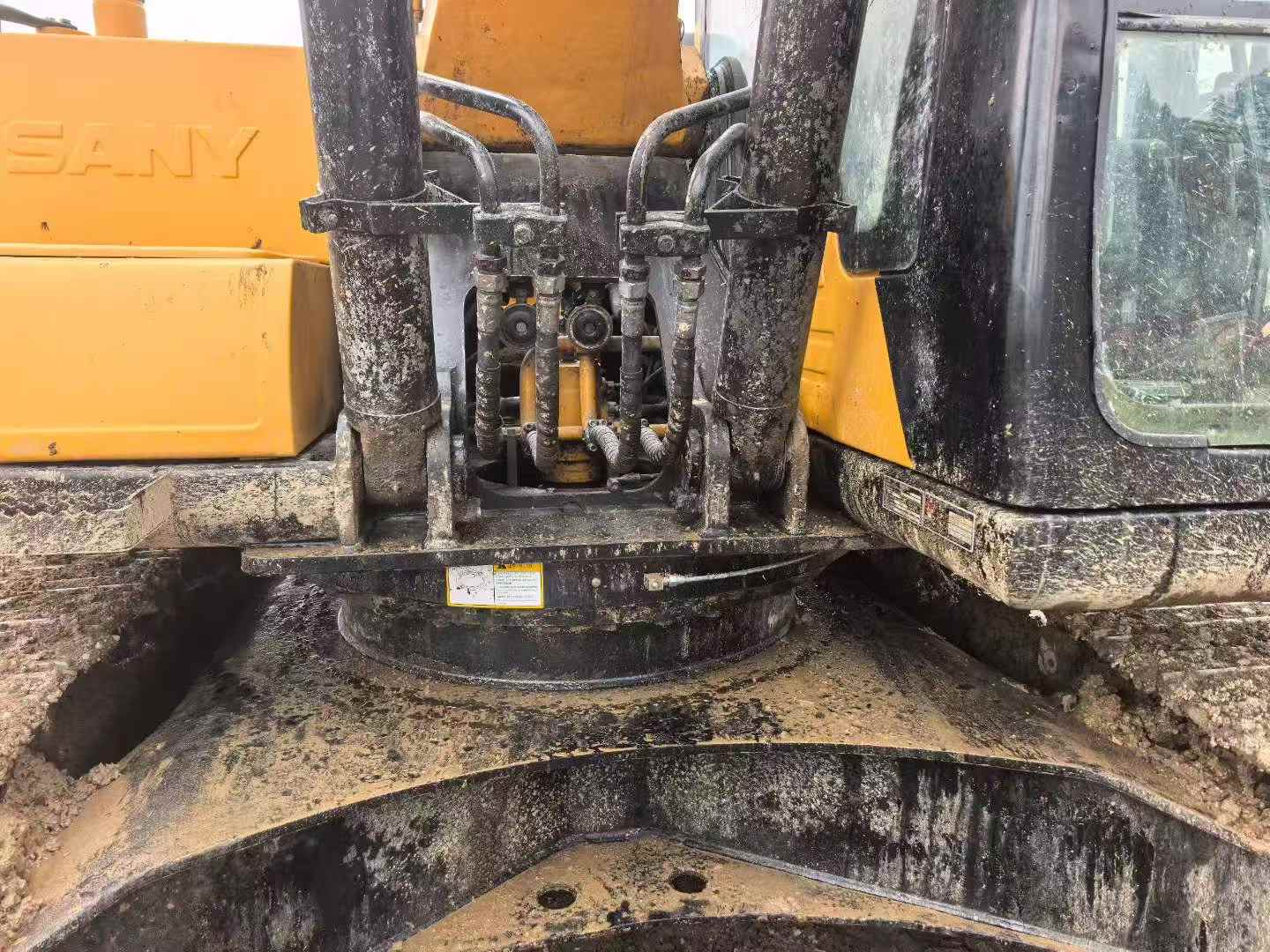

Buy Sany SY215C Used Excavator / 4

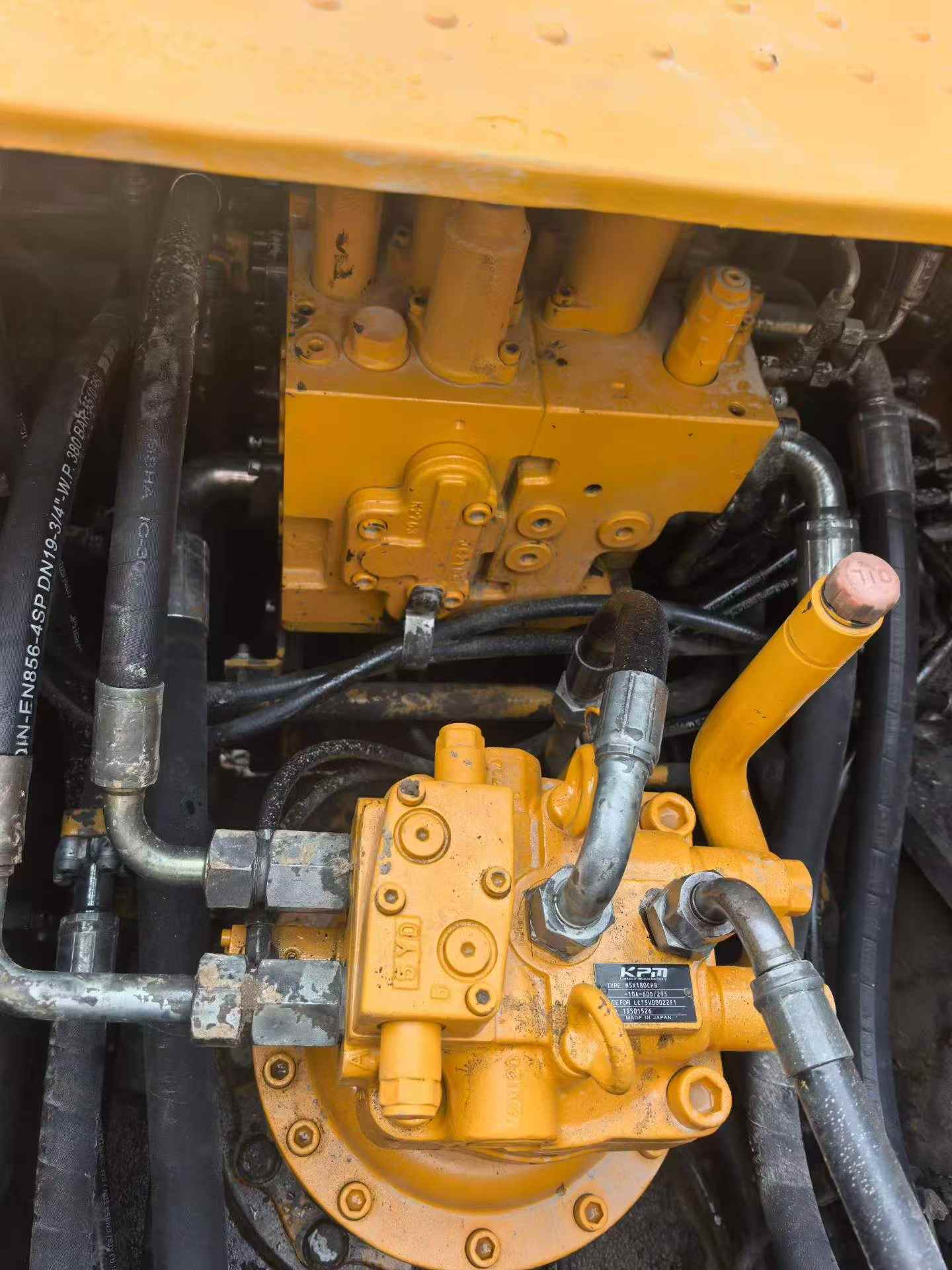

Buy Sany SY215C Used Excavator / 5

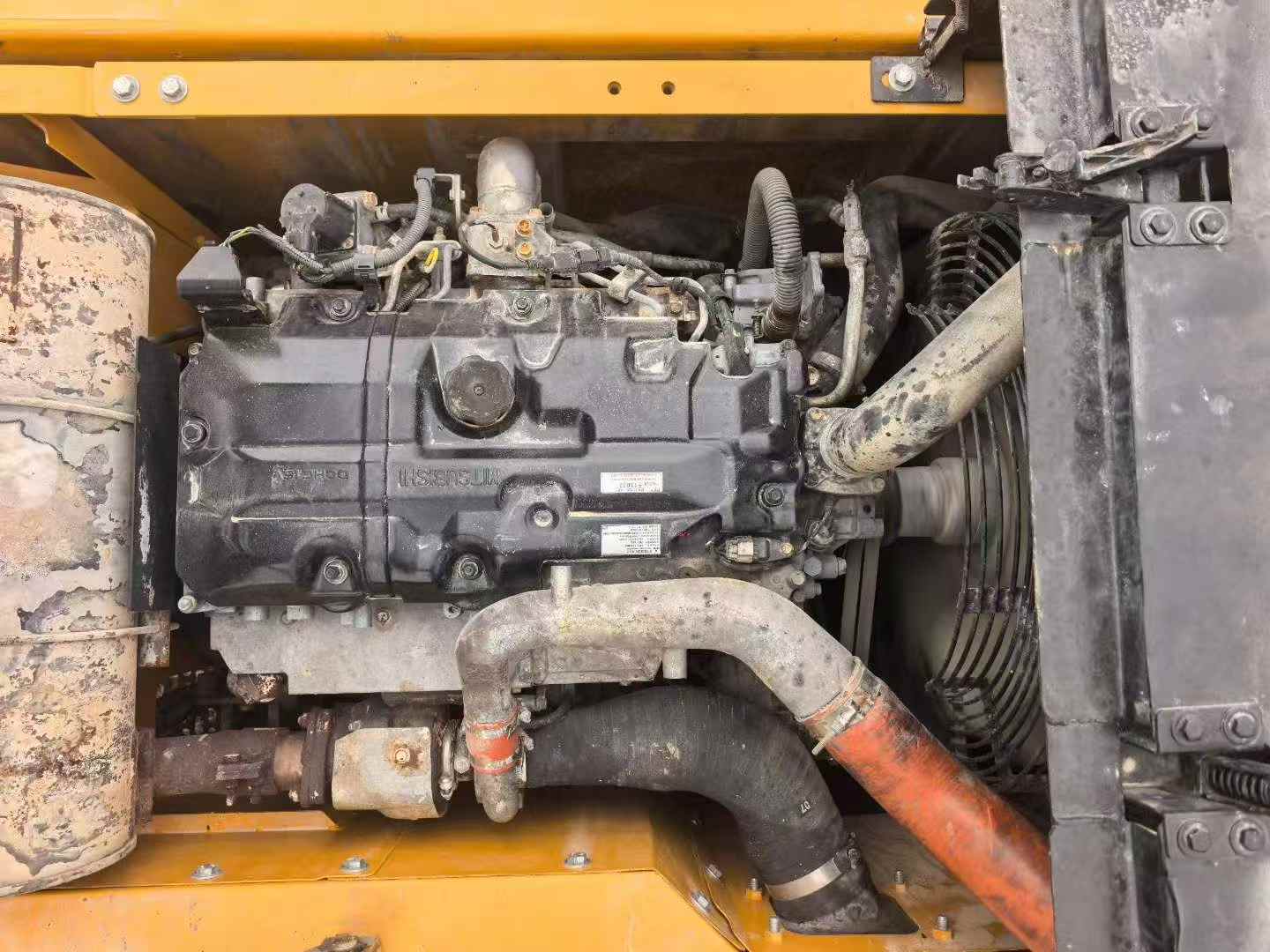

Buy Sany SY215C Used Excavator / 6

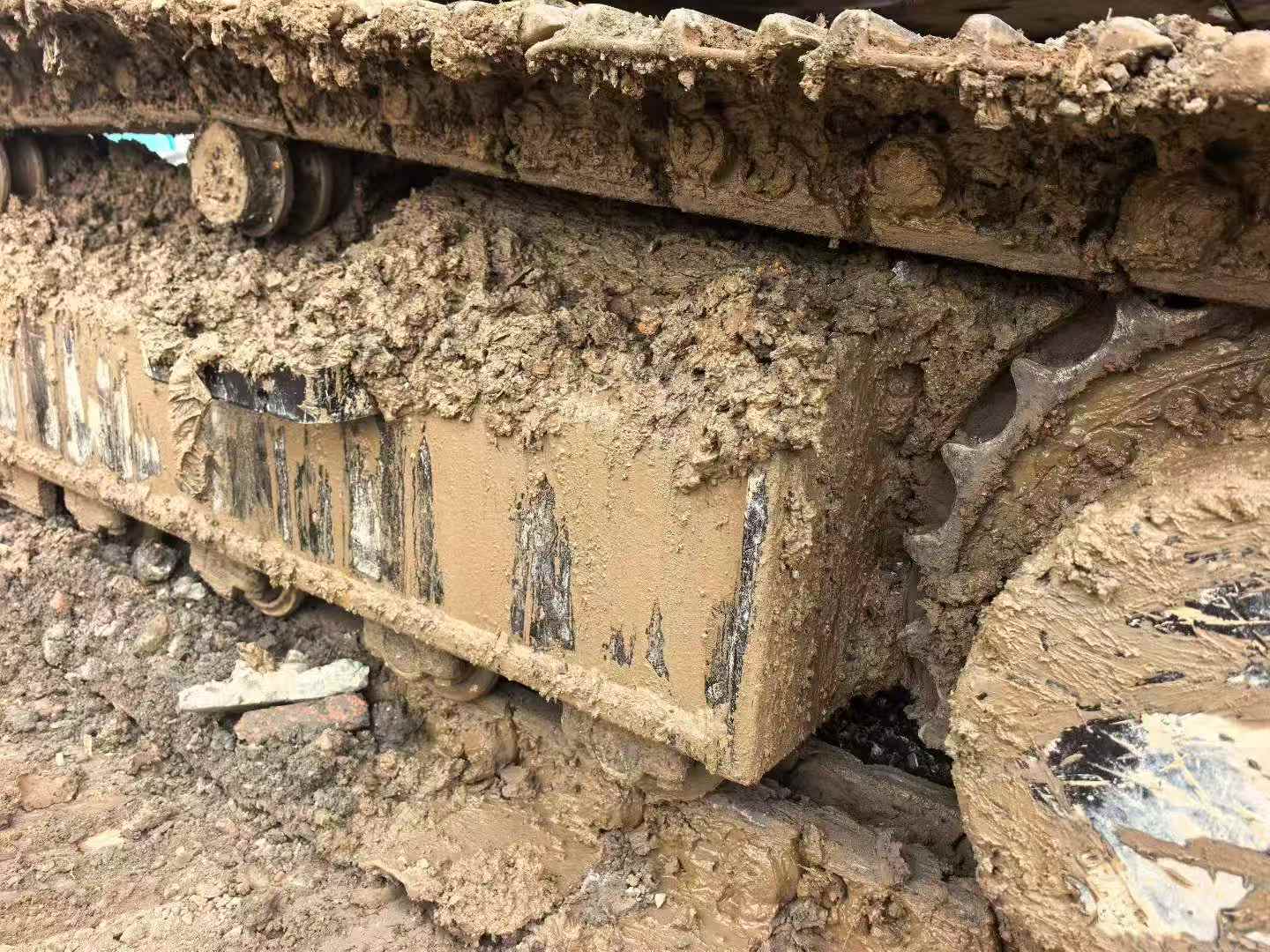

Buy Sany SY215C Used Excavator / 7

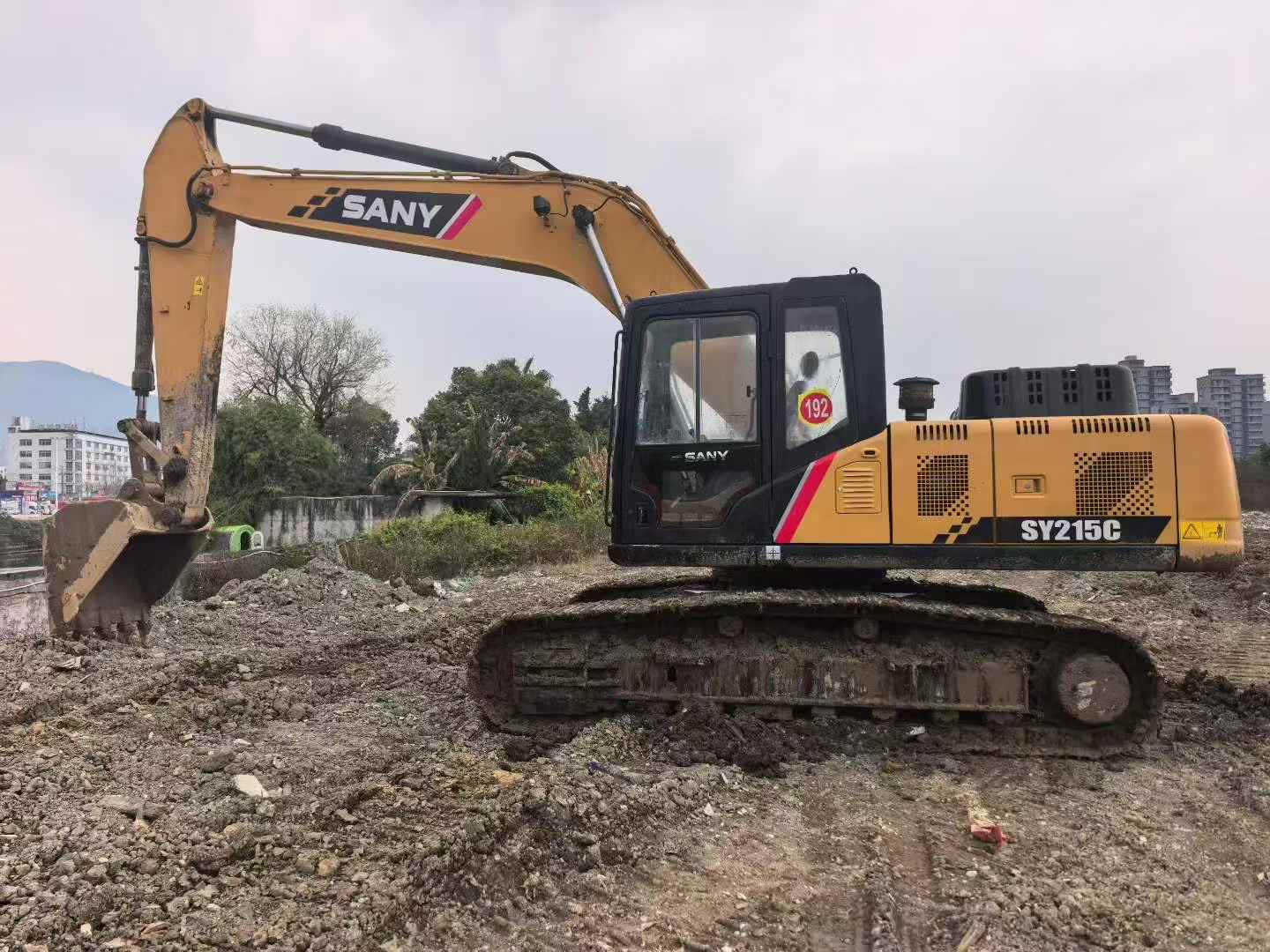

Buy Sany SY215C Used Excavator / 8

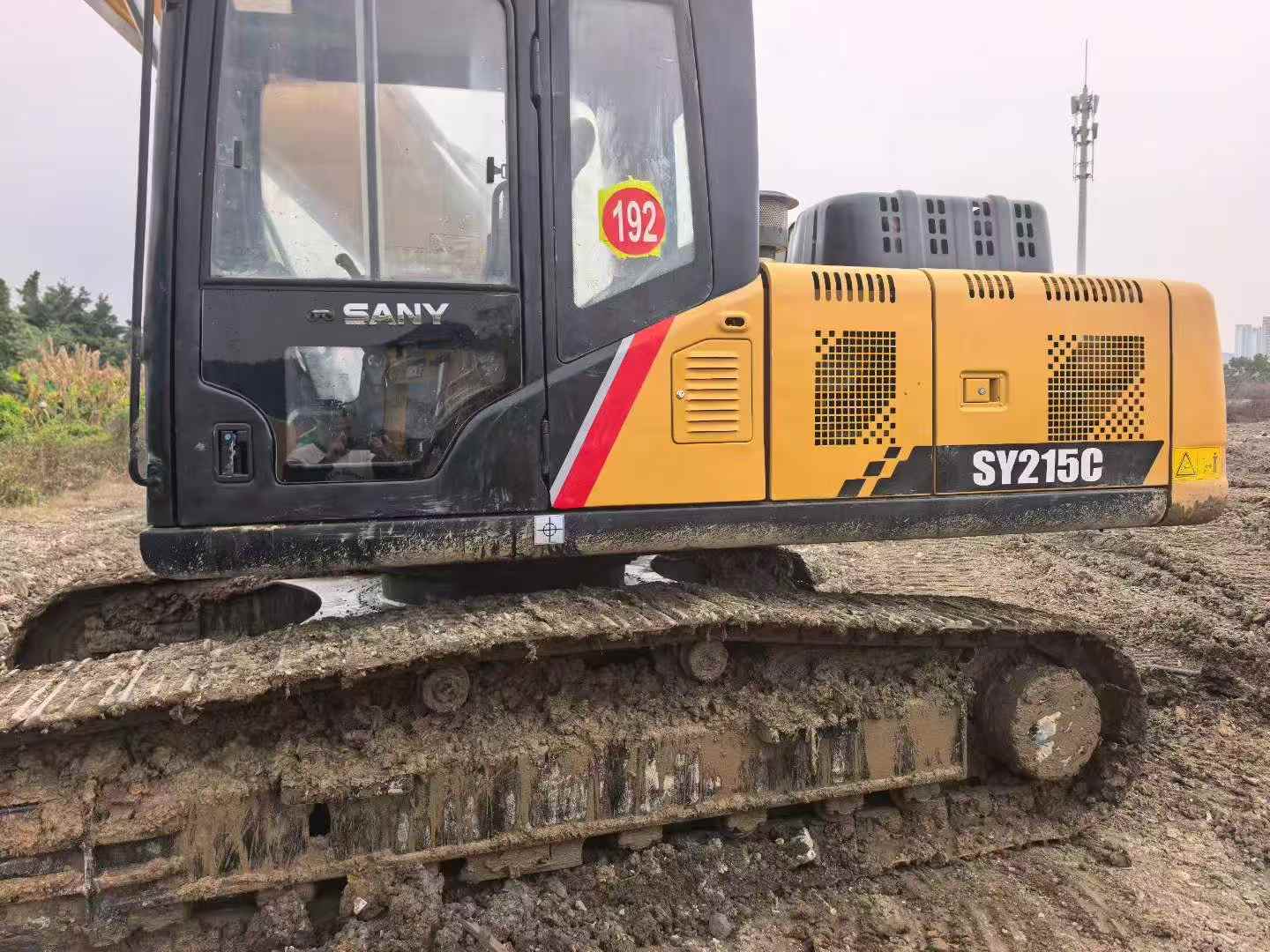

Buy Sany SY215C Used Excavator / 9

Product Description

Positioned in Zhejiang China and available now, this 2019 Sany SY215C crawler excavator eliminates factory lead times and enables fast deployment directly to your site. Built around a proven Mitsubishi 4M50 engine delivering 118 kW at 2000 rpm, this 21-ton machine combines reliability with immediate availability for contractors demanding rapid mobilization.

  • Engine: Mitsubishi 4M50, 118 kW @ 2000 rpm, water-cooled, 4.9L displacement
  • Operating Weight: 21,900 kg with 1.1 m³ backhoe bucket (range: 0.8–1.2 m³)
  • Performance: 10,280 mm max dig reach, 6,600 mm dig depth, 138 kN bucket force
  • Mobility: 5.4 km/h travel speed, 70% grading capability, 2,900 mm rear swing radius
  • Capacity: 390L fuel tank, 239L hydraulic reservoir for extended shifts
  • Location: Zhejiang China — ready for immediate shipment

Skip the wait. Secure proven mid-size excavation capacity with logistics already in your favor.

SpecificationsValue
No.1097419
Tonnage (tons)21
Working weight (kg)21900
Bucket capacity (m³)1.1 (0.8~1.2)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeMitsubishi 4M50
Rated power (kw/rpm)118/2000
Cooling modewater-cooling
Maximum torque (N.m)580/1600
Number of cylinders (PCS)4
Displacement (L)4.9
Ground specific pressure (Kpa)47.4
Rotation speed (rpm)11
Climbing ability (%)70% (35°)
Bucket digging force (kN)138
Rod digging force (kN)103
Travel speed (km/h)5.4/3.3
Fuel Tank (L)390
Hydraulic Tank (L)239
Engine Oil changes (L)22
Total transport length (mm)9680
Total transport width (mm)2980
Total transport height (mm)3440
Full cab height (mm)3075
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)3730
Back end turning radius (mm)2900
Onboard width (mm)2875
Total track length (mm)4250
Track gauge (mm)2380
Track plate width (mm)600
Track ground length (mm)3445
Maximum height at minimum turning radius (mm)7680
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)8
Number of track plates (single side) (PCS)47
Maximum digging radius (mm)10280
Maximum digging depth (mm)6600
Maximum excavation height (mm)9600
Maximum unloading height (mm)6730
see more

Overview

No.1097419

Brand Name:

Sany

Model Number:

SY215C

Year:

2019

Location:

Zhejiang China

Pub Date

Are you interested in this machine?

Please contact us
