Product Description

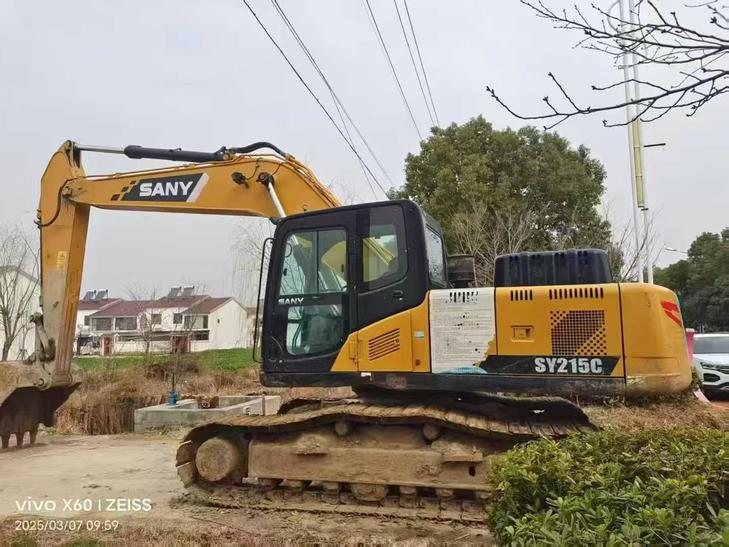

Strengthen your fleet with this 2020 Sany SY215C excavator, currently stationed in Jiangsu Suqian. Built for contractors who need reliable backup capacity or plan to scale operations, this 21-ton machine delivers proven Mitsubishi 4M50 power (118 kW at 2000 rpm) paired with robust hydraulics—138 kN bucket digging force and 103 kN arm force handle demanding earthwork without hesitation.
Designed for versatility across job sites, this China-manufactured crawler features a 1.1 m³ bucket (adjustable 0.8–1.2 m³), 10,280 mm maximum digging radius, and 6,600 mm maximum depth. Water-cooled engine technology and a 390-liter fuel tank support extended shifts, while 70% gradeability and 440 mm ground clearance ensure mobility on challenging terrain.
- Working Weight: 21,900 kg
- Engine: Mitsubishi 4M50, 4.9L displacement, 580 N·m torque
- Transport Dimensions: 9,680 × 2,980 × 3,440 mm
- Hydraulic Capacity: 239L tank for consistent performance
Ready to integrate seamlessly into existing operations, this SY215C offers the capacity and durability high-output contractors require when primary equipment is deployed elsewhere.
| Specifications | Value |
|---|---|
| No. | 1027233 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21900 |
| Bucket capacity (m³) | 1.1 (0.8~1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 580/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 390 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3445 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
