Product Description

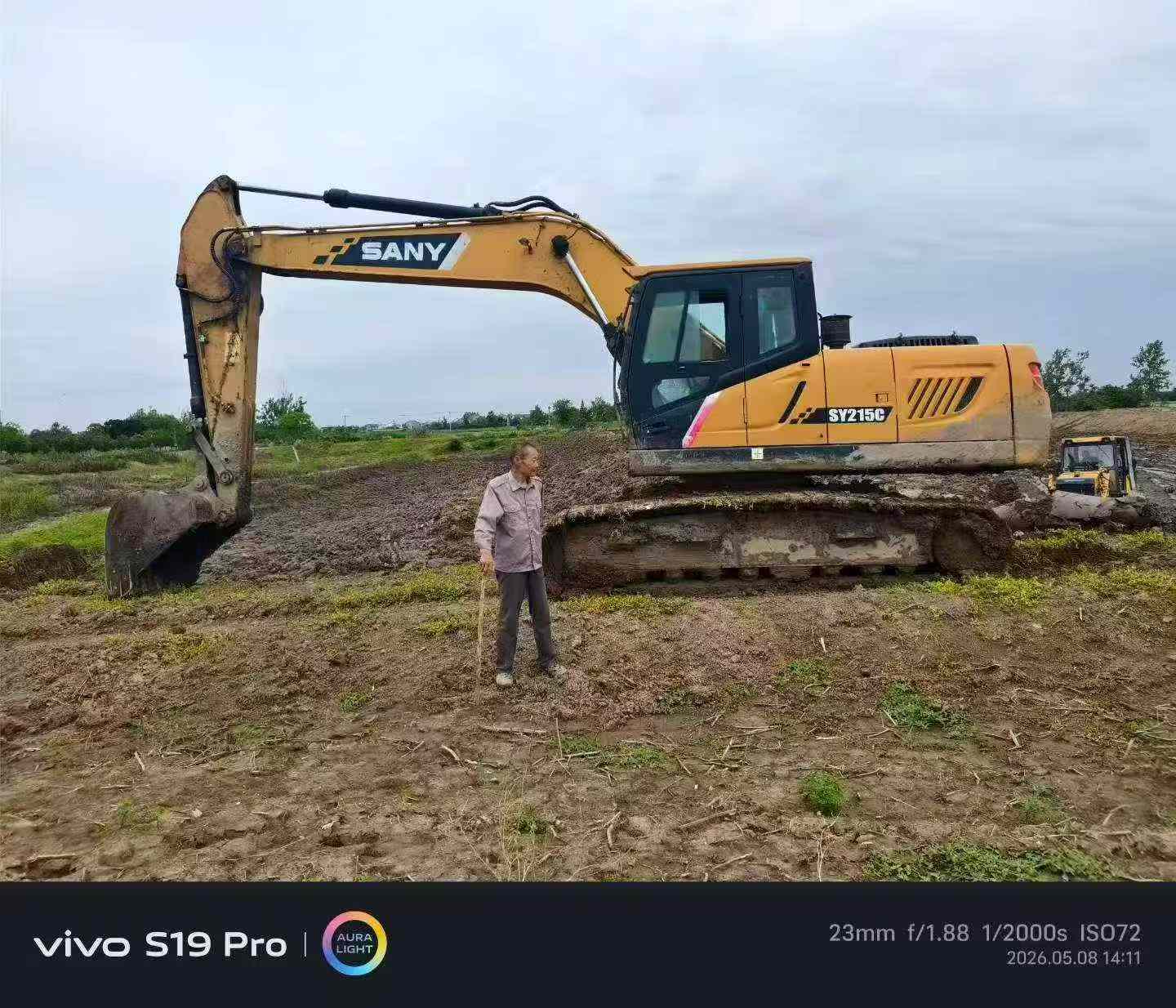

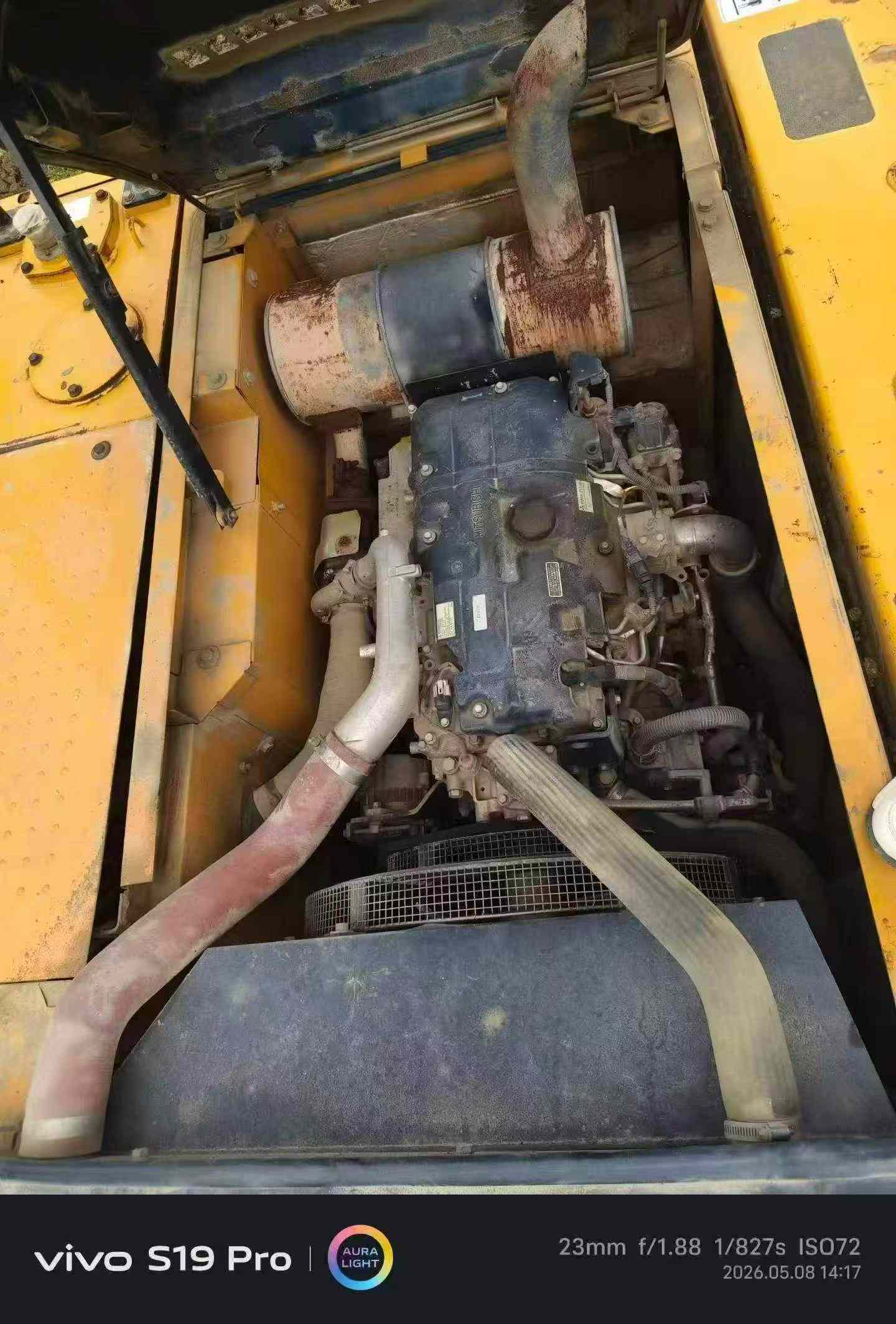

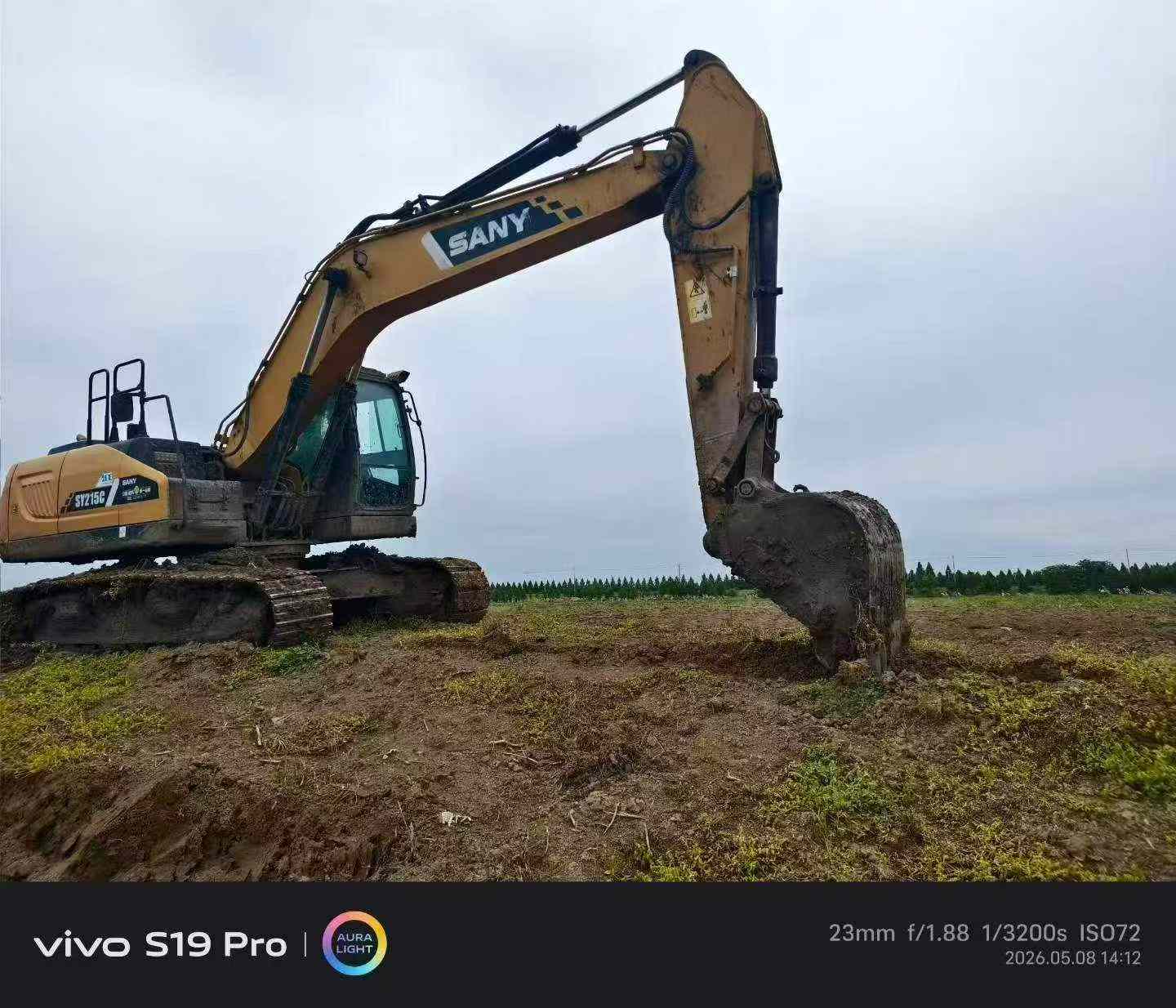

Built to endure the demands of heavy civil work, this 2020 Sany SY215C is a proven 21-ton backhoe excavator with years of reliable performance behind it — and plenty more ahead. Powered by a Mitsubishi 4M50 water-cooled engine producing 118 kW at 2,000 rpm and 580 N·m of peak torque, it delivers consistent digging force without compromise. Currently located in Zhejiang, China, this machine is ready for export.
- Bucket digging force: 138 kN / Rod digging force: 103 kN
- Maximum digging depth: 6,600 mm / Maximum digging radius: 10,280 mm
- Bucket capacity: 1.1 m³ (range: 0.8–1.2 m³)
- Climbing ability: 70% (35°) — handles demanding terrain with confidence
- Travel speed: 5.4 / 3.3 km/h (high/low range)
- Large fuel tank: 390 L for extended operation between refills
- Track plate width: 600 mm / Ground pressure: 47.4 kPa
- Transport dimensions: 9,680 × 2,980 × 3,440 mm
Four years of field-proven durability make this SY215C a workhorse that has already demonstrated its build quality under real working conditions. A solid choice for contractors who need dependable output, not promises.
| Specifications | Value |
|---|---|
| No. | 1060596 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21900 |
| Bucket capacity (m³) | 1.1 (0.8~1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 580/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 390 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3445 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
