Product Description

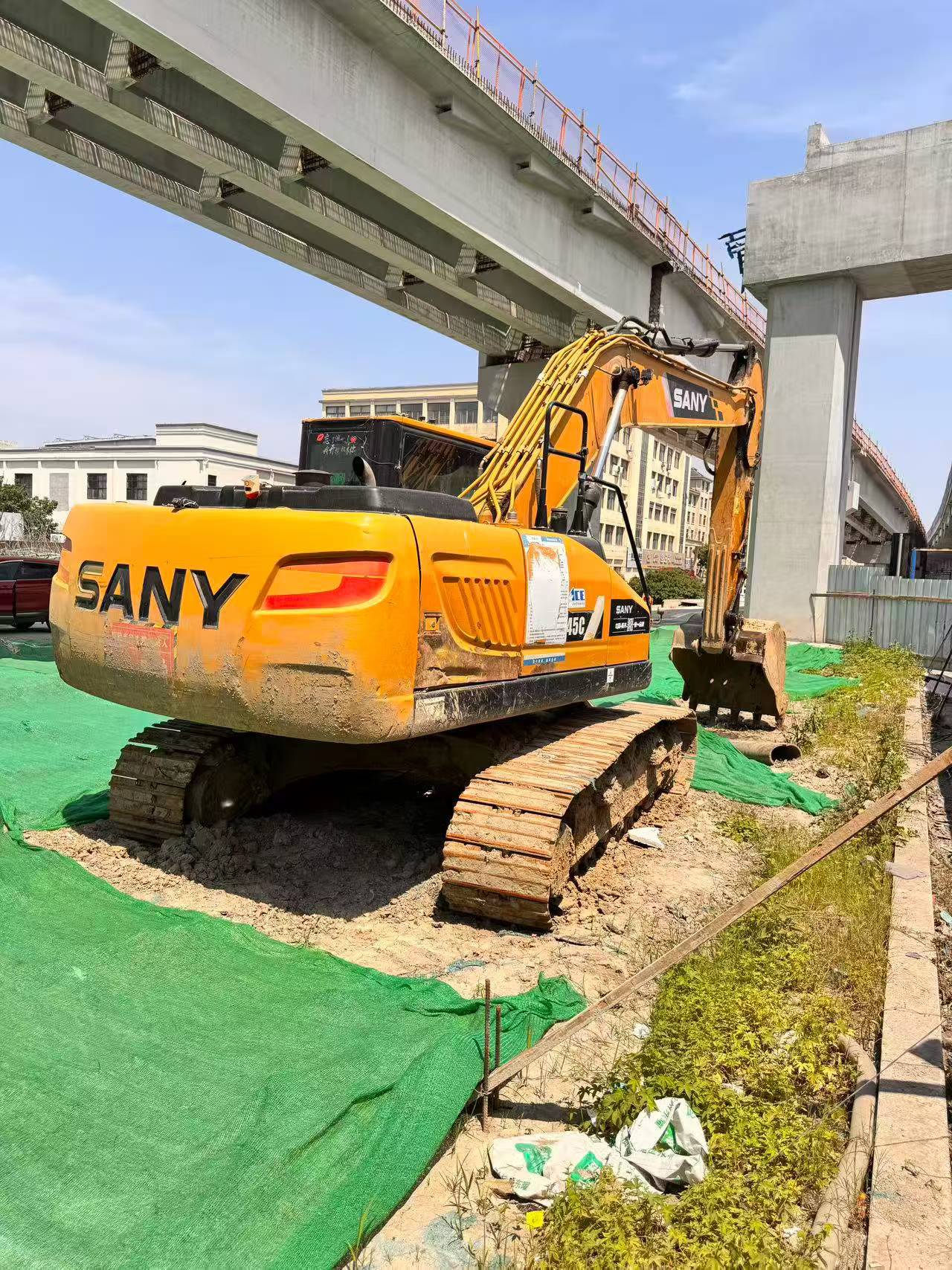

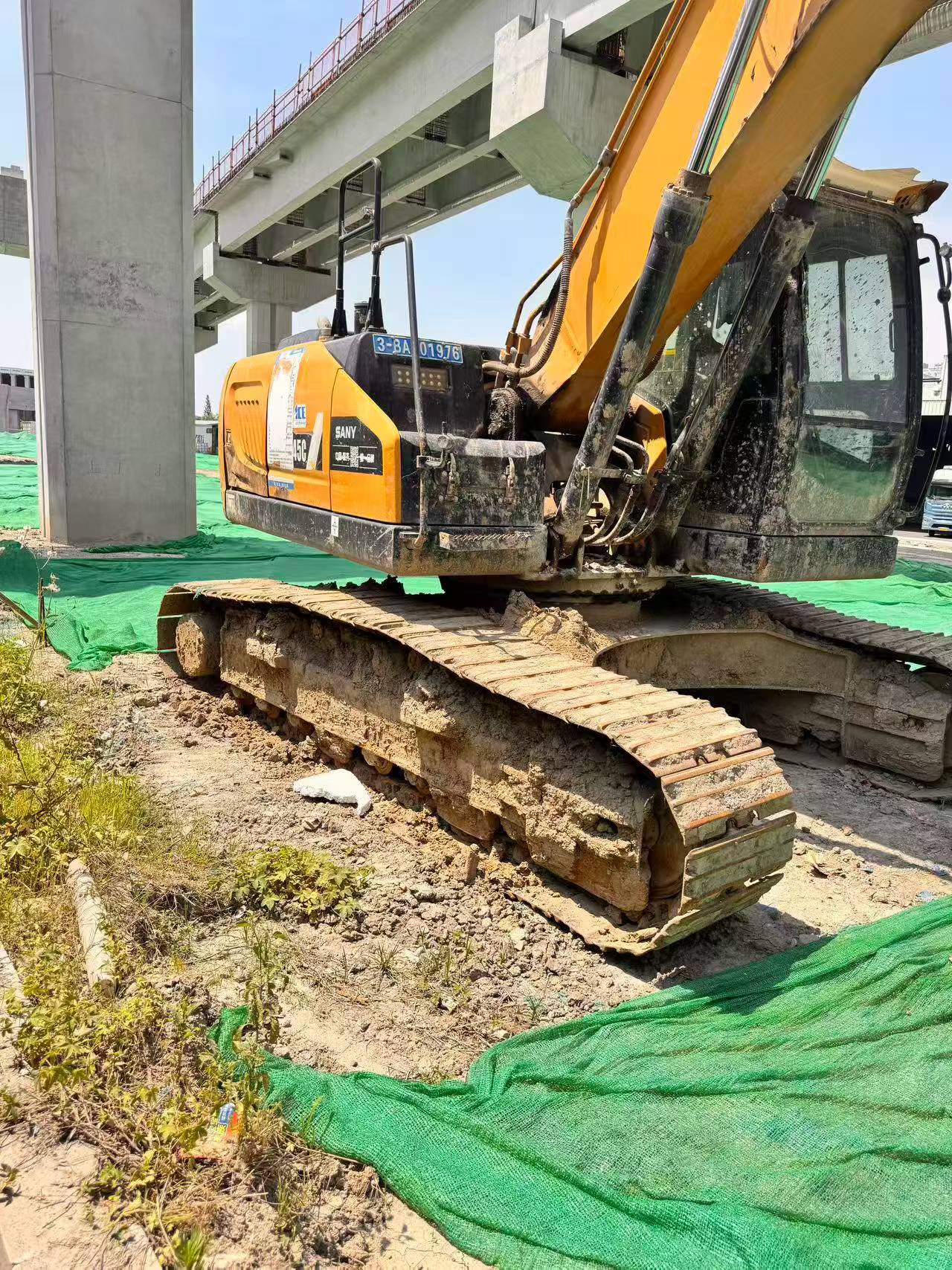

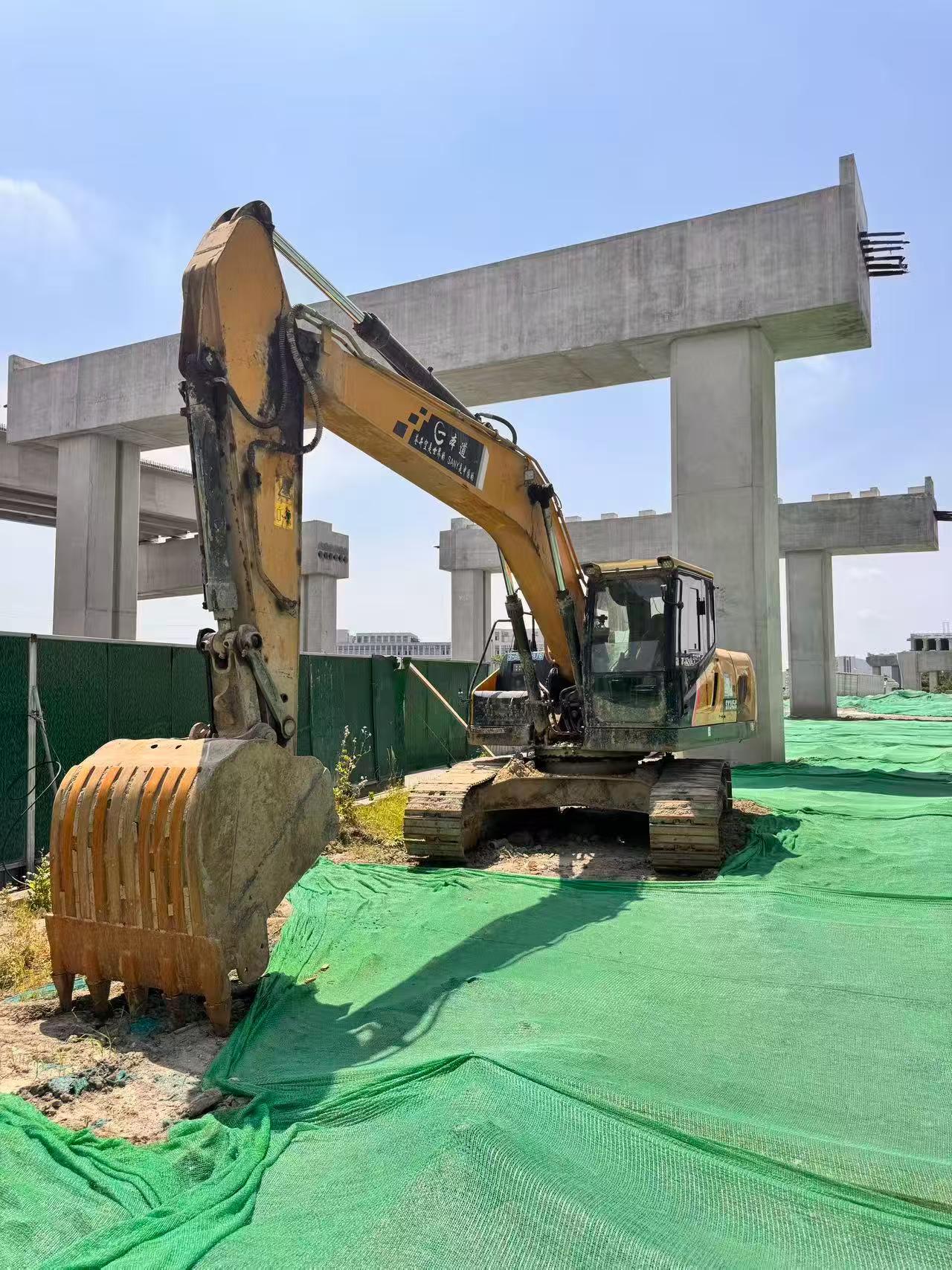

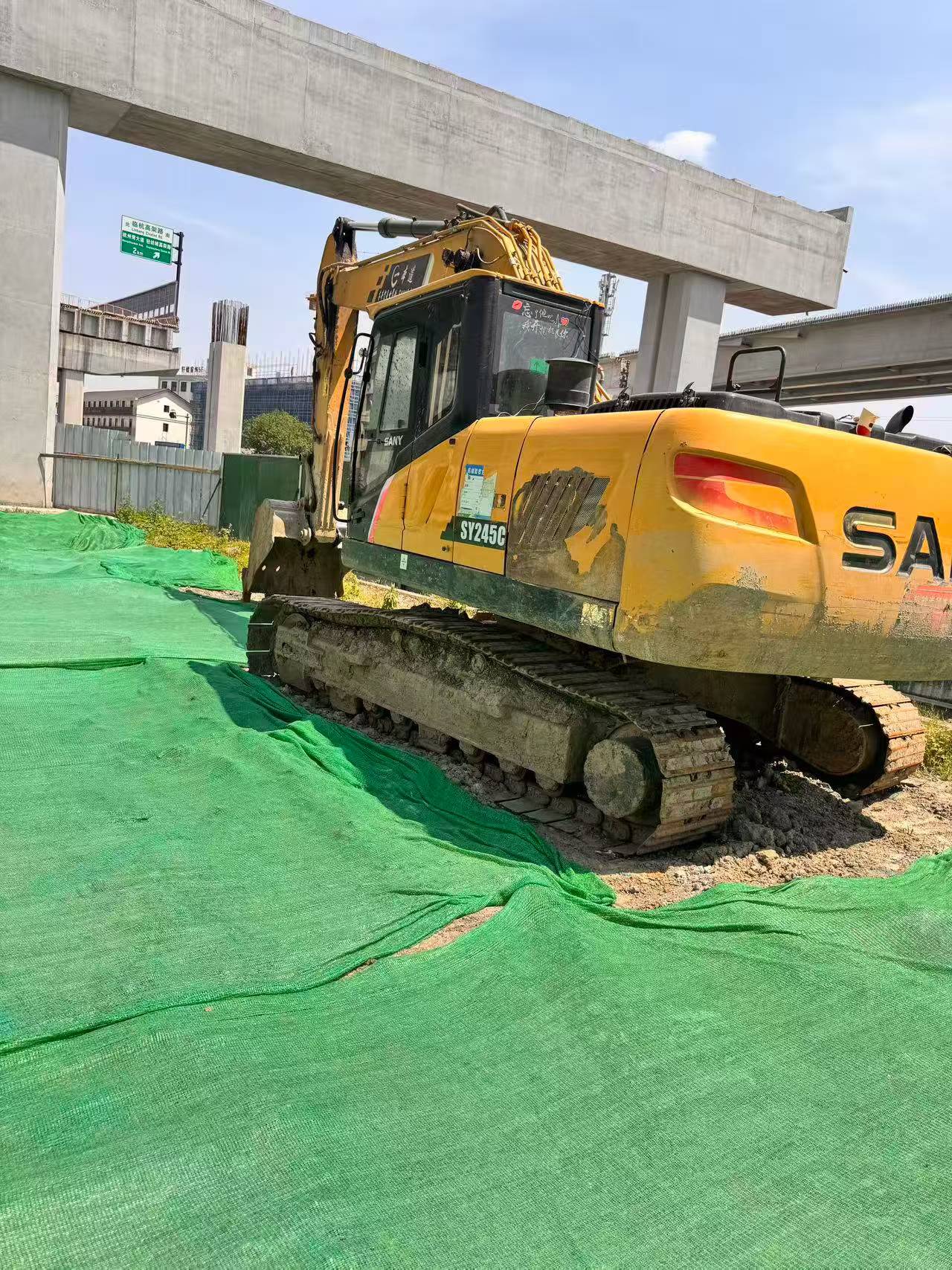

Ready to ship from Zhejiang, China — this 2020 Sany SY215C puts 21 tonnes of proven excavating power on your site without the factory wait. Skip the lead times and move fast with a machine that's built for serious ground work.

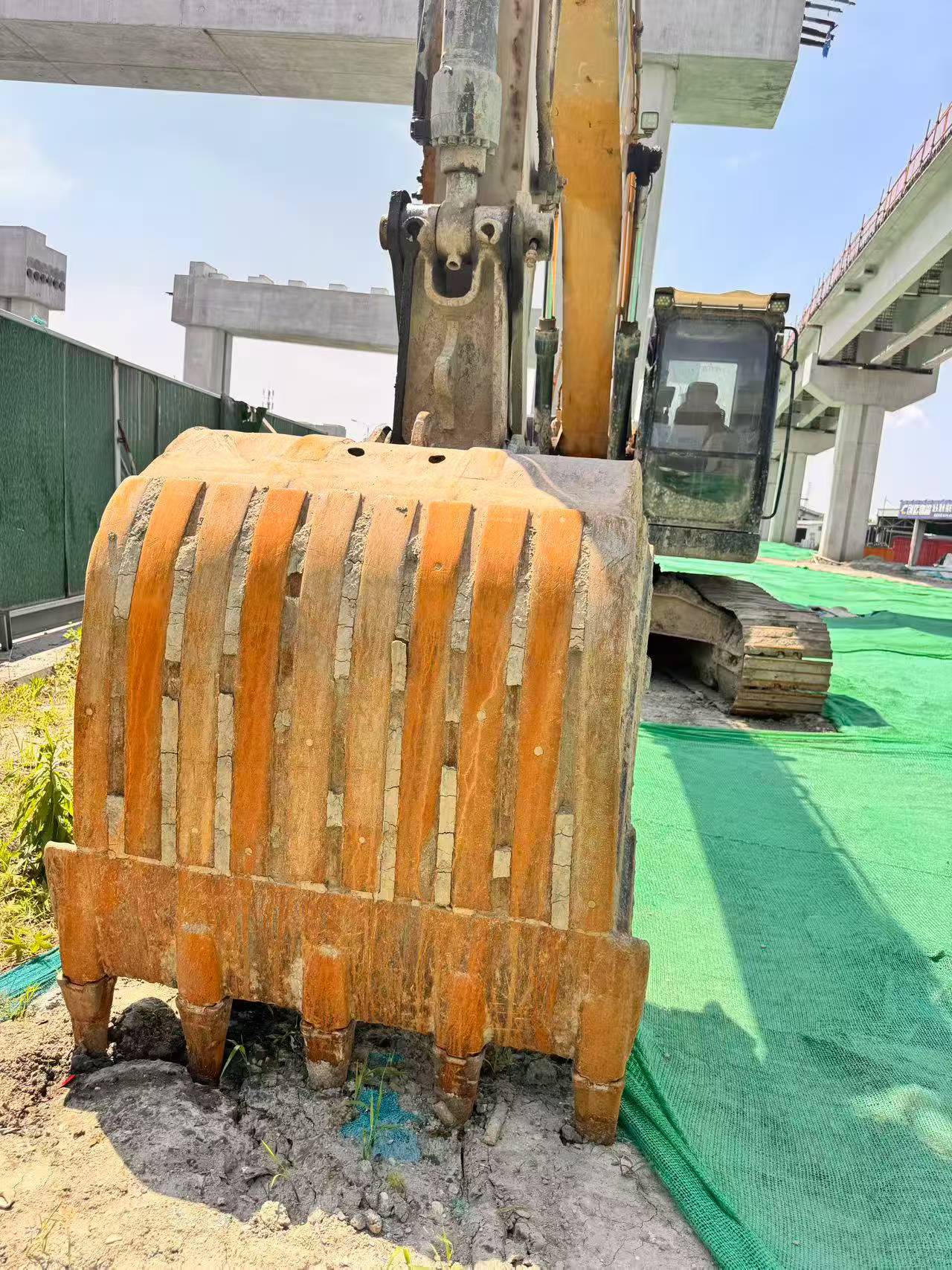

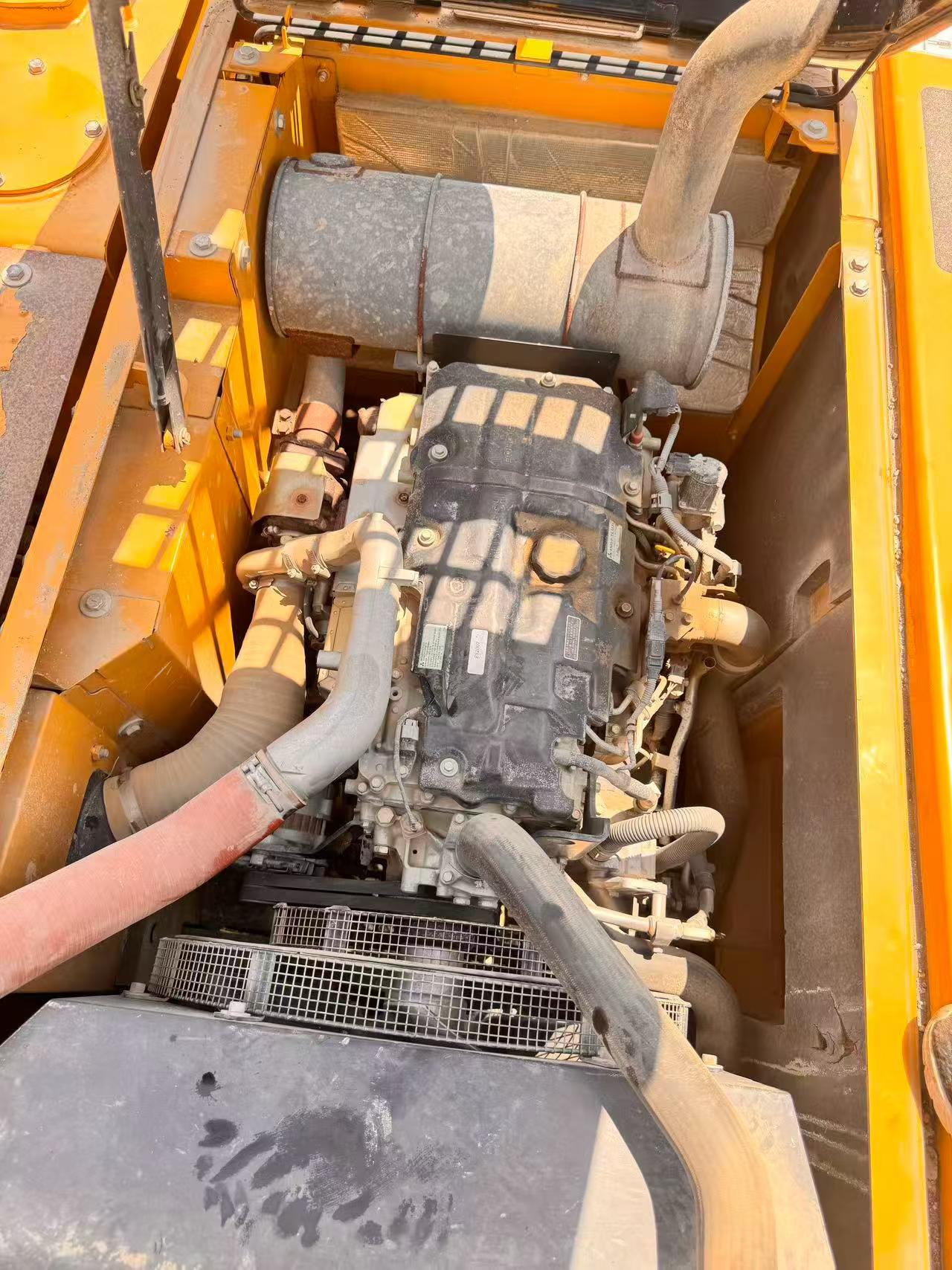

Powered by a Mitsubishi 4M50 four-cylinder engine producing 118 kW at 2,000 rpm and 580 N·m of peak torque, the SY215C delivers a bucket digging force of 138 kN and a maximum digging depth of 6,600 mm. Its 1.1 m³ backhoe bucket handles demanding dig cycles with a maximum digging radius of 10,280 mm and an unloading height of 6,730 mm.
- Working weight: 21,900 kg | Ground pressure: 47.4 kPa
- Engine: Mitsubishi 4M50 | Rated power: 118 kW / 2,000 rpm
- Bucket digging force: 138 kN | Rod digging force: 103 kN
- Max digging depth: 6,600 mm | Max digging radius: 10,280 mm
- Travel speed: 5.4 / 3.3 km/h | Climbing ability: 70% (35°)
- Fuel tank: 390 L | Hydraulic tank: 239 L
- Transport dimensions: 9,680 × 2,980 × 3,440 mm
Available now in Zhejiang — fast deployment to your site, no factory delays. Contact Fair Trade Machinery today to confirm availability and arrange logistics.
| Specifications | Value |
|---|---|
| No. | 1064103 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21900 |
| Bucket capacity (m³) | 1.1 (0.8~1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 580/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 390 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3445 |
| Maximum height at minimum turning radius (mm) | 7680 |

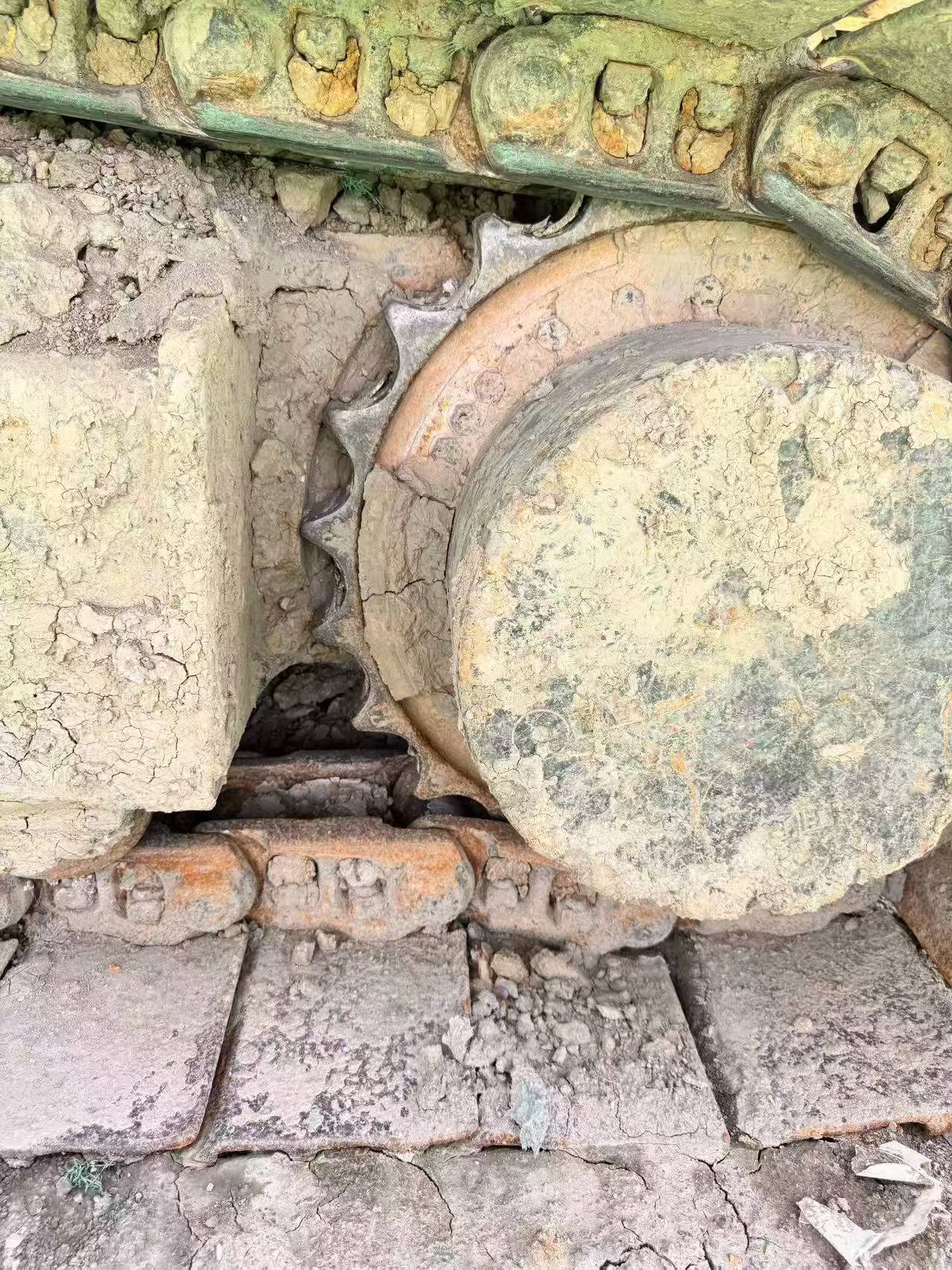

| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
