2020 Sany SY215C

1/4

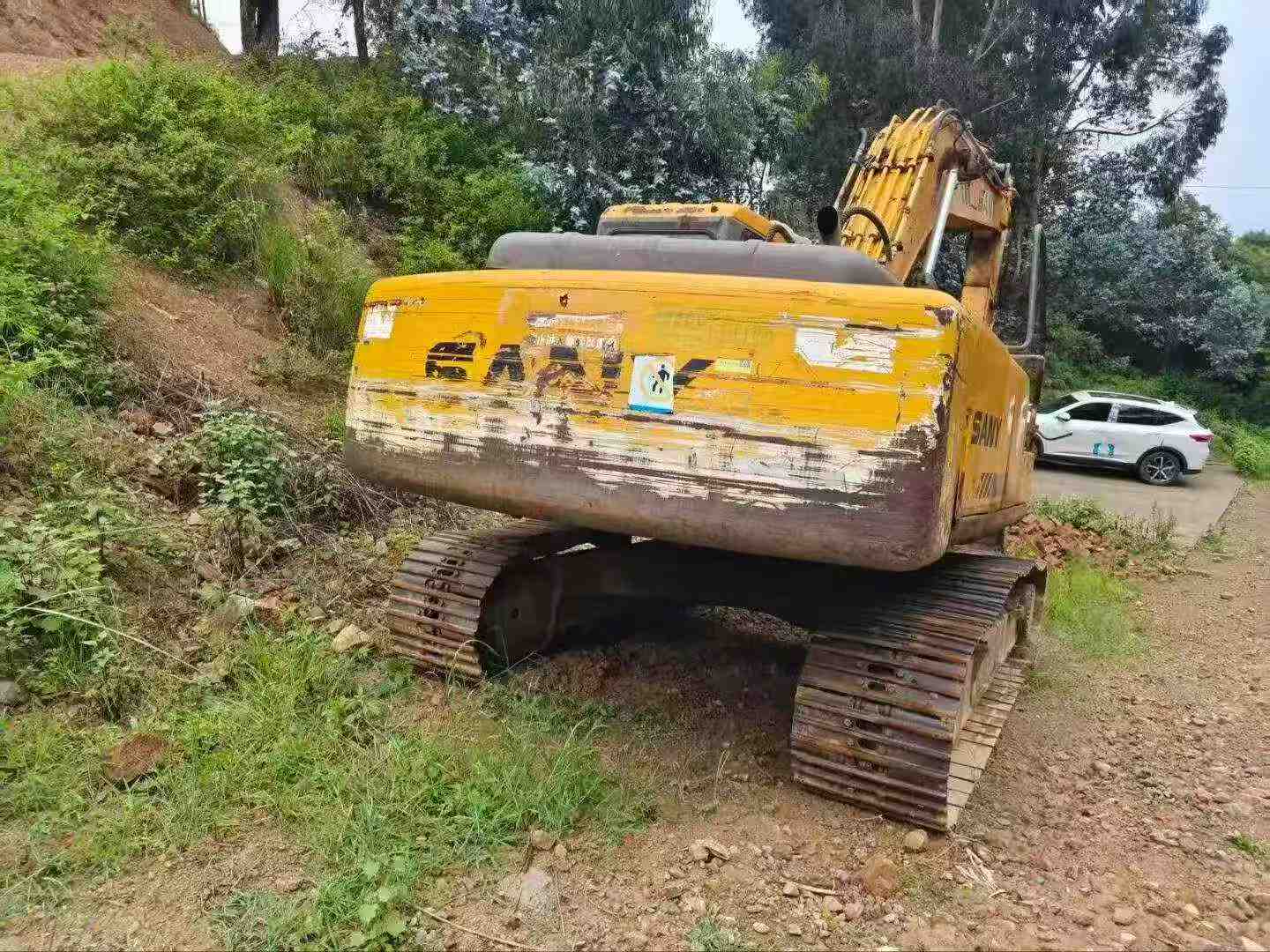

Buy Sany SY215C Used Excavator / 1

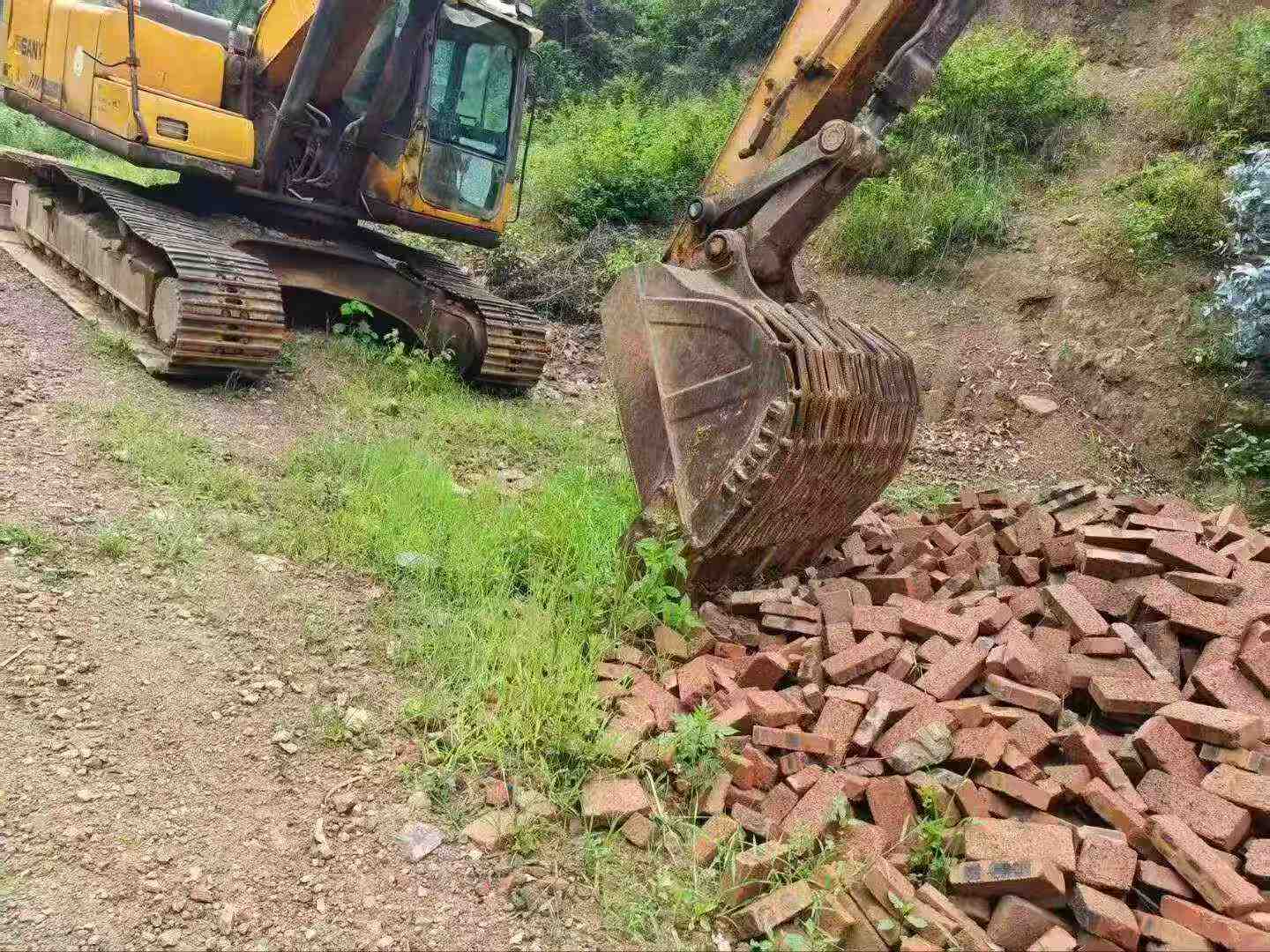

Buy Sany SY215C Used Excavator / 2

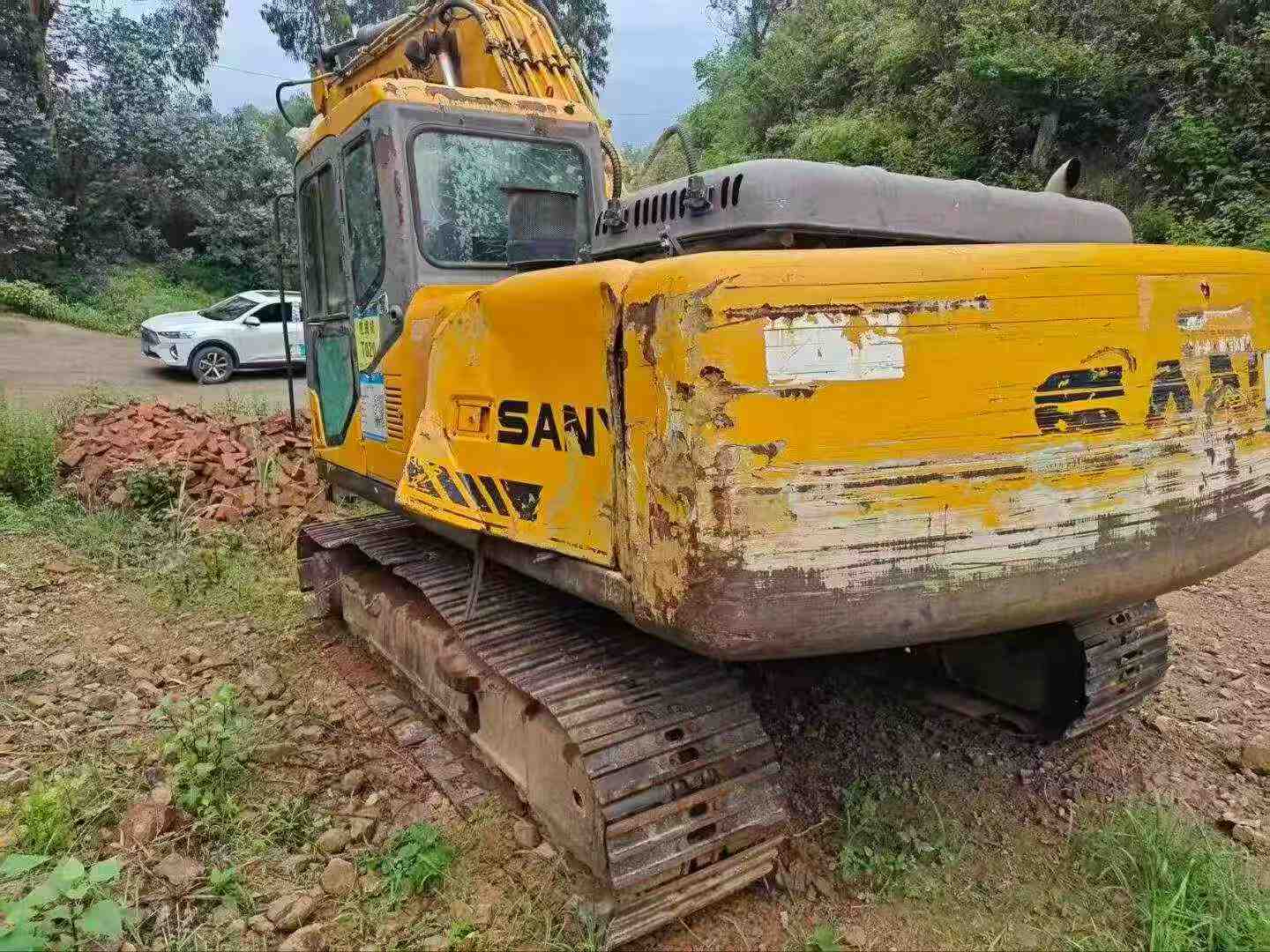

Buy Sany SY215C Used Excavator / 3

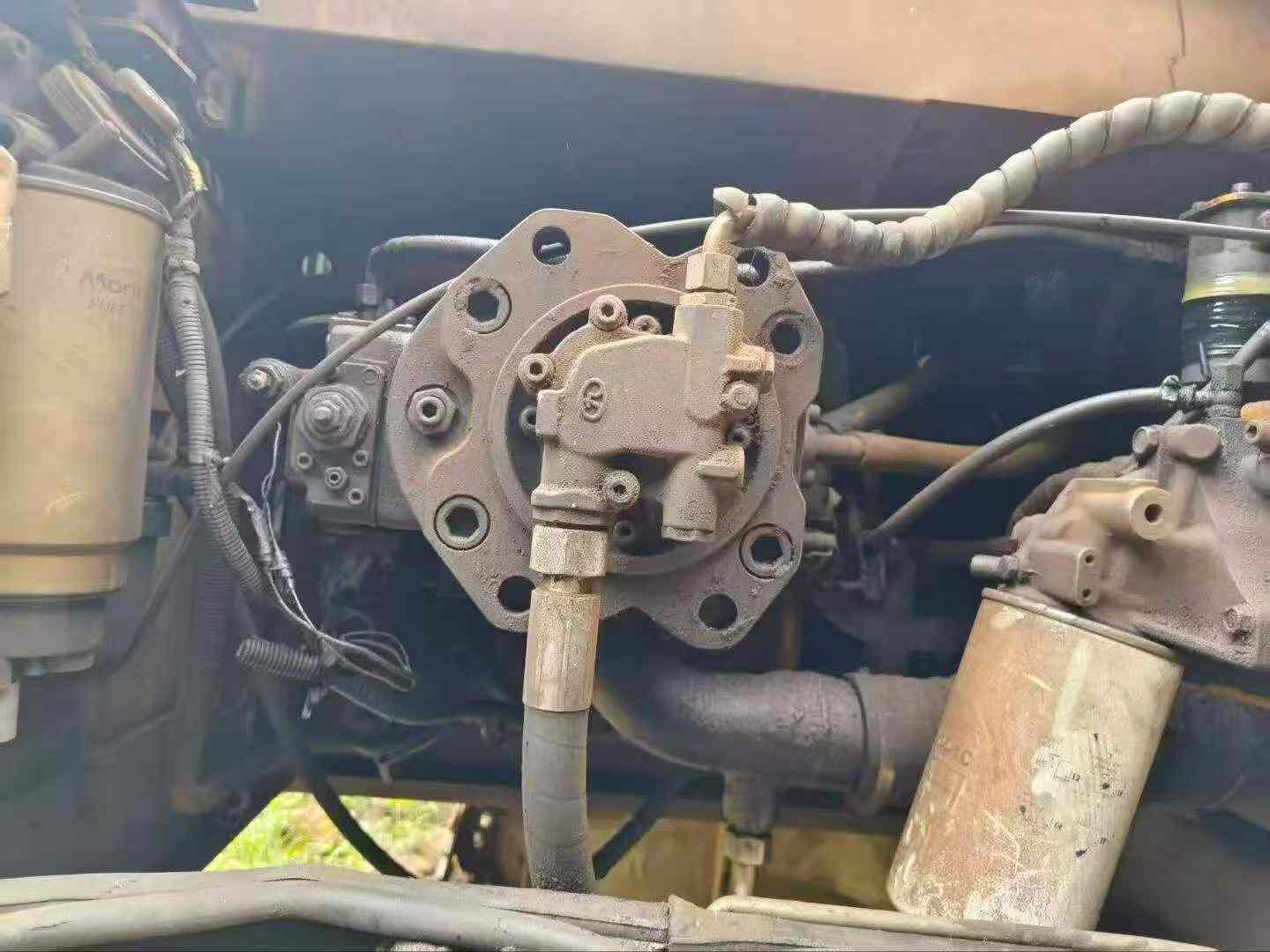

Buy Sany SY215C Used Excavator / 4

Product Description

This 2020 Sany SY215C crawler excavator offers reliable performance for mid-sized earthmoving operations. Located in Sichuan, China, this machine represents practical value in the 21-ton class segment. The SY215C is known for its fuel efficiency and straightforward hydraulic system, making it suitable for general excavation, trenching, and material handling applications.

Key features include:

  • Sany's proven engine platform with standard emissions compliance
  • Hydraulic system designed for responsive digging and lifting cycles
  • Cab layout with operational visibility for site safety
  • Track undercarriage built for varied ground conditions
  • Service access points for routine maintenance

This unit is currently available for inspection in Sichuan. Interested buyers should arrange technical evaluation and verify machine hours, maintenance records, and operational condition before purchase.

SpecificationsValue
No.1143127
Tonnage (tons)21
Working weight (kg)21900
Bucket capacity (m³)1.1 (0.8~1.2)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeMitsubishi 4M50
Rated power (kw/rpm)118/2000
Cooling modewater-cooling
Maximum torque (N.m)580/1600
Number of cylinders (PCS)4
Displacement (L)4.9
Ground specific pressure (Kpa)47.4
Rotation speed (rpm)11
Climbing ability (%)70% (35°)
Bucket digging force (kN)138
Rod digging force (kN)103
Travel speed (km/h)5.4/3.3
Fuel Tank (L)390
Hydraulic Tank (L)239
Engine Oil changes (L)22
Total transport length (mm)9680
Total transport width (mm)2980
Total transport height (mm)3440
Full cab height (mm)3075
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)3730
Back end turning radius (mm)2900
Onboard width (mm)2875
Total track length (mm)4250
Track gauge (mm)2380
Track plate width (mm)600
Track ground length (mm)3445
Maximum height at minimum turning radius (mm)7680
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)8
Number of track plates (single side) (PCS)47
Maximum digging radius (mm)10280
Maximum digging depth (mm)6600
Maximum excavation height (mm)9600
Maximum unloading height (mm)6730
see more

Overview

No.1143127

Brand Name:

Sany

Model Number:

SY215C

Year:

2020

Location:

Sichuan China

Pub Date
