Product Description

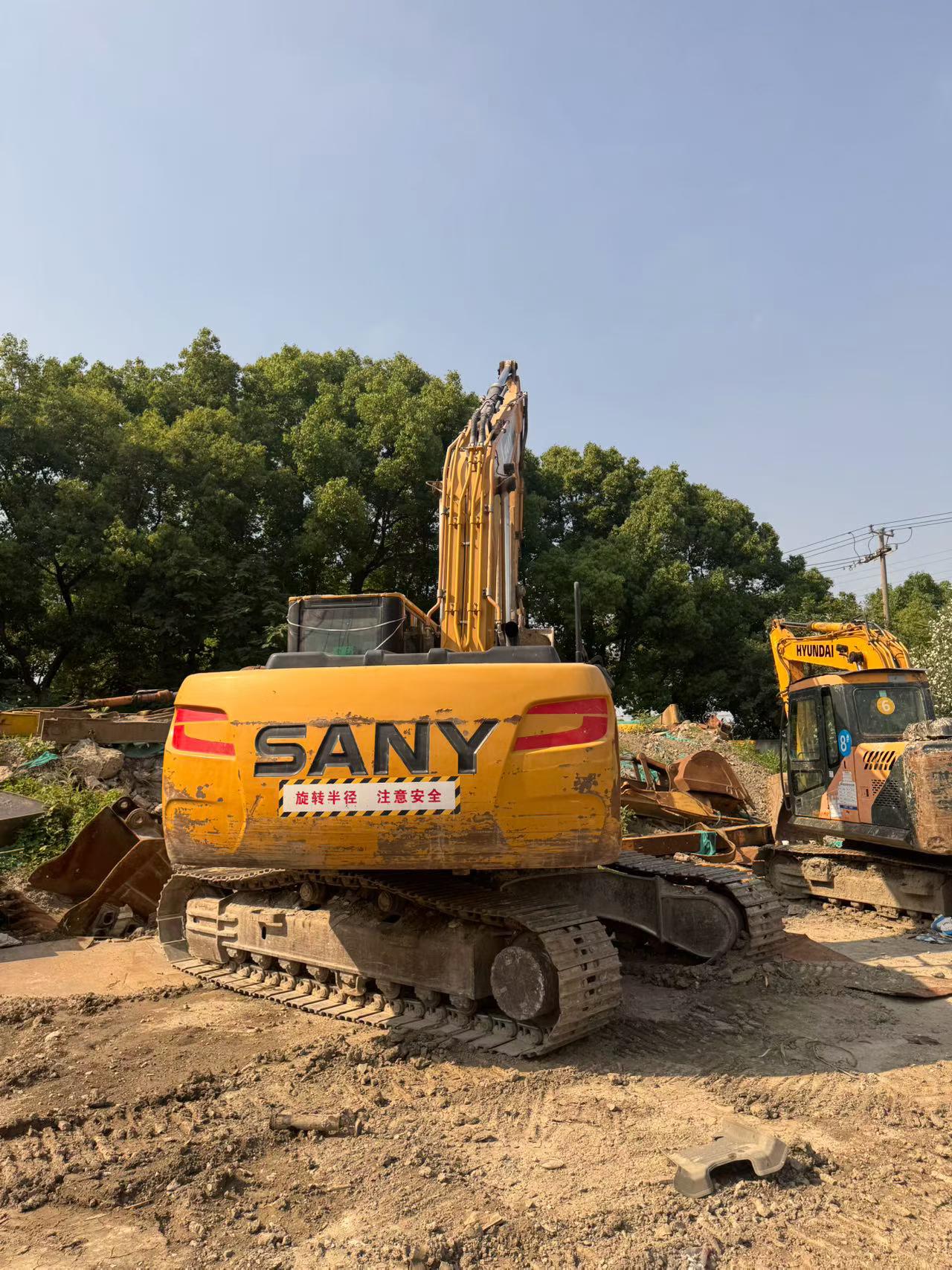

This 2020 Sany SY215C excavator offers reliable performance for medium-duty construction and earthmoving applications. Manufactured by Sany Heavy Industry, one of China's leading equipment producers, the SY215C is a 21-ton class hydraulic excavator designed for durability and operational efficiency. With approximately 4 years of service, this machine is currently located in Shanghai, China, and available for international export.

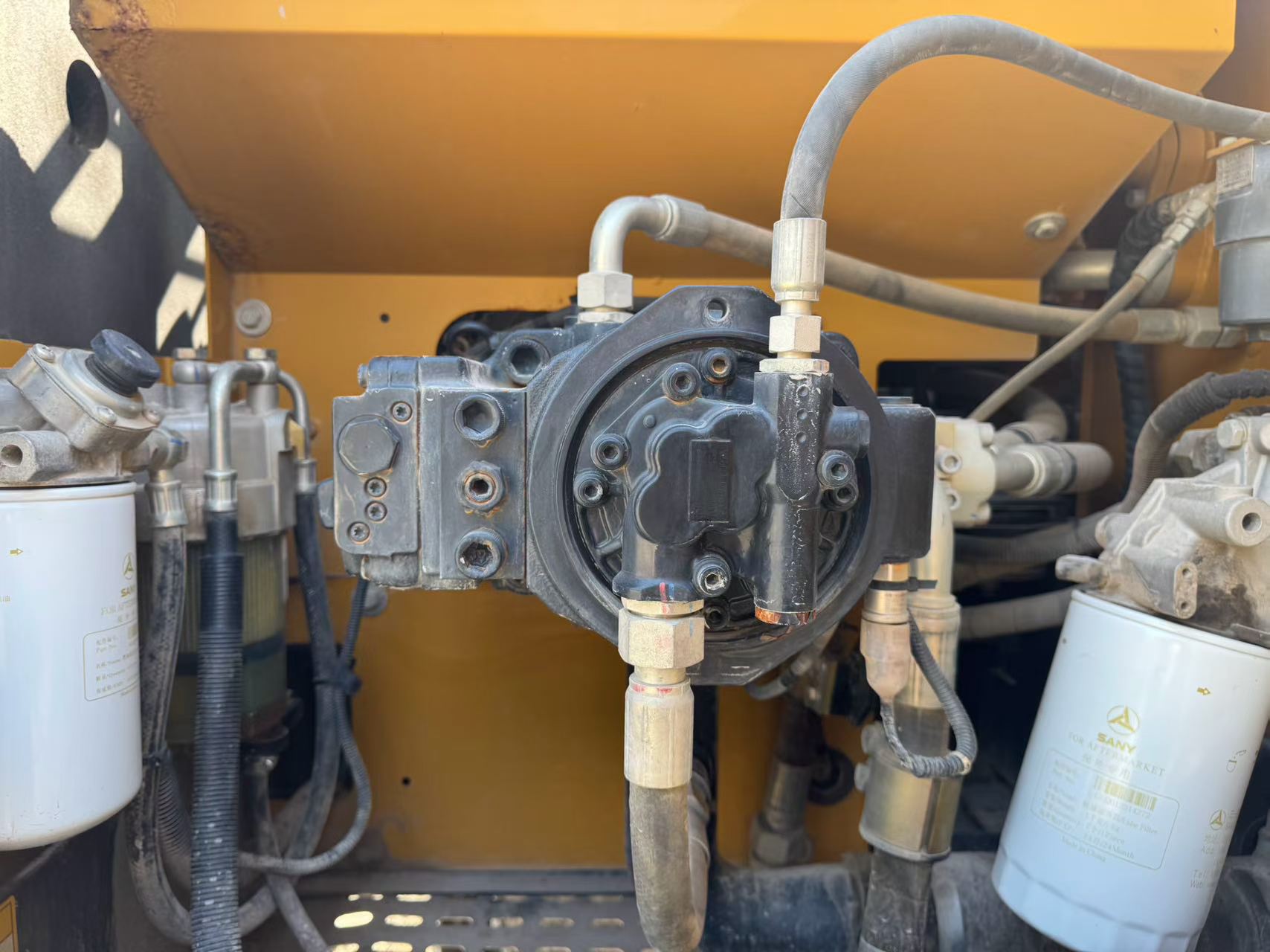

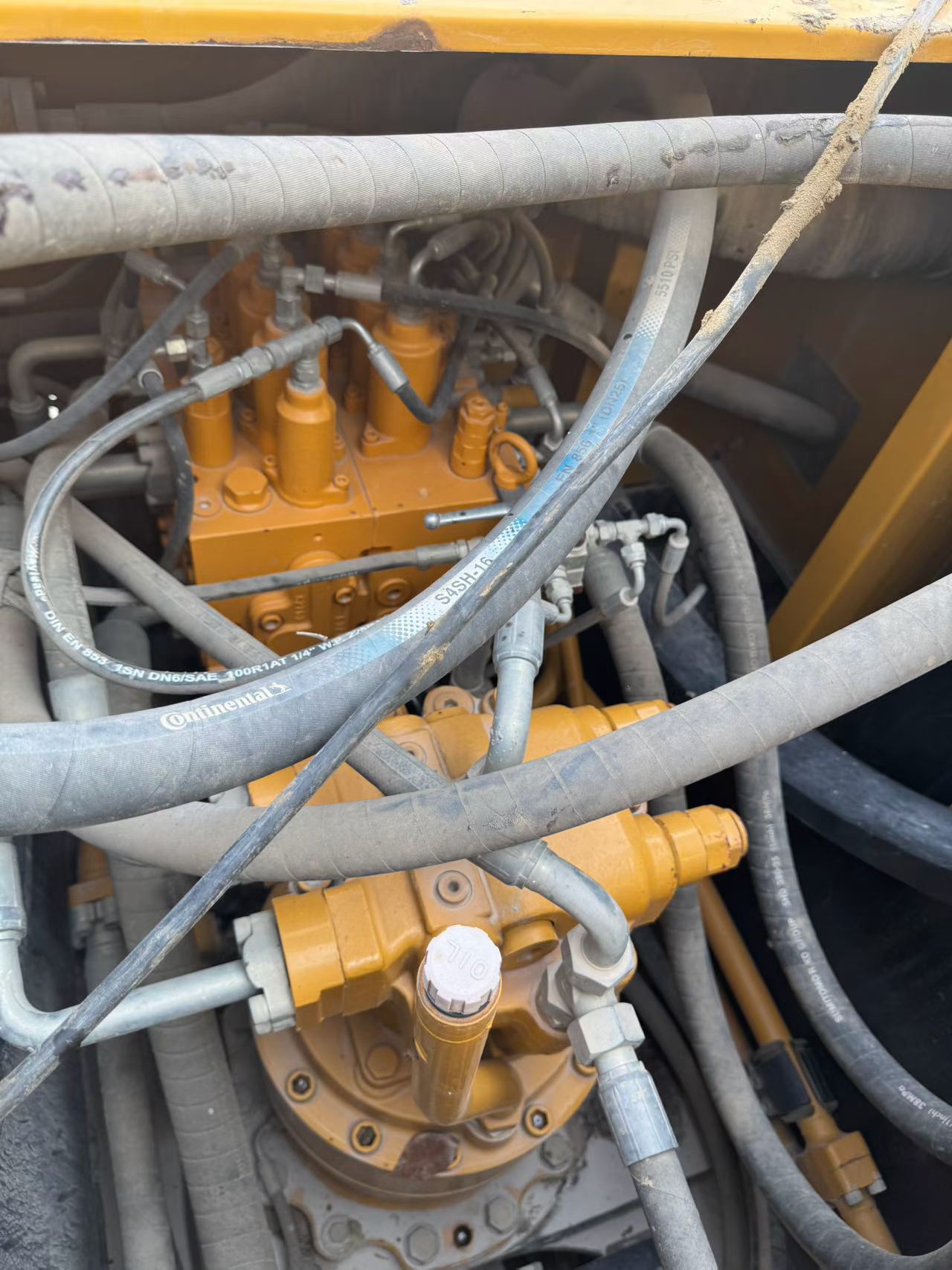

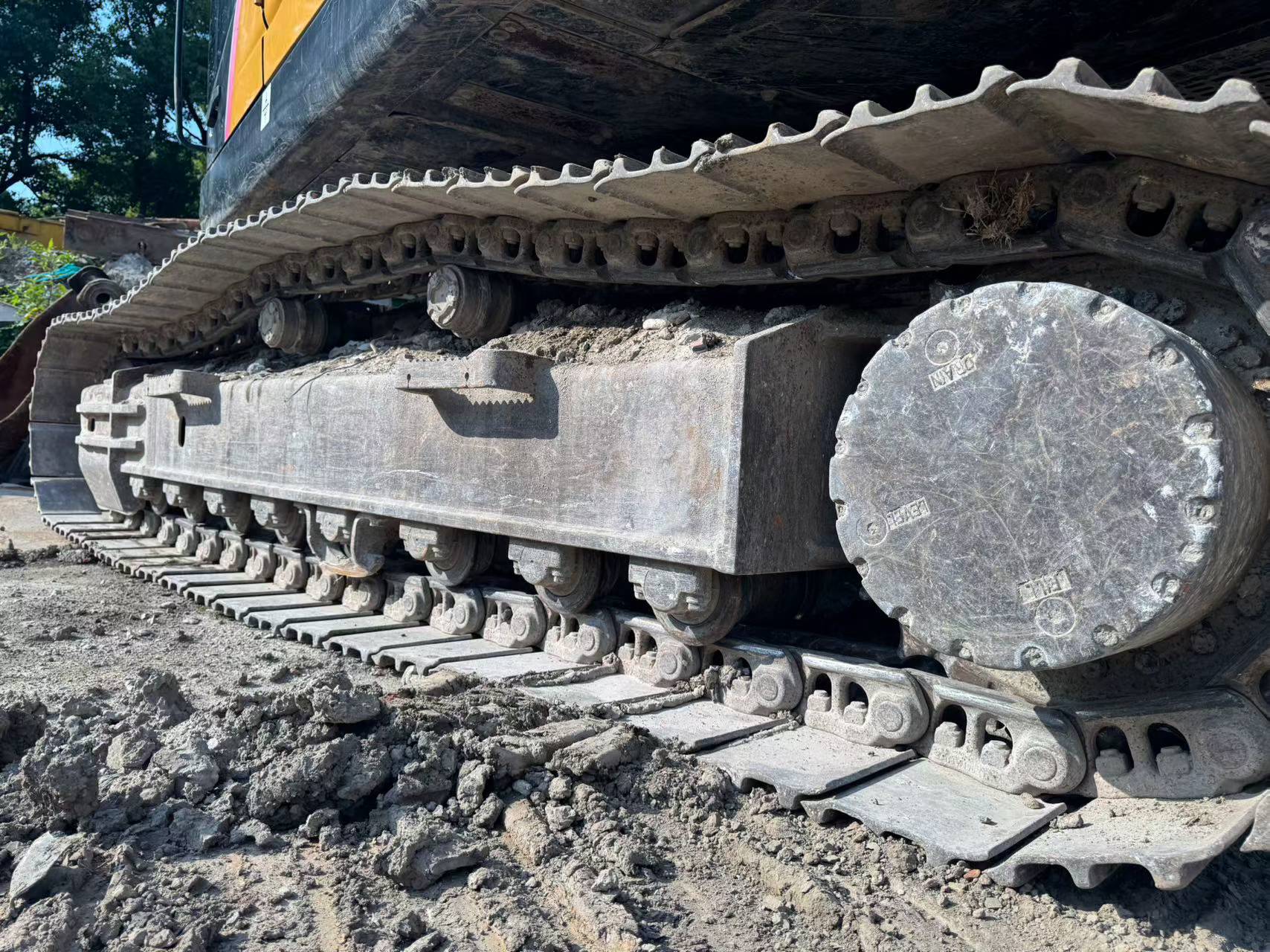

The SY215C features Sany's proven hydraulic system and robust undercarriage components suitable for various ground conditions. This model is well-regarded in the Asian market for its balance of power, fuel efficiency, and maintainability.
- Operating weight: Approximately 21,500 kg
- Engine: Diesel, meeting emission standards
- Bucket capacity: Standard configuration
- Suitable for excavation, loading, and trenching operations
- Available for inspection in Shanghai
Ideal for contractors seeking dependable used equipment with established parts availability across global markets.
| Specifications | Value |
|---|---|
| No. | 1172471 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21900 |
| Bucket capacity (m³) | 1.1 (0.8~1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

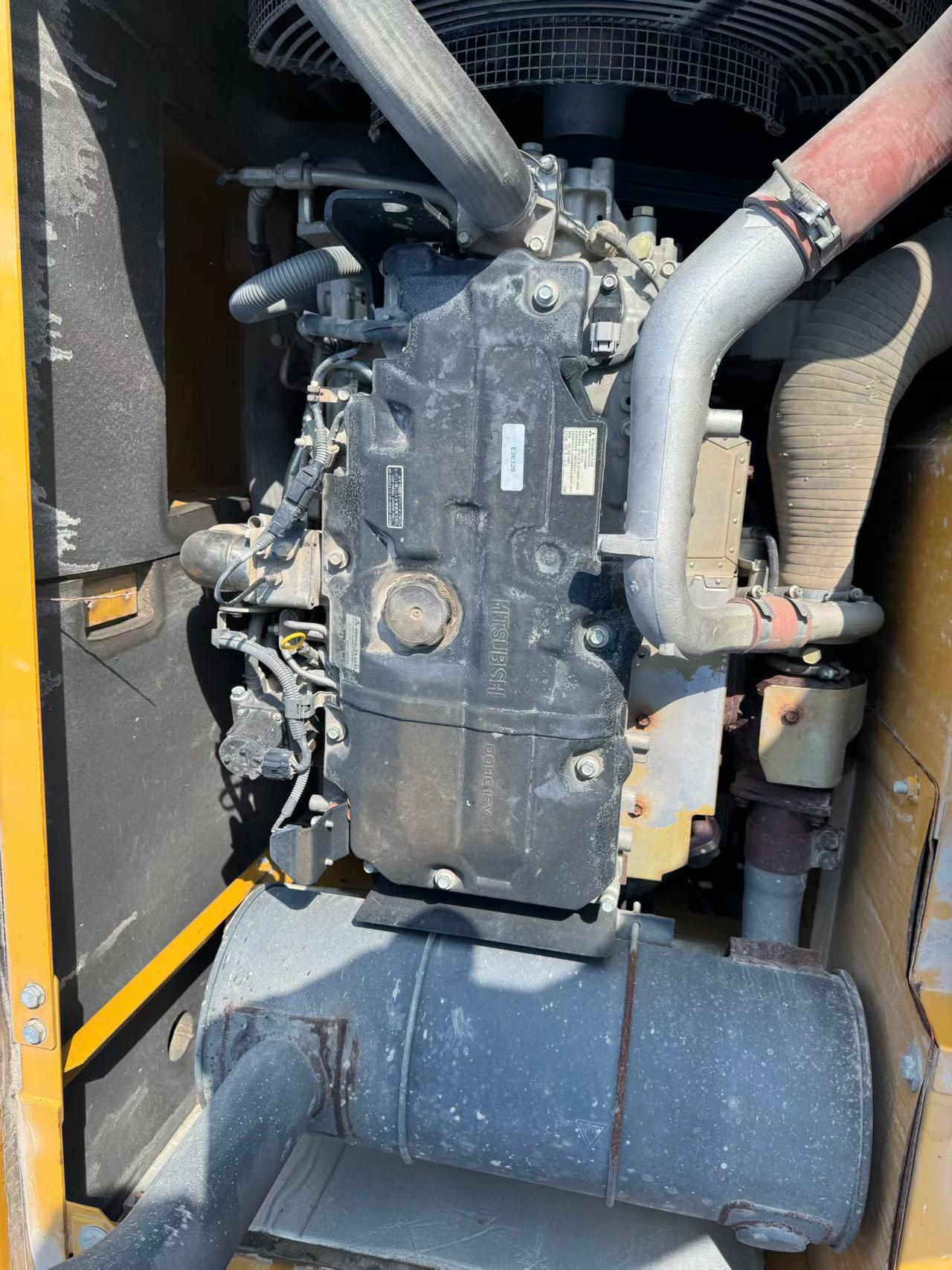

| Engine type | Mitsubishi 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 580/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 390 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3445 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
