Product Description

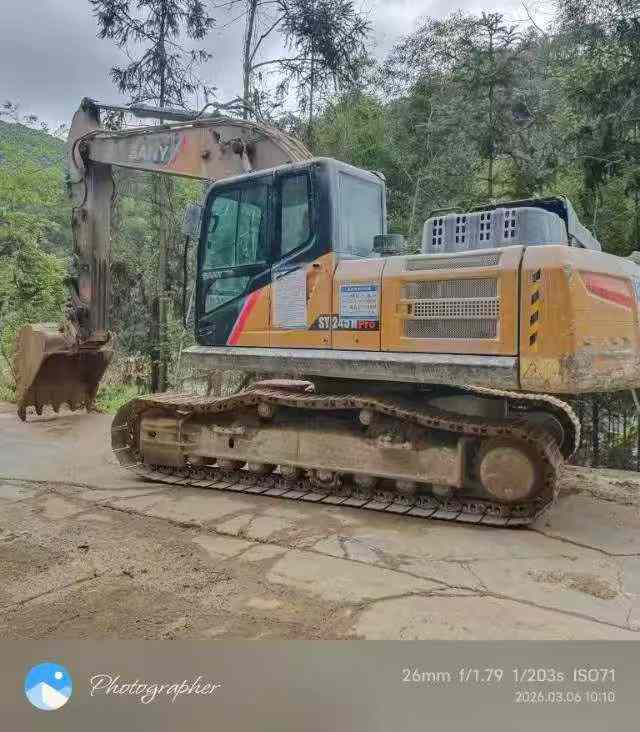

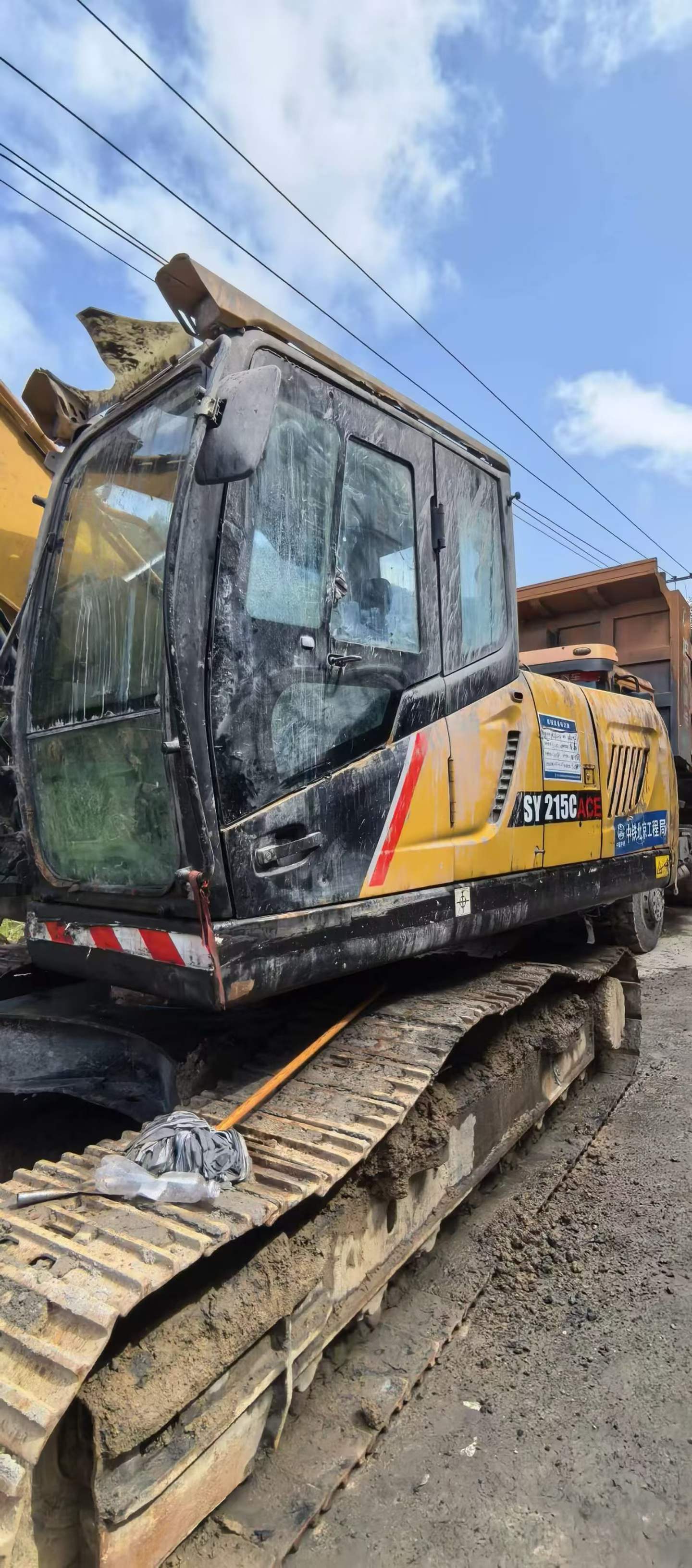

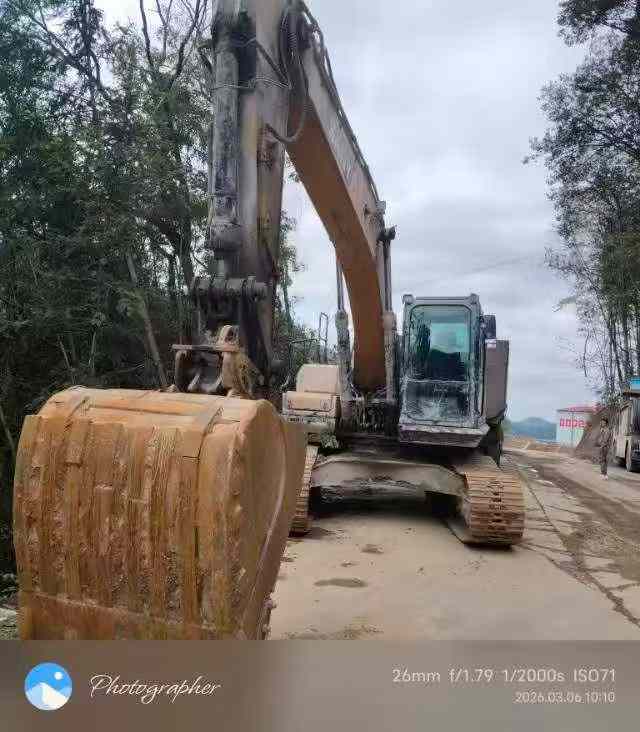

Engineered for demanding excavation operations, this 2022 Sany SY215C delivers robust performance through its Mitsubishi 4M50 engine, generating 118 kW at 2000 rpm with a maximum torque of 580 N·m. Operating at 21 tons with a 21,900 kg working weight, this medium-class excavator combines proven hydraulic technology with practical design specifications that meet rigorous jobsite requirements.
Hydraulic performance stands out with 138 kN bucket digging force and 103 kN arm digging force, providing efficient material handling across diverse applications. The machine reaches a maximum digging radius of 10,280 mm and excavation depth of 6,600 mm, while maintaining a compact 2,900 mm rear swing radius for confined work areas.

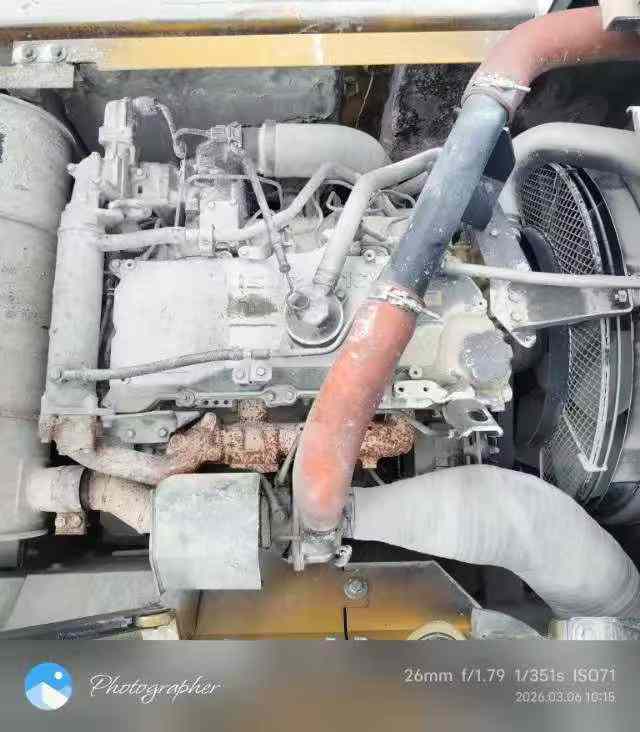

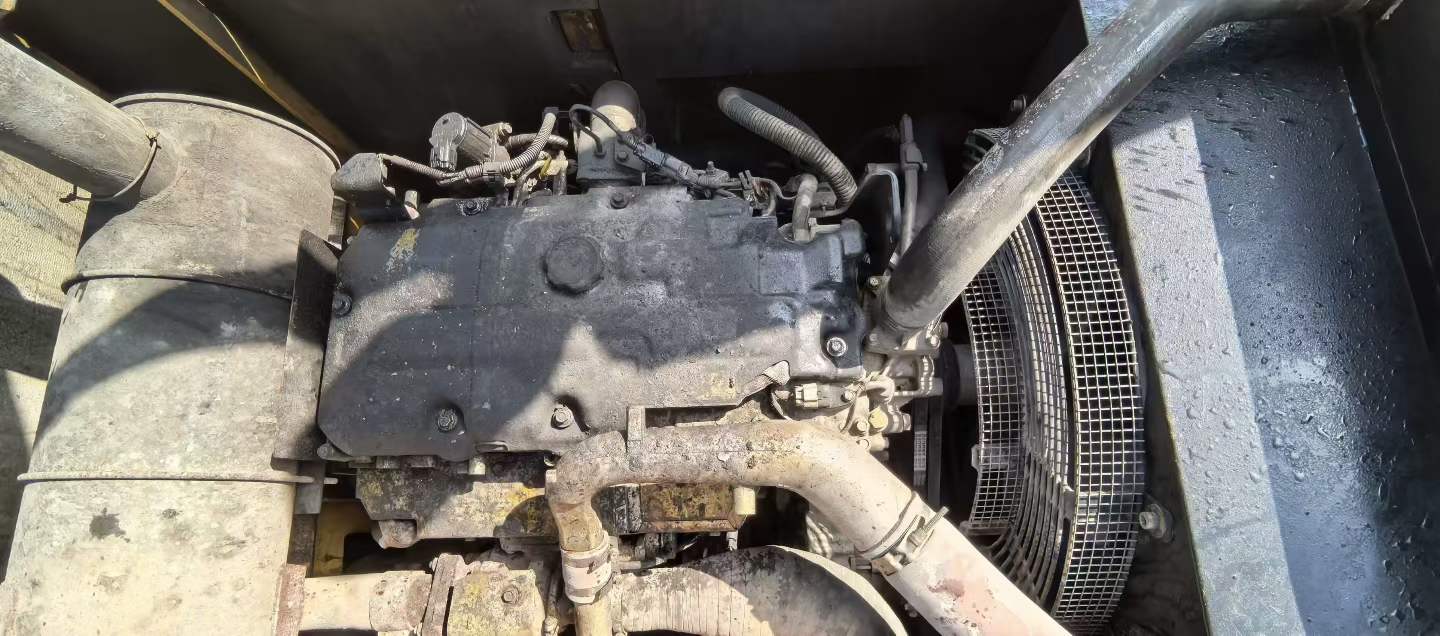

- Mitsubishi 4M50 water-cooled diesel engine (4.9L displacement)
- 1.1 m³ standard bucket capacity (range: 0.8-1.2 m³)
- 390L fuel tank capacity for extended operation
- 70% gradeability (35°) with 440 mm ground clearance
- Currently located in Putian, Fujian, China
Built with Sany's manufacturing standards, this SY215C represents reliable Chinese engineering for contractors seeking proven excavation capability.
| Specifications | Value |
|---|---|
| No. | 1024184 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21900 |
| Bucket capacity (m³) | 1.1 (0.8~1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 580/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 390 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3445 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
