Product Description

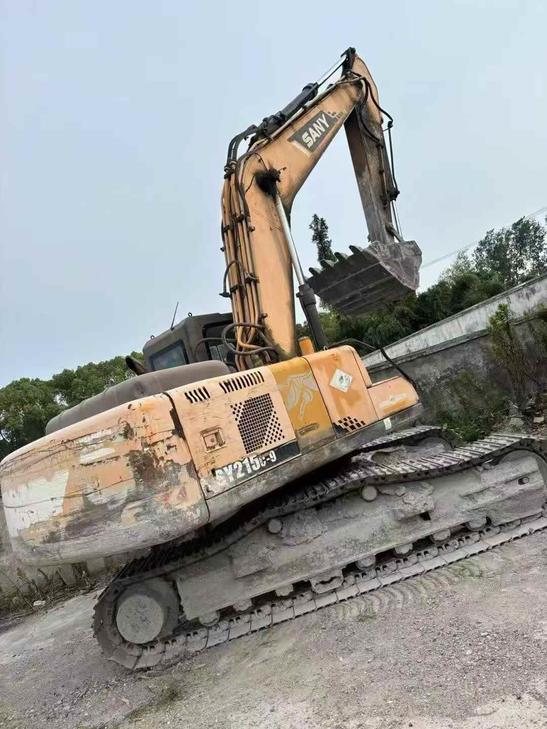

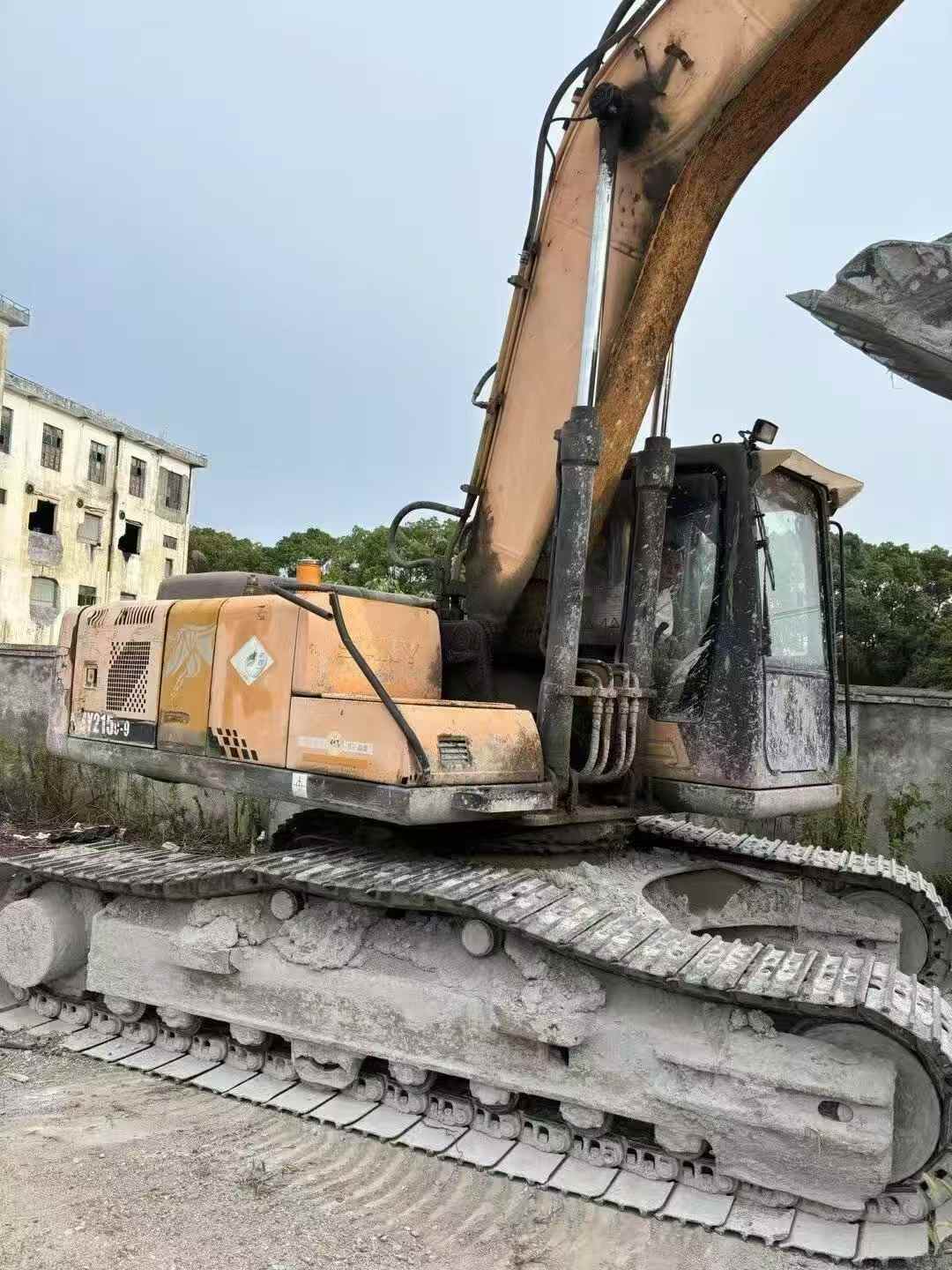

2014 Sany SY215C-8 hydraulic excavator available from Fujian, China. This mid-size crawler excavator from Sany's proven C-series lineup offers reliable performance for earthmoving, demolition, and general construction applications. The SY215C-8 features a robust undercarriage designed for stability on varied terrain and a hydraulic system engineered for efficient cycle times.
Key features include:
- Operating weight class suitable for medium-duty excavation work
- Fuel-efficient engine meeting emission standards
- Reinforced boom and arm structure for extended service life
- Spacious operator cabin with ergonomic controls
- Standard auxiliary hydraulic circuit for attachment versatility
This unit has accumulated operational hours consistent with its age and has been maintained in working condition. Ideal for contractors seeking dependable equipment at competitive pricing for the Asian or developing markets.
| Specifications | Value |
|---|---|
| No. | 1120868 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.93 |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi 6D34-TL |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 45 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 138 |
| Travel speed (km/h) | 3.2/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 2 x 210 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 9397 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 2956 |
| Full cab height (mm) | 2930 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3445 |
| Maximum digging radius (mm) | 9885 |
| Maximum digging depth (mm) | 6630 |
| Maximum excavation height (mm) | 9305 |
| Maximum unloading height (mm) | 6475 |
| Maximum vertical digging depth (mm) | 5980 |
| Bulldozer lift or depth (mm) | There is no |
