Product Description

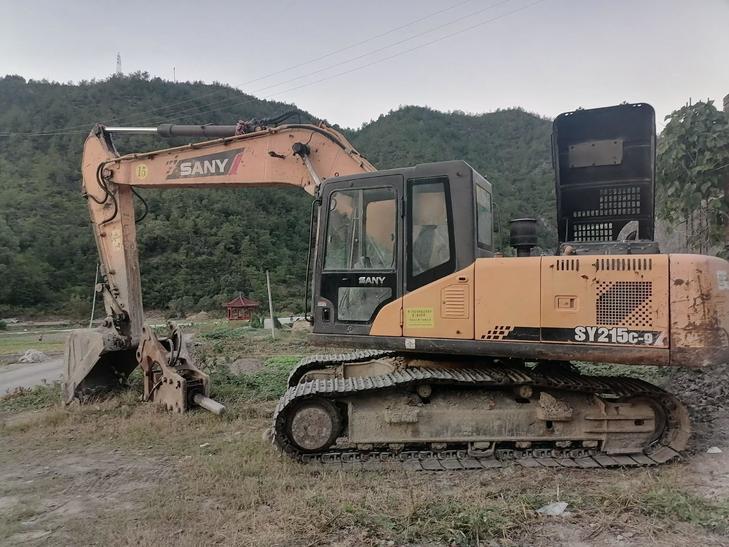

This 2014 Sany SY215C-8 crawler excavator offers reliable performance for mid-sized earthmoving operations. Originally manufactured by one of China's leading heavy equipment producers, this machine combines proven hydraulic systems with durable construction suitable for excavation, trenching, and general site work. The SY215C-8 series is recognized for its operational efficiency and straightforward maintenance requirements in demanding industrial environments.
Key features include:
- 21-ton operating weight class appropriate for commercial construction projects
- Turbocharged diesel engine delivering consistent power output
- Hydraulic system designed for smooth operation and fuel efficiency
- Reinforced undercarriage components for extended service life
- Spacious operator cabin with ergonomic controls
Currently located in Zhejiang, China. This unit represents practical value for contractors seeking dependable excavation equipment with established parts availability throughout Asian markets.
| Specifications | Value |
|---|---|
| No. | 1174356 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.93 |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi 6D34-TL |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 45 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 138 |
| Travel speed (km/h) | 3.2/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 2 x 210 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 9397 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 2956 |
| Full cab height (mm) | 2930 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3445 |
| Maximum digging radius (mm) | 9885 |
| Maximum digging depth (mm) | 6630 |
| Maximum excavation height (mm) | 9305 |
| Maximum unloading height (mm) | 6475 |
| Maximum vertical digging depth (mm) | 5980 |
| Bulldozer lift or depth (mm) | There is no |
