Product Description

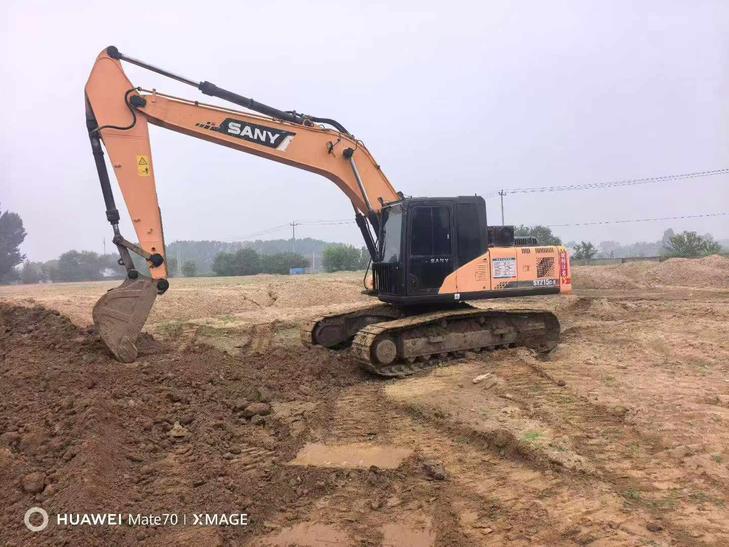

This 2015 Sany SY215C-8 crawler excavator represents a well-maintained example of proven Chinese engineering. Located in Beijing, this machine benefits from careful owner stewardship throughout its service life, with performance characteristics comparable to newer units.
The excavator retains its original Sany-branded undercarriage components, with track pads showing approximately 90% remaining life. Critical powertrain elements—engine, hydraulic pump, and final drives—remain in factory-original condition with no rebuilds or replacements. The machine exhibits no fluid leaks from hydraulic cylinders, motors, or engine seals, indicating comprehensive preventive maintenance.
Key features include:
- Operating weight class: 21.5 metric tons
- Sany C-series engine and hydraulic system
- Original undercarriage with minimal wear
- Complete service documentation from single owner
- Dry hydraulic system with no external leaks
Suitable for earthmoving, construction, and general excavation applications requiring reliable mid-size equipment.
| Specifications | Value |
|---|---|
| No. | 1085338 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.93 |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi 6D34-TL |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 45 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 138 |
| Travel speed (km/h) | 3.2/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 2 x 210 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 9397 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 2956 |
| Full cab height (mm) | 2930 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3445 |
| Maximum digging radius (mm) | 9885 |
| Maximum digging depth (mm) | 6630 |
| Maximum excavation height (mm) | 9305 |
| Maximum unloading height (mm) | 6475 |
| Maximum vertical digging depth (mm) | 5980 |
| Bulldozer lift or depth (mm) | There is no |
