2015 Sany SY215C-8

1/8
Buy Sany SY215C-8 Used Excavator / 1
Buy Sany SY215C-8 Used Excavator / 2
Buy Sany SY215C-8 Used Excavator / 3
Buy Sany SY215C-8 Used Excavator / 4
Buy Sany SY215C-8 Used Excavator / 5
Buy Sany SY215C-8 Used Excavator / 6
Buy Sany SY215C-8 Used Excavator / 7
Buy Sany SY215C-8 Used Excavator / 8

Product Description

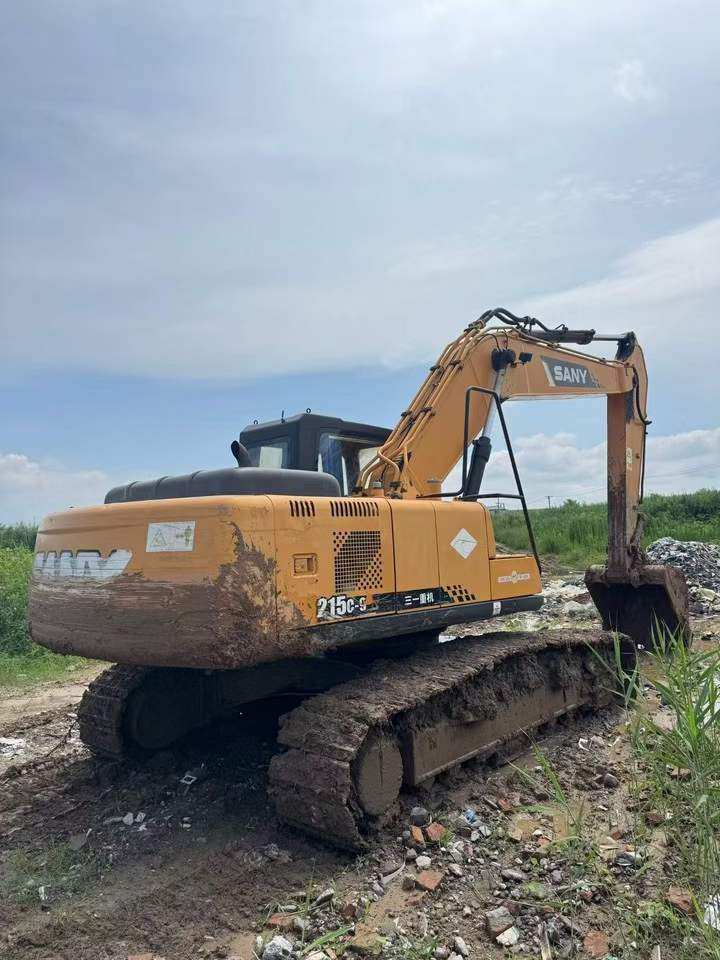

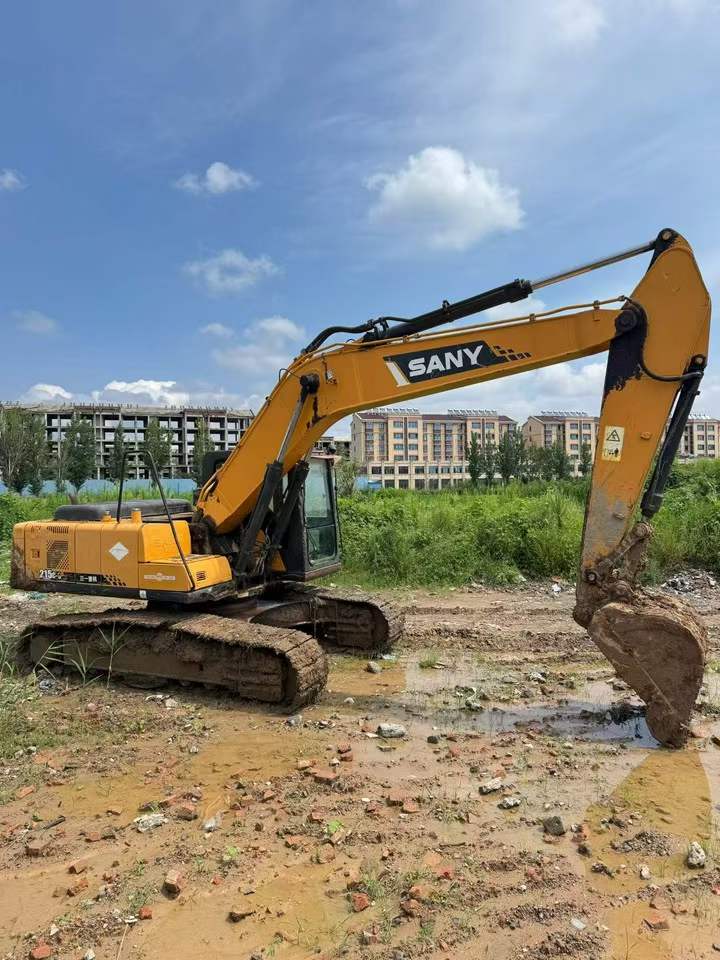

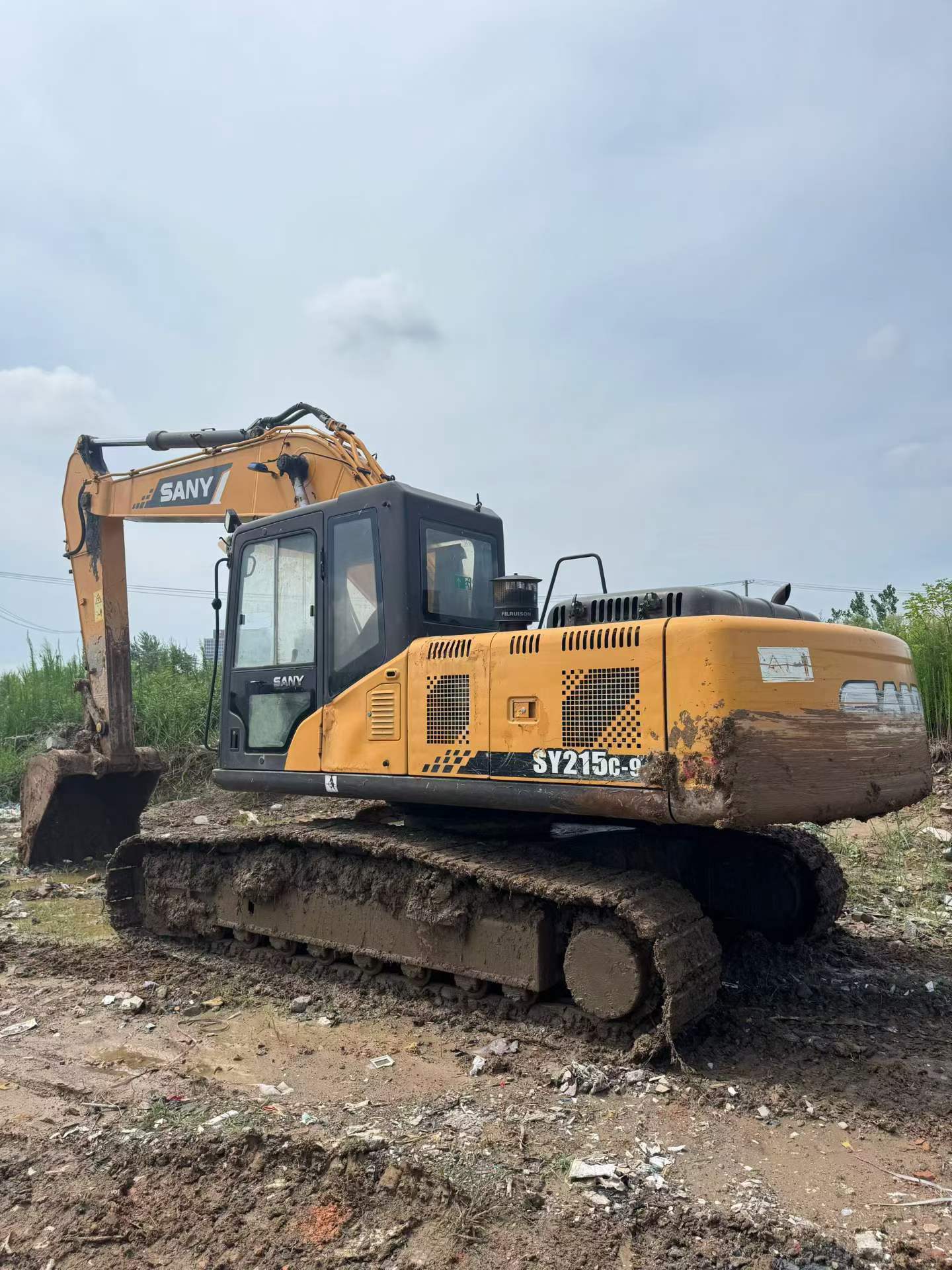

Built to endure the demands of serious earthmoving, this 2015 Sany SY215C-8 excavator stands as a proven workhorse with nearly a decade of demonstrated reliability behind its name. Manufactured in Kunshan, Jiangsu Province, this 21-ton machine continues to deliver consistent, heavy-duty performance — a direct testament to Sany's robust build quality and engineering standards.

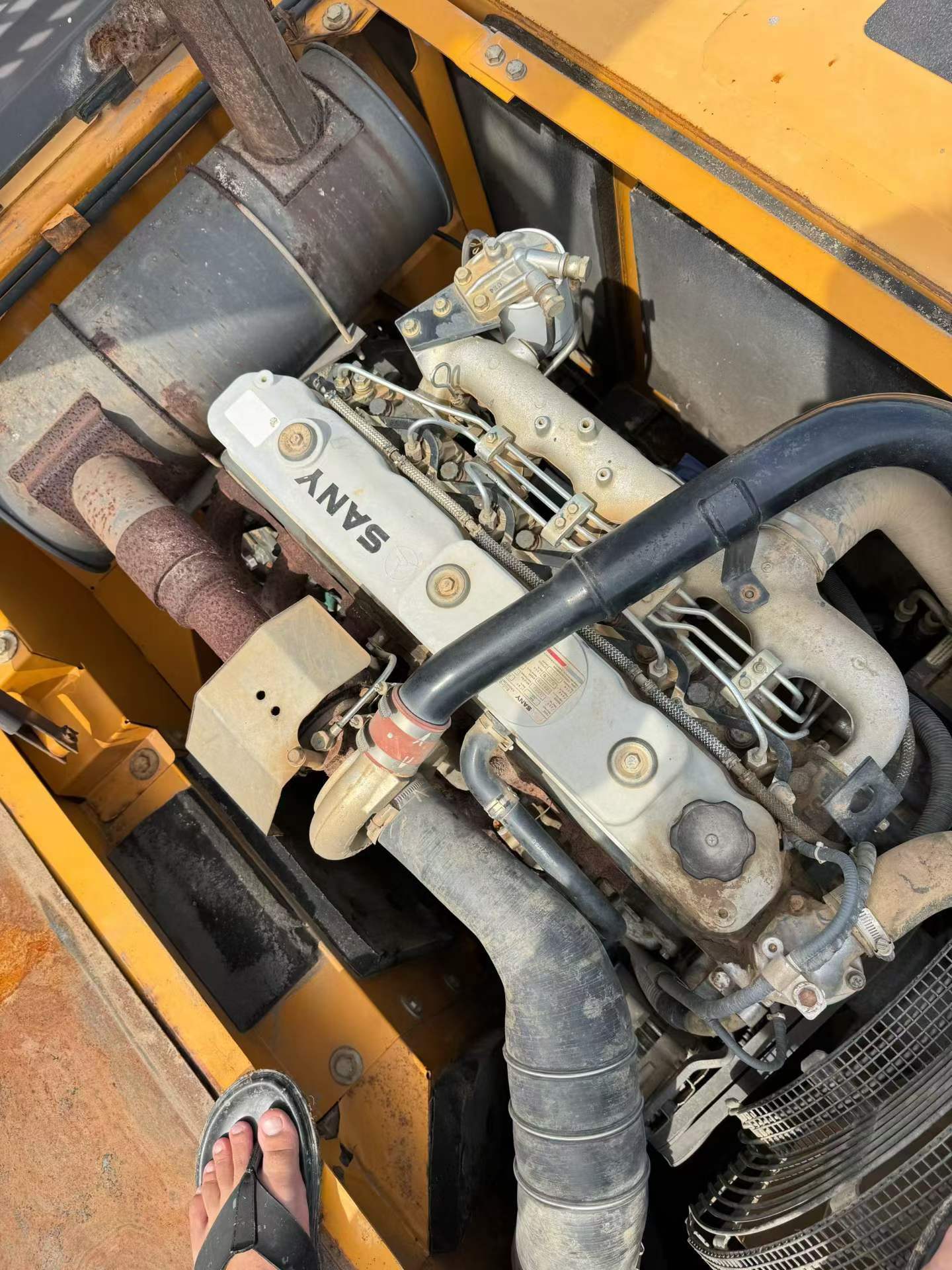

Powered by a water-cooled Mitsubishi 6D34-TL engine producing 114 kW at 2,050 RPM, this unit offers dependable output across demanding job sites. A bucket digging force of 138 kN and a 0.93 m³ backhoe bucket ensure efficient material handling cycle after cycle. With a maximum digging depth of 6,630 mm and a reach of 9,885 mm, it handles a wide range of excavation tasks without compromise.

  • Working Weight: 20,900 kg | Tonnage: 21 tons
  • Engine: Mitsubishi 6D34-TL | 114 kW / 2,050 RPM
  • Bucket Capacity: 0.93 m³ (Backhoe)
  • Max Digging Depth: 6,630 mm
  • Max Digging Radius: 9,885 mm
  • Travel Speed: 3.2 / 5.5 km/h
  • Climbing Ability: 70% / 35°
  • Main Pump Max Flow: 2 × 210 L/min
  • Location: Shandong, China
SpecificationsValue
No.1117037
Tonnage (tons)21
Working weight (kg)20900
Bucket capacity (m³)0.93
Country of originKunshan in Jiangsu Province
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeMitsubishi 6D34-TL
Rated power (kw/rpm)114/2050
Cooling modewater-cooling
Ground specific pressure (Kpa)45
Rotation speed (rpm)12.5
Climbing ability (%)70/35 °
Bucket digging force (kN)138
Travel speed (km/h)3.2/5.5
Main overflow set pressure (Mpa)34.3
Maximum flow of main pump (l/min)2 x 210
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25.5
Control Hydraulic Circuit (Mpa)3.9
Hydraulic crushing pipeline is standardno
Total transport length (mm)9397
Total transport width (mm)2980
Total transport height (mm)2956
Full cab height (mm)2930
Minimum ground clearance (mm)440
Back end turning radius (mm)2750
Total track length (mm)4250
Track gauge (mm)2380
Track plate width (mm)600
Total track width (mm)2980
Track ground length (mm)3445
Maximum digging radius (mm)9885
Maximum digging depth (mm)6630
Maximum excavation height (mm)9305
Maximum unloading height (mm)6475
Maximum vertical digging depth (mm)5980
Bulldozer lift or depth (mm)There is no
see more

Overview

No.1117037

Brand Name:

Sany

Model Number:

SY215C-8

Year:

2015

Location:

Shandong China

Pub Date
