Product Description

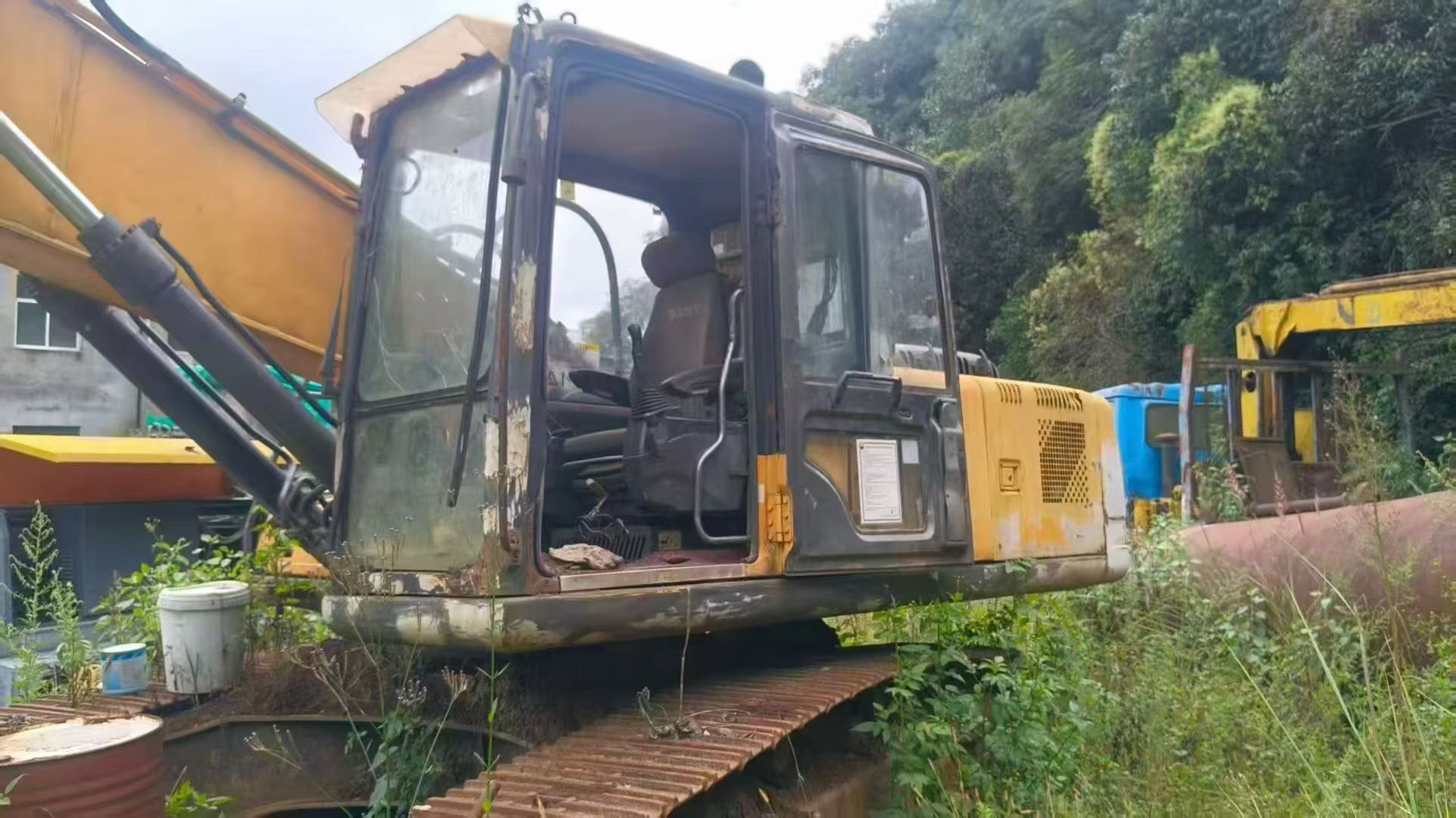

This 2020 Sany SY215C-8 is a 21-tonne class crawler excavator offered from stock in Hunan, China. Sourced from a high-volume domestic fleet, it gives buyers a practical entry into Sany's mid-size line without new-machine capital outlay.
Unit overview:
- Model year 2020, SY215C-8 configuration
- Standard 21-tonne class operating weight
- Boom, arm and bucket as delivered from factory specification
- Crawler undercarriage, enclosed cab with air conditioning
- Located in Hunan, China — available for on-site inspection
Price context: new machines in this size class have been quoted above RMB 950,000 domestically, so used units at this level carry a clear cost advantage for contractors running multiple sites.
Hour meter reading, maintenance records and undercarriage condition are confirmed on enquiry. Photo sets and video walkaround supplied to serious buyers, and loading or export documentation can be arranged from Hunan. Well suited to earthmoving, trenching and general construction duty.
| Specifications | Value |
|---|---|
| No. | 1157509 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.93 |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

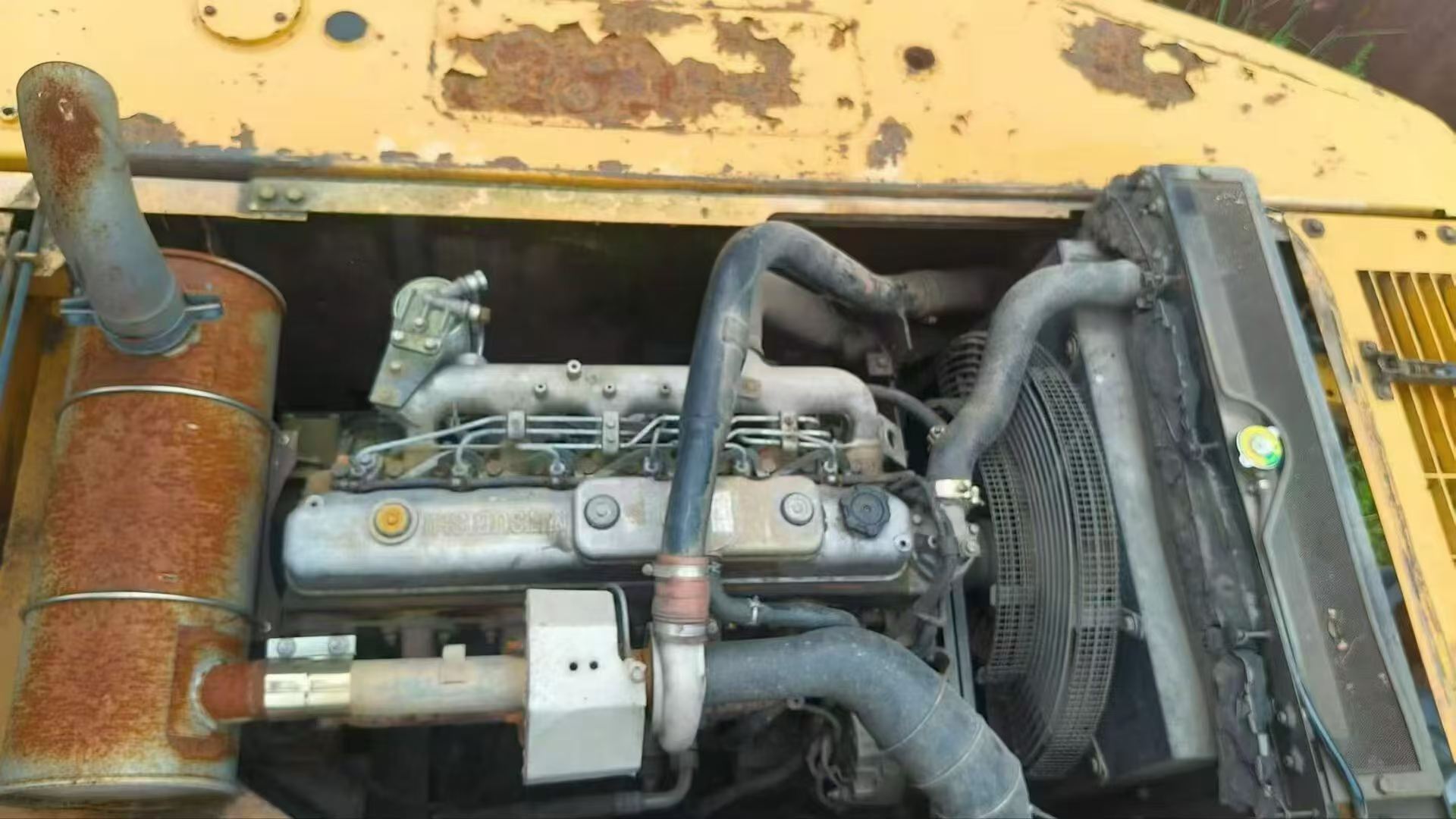

| Engine type | Mitsubishi 6D34-TL |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 45 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 138 |
| Travel speed (km/h) | 3.2/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 2 x 210 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 9397 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 2956 |
| Full cab height (mm) | 2930 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3445 |
| Maximum digging radius (mm) | 9885 |
| Maximum digging depth (mm) | 6630 |
| Maximum excavation height (mm) | 9305 |
| Maximum unloading height (mm) | 6475 |
| Maximum vertical digging depth (mm) | 5980 |
| Bulldozer lift or depth (mm) | There is no |
