Product Description

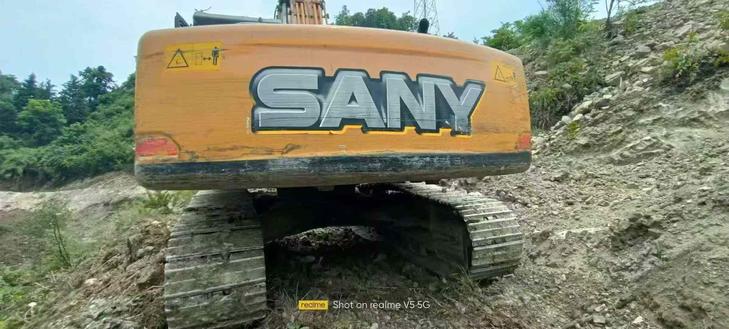

This 2020 Sany SY215C-8 crawler excavator offers reliable performance for demanding earthmoving applications. Located in Sichuan, China, this mid-size machine features Sany's proven hydraulic system and robust undercarriage designed for durability in challenging job site conditions. The SY215C-8 is well-suited for general construction, road building, and material handling operations.
- Operating weight class: approximately 21 tons
- Bucket capacity range: 0.9-1.1 m³
- Engine complies with emission standards
- Hydraulic pilot control system
- Spacious operator cab with good visibility
- Standard equipment includes air conditioning
This used excavator represents a cost-effective solution for contractors seeking proven Chinese manufacturing quality. The machine has been operating in regional construction projects and is available for immediate inspection and delivery within China or export worldwide.
| Specifications | Value |
|---|---|
| No. | 1169574 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.93 |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi 6D34-TL |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 45 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 138 |
| Travel speed (km/h) | 3.2/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 2 x 210 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 9397 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 2956 |
| Full cab height (mm) | 2930 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3445 |
| Maximum digging radius (mm) | 9885 |
| Maximum digging depth (mm) | 6630 |
| Maximum excavation height (mm) | 9305 |
| Maximum unloading height (mm) | 6475 |
| Maximum vertical digging depth (mm) | 5980 |
| Bulldozer lift or depth (mm) | There is no |
