2018 Sany SY225C

1/5
Buy Sany SY225C Used Excavator / 1

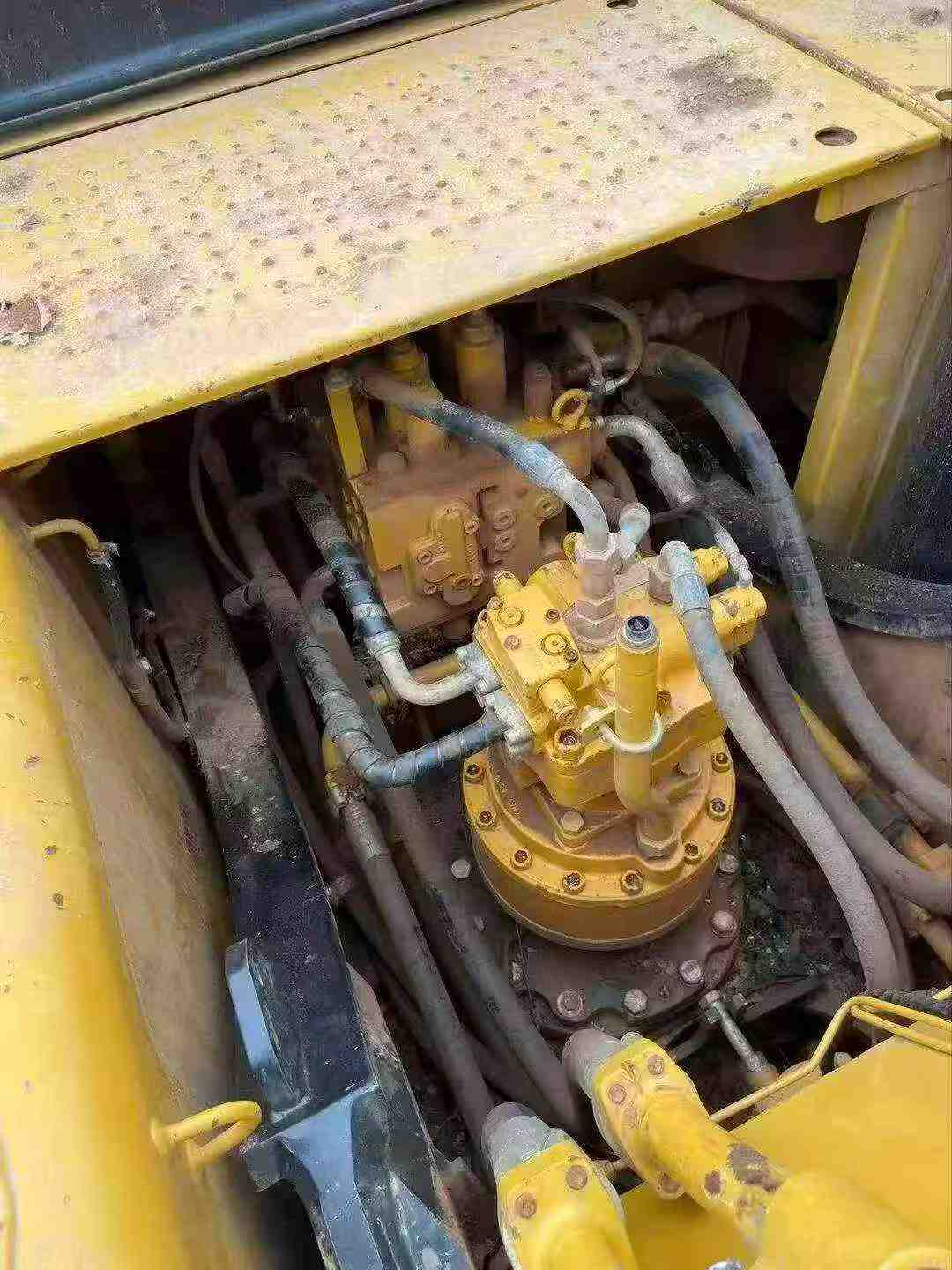

Buy Sany SY225C Used Excavator / 2

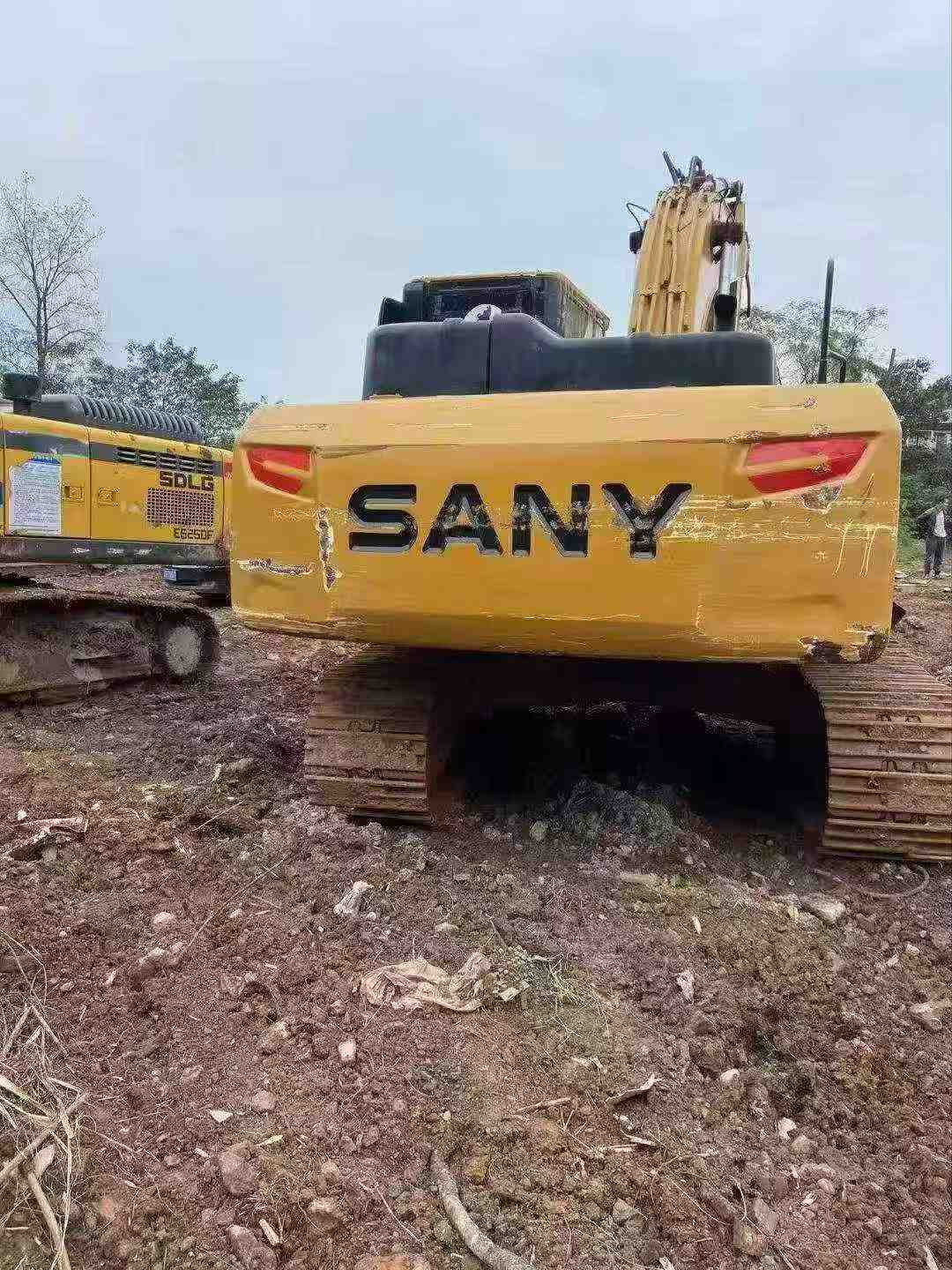

Buy Sany SY225C Used Excavator / 3

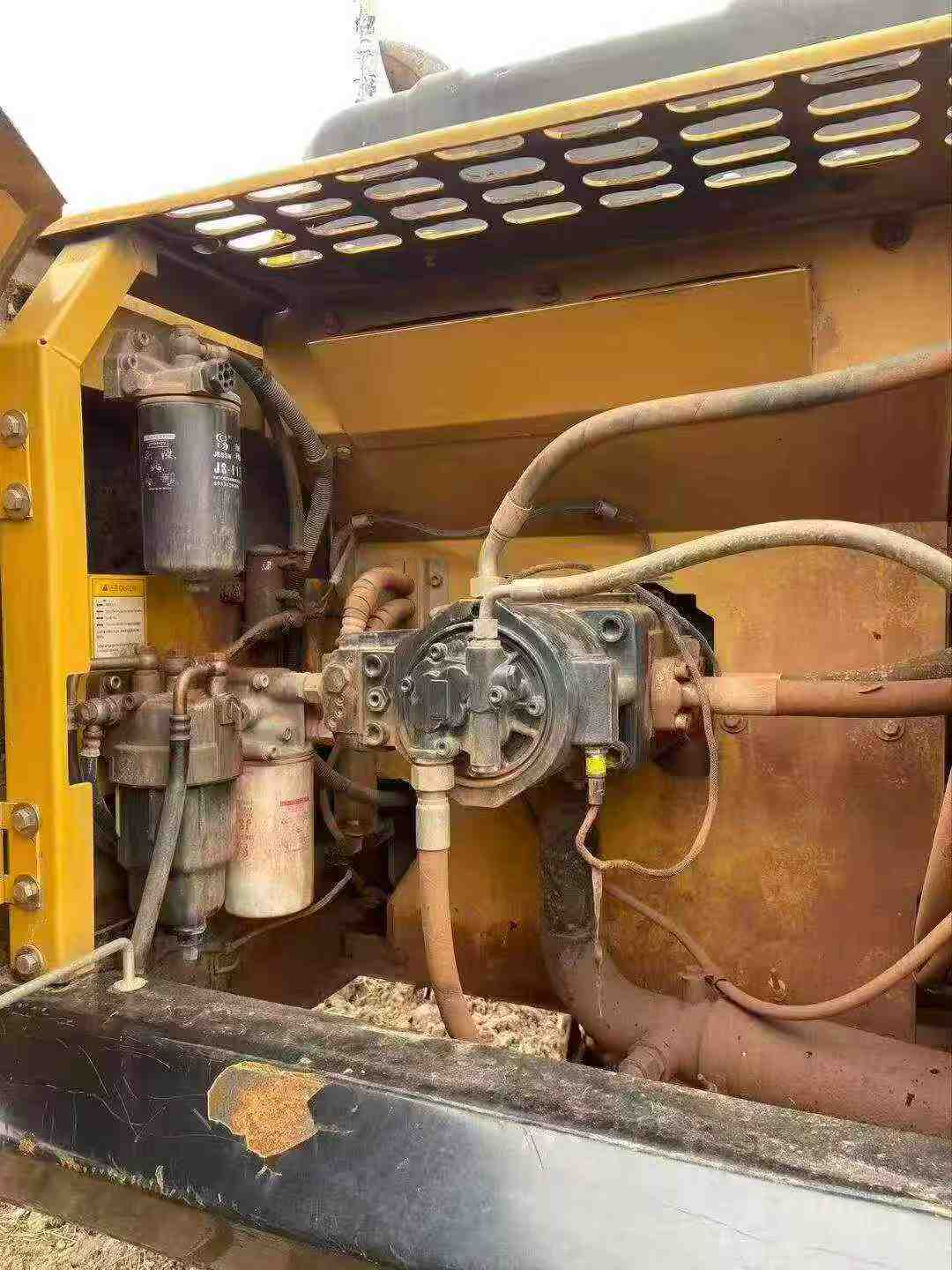

Buy Sany SY225C Used Excavator / 4

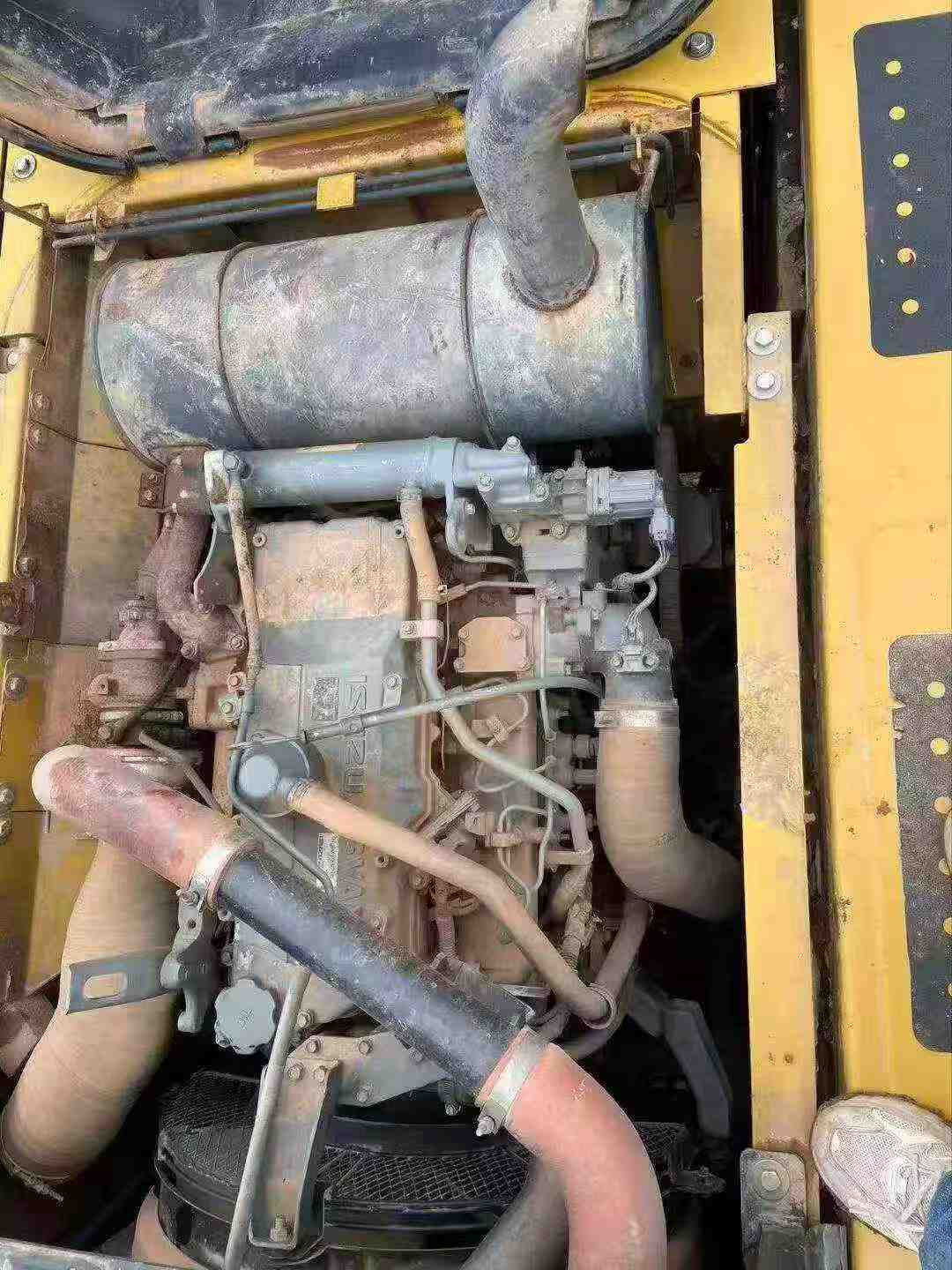

Buy Sany SY225C Used Excavator / 5

Product Description

This 2018 Sany SY225C hydraulic excavator offers reliable performance for medium-scale earthmoving and construction applications. Manufactured by one of China's leading heavy equipment producers, this 22-ton class machine combines proven durability with operational efficiency. Currently located in Sichuan, China, the unit is available for inspection and ready for deployment.

Key features include:

  • Sany SY225C model with robust hydraulic system
  • Suitable for excavation, trenching, and material handling
  • 2018 model year with documented service history
  • Competitive pricing for the used equipment market
  • Available for international shipping and export documentation support

This excavator represents a cost-effective solution for contractors seeking dependable machinery without the premium of new equipment. Contact us for detailed specifications, inspection arrangements, and shipping quotations to your location.

SpecificationsValue
No.1169549
Tonnage (tons)23
Working weight (kg)22300
Bucket capacity (m³)1.1~1.2(1.2)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine type4M50
Rated power (kw/rpm)118/2000
Maximum torque (N.m)580/1600
Displacement (L)4.9
Ground specific pressure (Kpa)47.4
Rotation speed (rpm)11
Climbing ability (%)70% (35°)
Bucket digging force (kN)138
Rod digging force (kN)103
Travel speed (km/h)5.4/3.3
Fuel Tank (L)340
Hydraulic Tank (L)239
Engine Oil changes (L)2
Coolant (L)30.9
Total transport length (mm)9680
Total transport width (mm)2980
Total transport height (mm)3440
Full cab height (mm)3075
Counterweight ground clearance (mm)440
Minimum turning radius of front working device (mm)3730
Back end turning radius (mm)2900
Onboard width (mm)2875
Total track length (mm)4445
Track gauge (mm)2380
Track plate width (mm)600
Track ground length (mm)3640
Maximum height at minimum turning radius (mm)7680
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)8
Number of track plates (single side) (PCS)47
Maximum digging radius (mm)10280
Maximum digging depth (mm)6600
Maximum excavation height (mm)9600
Maximum unloading height (mm)6730
see more

Overview

No.1169549

Brand Name:

Sany

Model Number:

SY225C

Year:

2018

Location:

Sichuan China

Pub Date:
