Product Description

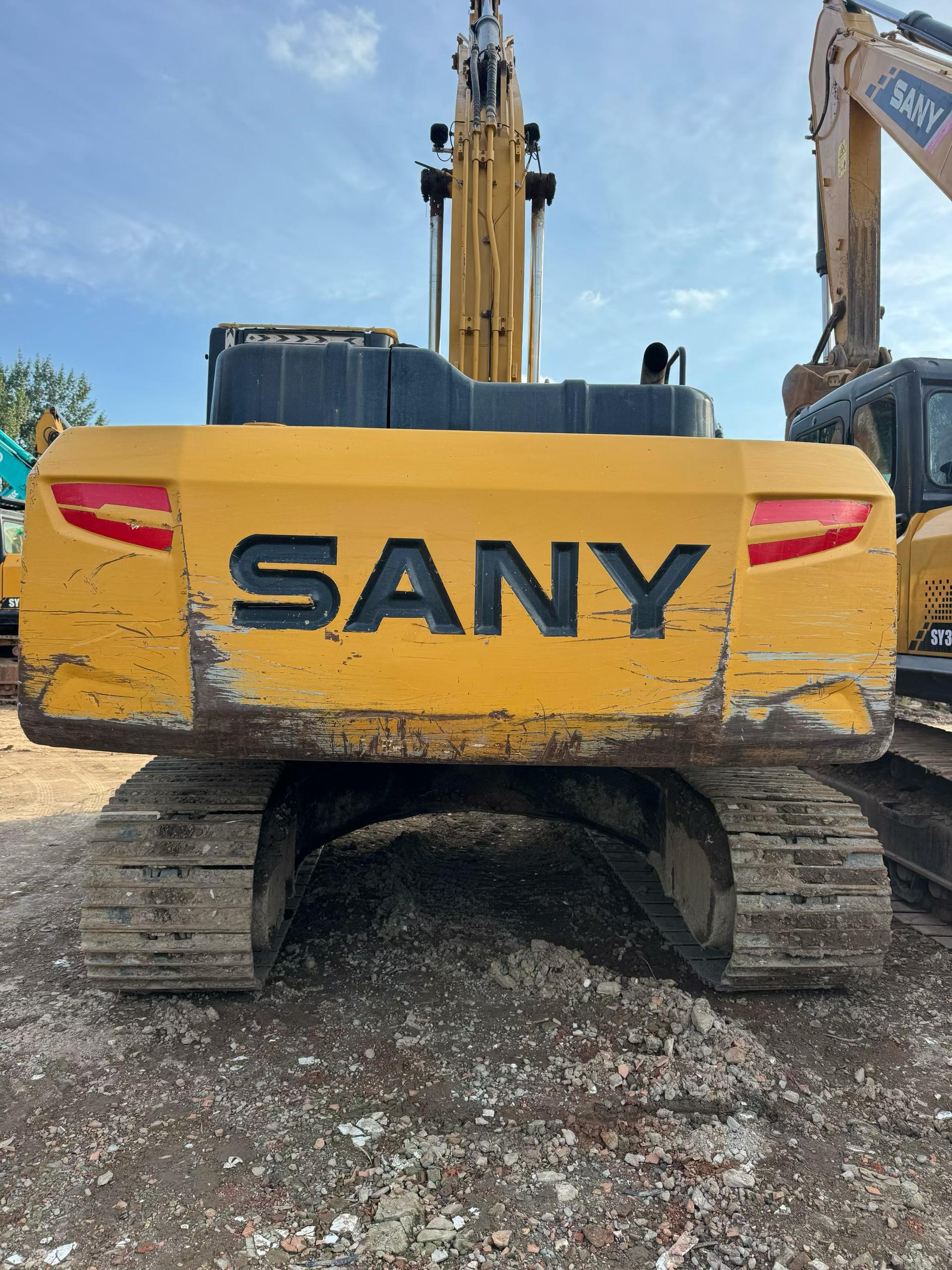

Available from our yard in Sichuan, China: a 2019 Sany SY225C hydraulic excavator. The SY225C is a 22.5-tonne-class machine widely used in Chinese earthmoving, road and utility work, and it is known for straightforward hydraulics and readily available parts support — a practical choice for contractors running mixed fleets.
The source listing describes this unit as a top-grade example with fully original bodywork: original panels, original paint, no accident repair and no cosmetic rebuild. That matters more than a low hour reading when you are buying used and cannot inspect in person — it tells you the machine has not been pieced back together after a major incident.
- Year: 2019
- Brand: Sany
- Model: SY225C
- Class: 22.5-tonne hydraulic excavator
- Location: Sichuan, China
- Body condition: all original, no panel replacement
- Inspection: yard viewing or third-party inspection welcome
- Further detail: video walkaround, hour meter and undercarriage photos on request
Export documentation and loading coordination can be arranged. Serious buyers are welcome to send inspection requirements before committing.
| Specifications | Value |
|---|---|
| No. | 1157160 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 22300 |
| Bucket capacity (m³) | 1.1~1.2(1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Maximum torque (N.m) | 580/1600 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 2 |
| Coolant (L) | 30.9 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Counterweight ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
