Product Description

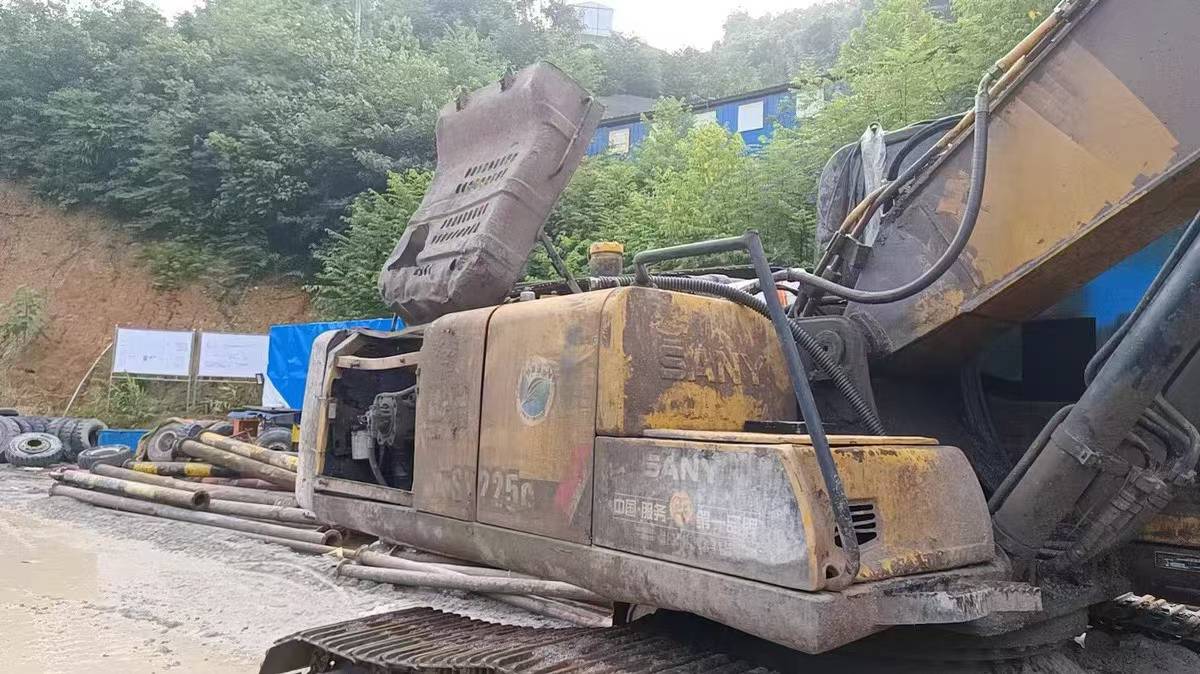

This 2020 Sany SY225C excavator is currently located in Guangxi, China and available at a competitive price point. The SY225C is a reliable 22-ton class hydraulic excavator from Sany's proven C-series lineup, designed for general earthmoving, trenching, and construction applications.
Key features of the SY225C include:
- Operating weight approximately 22,500 kg
- Hydraulic system optimized for fuel efficiency and productivity
- Robust undercarriage suitable for varied terrain conditions
- Spacious operator cabin with ergonomic controls
- Sany's reliable engine and hydraulic components
This unit represents practical value for contractors and operators seeking dependable performance in a mid-size excavator platform. The machine is being offered at an accessible price, making it suitable for fleet expansion or replacement projects. Inspection and verification of machine condition is recommended prior to purchase.
| Specifications | Value |
|---|---|
| No. | 1154109 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 22300 |
| Bucket capacity (m³) | 1.1~1.2(1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Maximum torque (N.m) | 580/1600 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 2 |
| Coolant (L) | 30.9 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Counterweight ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
