Product Description
This 2022 Sany SY225C excavator, currently located in Zhejiang, China, offers reliable performance with approximately 6,000 actual operating hours recorded. The SY225C is a well-regarded mid-size crawler excavator known for its robust hydraulic system and fuel efficiency in demanding construction and earthmoving applications.
- Year of Manufacture: 2022
- Operating Hours: ~6,000 hours
- Operating Weight Class: 22-ton
- Engine: Tier 2/Stage II compliant diesel
- Hydraulic System: Load-sensing hydraulics for precise control
- Suitable for: Excavation, trenching, loading, and material handling
This unit has been maintained in working condition and is ready for deployment in infrastructure projects, site preparation, or heavy civil works. Inspection reports and export documentation can be arranged upon request.
| Specifications | Value |
|---|---|
| No. | 1173923 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 22300 |
| Bucket capacity (m³) | 1.1~1.2(1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

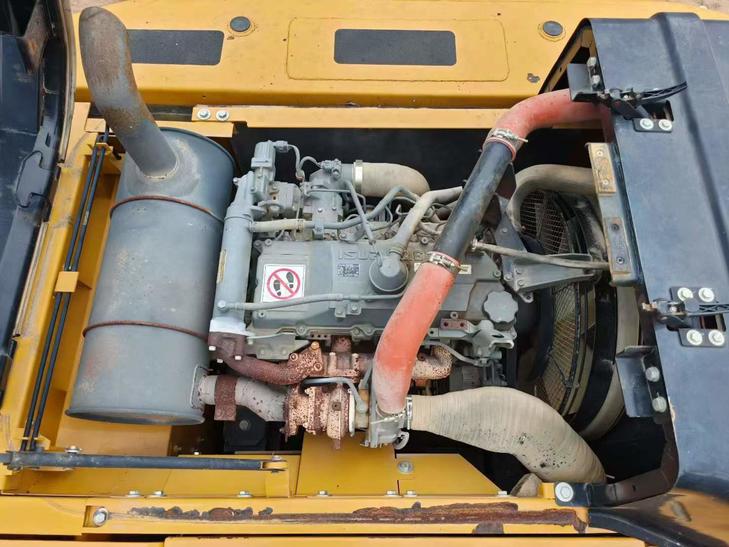

| Engine type | 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Maximum torque (N.m) | 580/1600 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 2 |
| Coolant (L) | 30.9 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Counterweight ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
