Product Description

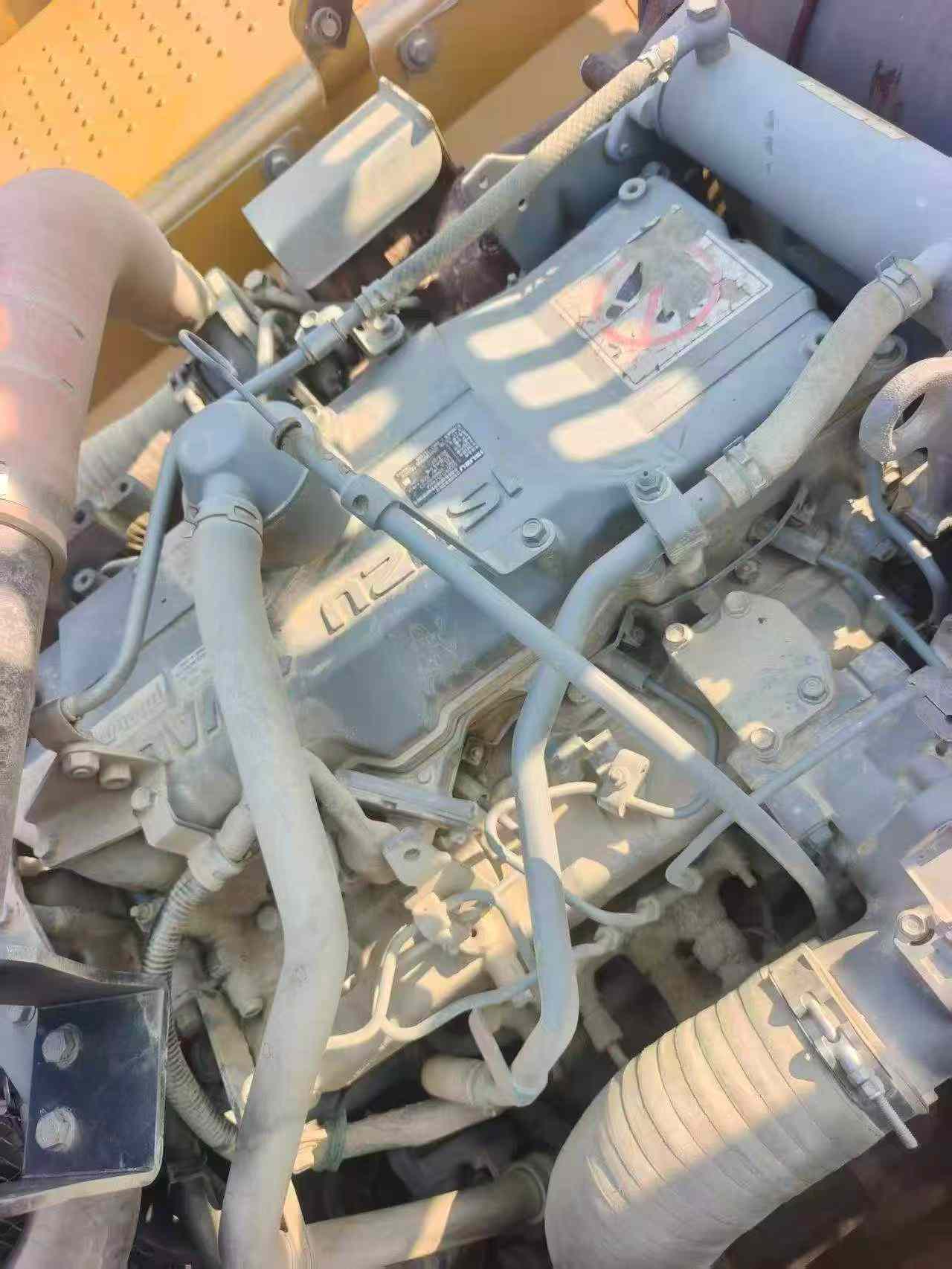

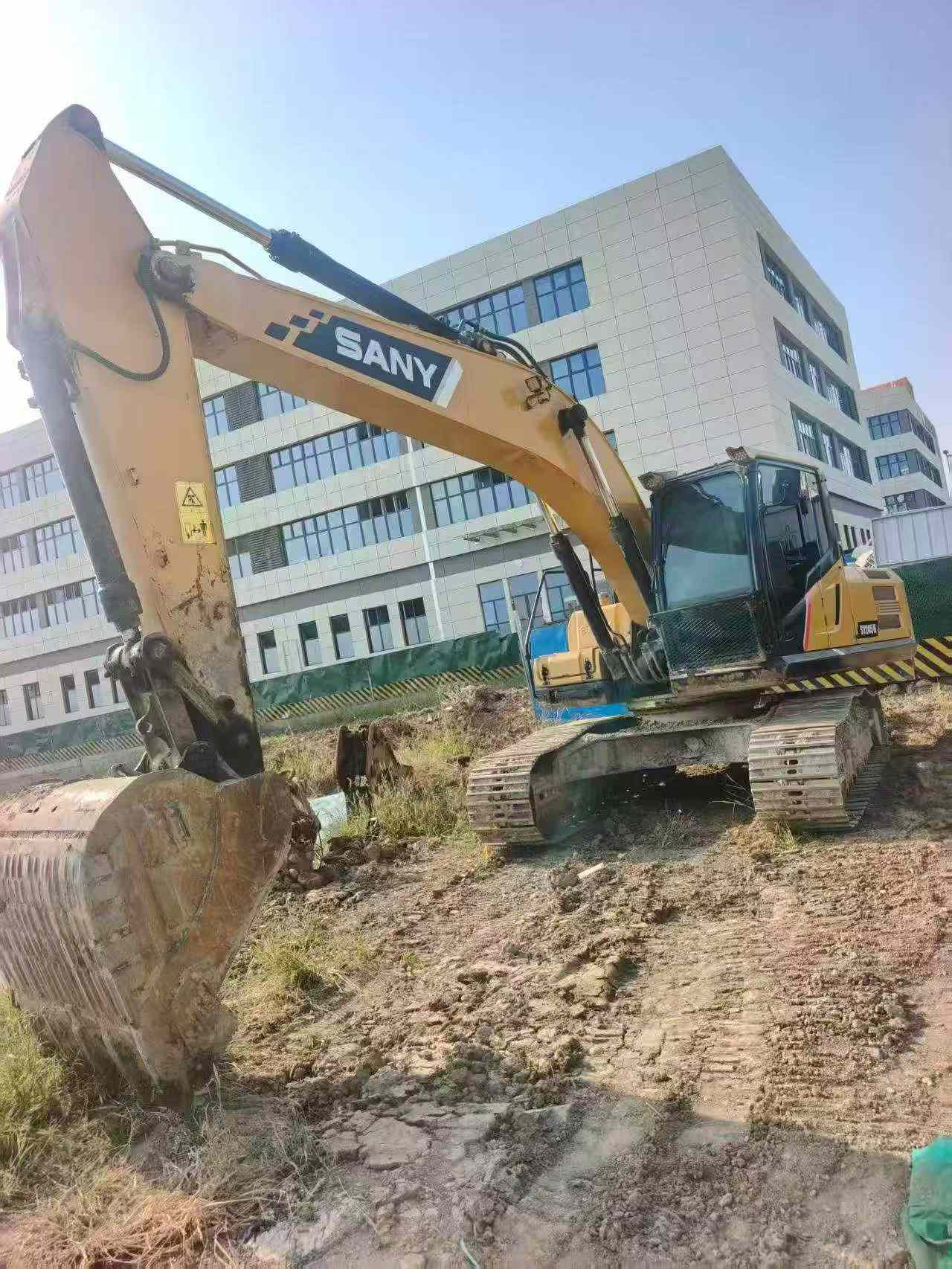

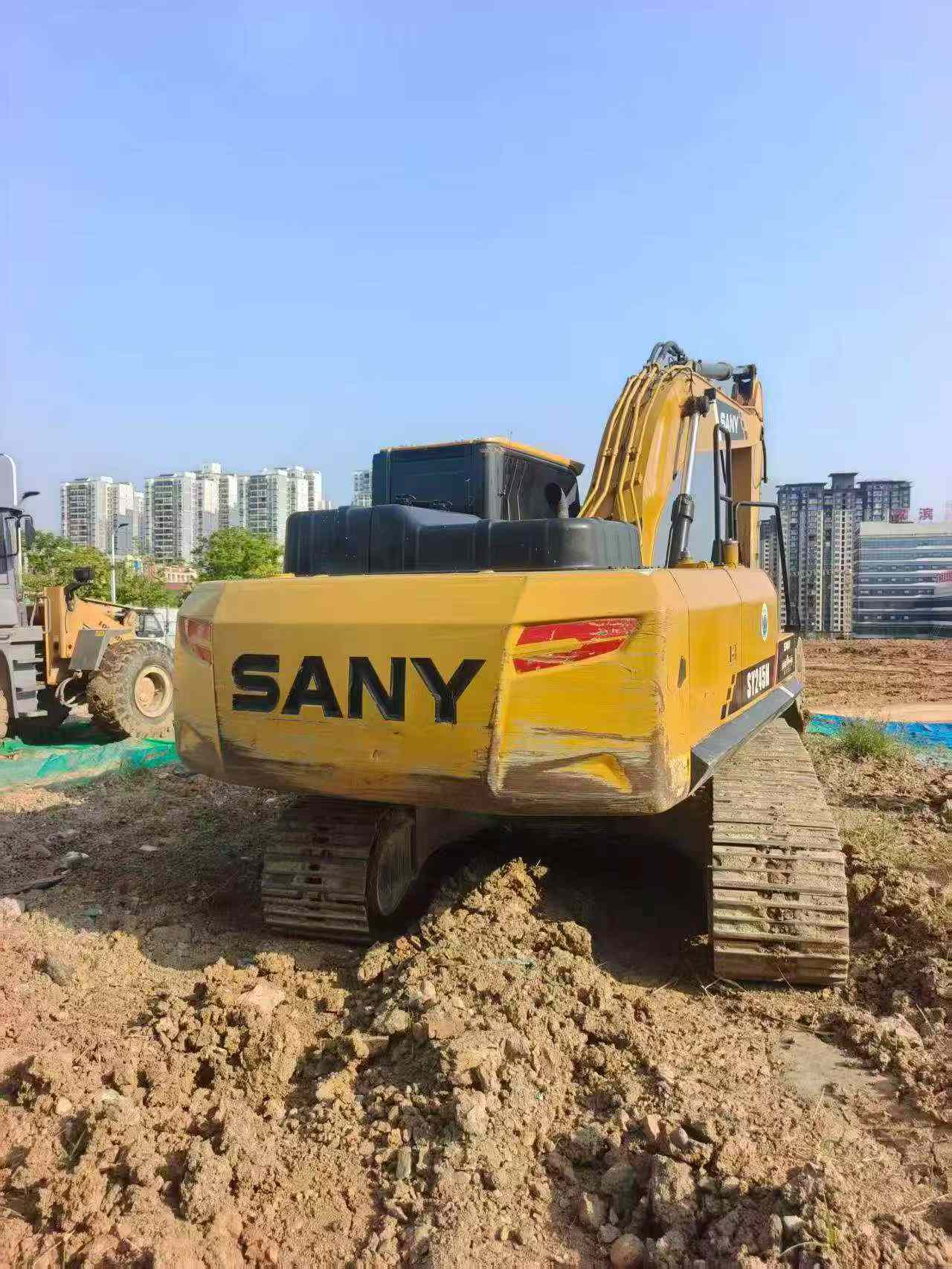

Built for operators who demand precision and control, this 2018 Sany SY225H 22-ton excavator delivers a confident working experience across demanding job sites. Powered by a 133 kW engine producing 657 N·m of peak torque, it drives a bucket digging force of 140 kN and an arm digging force of 107 kN — giving the operator consistent, responsive breakout performance throughout long shifts. A low ground pressure of 51 kPa and 600 mm track plates provide stable footing on soft or uneven terrain, reducing operator fatigue caused by machine instability.
- 22,800 kg operating weight with 1.2 m³ bucket capacity for efficient material handling
- Dual travel speeds (5.6 / 3.3 km/h) allow smooth transitions between site repositioning and precision digging
- 70% gradeability (35°) supports confident movement on sloped terrain

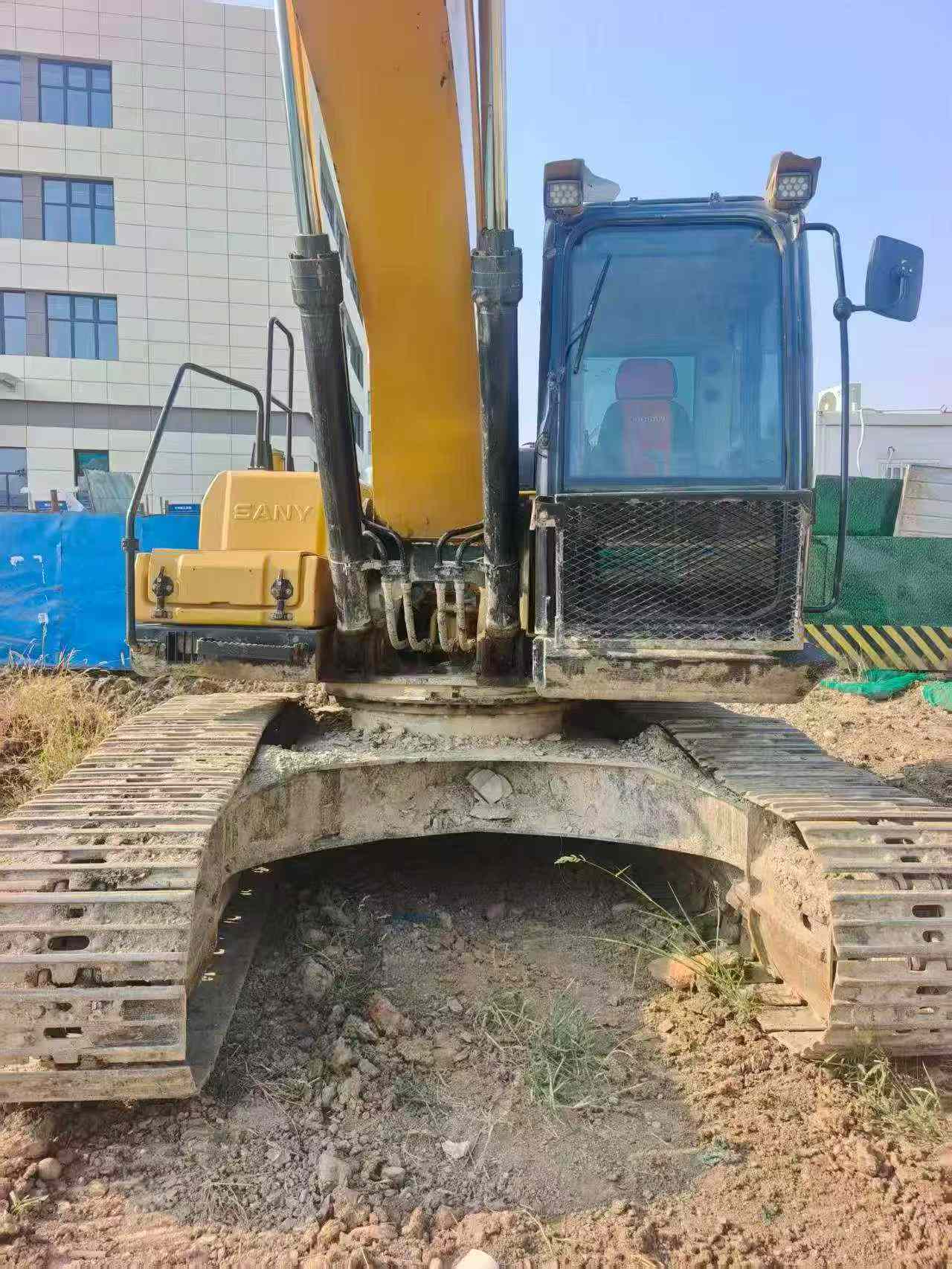

- Cabin designed to era-standard visibility with wide front glass and low hood profile for clear dig-zone sightlines
- 370 L fuel tank supports extended operation with fewer interruptions
- 10.8 RPM swing speed ensures smooth, controlled rotation under load
- Currently located in Zhejiang, China — available for global export
| Specifications | Value |
|---|---|
| No. | 1138918 |
| Tonnage (tons) | 22 |
| Working weight (kg) | 22800 |
| Bucket capacity (m³) | 1.1-1.2(1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 133/2000 |
| Maximum torque (N.m) | 657/1500 |
| Displacement (L) | 5.193 |
| Ground specific pressure (Kpa) | 51 |
| Rotation speed (rpm) | 10.8 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 140 |
| Rod digging force (kN) | 107 |
| Travel speed (km/h) | 5.6/3.3 |
| Turning torque (kN/m) | 657/1500 |
| Fuel Tank (L) | 370 |
| Hydraulic Tank (L) | 270 |
| Engine Oil changes (L) | 21.5 |
| Coolant (L) | 33 |
| Track plate width (mm) | 600 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
