2012 Sany SY235C-8

1/3
Buy Sany SY235C-8 Used Excavator / 1

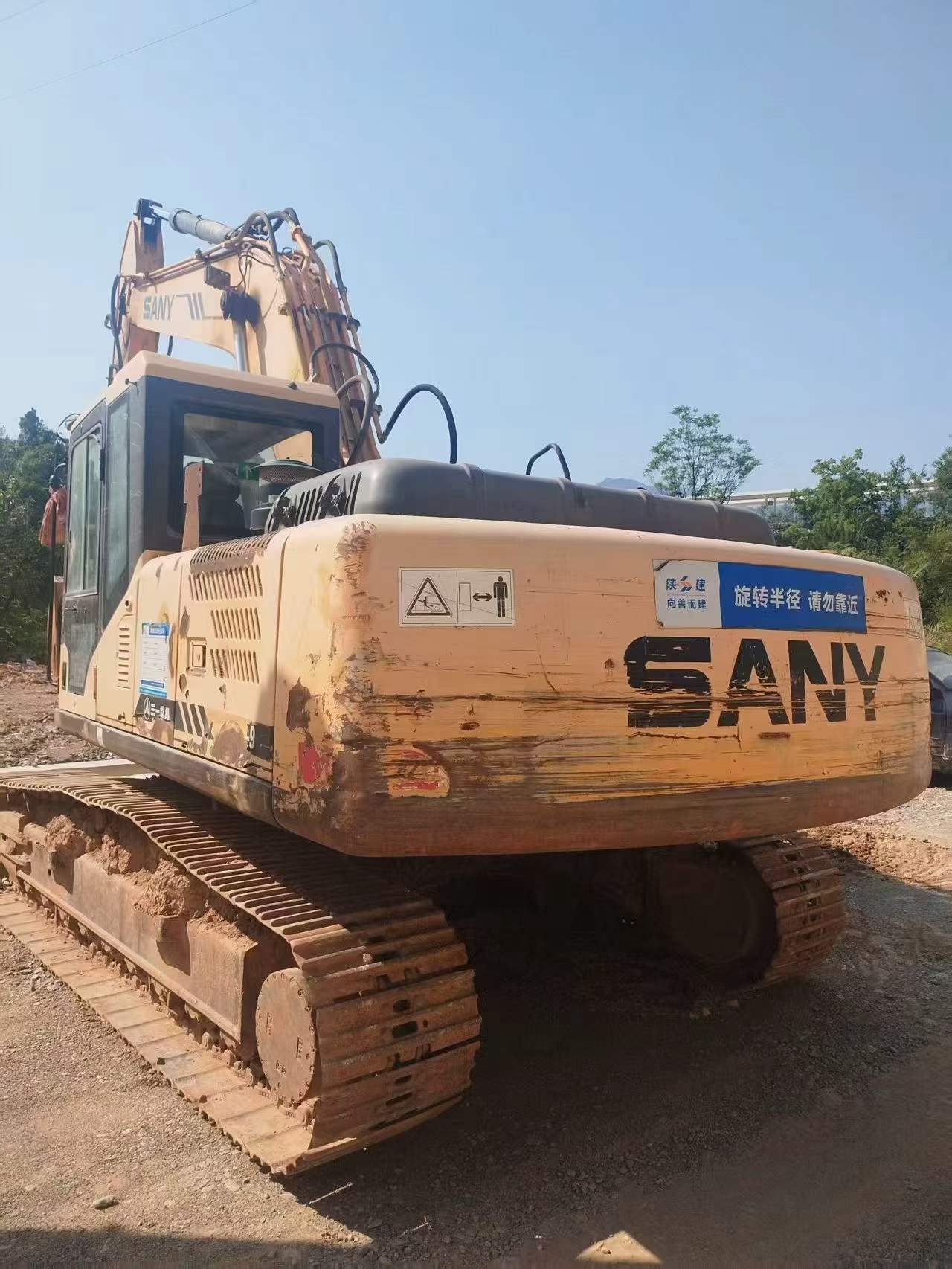

Buy Sany SY235C-8 Used Excavator / 2

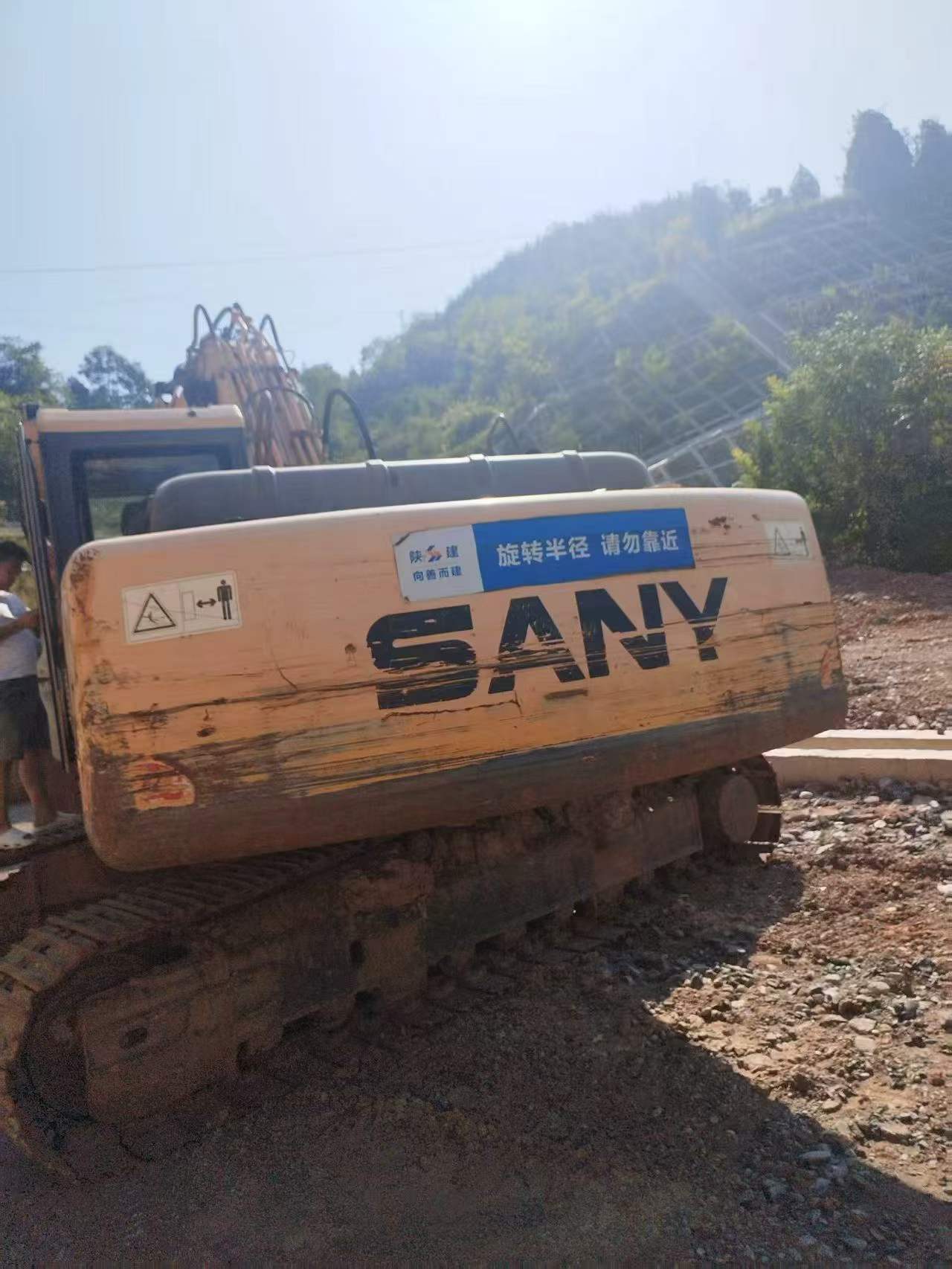

Buy Sany SY235C-8 Used Excavator / 3

Product Description

This 2012 Sany SY235C-8 hydraulic excavator is available from Zhejiang, China. With over a decade of field service, this mid-size crawler excavator offers proven reliability for earthmoving, trenching, and material handling applications. The SY235C-8 features Sany's robust undercarriage design and hydraulic system, delivering consistent performance in construction and infrastructure projects.

  • Year: 2012
  • Make: Sany
  • Model: SY235C-8
  • Category: Hydraulic Excavator
  • Location: Zhejiang Province, China
  • Condition: Used, operational

This machine is priced competitively for the pre-owned equipment market. Ideal for contractors seeking a dependable excavator with established service history. Inspection welcome. Contact us for shipping arrangements and additional documentation.

SpecificationsValue
No.1138401
Tonnage (tons)23
Working weight (kg)22900
Bucket capacity (m³)1
Country of originKunshan in Jiangsu Province
powerTraditional power
manufacturerMade in China
bucketbackhoe
Rated power (kw/rpm)125/2100
Cooling modewater-cooling
Ground specific pressure (Kpa)47.6
Rotation speed (rpm)11
Climbing ability (%)70/35 °
Bucket digging force (kN)159
Travel speed (km/h)3.2/5.5
Main overflow set pressure (Mpa)34.3
Maximum flow of main pump (l/min)2 x 265
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25.5
Control Hydraulic Circuit (Mpa)3.9
Hydraulic crushing pipeline is standardno
Total transport length (mm)9780
Total transport width (mm)2980
Total transport height (mm)3160
Full cab height (mm)2930
Minimum ground clearance (mm)440
Back end turning radius (mm)2860
Total track length (mm)4445
Track gauge (mm)2380
Track plate width (mm)600
Total track width (mm)2980
Track ground length (mm)3640
Maximum digging radius (mm)10180
Maximum digging depth (mm)6920
Maximum excavation height (mm)9380
Maximum unloading height (mm)6515
Maximum vertical digging depth (mm)6010
Bulldozer lift or depth (mm)There is no
see more

Overview

No.1138401

Brand Name:

Sany

Model Number:

SY235C-8

Year:

2012

Location:

Zhejiang China

Pub Date
