Product Description

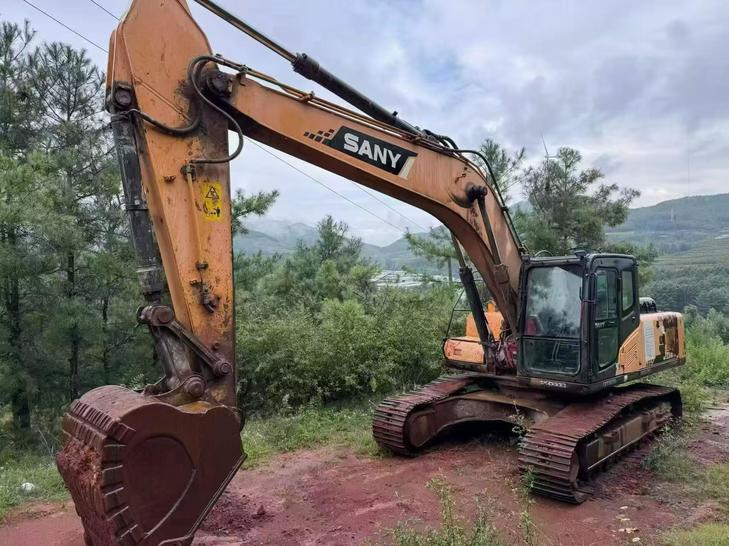

Ready to ship from Yunnan, China, this 2013 Sany SY235C-8 puts 23 tonnes of proven excavating performance at your disposal — no factory wait, no production delays. Skip the lead times and get a field-ready machine deployed to your site fast, whether you're moving earth in Southeast Asia, the Middle East, or beyond.
Built by Sany in Kunshan, Jiangsu Province, the SY235C-8 is a water-cooled, 125 kW backhoe excavator rated at 2,100 rpm. With a bucket digging force of 159 kN, a maximum digging depth of 6,920 mm, and a reach of 10,180 mm, it handles heavy excavation cycles without compromise. Ground pressure sits at a low 47.6 kPa across 600 mm-wide tracks — ideal for soft and mixed terrain.
- Working weight: 22,900 kg | Bucket capacity: 1 m³
- Rated power: 125 kW / 2,100 rpm — water-cooled engine
- Max digging depth: 6,920 mm | Max digging radius: 10,180 mm
- Travel speed: 3.2 / 5.5 km/h | Climbing ability: 70% (35°)
- Main system pressure: 34.3 MPa | Main pump flow: 2 × 265 L/min
- Transport dimensions: 9,780 × 2,980 × 3,160 mm
Available now in Yunnan — contact Fair Trade Machinery today for inspection reports, export documentation, and the fastest route to your jobsite.
| Specifications | Value |
|---|---|
| No. | 1138560 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 22900 |
| Bucket capacity (m³) | 1 |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 125/2100 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 47.6 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 159 |
| Travel speed (km/h) | 3.2/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 2 x 265 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 9780 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3160 |
| Full cab height (mm) | 2930 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2860 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3640 |
| Maximum digging radius (mm) | 10180 |
| Maximum digging depth (mm) | 6920 |
| Maximum excavation height (mm) | 9380 |
| Maximum unloading height (mm) | 6515 |
| Maximum vertical digging depth (mm) | 6010 |
| Bulldozer lift or depth (mm) | There is no |
