2015 Sany SY235C-8

1/9
Buy Sany SY235C-8 Used Excavator / 1
Buy Sany SY235C-8 Used Excavator / 2
Buy Sany SY235C-8 Used Excavator / 3
Buy Sany SY235C-8 Used Excavator / 4
Buy Sany SY235C-8 Used Excavator / 5
Buy Sany SY235C-8 Used Excavator / 6
Buy Sany SY235C-8 Used Excavator / 7
Buy Sany SY235C-8 Used Excavator / 8
Buy Sany SY235C-8 Used Excavator / 9

Product Description

This 2015 Sany SY235C-8 hydraulic excavator is available now in Hunan, China. Originally equipped with a hydraulic breaker attachment, this mid-size crawler excavator has proven its durability in demanding applications. The SY235C-8 features Sany's robust undercarriage design and efficient hydraulic system, making it suitable for various earthmoving and demolition projects.

Key features include:

  • Operating weight class: approximately 23-24 tons

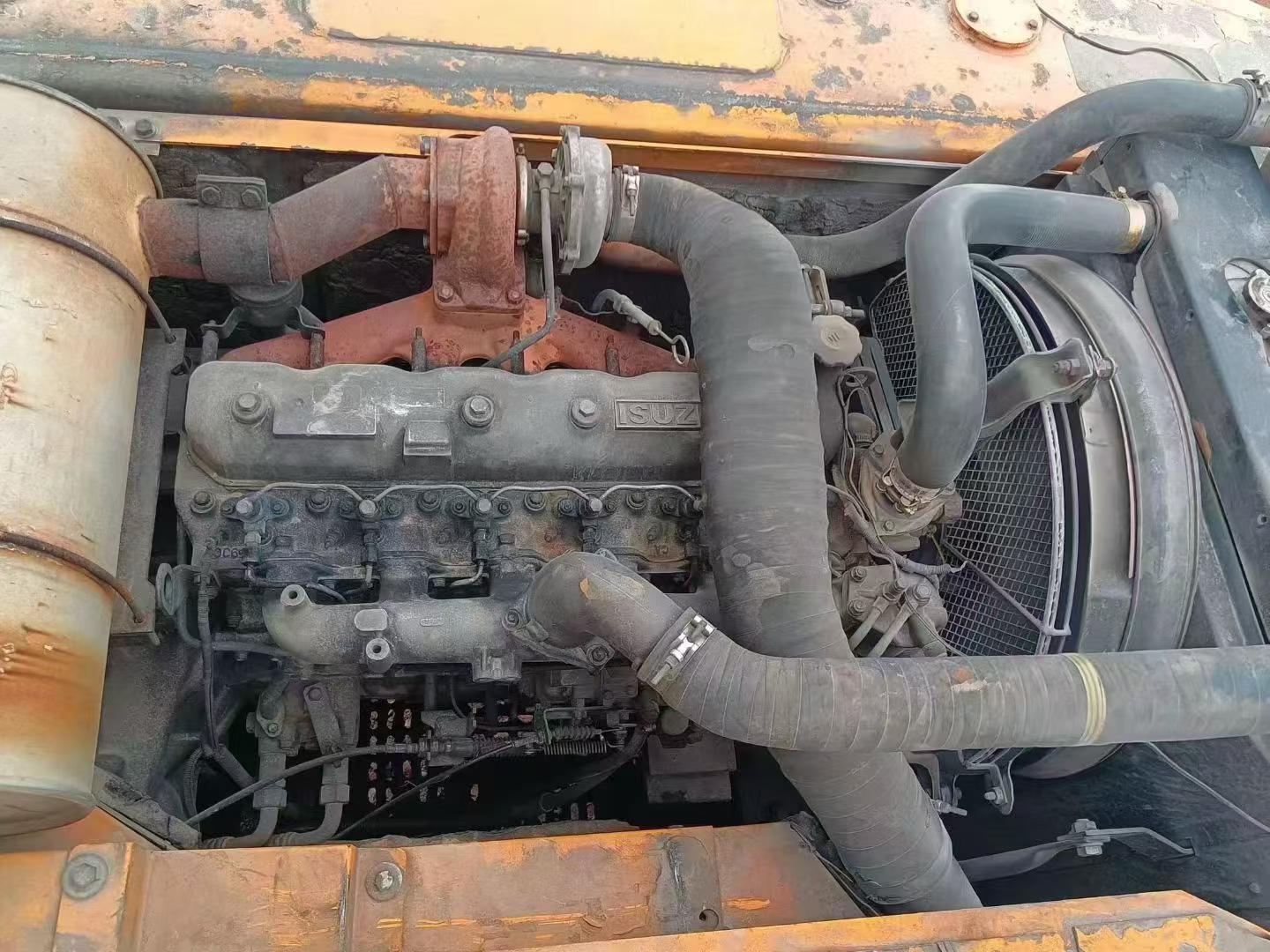

  • Reliable Isuzu engine technology
  • Includes hydraulic breaker attachment
  • Ready for immediate deployment
  • Located in Hunan Province for convenient inspection

This machine represents solid value for contractors seeking dependable used equipment. Suitable for construction, demolition, and infrastructure projects. Contact us for current pricing, detailed inspection reports, and export documentation assistance.

SpecificationsValue
No.1170563
Tonnage (tons)23
Working weight (kg)22900
Bucket capacity (m³)1
Country of originKunshan in Jiangsu Province
powerTraditional power
manufacturerMade in China
bucketbackhoe
Rated power (kw/rpm)125/2100
Cooling modewater-cooling
Ground specific pressure (Kpa)47.6
Rotation speed (rpm)11
Climbing ability (%)70/35 °
Bucket digging force (kN)159
Travel speed (km/h)3.2/5.5
Main overflow set pressure (Mpa)34.3
Maximum flow of main pump (l/min)2 x 265
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25.5
Control Hydraulic Circuit (Mpa)3.9
Hydraulic crushing pipeline is standardno
Total transport length (mm)9780
Total transport width (mm)2980
Total transport height (mm)3160
Full cab height (mm)2930
Minimum ground clearance (mm)440
Back end turning radius (mm)2860
Total track length (mm)4445
Track gauge (mm)2380
Track plate width (mm)600
Total track width (mm)2980
Track ground length (mm)3640
Maximum digging radius (mm)10180
Maximum digging depth (mm)6920
Maximum excavation height (mm)9380
Maximum unloading height (mm)6515
Maximum vertical digging depth (mm)6010
Bulldozer lift or depth (mm)There is no
see more

Overview

No.1170563

Brand Name:

Sany

Model Number:

SY235C-8

Year:

2015

Location:

Hunan China

Pub Date:
