Product Description

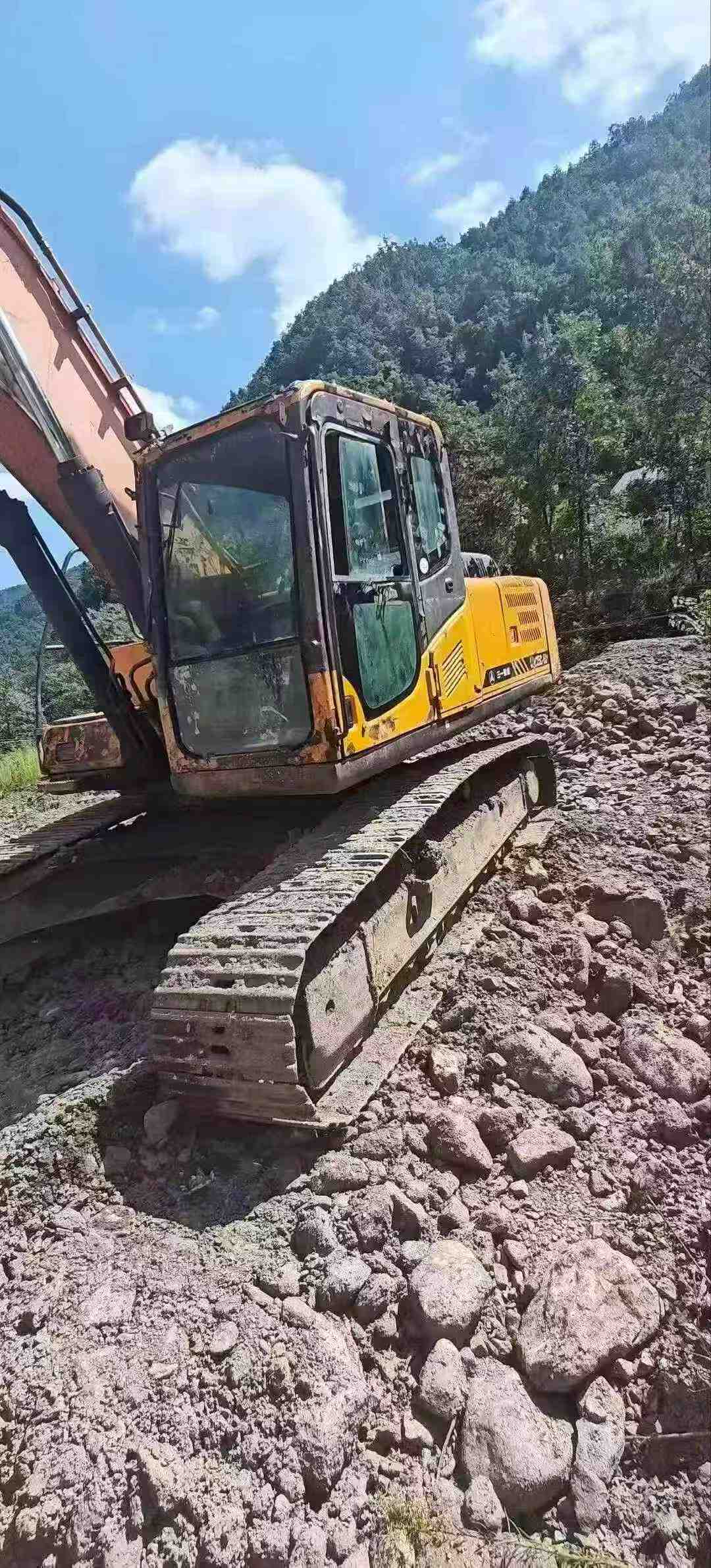

This 2020 Sany SY235C-8 excavator represents a reliable mid-size solution for construction and earthmoving operations. Currently located in Sichuan, China, this machine offers proven performance from one of Asia's leading heavy equipment manufacturers.
The SY235C-8 features Sany's eighth-generation hydraulic system, delivering efficient digging force and fuel economy for demanding jobsite conditions. With its 23-ton operating weight class, this excavator handles a wide range of applications including trenching, loading, and general excavation work.
- Year of Manufacture: 2020
- Model: SY235C-8
- Current Location: Sichuan, China
- Competitive pricing for the used equipment market
This unit provides an economical entry point for contractors seeking dependable hydraulic excavator capacity. Contact us for detailed inspection reports, shipping arrangements, and current availability.
| Specifications | Value |
|---|---|
| No. | 1138703 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 22900 |
| Bucket capacity (m³) | 1 |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 125/2100 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 47.6 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 159 |
| Travel speed (km/h) | 3.2/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 2 x 265 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 9780 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3160 |
| Full cab height (mm) | 2930 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2860 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3640 |
| Maximum digging radius (mm) | 10180 |
| Maximum digging depth (mm) | 6920 |
| Maximum excavation height (mm) | 9380 |
| Maximum unloading height (mm) | 6515 |
| Maximum vertical digging depth (mm) | 6010 |
| Bulldozer lift or depth (mm) | There is no |
