2020 Sany SY235C-8

1/5
Buy Sany SY235C-8 Used Excavator / 1

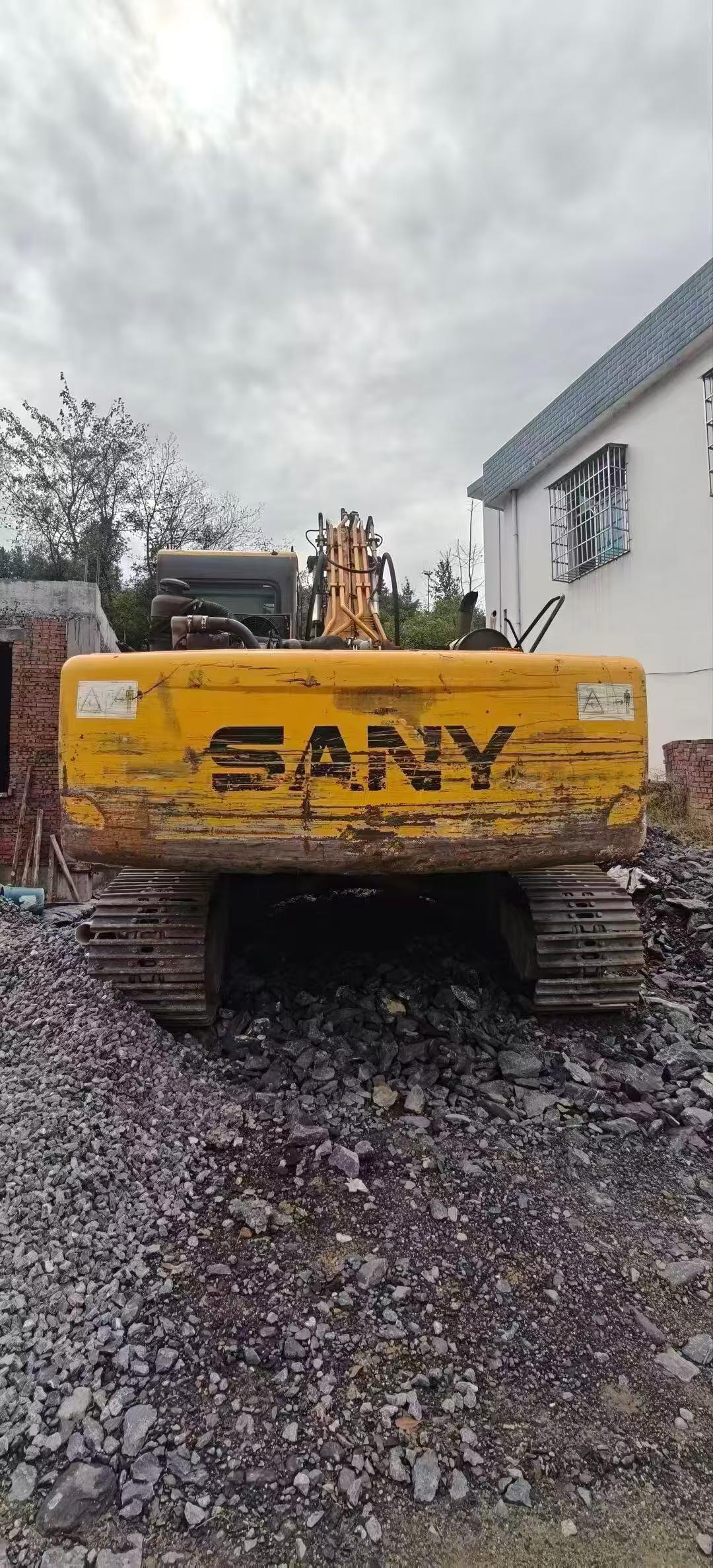

Buy Sany SY235C-8 Used Excavator / 2
Buy Sany SY235C-8 Used Excavator / 3
Buy Sany SY235C-8 Used Excavator / 4
Buy Sany SY235C-8 Used Excavator / 5

Product Description

This 2020 Sany SY235C-8 hydraulic excavator is available from Hunan, China. With an operating weight of approximately 23.5 tonnes and powered by a reliable diesel engine, this model delivers consistent performance for medium to heavy-duty excavation, loading, and earthmoving applications. The SY235C-8 features Sany's eighth-generation hydraulic system, offering improved fuel efficiency and responsive control for experienced operators.

Key features include:

  • Robust undercarriage designed for extended service life
  • Spacious operator cab with ergonomic controls
  • Hydraulic quick coupler compatibility for versatile attachment use
  • Proven reliability in construction and mining environments

This used machine represents a cost-effective solution for contractors and fleet operators seeking dependable excavation equipment. Located in Hunan, the unit is ready for inspection and available for export worldwide.

SpecificationsValue
No.1156703
Tonnage (tons)23
Working weight (kg)22900
Bucket capacity (m³)1
Country of originKunshan in Jiangsu Province
powerTraditional power
manufacturerMade in China
bucketbackhoe
Rated power (kw/rpm)125/2100
Cooling modewater-cooling
Ground specific pressure (Kpa)47.6
Rotation speed (rpm)11
Climbing ability (%)70/35 °
Bucket digging force (kN)159
Travel speed (km/h)3.2/5.5
Main overflow set pressure (Mpa)34.3
Maximum flow of main pump (l/min)2 x 265
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25.5
Control Hydraulic Circuit (Mpa)3.9
Hydraulic crushing pipeline is standardno
Total transport length (mm)9780
Total transport width (mm)2980
Total transport height (mm)3160
Full cab height (mm)2930
Minimum ground clearance (mm)440
Back end turning radius (mm)2860
Total track length (mm)4445
Track gauge (mm)2380
Track plate width (mm)600
Total track width (mm)2980
Track ground length (mm)3640
Maximum digging radius (mm)10180
Maximum digging depth (mm)6920
Maximum excavation height (mm)9380
Maximum unloading height (mm)6515
Maximum vertical digging depth (mm)6010
Bulldozer lift or depth (mm)There is no
see more

Overview

No.1156703

Brand Name:

Sany

Model Number:

SY235C-8

Year:

2020

Location:

Hunan China
