2020 Sany SY235C-8

1/6

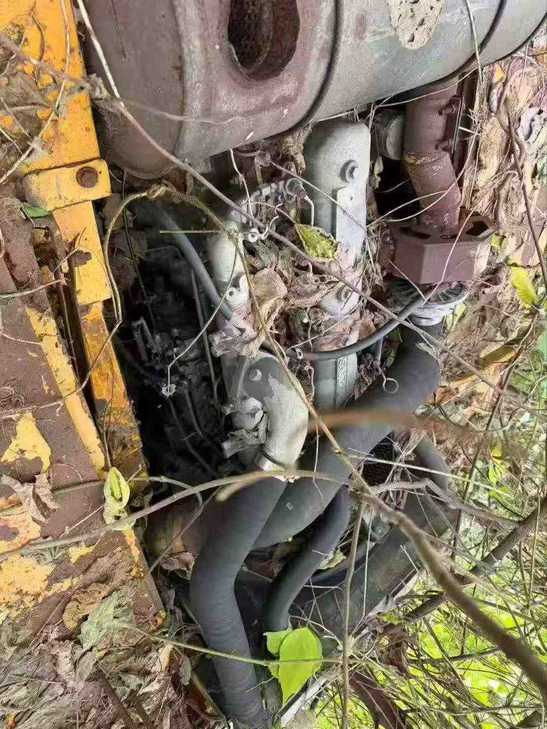

Buy Sany SY235C-8 Used Excavator / 1
Buy Sany SY235C-8 Used Excavator / 2
Buy Sany SY235C-8 Used Excavator / 3
Buy Sany SY235C-8 Used Excavator / 4
Buy Sany SY235C-8 Used Excavator / 5
Buy Sany SY235C-8 Used Excavator / 6

Product Description

This 2020 Sany SY235C-8 hydraulic excavator offers reliable performance for earthmoving and construction applications. With approximately 4 years of operational history, this mid-size crawler excavator features Sany's proven 8-series design known for fuel efficiency and operator comfort. The SY235C-8 typically delivers around 129 kW of engine power with an operating weight near 23.5 tonnes, making it suitable for medium to heavy-duty excavation work.

Currently located in Sichuan, China, this machine is available for inspection. Key features include:

  • Established Sany 8-series hydraulic system
  • Spacious ROPS/FOPS certified cabin
  • Standard excavator attachments compatible
  • Competitive pricing for the Chinese market

This excavator represents a cost-effective solution for contractors seeking proven Japanese-influenced engineering at an accessible price point. Suitable for general construction, infrastructure projects, and material handling operations.

SpecificationsValue
No.1167275
Tonnage (tons)23
Working weight (kg)22900
Bucket capacity (m³)1
Country of originKunshan in Jiangsu Province
powerTraditional power
manufacturerMade in China
bucketbackhoe
Rated power (kw/rpm)125/2100
Cooling modewater-cooling
Ground specific pressure (Kpa)47.6
Rotation speed (rpm)11
Climbing ability (%)70/35 °
Bucket digging force (kN)159
Travel speed (km/h)3.2/5.5
Main overflow set pressure (Mpa)34.3
Maximum flow of main pump (l/min)2 x 265
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25.5
Control Hydraulic Circuit (Mpa)3.9
Hydraulic crushing pipeline is standardno
Total transport length (mm)9780
Total transport width (mm)2980
Total transport height (mm)3160
Full cab height (mm)2930
Minimum ground clearance (mm)440
Back end turning radius (mm)2860
Total track length (mm)4445
Track gauge (mm)2380
Track plate width (mm)600
Total track width (mm)2980
Track ground length (mm)3640
Maximum digging radius (mm)10180
Maximum digging depth (mm)6920
Maximum excavation height (mm)9380
Maximum unloading height (mm)6515
Maximum vertical digging depth (mm)6010
Bulldozer lift or depth (mm)There is no
see more

Overview

No.1167275

Brand Name:

Sany

Model Number:

SY235C-8

Year:

2020

Location:

Sichuan China

Pub Date:
