2015 Sany SY245H

1/9
Buy Sany SY245H Used Excavator / 1
Buy Sany SY245H Used Excavator / 2
Buy Sany SY245H Used Excavator / 3
Buy Sany SY245H Used Excavator / 4
Buy Sany SY245H Used Excavator / 5
Buy Sany SY245H Used Excavator / 6
Buy Sany SY245H Used Excavator / 7
Buy Sany SY245H Used Excavator / 8

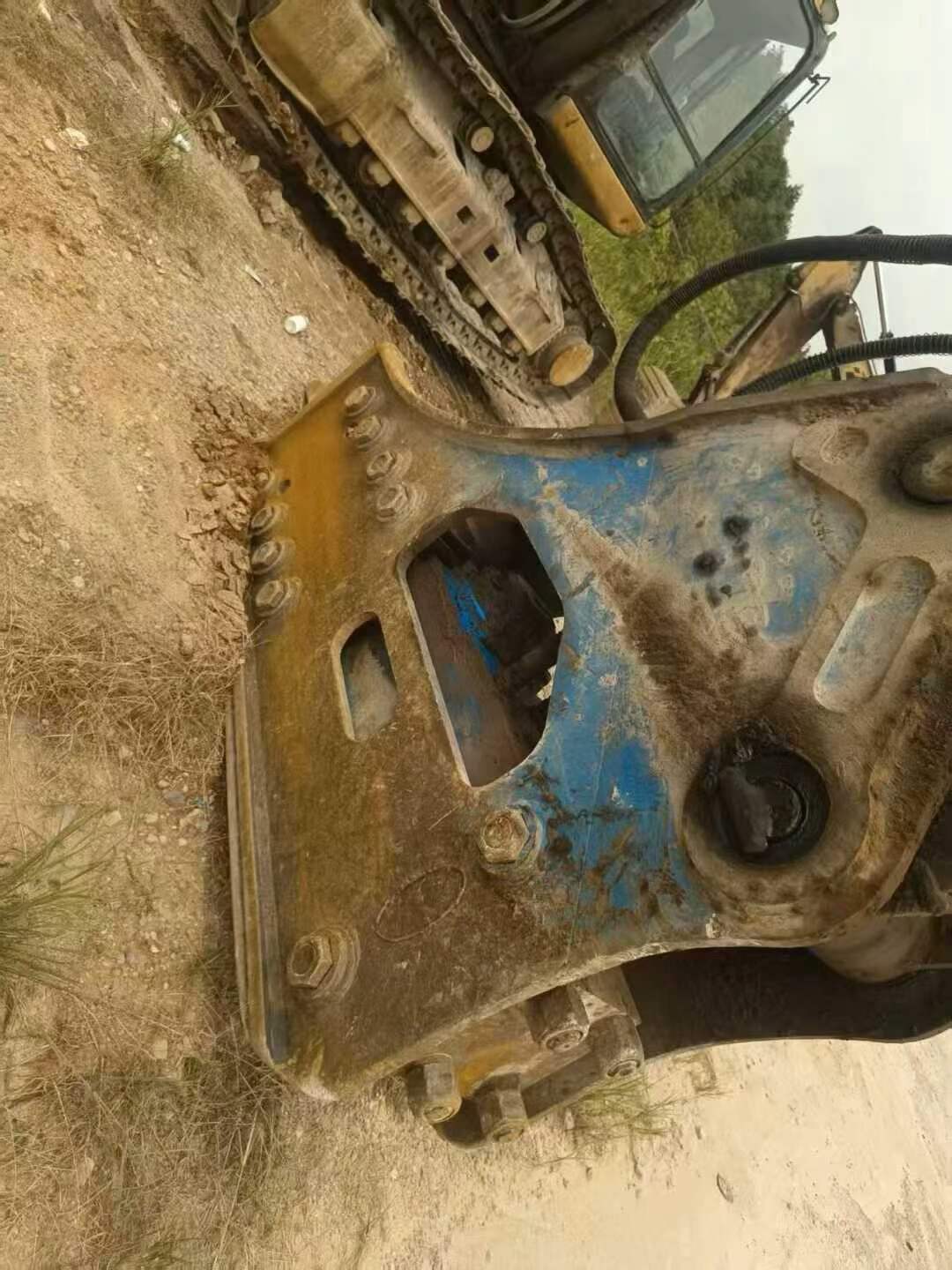

Buy Sany SY245H Used Excavator / 9

Product Description

This 2015 Sany SY245H hydraulic excavator is available from Guangdong, China, offering reliable performance for demanding job sites. The SY245H is a mid-sized crawler excavator well-suited for earthmoving, demolition, and general construction applications.

Key features of this unit include:

  • Sany SY245H model with proven track record in Asian markets
  • Hydraulic system designed for efficient cycle times
  • Crawler undercarriage for stability on varied terrain
  • Operating weight class approximately 24-25 tonnes
  • Current location: Guangdong Province, China

This pre-owned excavator represents a cost-effective solution for contractors seeking dependable equipment. As with all used machinery, a pre-purchase inspection is recommended. Contact us for additional details, current condition assessment, and export documentation assistance.

SpecificationsValue
No.1166910
Tonnage (tons)24
Working weight (kg)25500
Bucket capacity (m³)1.3~1.5(1.5)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeD06FRC
Rated power (kw/rpm)147/2100
Cooling modewater-cooling
Maximum torque (N.m)750/1350
Number of cylinders (PCS)6
Displacement (L)6.373
Ground specific pressure (Kpa)53.2
Rotation speed (rpm)10.6
Climbing ability (%)70
Bucket digging force (kN)175
Rod digging force (kN)120
Travel speed (km/h)5.4/3.4
Fuel Tank (L)475
Hydraulic Tank (L)277
Engine Oil changes (L)29
Total transport length (mm)10290
Total transport width (mm)3190
Total transport height (mm)3190
Full cab height (mm)3255
Minimum ground clearance (mm)470
Minimum turning radius of front working device (mm)3800
Back end turning radius (mm)3105
Onboard width (mm)3045
Total track length (mm)4445
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3640
Maximum height at minimum turning radius (mm)8016
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10225
Maximum digging depth (mm)6705
Maximum excavation height (mm)9745
Maximum unloading height (mm)6715
see more

Overview

No.1166910

Brand Name:

Sany

Model Number:

SY245H

Year:

2015

Location:

Guangdong China

Pub Date:
