2016 Sany SY245H

1/4
Buy Sany SY245H Used Excavator / 1

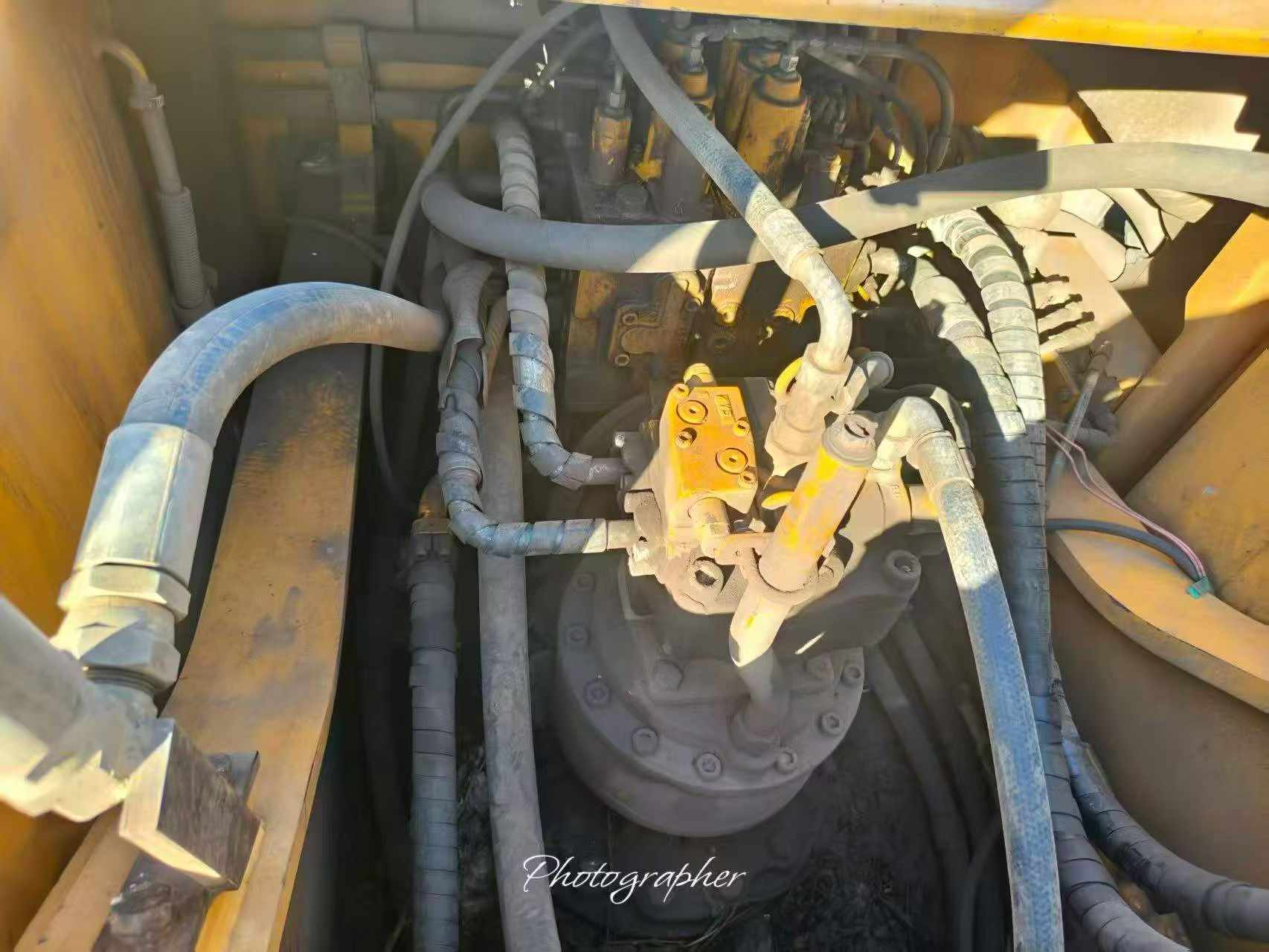

Buy Sany SY245H Used Excavator / 2

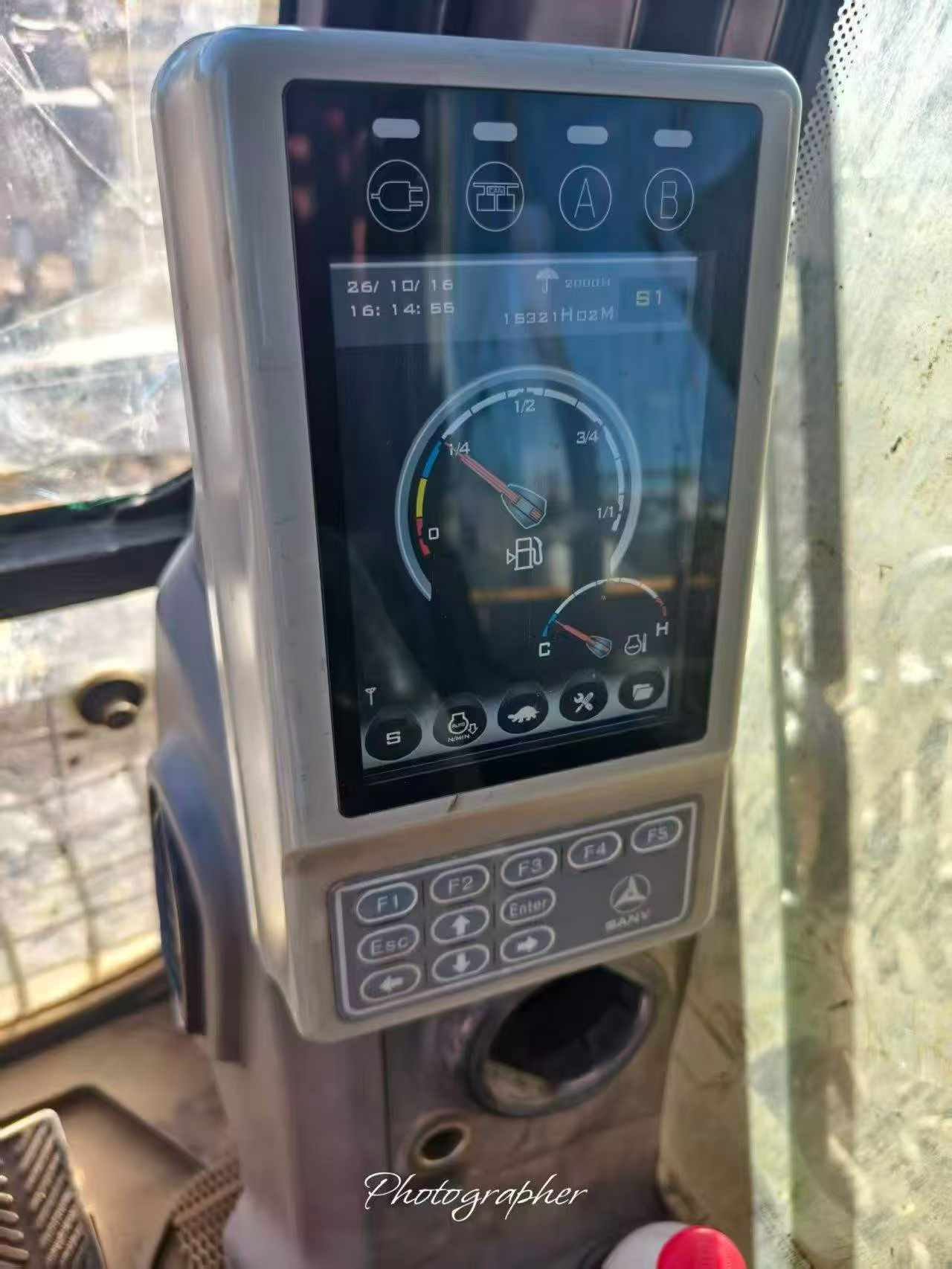

Buy Sany SY245H Used Excavator / 3

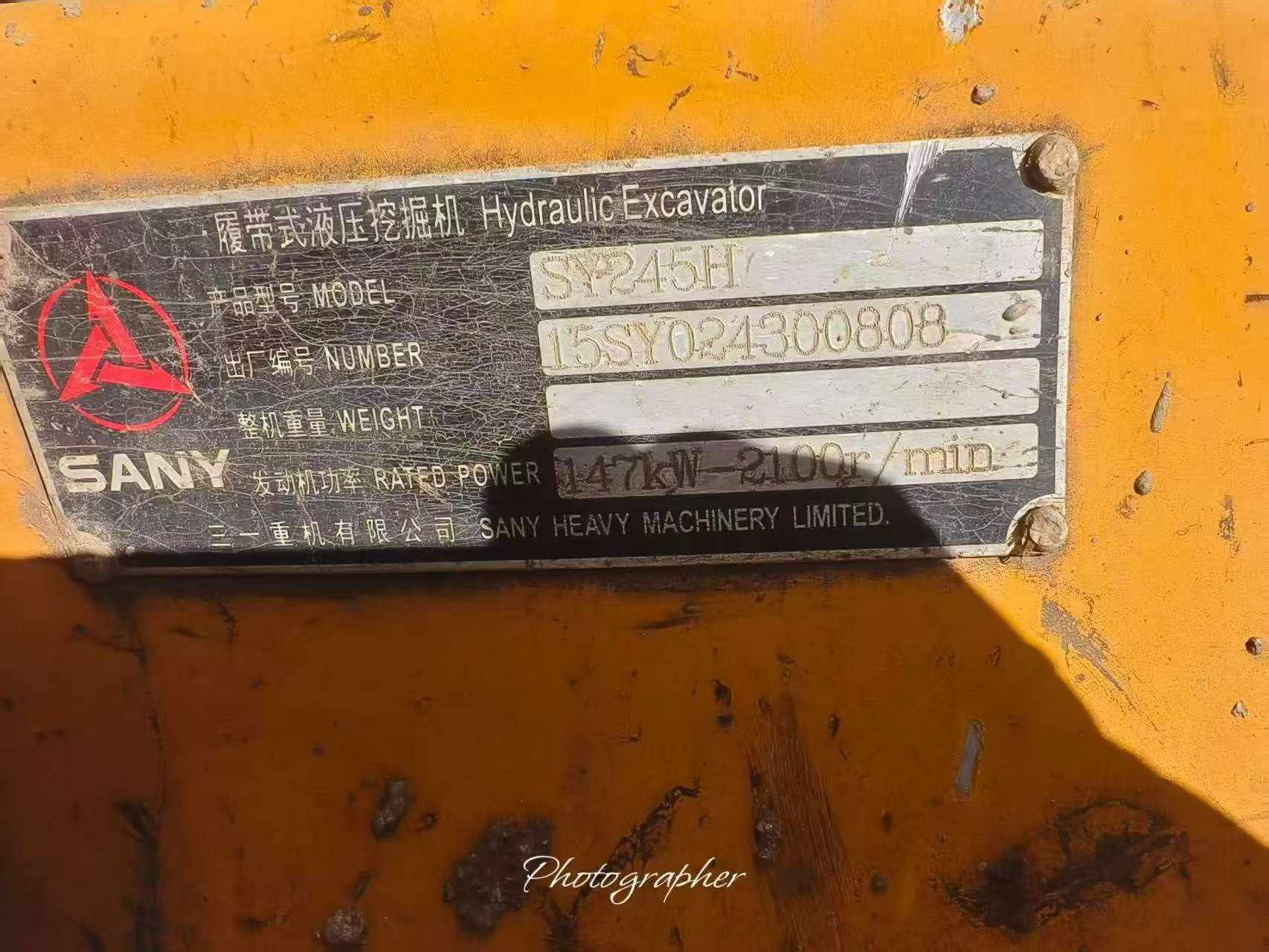

Buy Sany SY245H Used Excavator / 4

Product Description

This 2016 Sany SY245H hydraulic excavator represents exceptional value in the mid-size excavator segment. With approximately 100,000 operating hours, this machine has been well-maintained and remains in excellent working condition. Currently located in Fujian, China, it offers reliable performance for demanding earthmoving, excavation, and material handling applications.

The SY245H is engineered with Sany's proven hydraulic system and robust undercarriage, delivering consistent productivity across construction, mining, and infrastructure projects. Its 24-ton operating weight provides stability for heavy-duty tasks while maintaining operational efficiency.

  • Year: 2016
  • Model: Sany SY245H
  • Location: Fujian Province, China
  • Condition: Well-maintained, operational
  • Suitable for: Excavation, earthmoving, material handling

Competitively priced for immediate acquisition. Ideal for contractors and operators seeking dependable equipment with proven field performance.

SpecificationsValue
No.1164720
Tonnage (tons)24
Working weight (kg)25500
Bucket capacity (m³)1.3~1.5(1.5)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeD06FRC
Rated power (kw/rpm)147/2100
Cooling modewater-cooling
Maximum torque (N.m)750/1350
Number of cylinders (PCS)6
Displacement (L)6.373
Ground specific pressure (Kpa)53.2
Rotation speed (rpm)10.6
Climbing ability (%)70
Bucket digging force (kN)175
Rod digging force (kN)120
Travel speed (km/h)5.4/3.4
Fuel Tank (L)475
Hydraulic Tank (L)277
Engine Oil changes (L)29
Total transport length (mm)10290
Total transport width (mm)3190
Total transport height (mm)3190
Full cab height (mm)3255
Minimum ground clearance (mm)470
Minimum turning radius of front working device (mm)3800
Back end turning radius (mm)3105
Onboard width (mm)3045
Total track length (mm)4445
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3640
Maximum height at minimum turning radius (mm)8016
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10225
Maximum digging depth (mm)6705
Maximum excavation height (mm)9745
Maximum unloading height (mm)6715
see more

Overview

No.1164720

Brand Name:

Sany

Model Number:

SY245H

Year:

2016

Location:

Fujian China

Pub Date:
