2017 Sany SY245H

1/9
Used Sany SY245H Excavator 2017 Model / 1

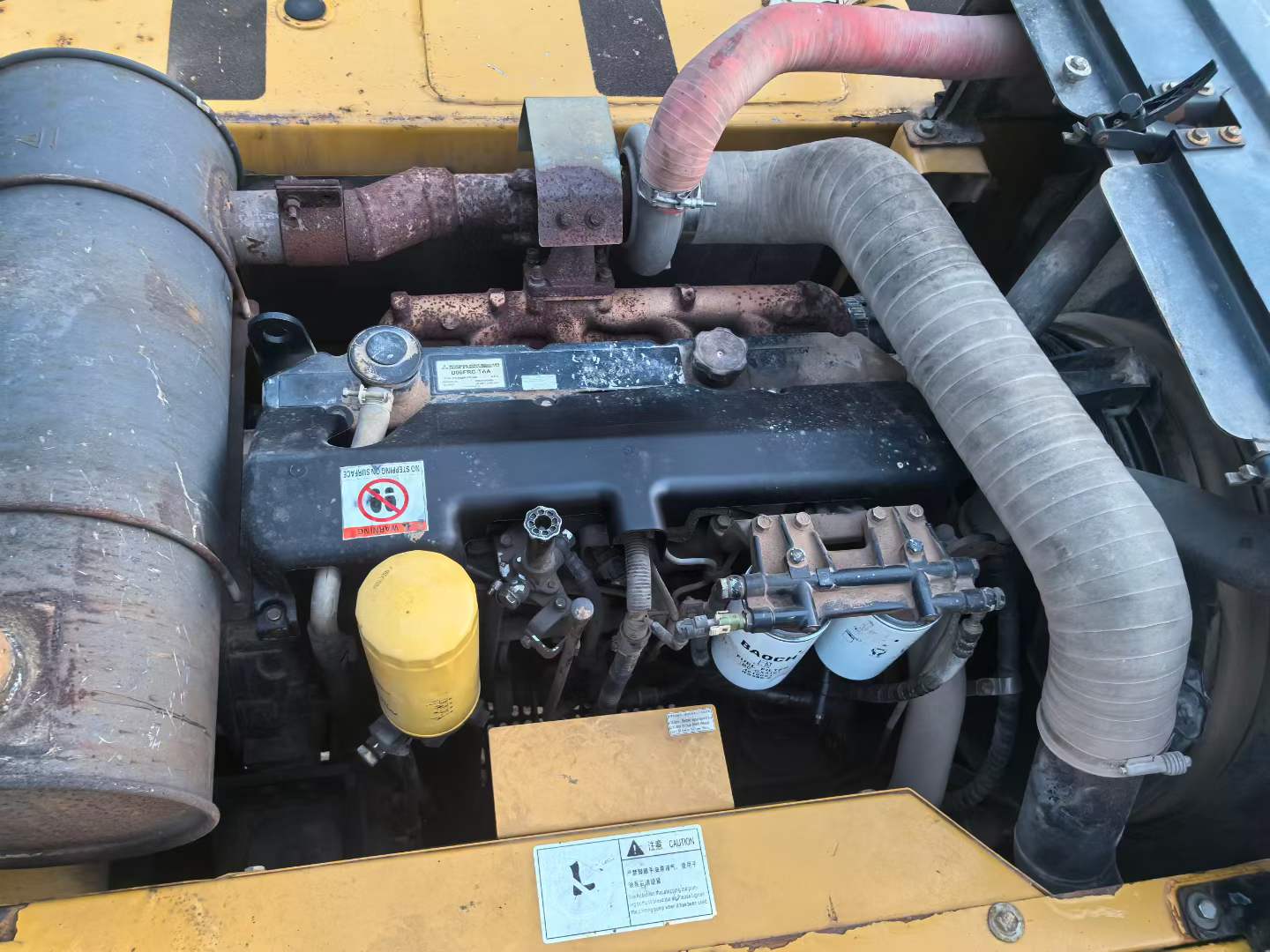

Used Sany SY245H Excavator 2017 Model / 2

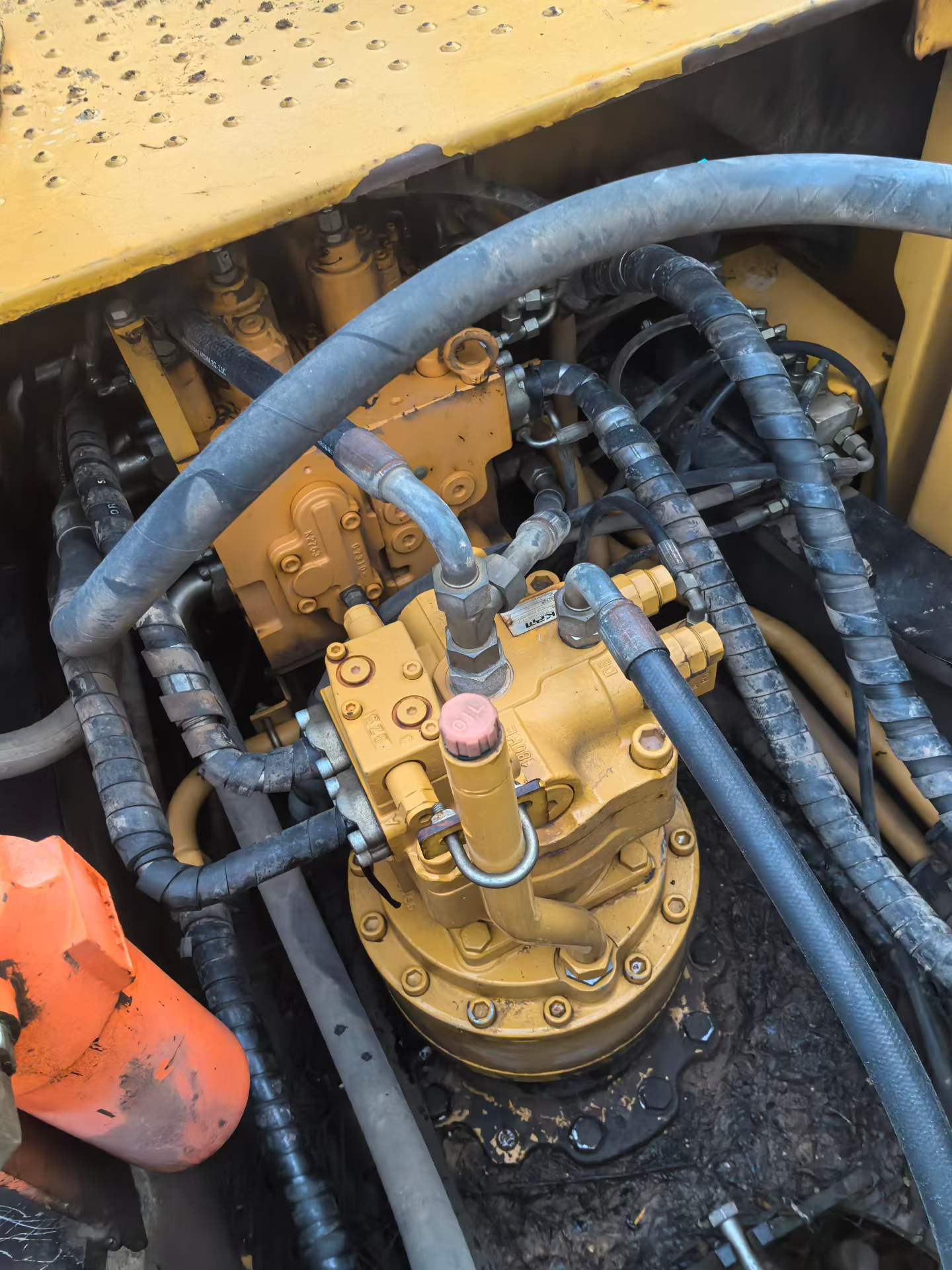

Used Sany SY245H Excavator 2017 Model / 3

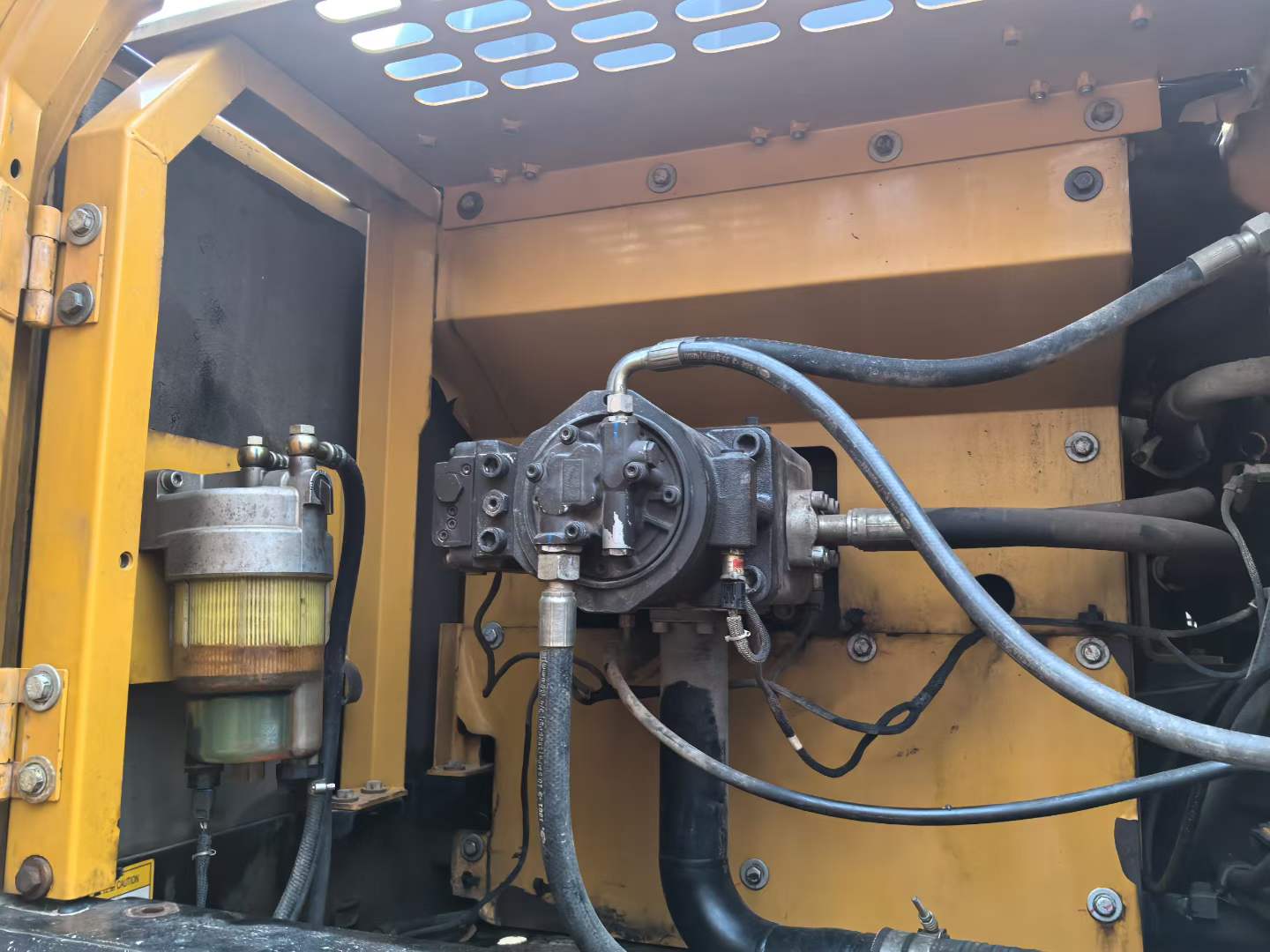

Used Sany SY245H Excavator 2017 Model / 4

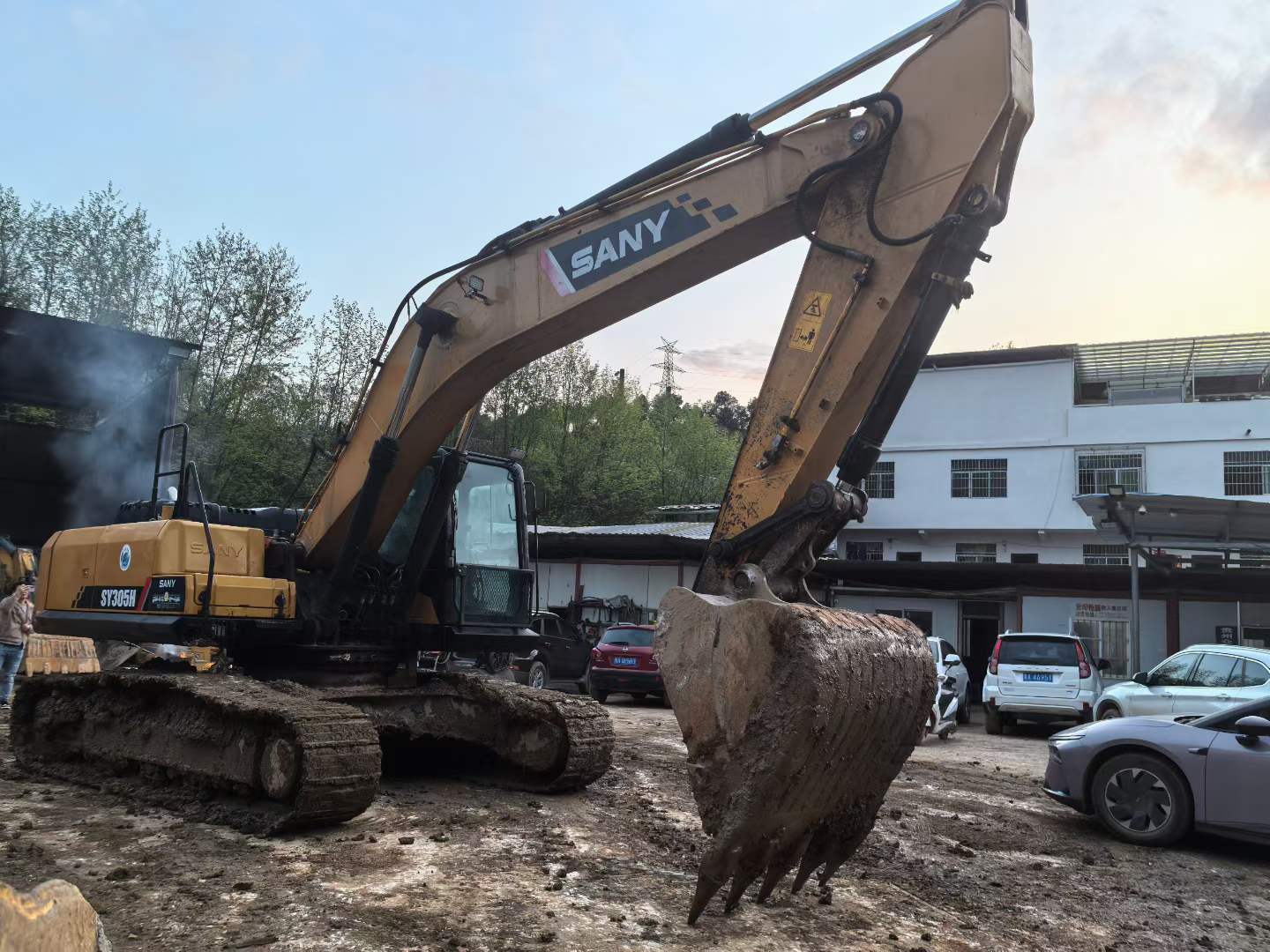

Used Sany SY245H Excavator 2017 Model / 5

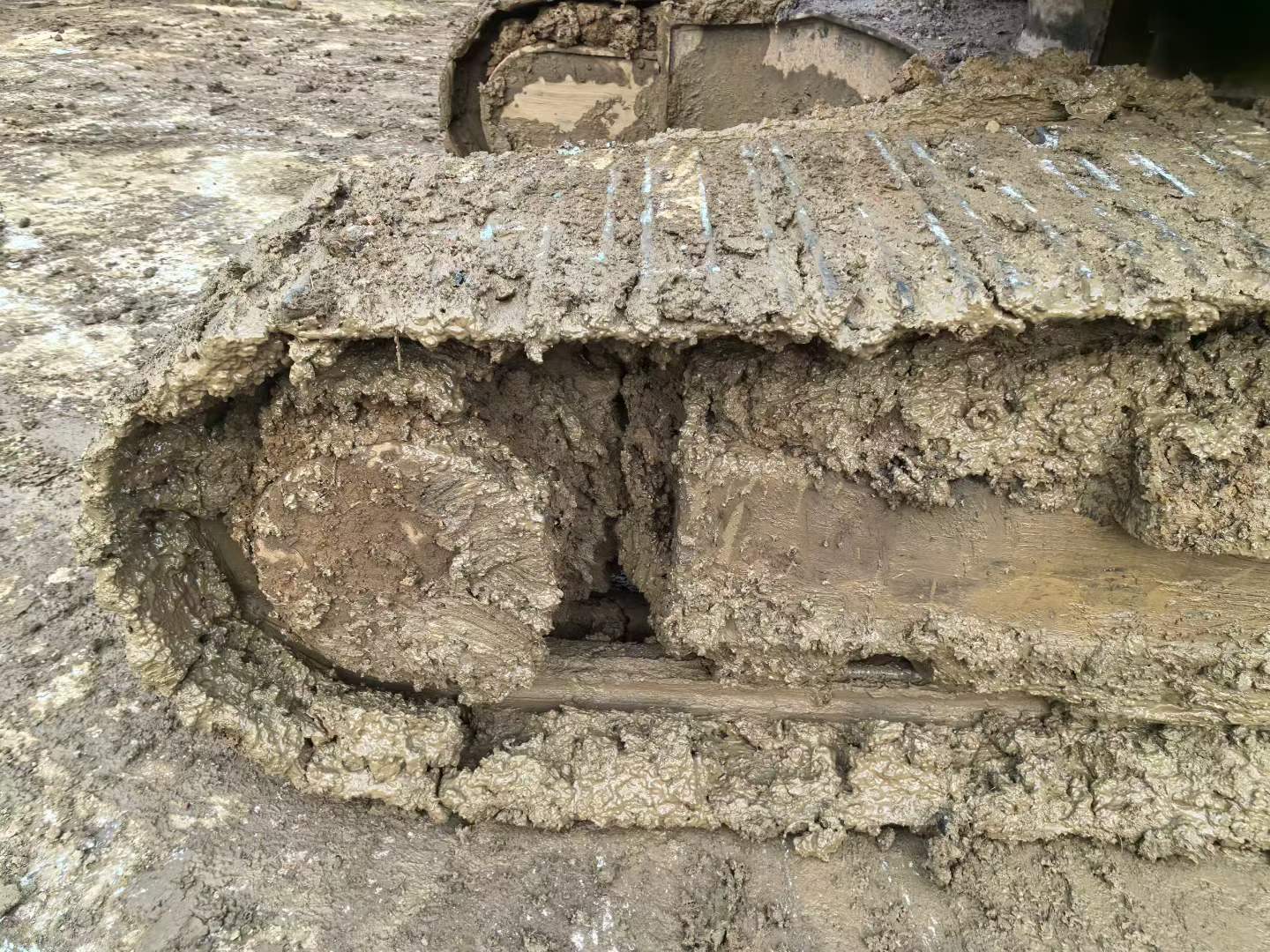

Used Sany SY245H Excavator 2017 Model / 6

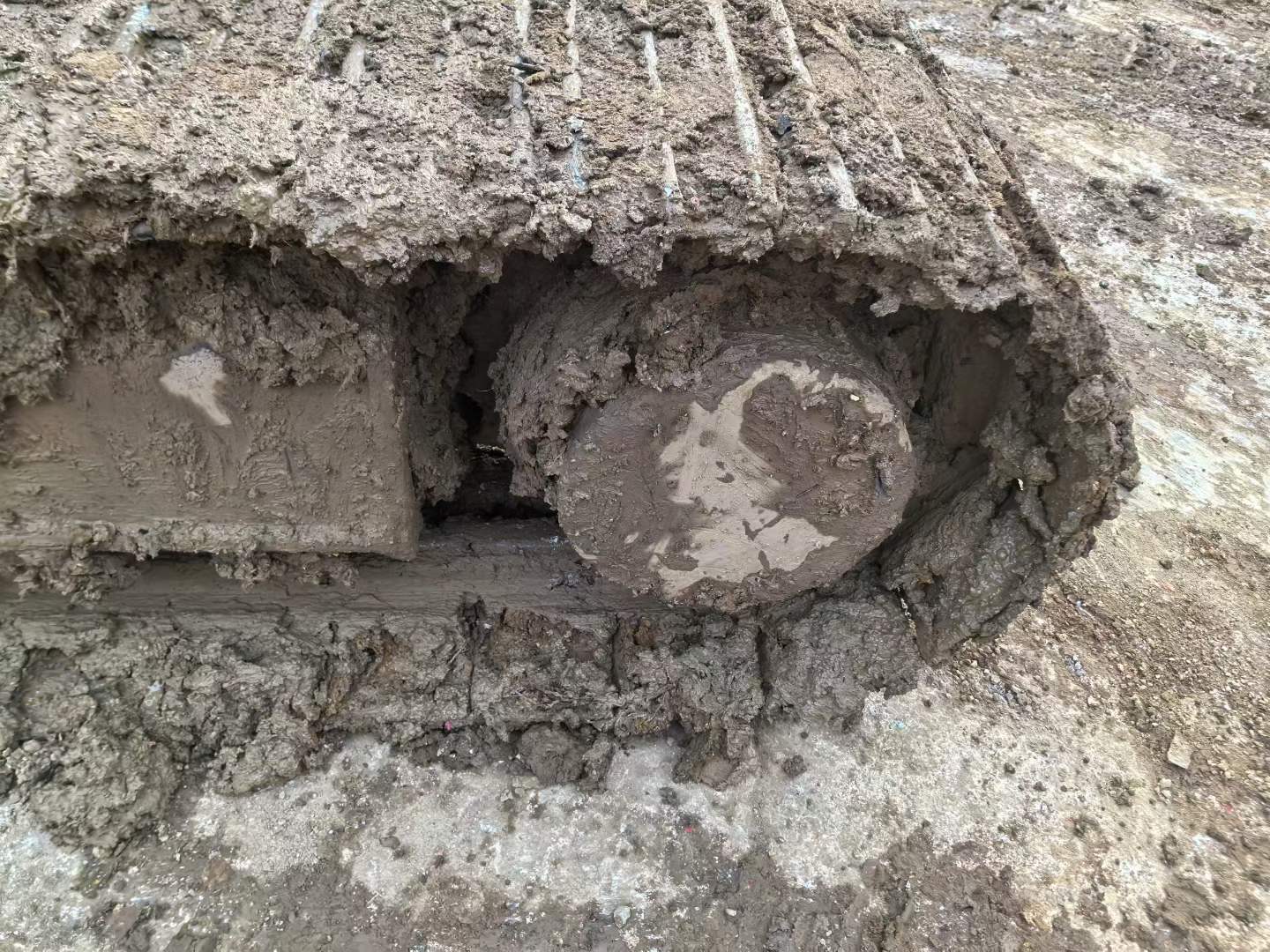

Used Sany SY245H Excavator 2017 Model / 7
Used Sany SY245H Excavator 2017 Model / 8

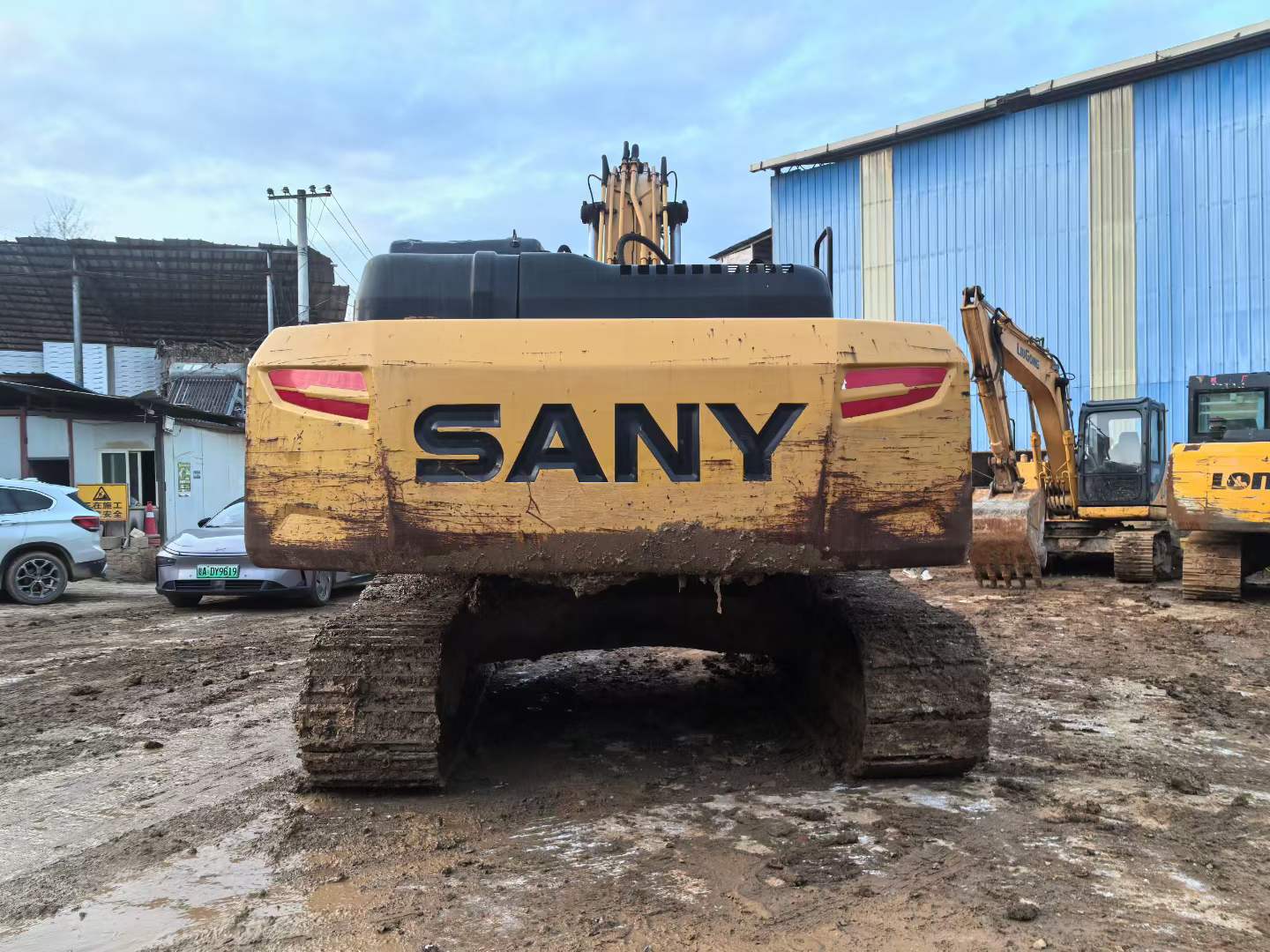

Used Sany SY245H Excavator 2017 Model / 9

Product Description

Built in 2017, this Sany SY245H excavator delivers proven performance with the backing of one of China's most trusted heavy equipment manufacturers. Operating at 24 tons with a robust 147kW D06FRC engine, this machine handles demanding excavation tasks with a maximum digging depth of 6,705mm and bucket capacity up to 1.5m³. Currently located in Guizhou, it features water-cooled power generation, 750 N.m maximum torque, and hydraulic systems engineered for reliability in challenging environments.

Sany's global service network ensures parts availability and technical support remain accessible throughout the machine's operational life. With documented resale values consistently outperforming competitors in the 24-ton class, this SY245H represents a calculated investment rather than a gamble. The manufacturer's commitment to backward compatibility means critical components remain in production, reducing downtime and ownership costs. Fuel efficiency from the 6.373L displacement engine and proven track systems with 49 plates per side deliver operational economy that protects your bottom line across thousands of working hours.

SpecificationsValue
No.1027824
Tonnage (tons)24
Working weight (kg)25500
Bucket capacity (m³)1.3~1.5(1.5)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeD06FRC
Rated power (kw/rpm)147/2100
Cooling modewater-cooling
Maximum torque (N.m)750/1350
Number of cylinders (PCS)6
Displacement (L)6.373
Ground specific pressure (Kpa)53.2
Rotation speed (rpm)10.6
Climbing ability (%)70
Bucket digging force (kN)175
Rod digging force (kN)120
Travel speed (km/h)5.4/3.4
Fuel Tank (L)475
Hydraulic Tank (L)277
Engine Oil changes (L)29
Total transport length (mm)10290
Total transport width (mm)3190
Total transport height (mm)3190
Full cab height (mm)3255
Minimum ground clearance (mm)470
Minimum turning radius of front working device (mm)3800
Back end turning radius (mm)3105
Onboard width (mm)3045
Total track length (mm)4445
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3640
Maximum height at minimum turning radius (mm)8016
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10225
Maximum digging depth (mm)6705
Maximum excavation height (mm)9745
Maximum unloading height (mm)6715
see more

Overview

No.1027824

Brand Name:

Sany

Model Number:

SY245H

Year:

2017

Location:

Guizhou China

Pub Date:
