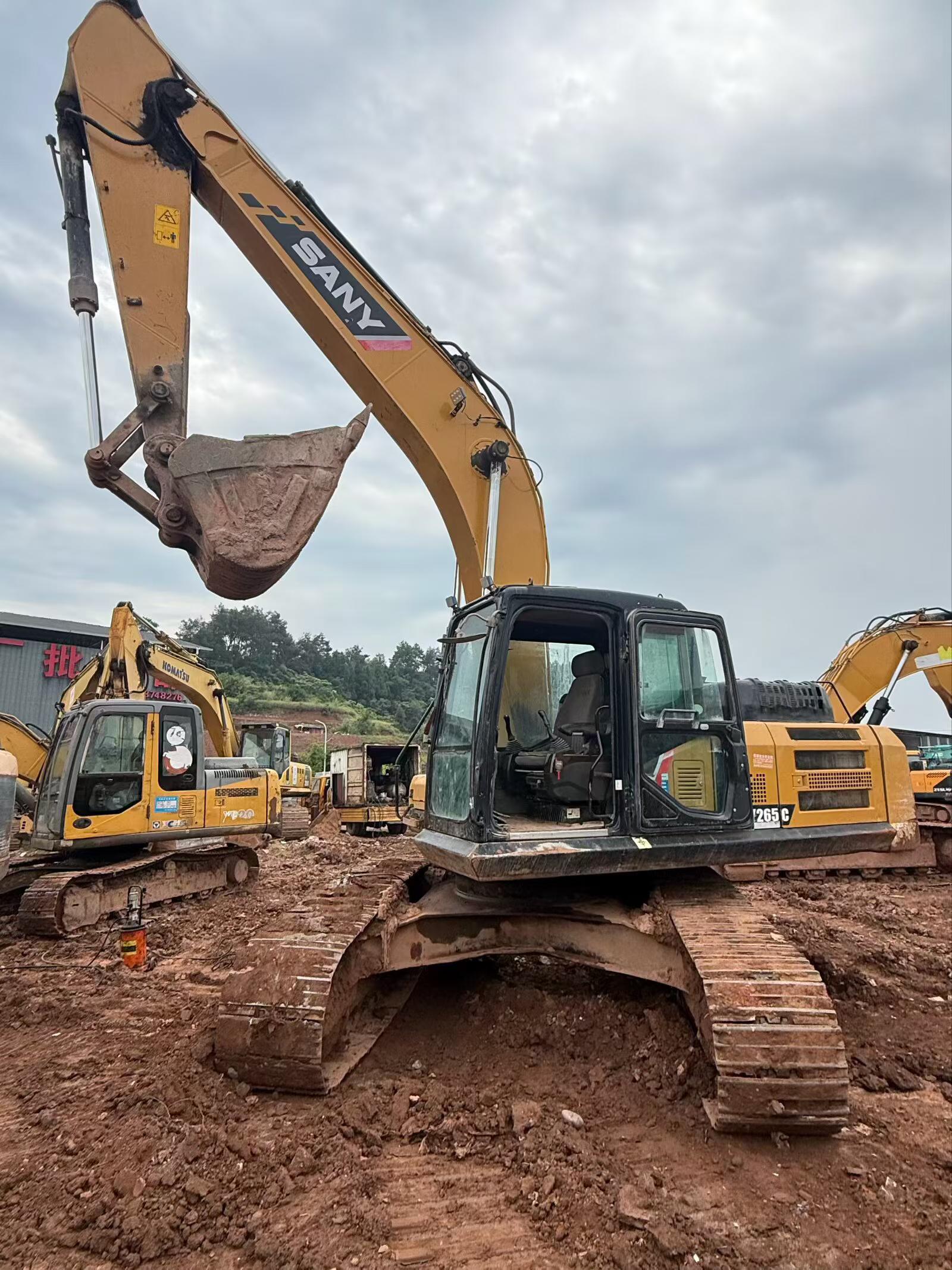

2017 Sany SY245H

Built to endure the demands of heavy-duty excavation, this 2017 Sany SY245H has proven its reliability across years of real-world operation — a true workhorse in the 24-ton class. Sourced directly from Sichuan, China, this machine carries the robust engineering Sany is known for in the global construction market.

Powered by a Yuchai D06FRC 6-cylinder water-cooled engine producing 147 kW at 2,100 rpm with 750 N·m of peak torque, it delivers consistent digging force — 175 kN at the bucket and 120 kN at the rod — across a maximum digging radius of 10,225 mm and depth of 6,705 mm. The 1.3–1.5 m³ backhoe bucket handles substantial material volumes with each pass.

• Working weight: 25,500 kg | Ground pressure: 53.2 kPa

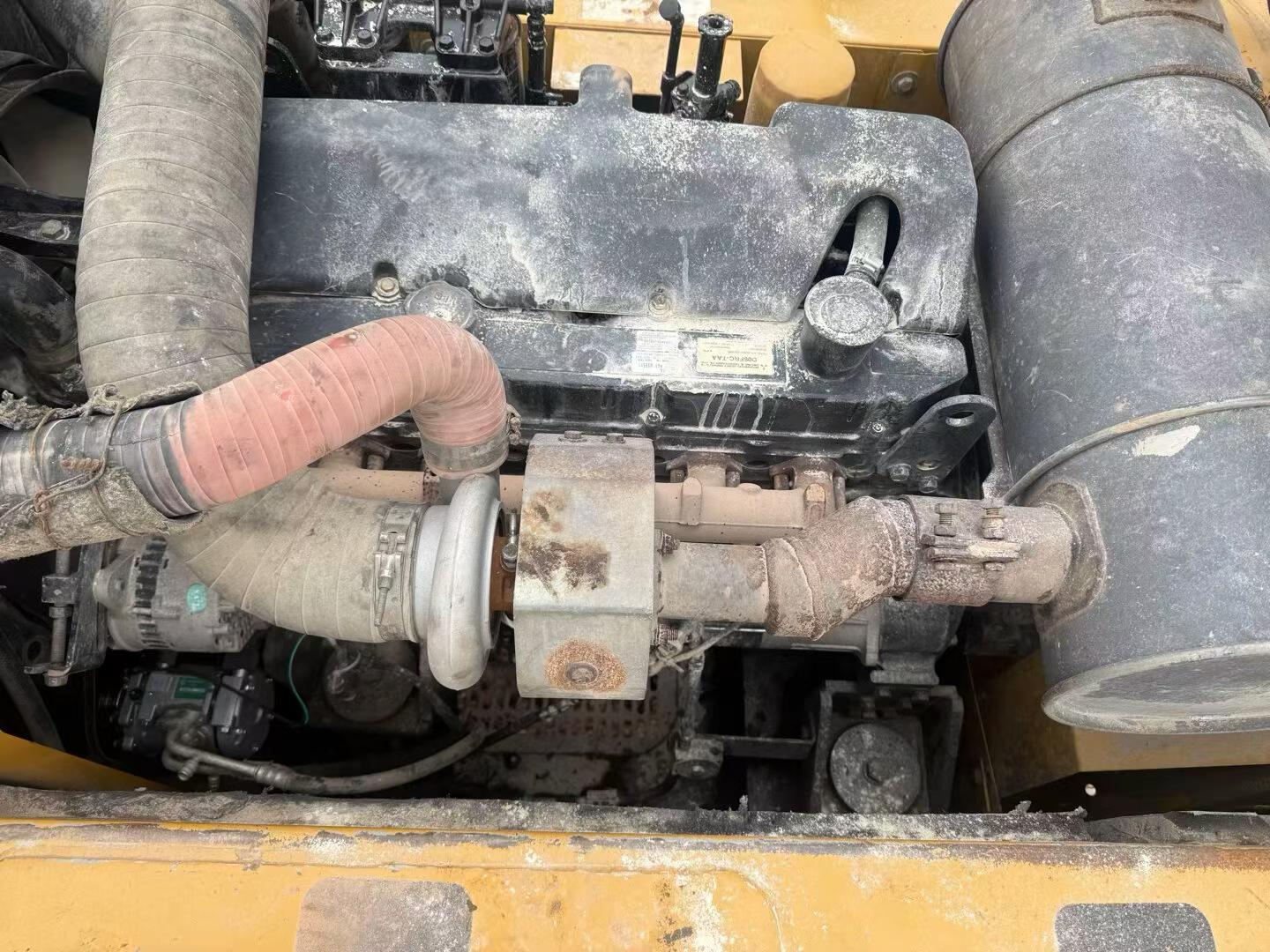

• Engine: D06FRC, 6-cylinder, 6.373 L displacement, water-cooled
• Rated power: 147 kW / 2,100 rpm | Max torque: 750 N·m / 1,350 rpm
• Bucket capacity: 1.3–1.5 m³ | Bucket digging force: 175 kN
• Max digging depth: 6,705 mm | Max digging radius: 10,225 mm
• Travel speed: 5.4 / 3.4 km/h | Climbing ability: 70%
• Fuel tank: 475 L | Hydraulic tank: 277 L
• Track plate width: 600 mm | Track gauge: 2,590 mm
• Transport dimensions: 10,290 × 3,190 × 3,190 mm

Seven years of field performance back this machine's structural integrity. For contractors seeking proven capacity without the premium price of new iron, the SY245H represents a dependable, cost-effective addition to any fleet.
