2017 Sany SY245H

1/9
Buy Sany SY245H Used Excavator / 1

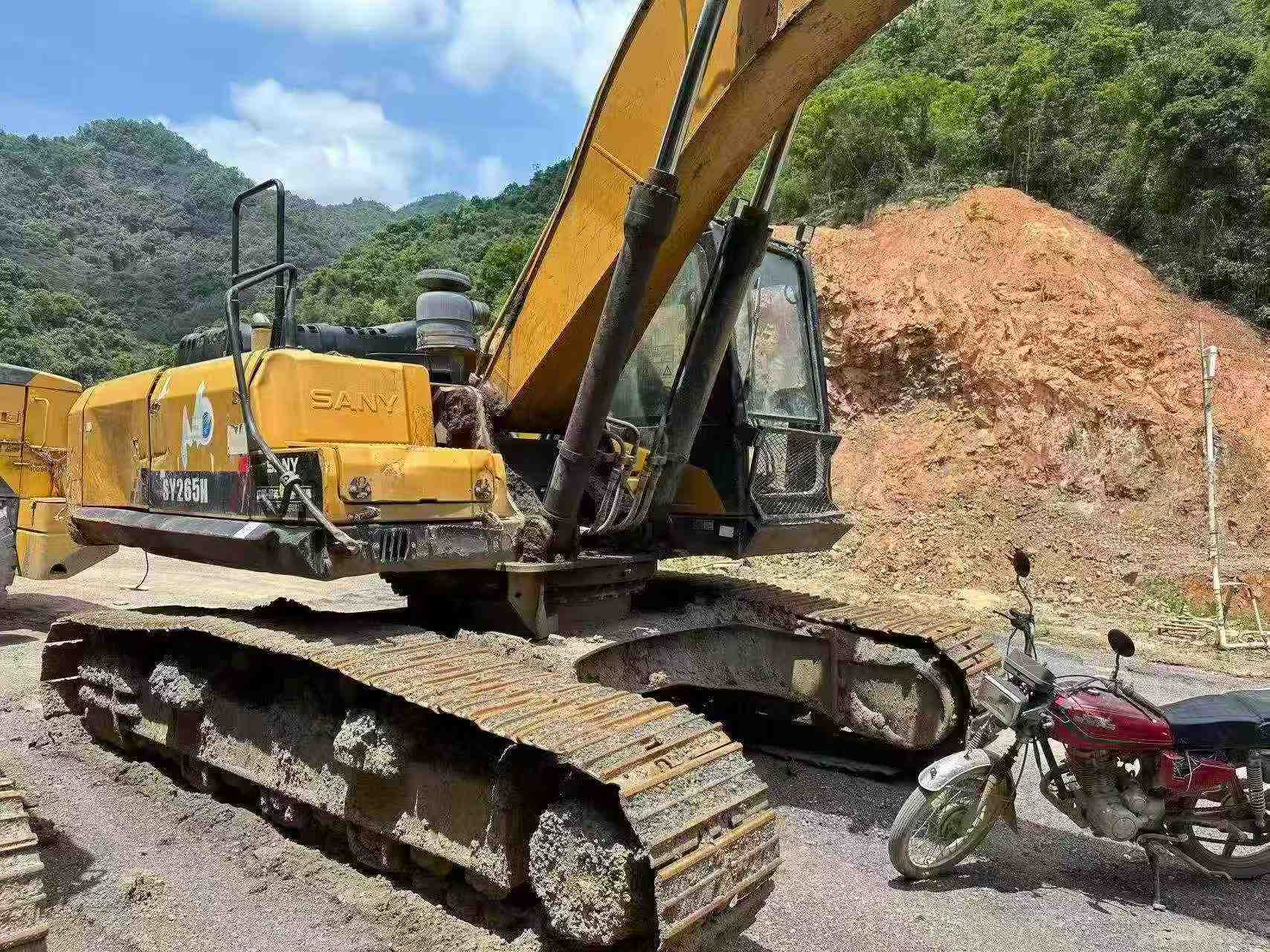

Buy Sany SY245H Used Excavator / 2

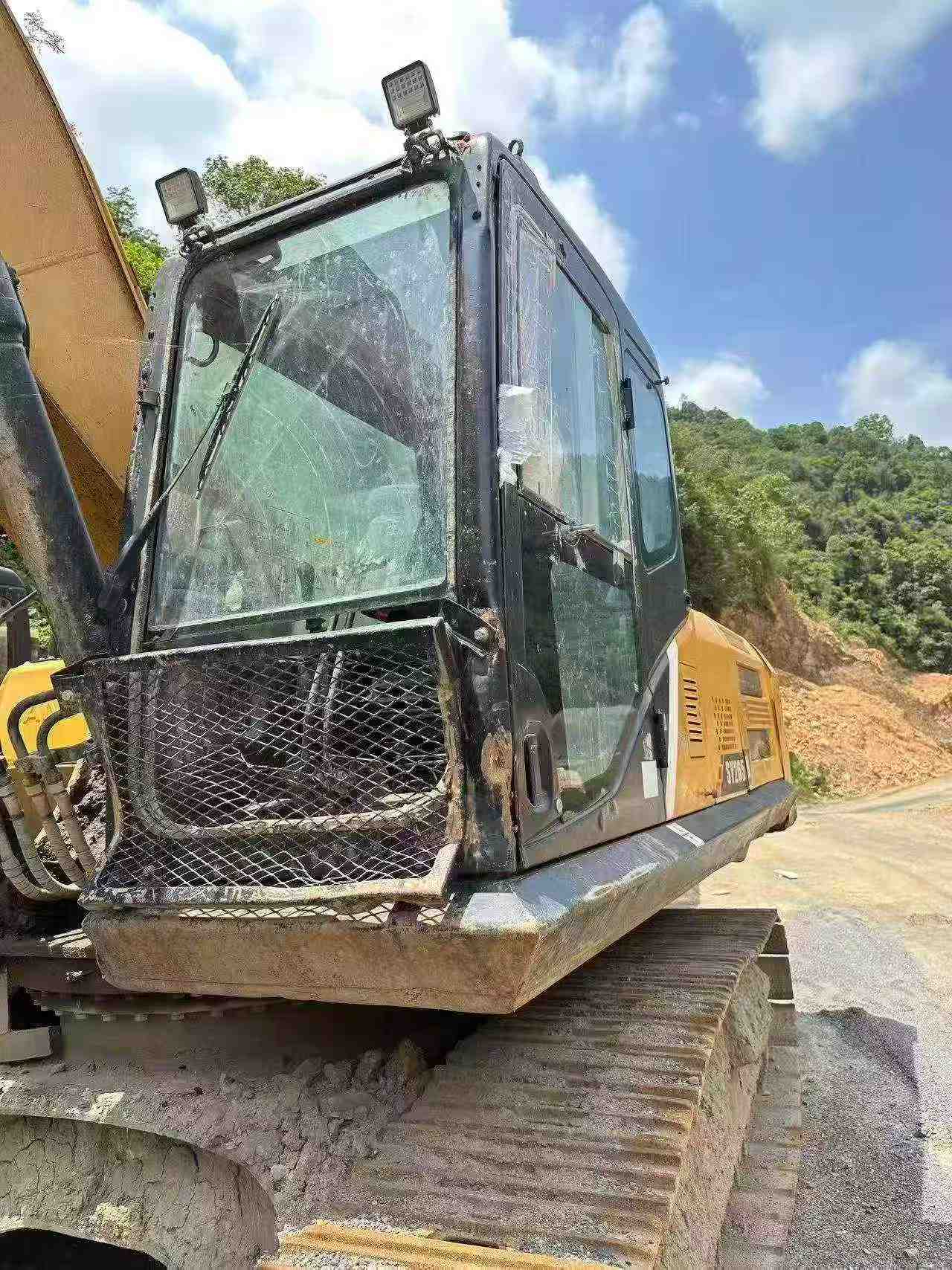

Buy Sany SY245H Used Excavator / 3

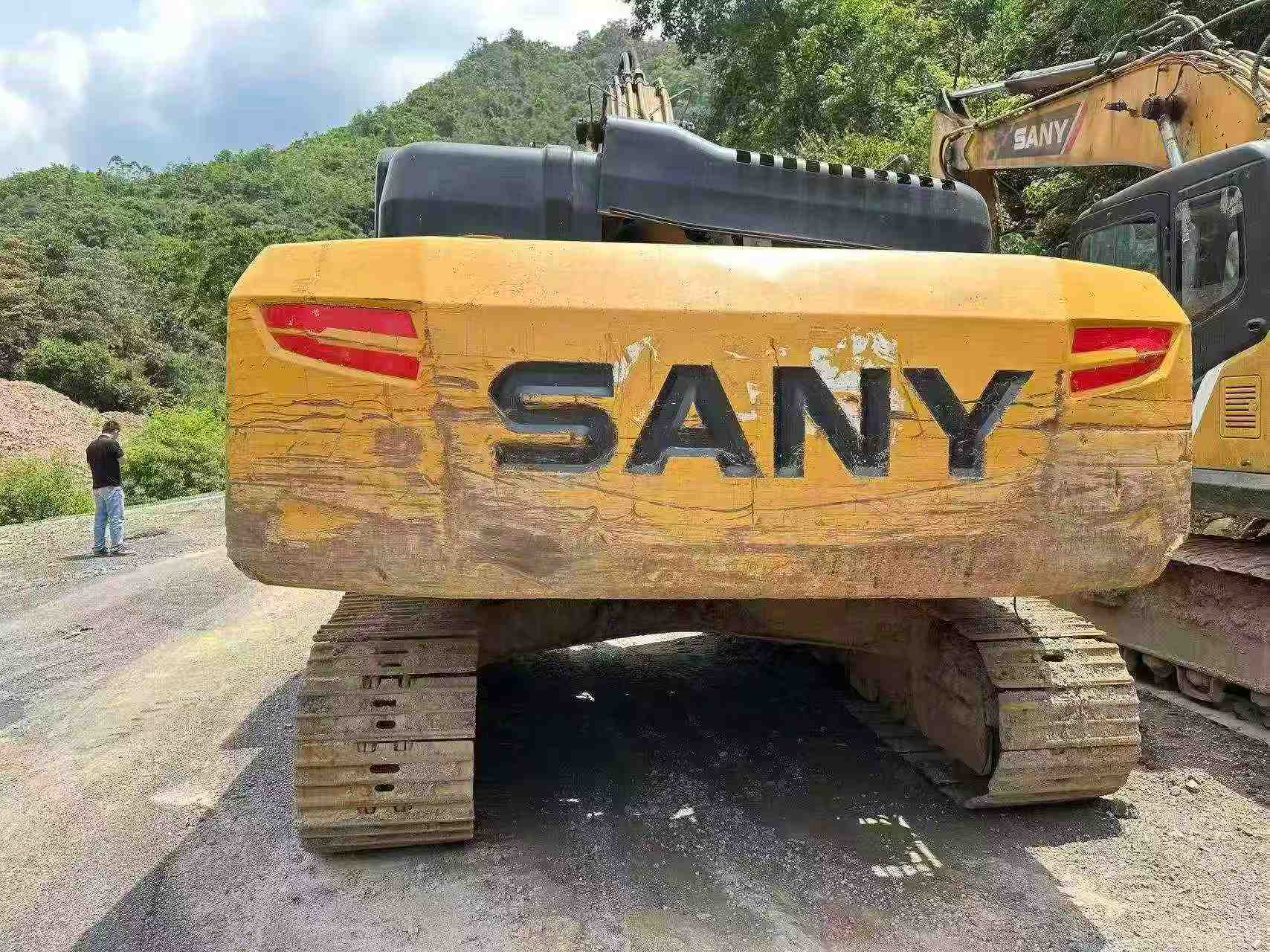

Buy Sany SY245H Used Excavator / 4

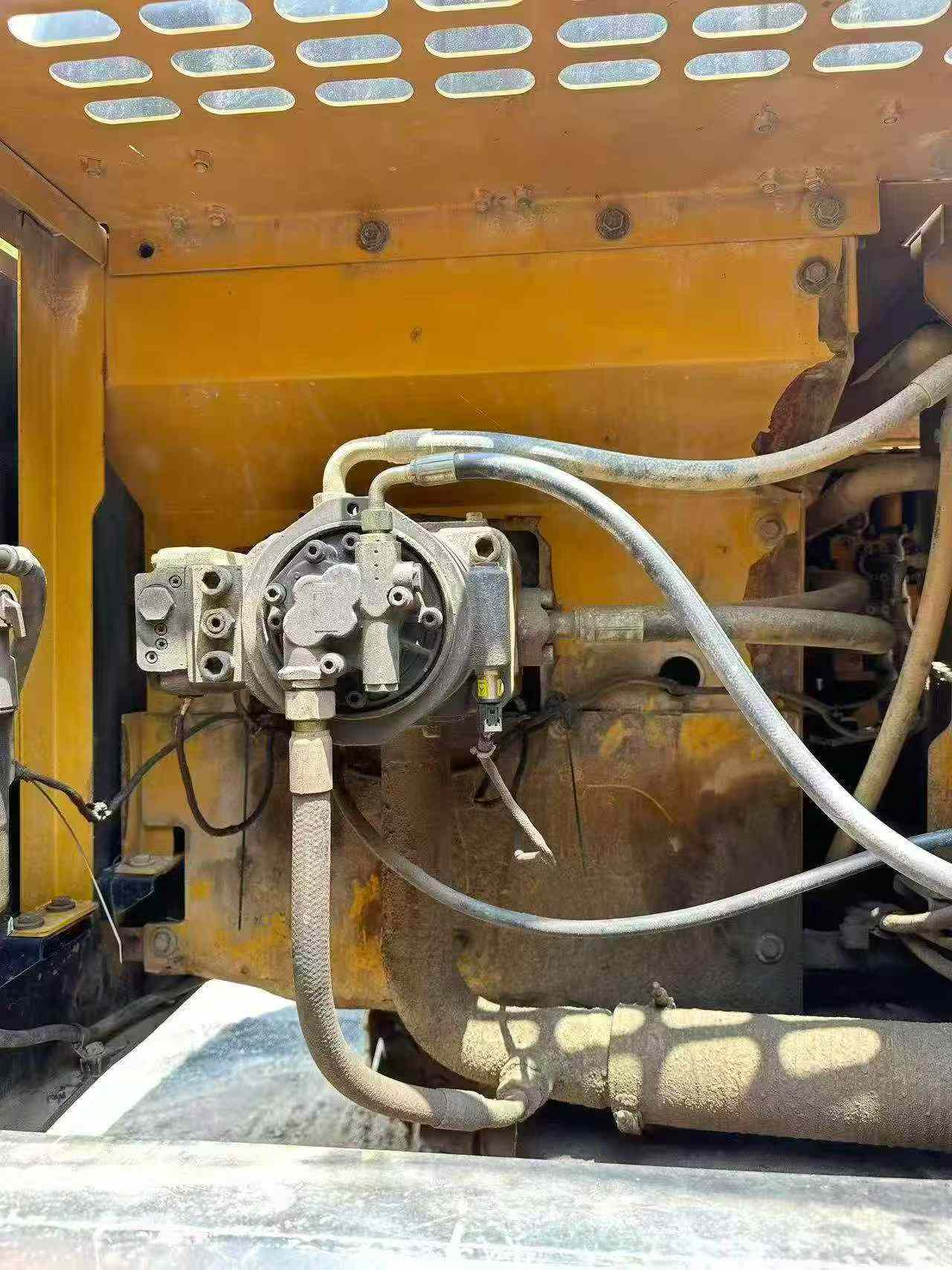

Buy Sany SY245H Used Excavator / 5

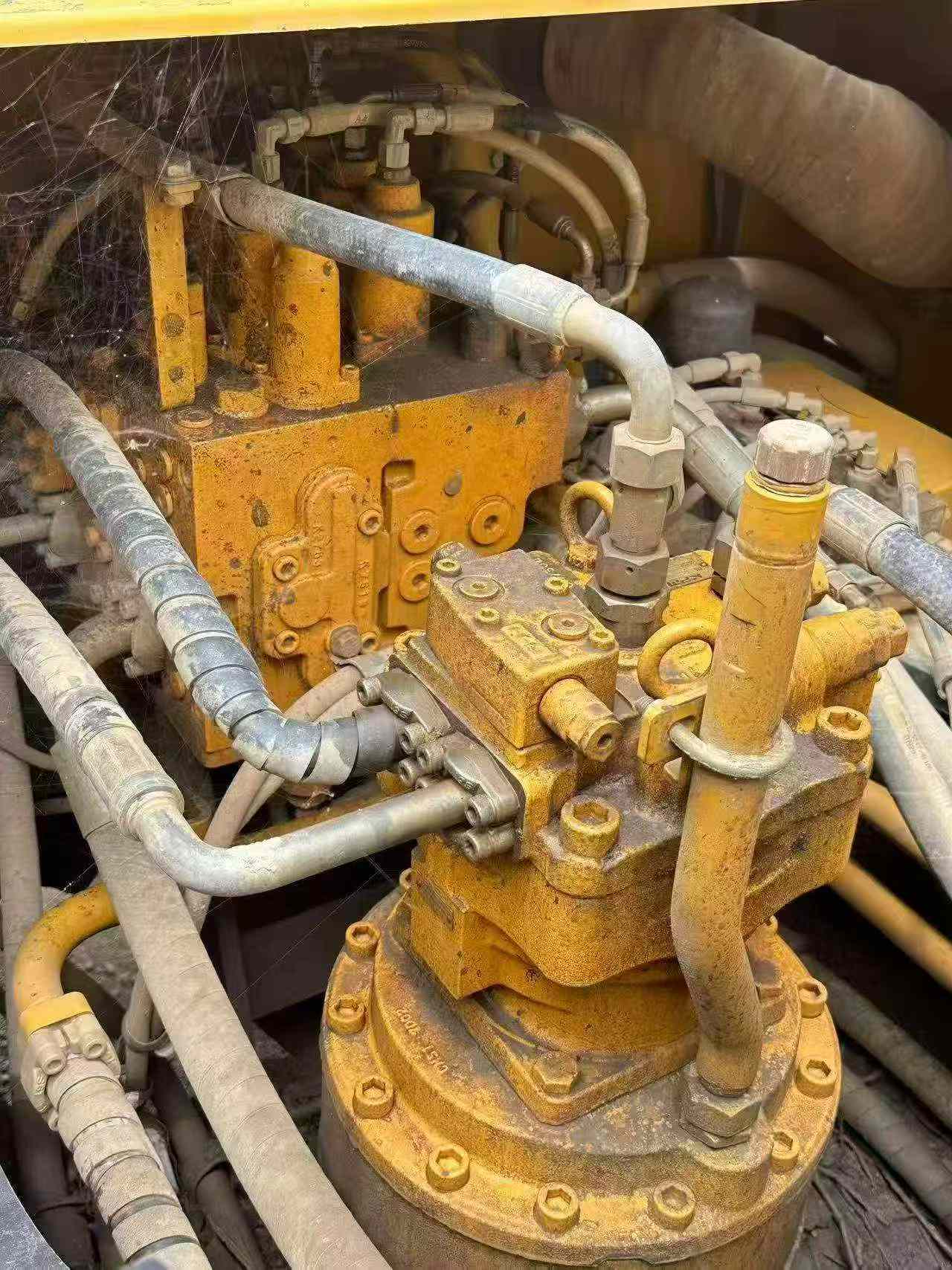

Buy Sany SY245H Used Excavator / 6

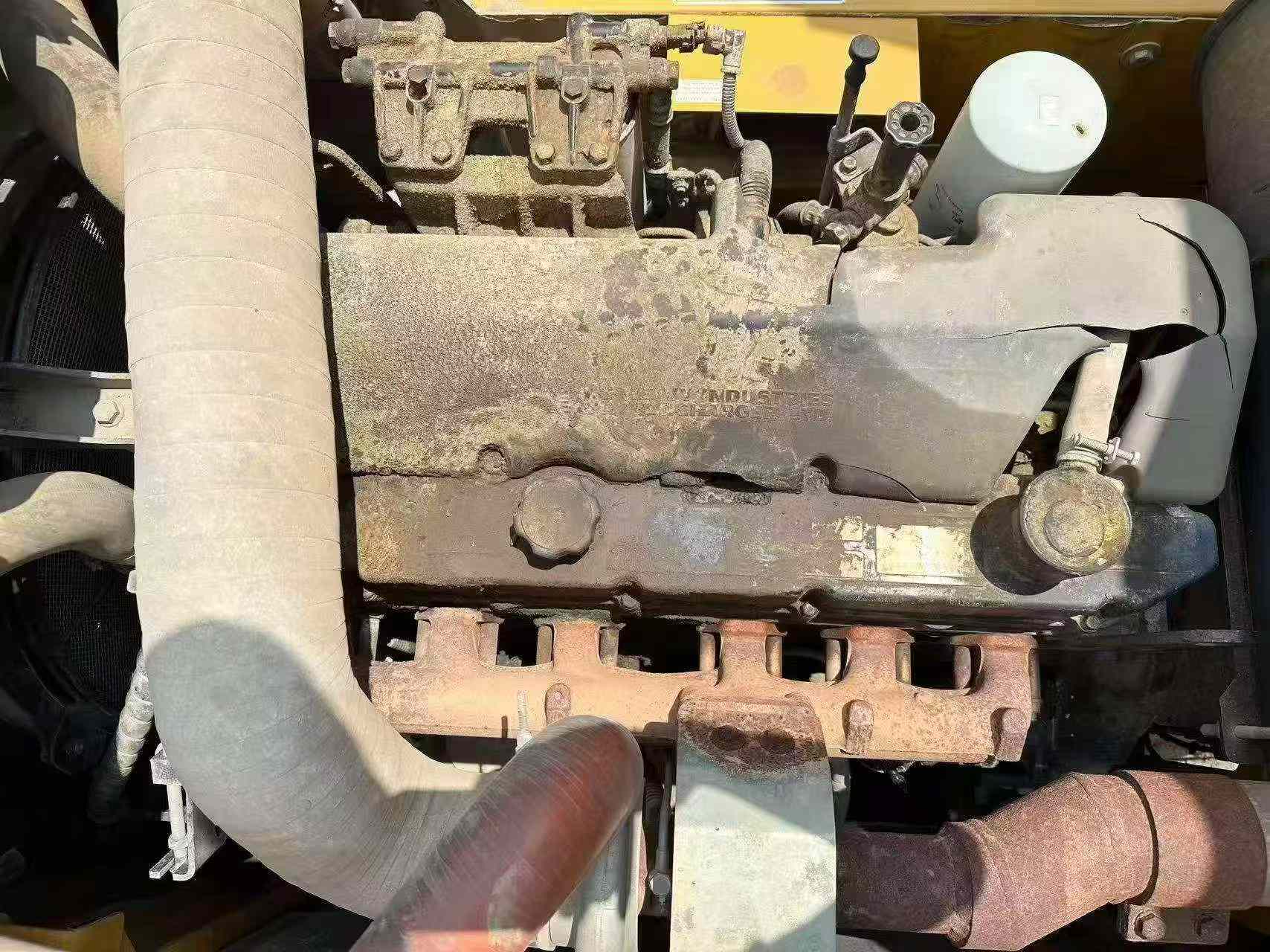

Buy Sany SY245H Used Excavator / 7

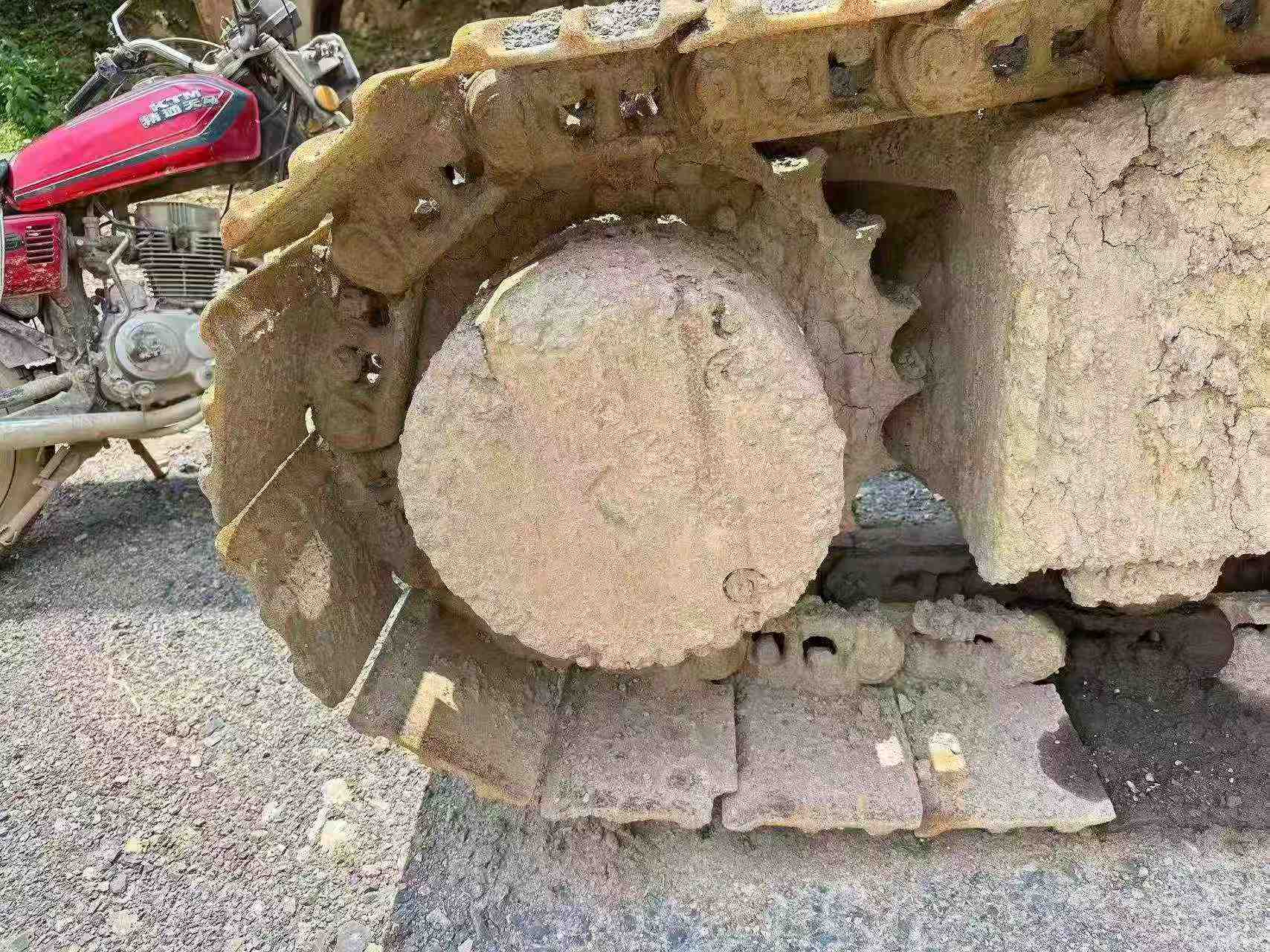

Buy Sany SY245H Used Excavator / 8

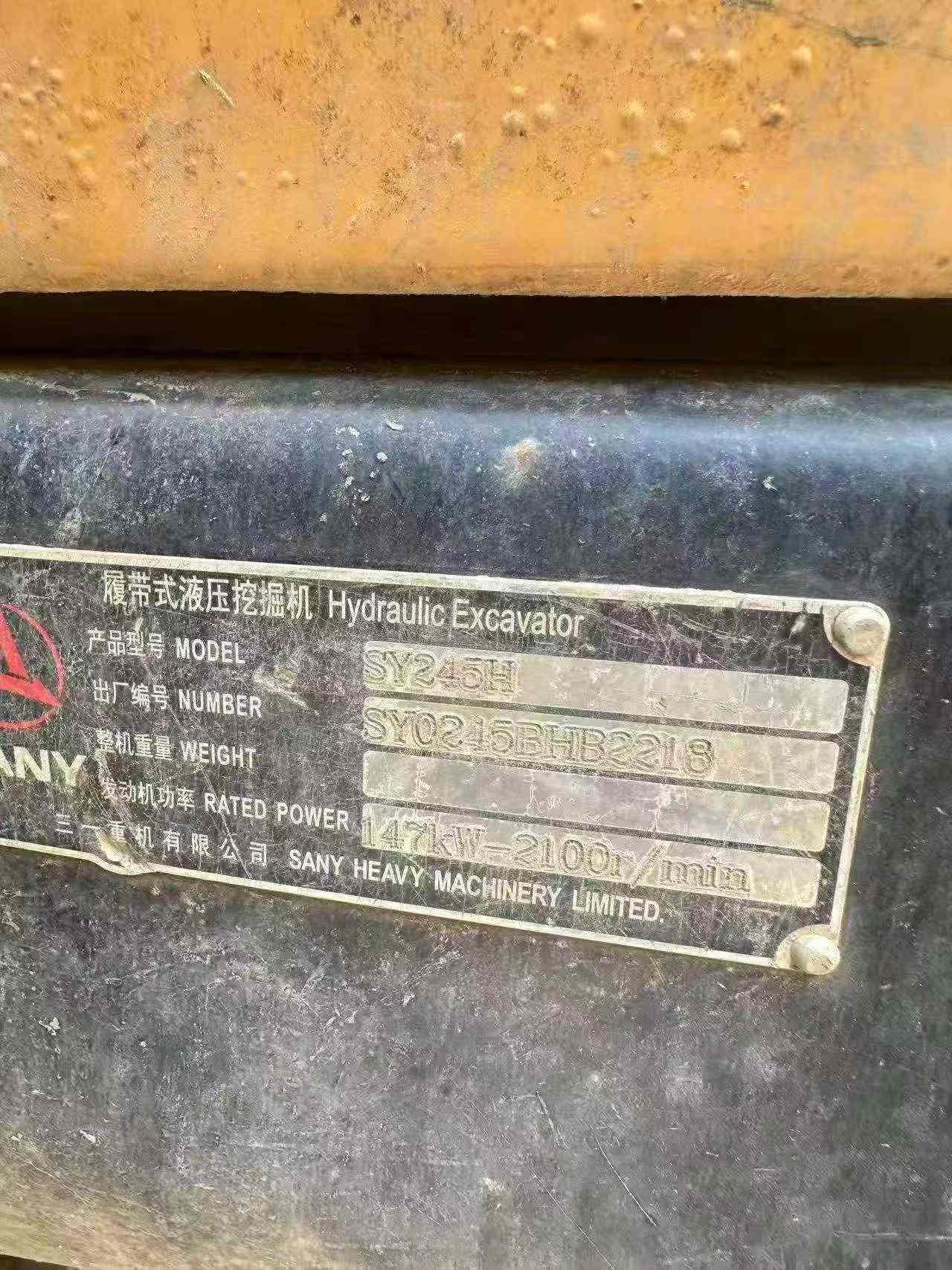

Buy Sany SY245H Used Excavator / 9

Product Description

This 2017 Sany SY245H hydraulic excavator represents a cost-effective solution for contractors seeking reliable mid-size earthmoving equipment. Currently located in Fujian, China, this machine offers proven performance in a competitive price bracket.

The SY245H is designed for versatility across construction, demolition, and material handling applications. Its robust build quality and established service network make it a practical choice for operations requiring dependable heavy equipment without premium pricing.

  • Year of Manufacture: 2017
  • Operating Weight Class: 24-ton range
  • Current Location: Fujian Province, China
  • Condition: Used, competitively priced
  • Suitable for: Excavation, grading, loading operations

Inspection and export documentation assistance available. Contact us for detailed specification sheets, operational history, and shipping arrangements to your port of destination.

SpecificationsValue
No.1082178
Tonnage (tons)24
Working weight (kg)25500
Bucket capacity (m³)1.3~1.5(1.5)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeD06FRC
Rated power (kw/rpm)147/2100
Cooling modewater-cooling
Maximum torque (N.m)750/1350
Number of cylinders (PCS)6
Displacement (L)6.373
Ground specific pressure (Kpa)53.2
Rotation speed (rpm)10.6
Climbing ability (%)70
Bucket digging force (kN)175
Rod digging force (kN)120
Travel speed (km/h)5.4/3.4
Fuel Tank (L)475
Hydraulic Tank (L)277
Engine Oil changes (L)29
Total transport length (mm)10290
Total transport width (mm)3190
Total transport height (mm)3190
Full cab height (mm)3255
Minimum ground clearance (mm)470
Minimum turning radius of front working device (mm)3800
Back end turning radius (mm)3105
Onboard width (mm)3045
Total track length (mm)4445
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3640
Maximum height at minimum turning radius (mm)8016
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10225
Maximum digging depth (mm)6705
Maximum excavation height (mm)9745
Maximum unloading height (mm)6715
see more

Overview

No.1082178

Brand Name:

Sany

Model Number:

SY245H

Year:

2017

Location:

Fujian China

Pub Date
