Product Description
This 2017 Sany SY245H hydraulic excavator represents a reliable mid-size solution for demanding earthmoving operations. Manufactured by Sany Heavy Industry, one of China's leading construction equipment producers, this machine offers proven performance in a 24-ton class package. Currently located in Sichuan, China, the excavator has been maintained for operational readiness in regional construction and excavation projects.
The SY245H is engineered for versatility across general construction, trenching, and material handling applications. Key features include:
- Robust hydraulic system designed for fuel efficiency and productivity
- Spacious operator cabin with ergonomic controls
- Durable undercarriage built for varied terrain conditions
- Proven Sany powertrain technology
This used excavator is priced competitively for buyers seeking quality equipment from a recognized manufacturer. Ideal for contractors and fleet operators looking to expand capabilities while managing capital investment.
| Specifications | Value |
|---|---|
| No. | 1095817 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

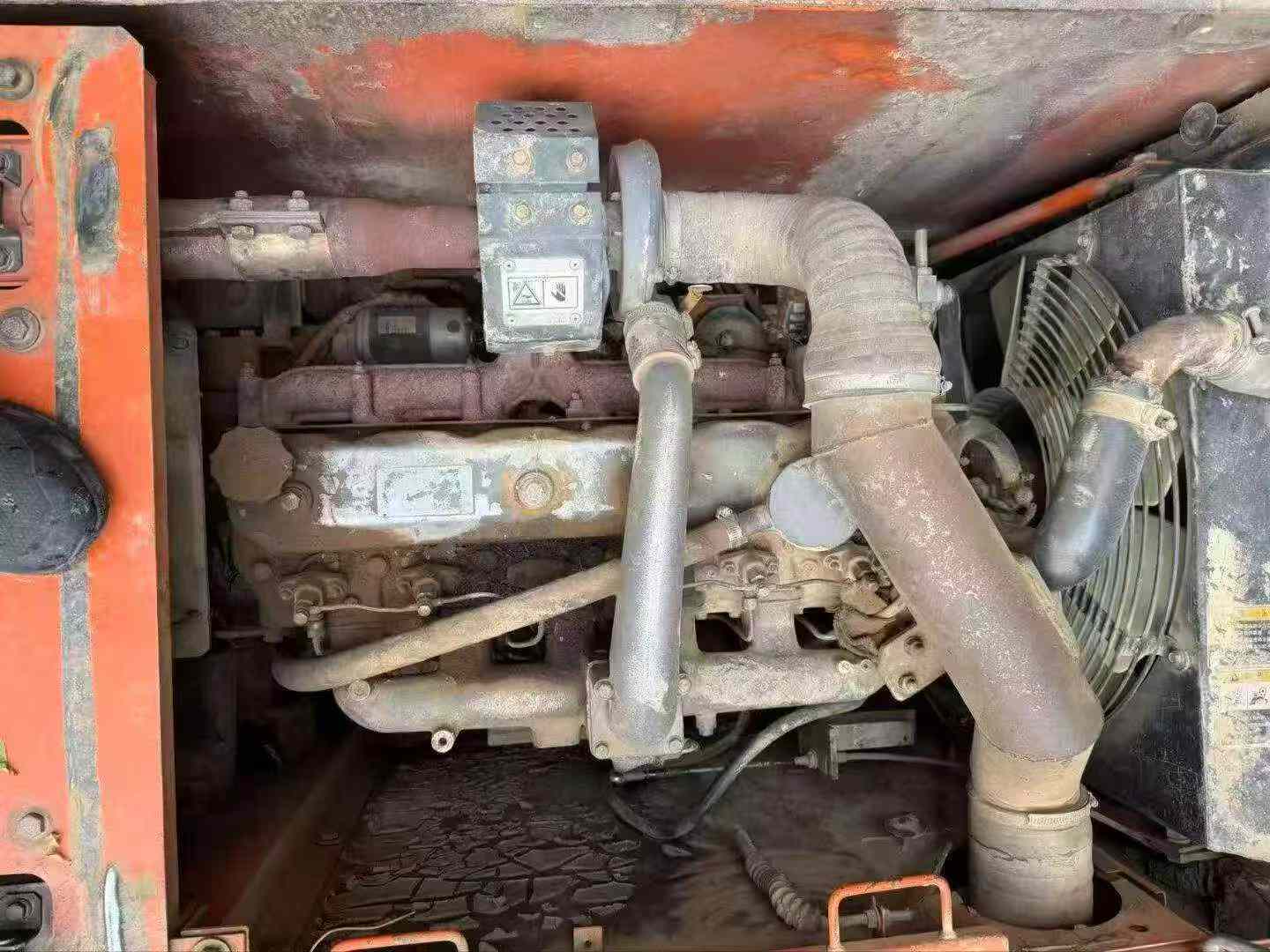

| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
