Product Description

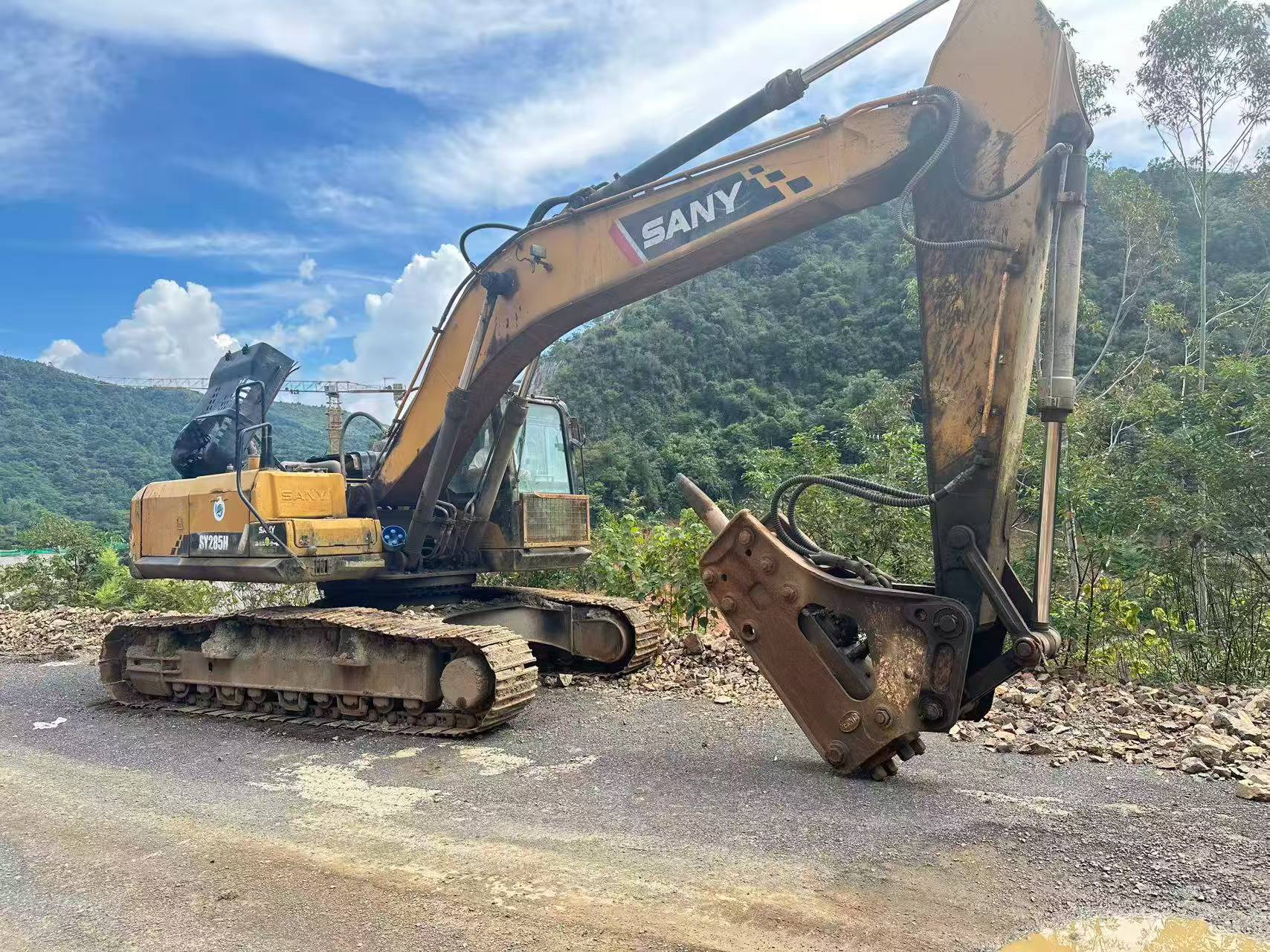

2017 Sany SY245H hydraulic excavator available from Guangdong, China. This mid-size crawler excavator comes equipped with a hydraulic breaker attachment, suitable for demolition and rock-breaking applications. Note that the standard bucket is not included with this unit.

  • Year: 2017
  • Make: Sany
  • Model: SY245H
  • Configuration: Hydraulic breaker included, bucket not included
  • Location: Guangdong Province, China
  • Estimated delivery cost: 16+ (currency as discussed)

The seller has detailed photos and operational video available upon request. This machine represents a cost-effective solution for contractors requiring a reliable excavator with breaker capability. Direct inquiries are welcome to discuss specifications, condition reports, shipping arrangements, and payment terms.

SpecificationsValue
No.1143929
Tonnage (tons)24
Working weight (kg)25500
Bucket capacity (m³)1.3~1.5(1.5)
powerTraditional power
manufacturerMade in China
bucketbackhoe

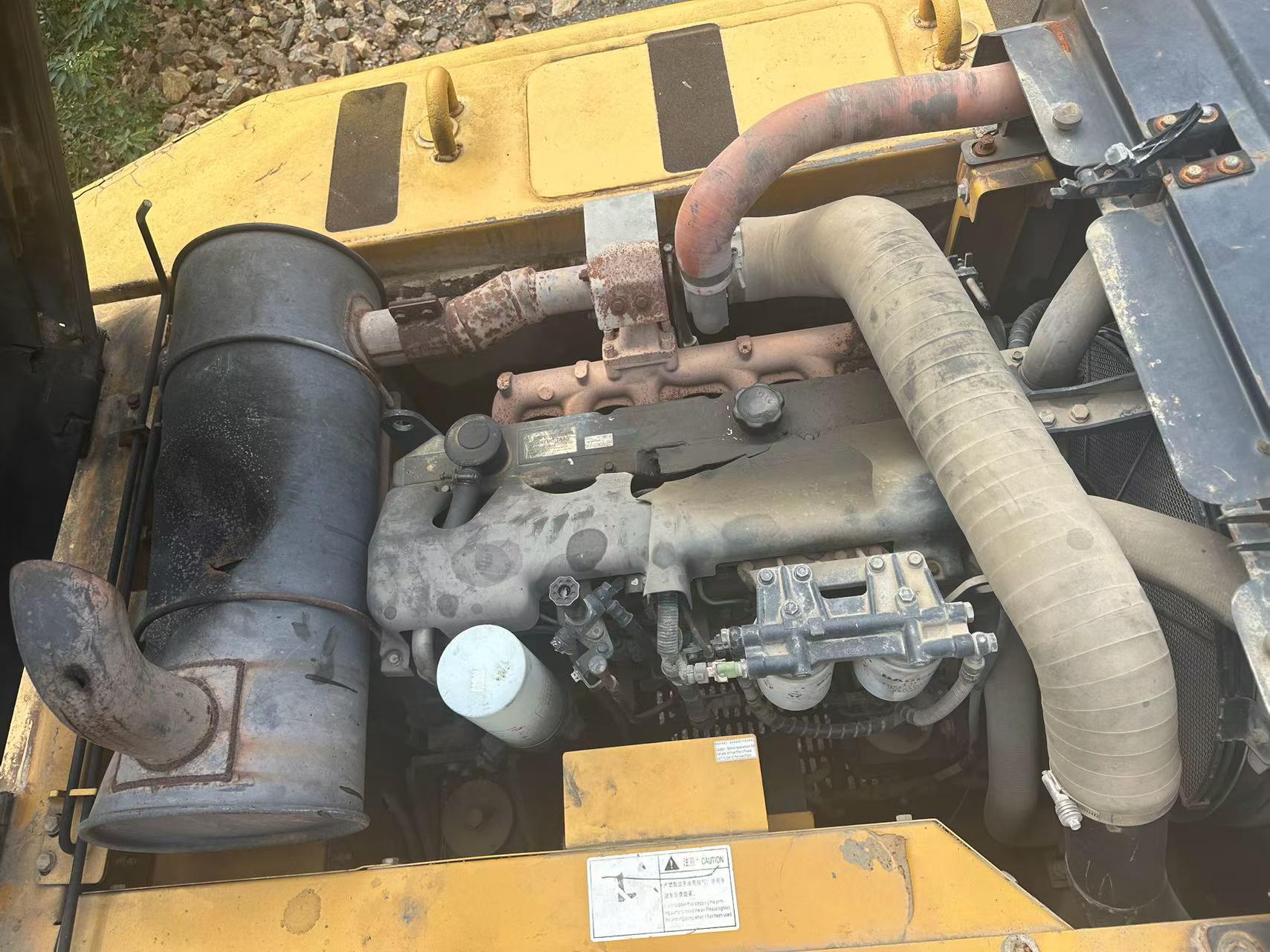

Engine typeD06FRC
Rated power (kw/rpm)147/2100
Cooling modewater-cooling
Maximum torque (N.m)750/1350
Number of cylinders (PCS)6
Displacement (L)6.373
Ground specific pressure (Kpa)53.2
Rotation speed (rpm)10.6
Climbing ability (%)70
Bucket digging force (kN)175
Rod digging force (kN)120
Travel speed (km/h)5.4/3.4
Fuel Tank (L)475
Hydraulic Tank (L)277
Engine Oil changes (L)29
Total transport length (mm)10290
Total transport width (mm)3190
Total transport height (mm)3190
Full cab height (mm)3255
Minimum ground clearance (mm)470
Minimum turning radius of front working device (mm)3800
Back end turning radius (mm)3105
Onboard width (mm)3045

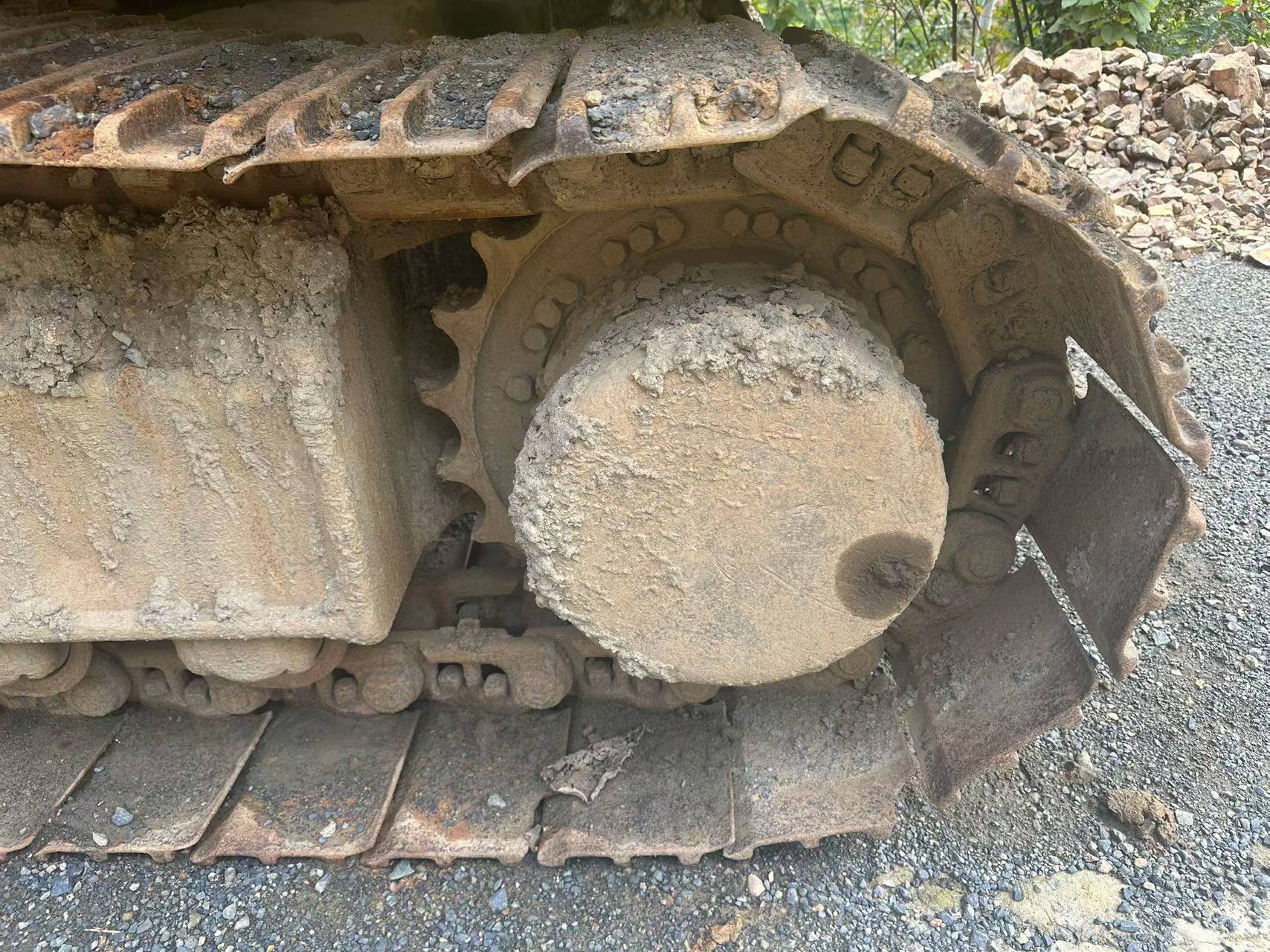

Total track length (mm)4445
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3640
Maximum height at minimum turning radius (mm)8016
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10225
Maximum digging depth (mm)6705
Maximum excavation height (mm)9745
Maximum unloading height (mm)6715
