2017 Sany SY245H

1/9
Buy Sany SY245H Used Excavator / 1

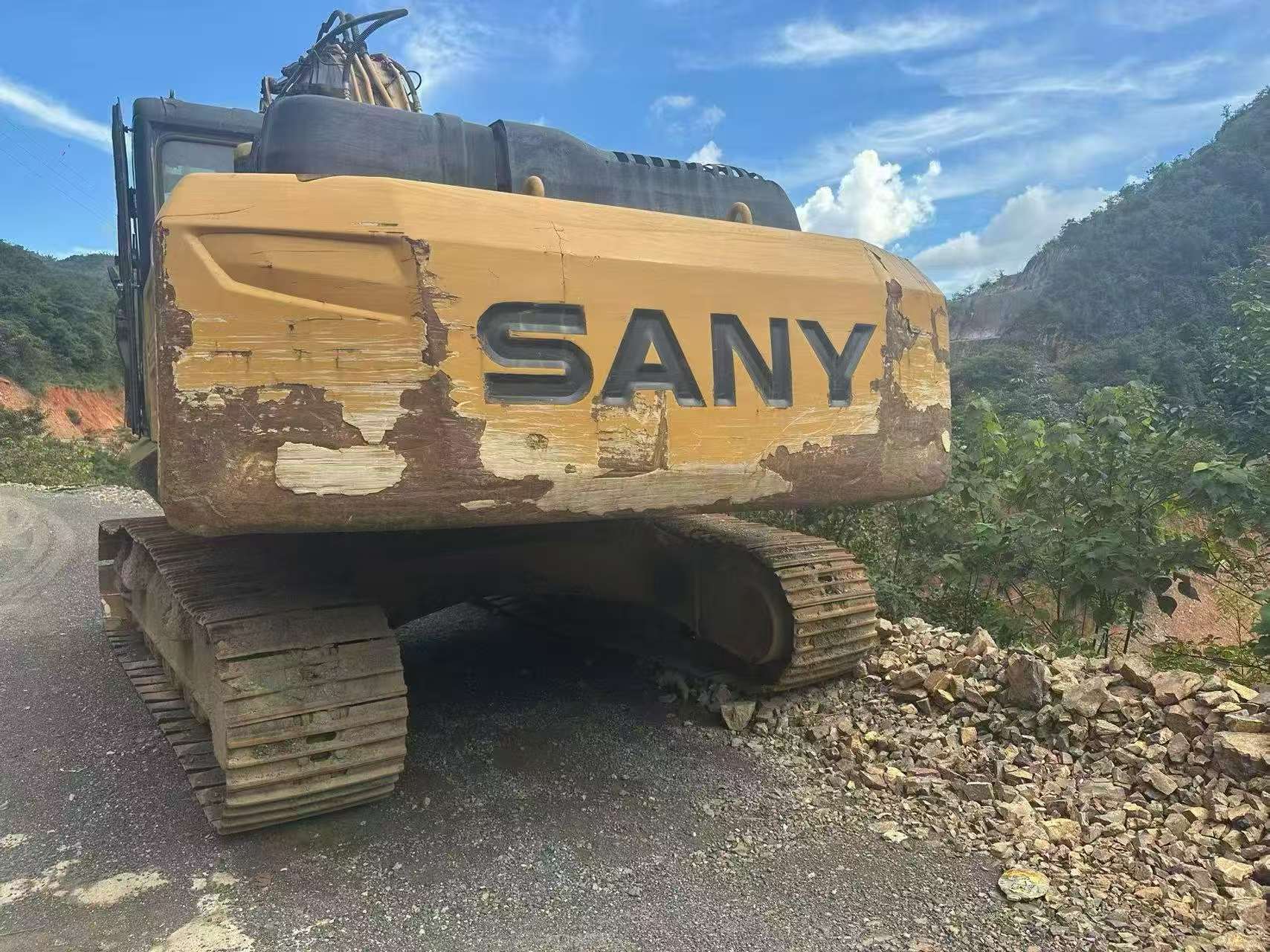

Buy Sany SY245H Used Excavator / 2

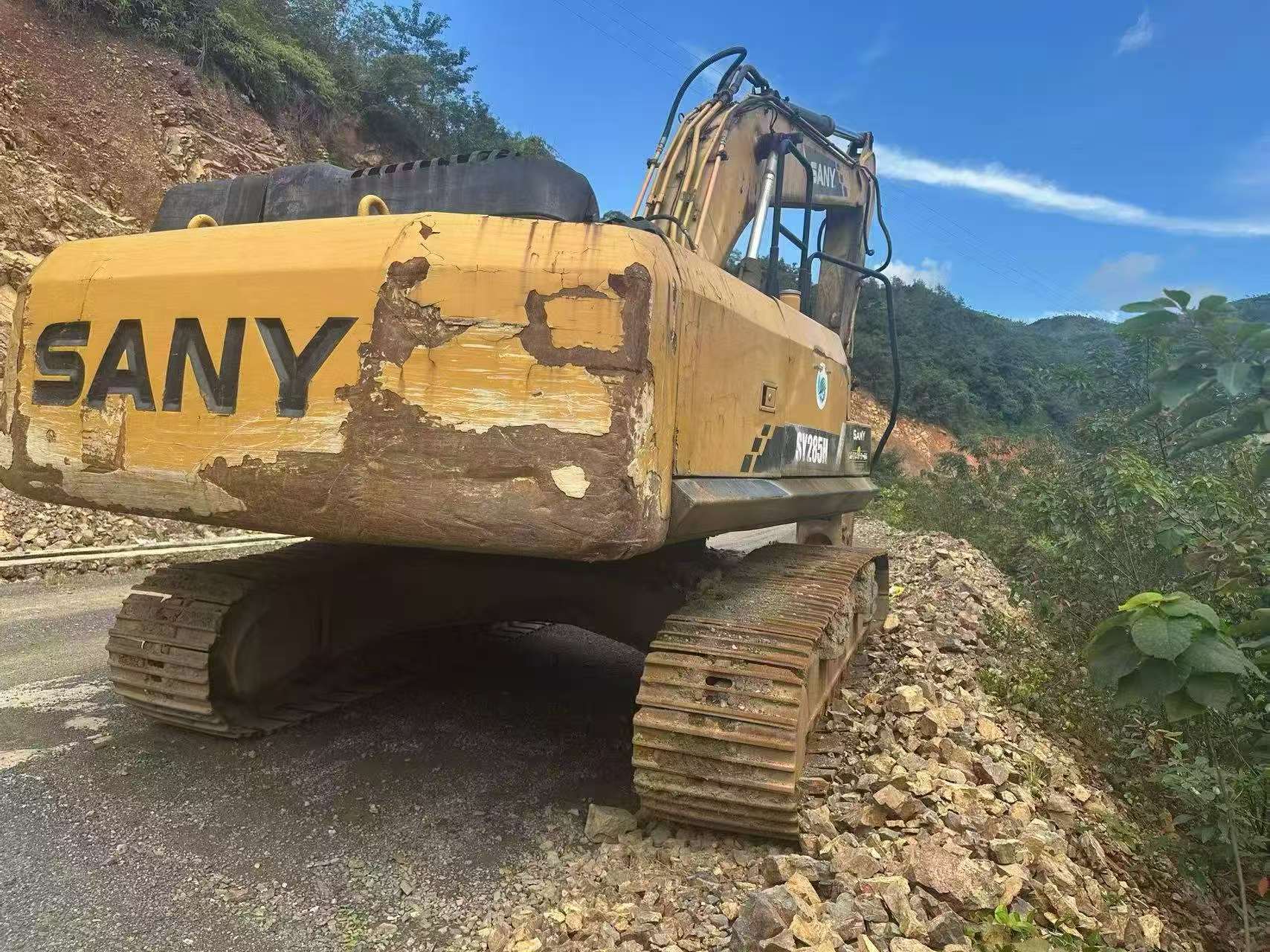

Buy Sany SY245H Used Excavator / 3

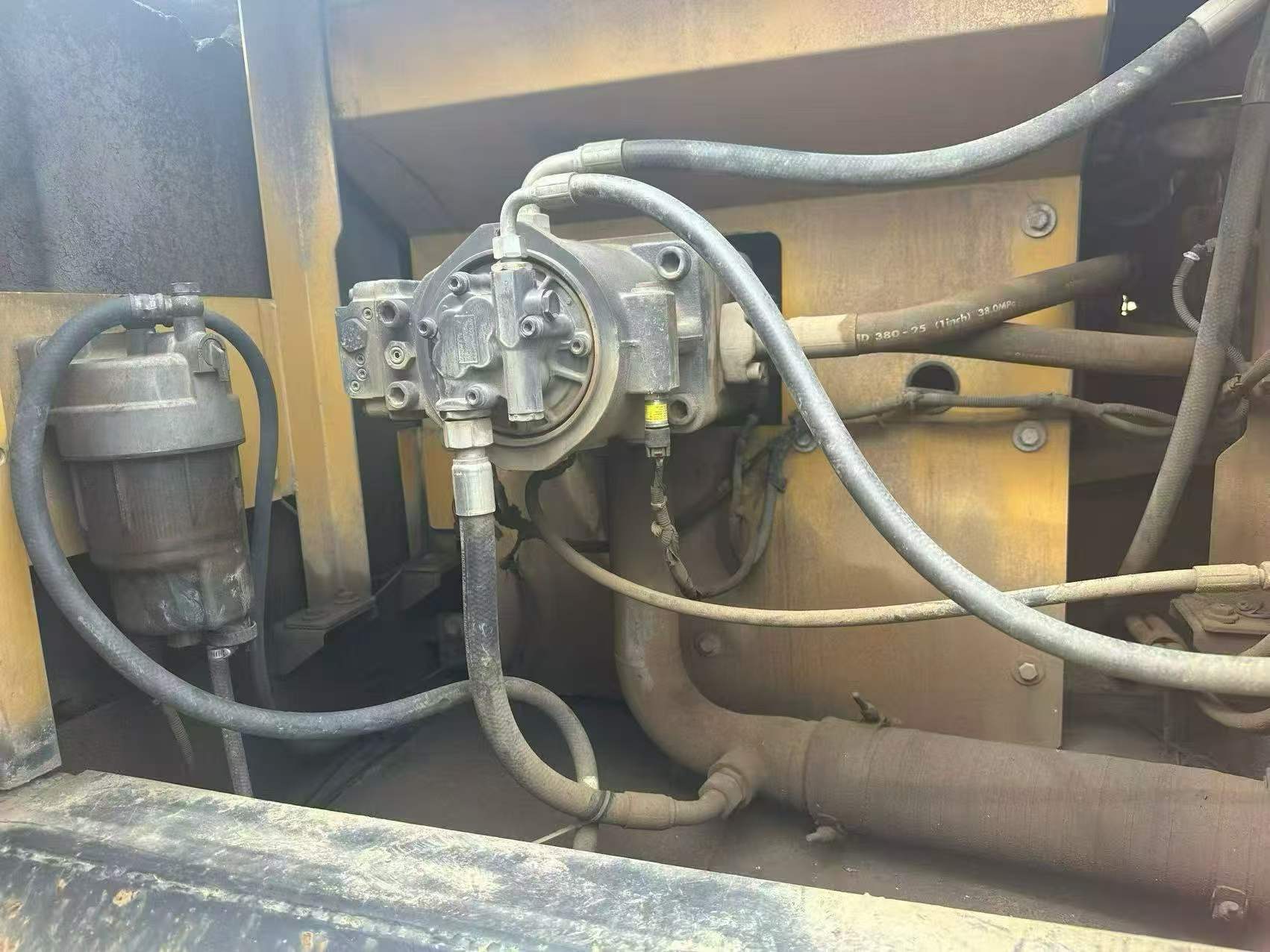

Buy Sany SY245H Used Excavator / 4

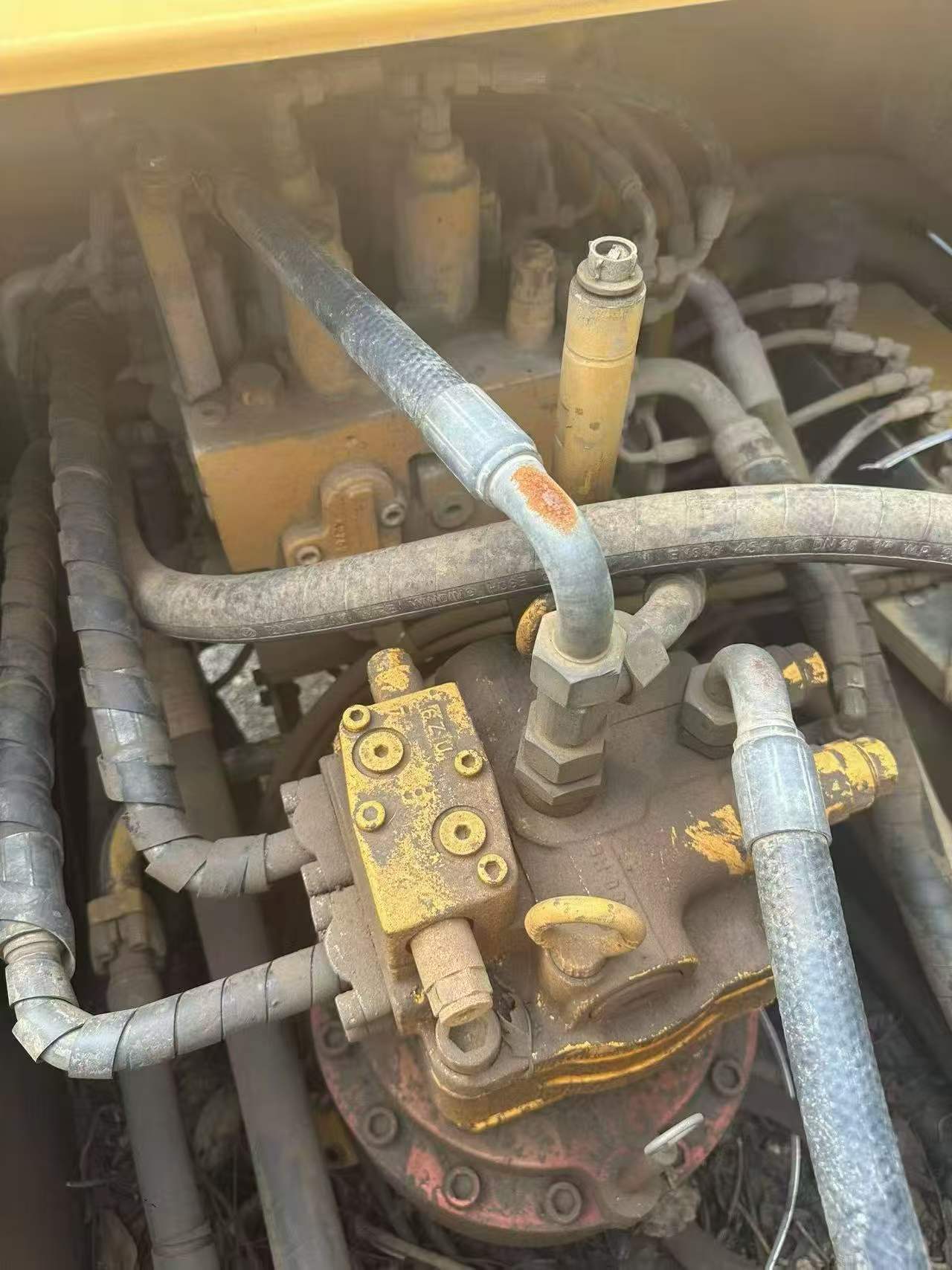

Buy Sany SY245H Used Excavator / 5

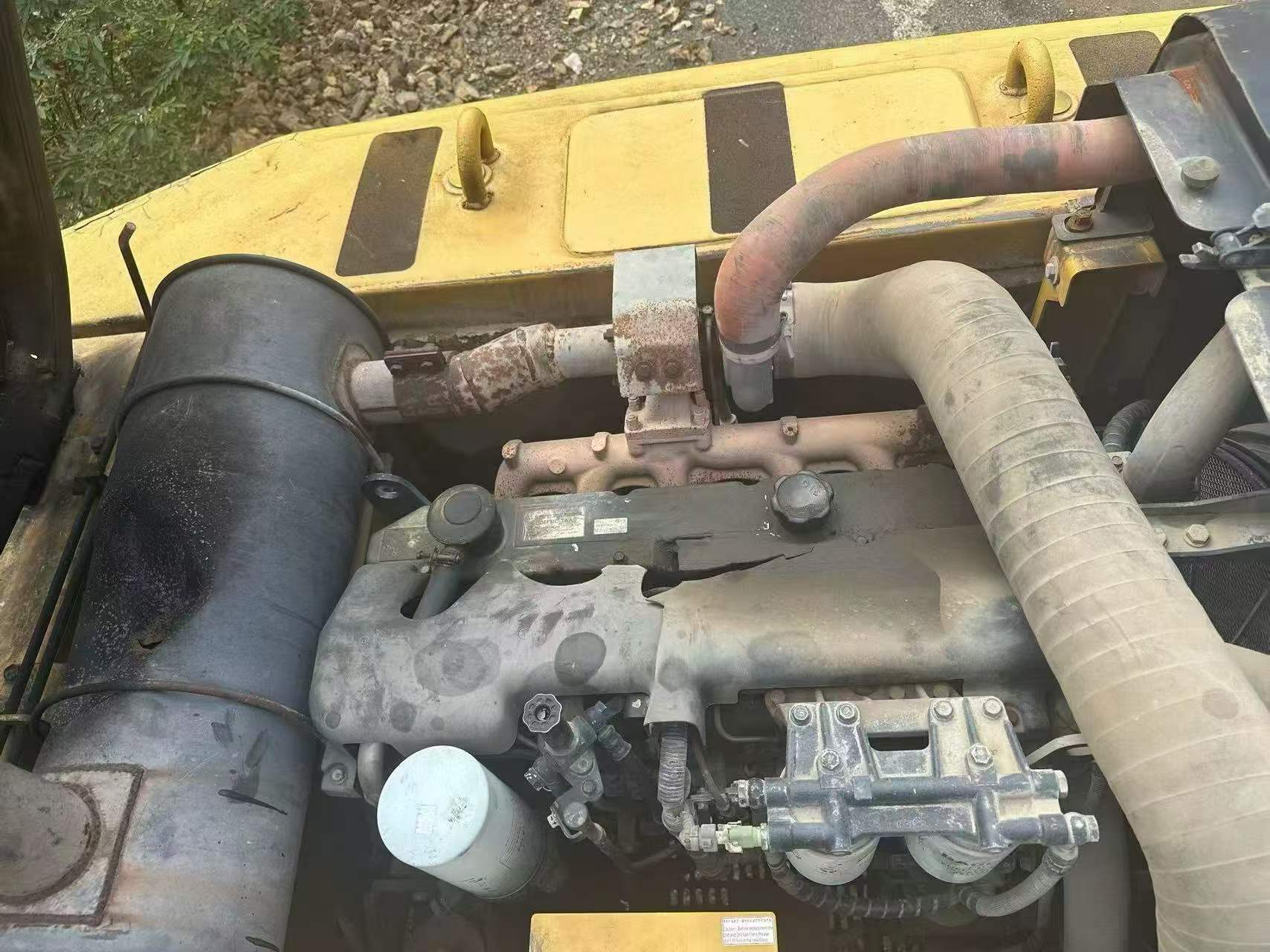

Buy Sany SY245H Used Excavator / 6

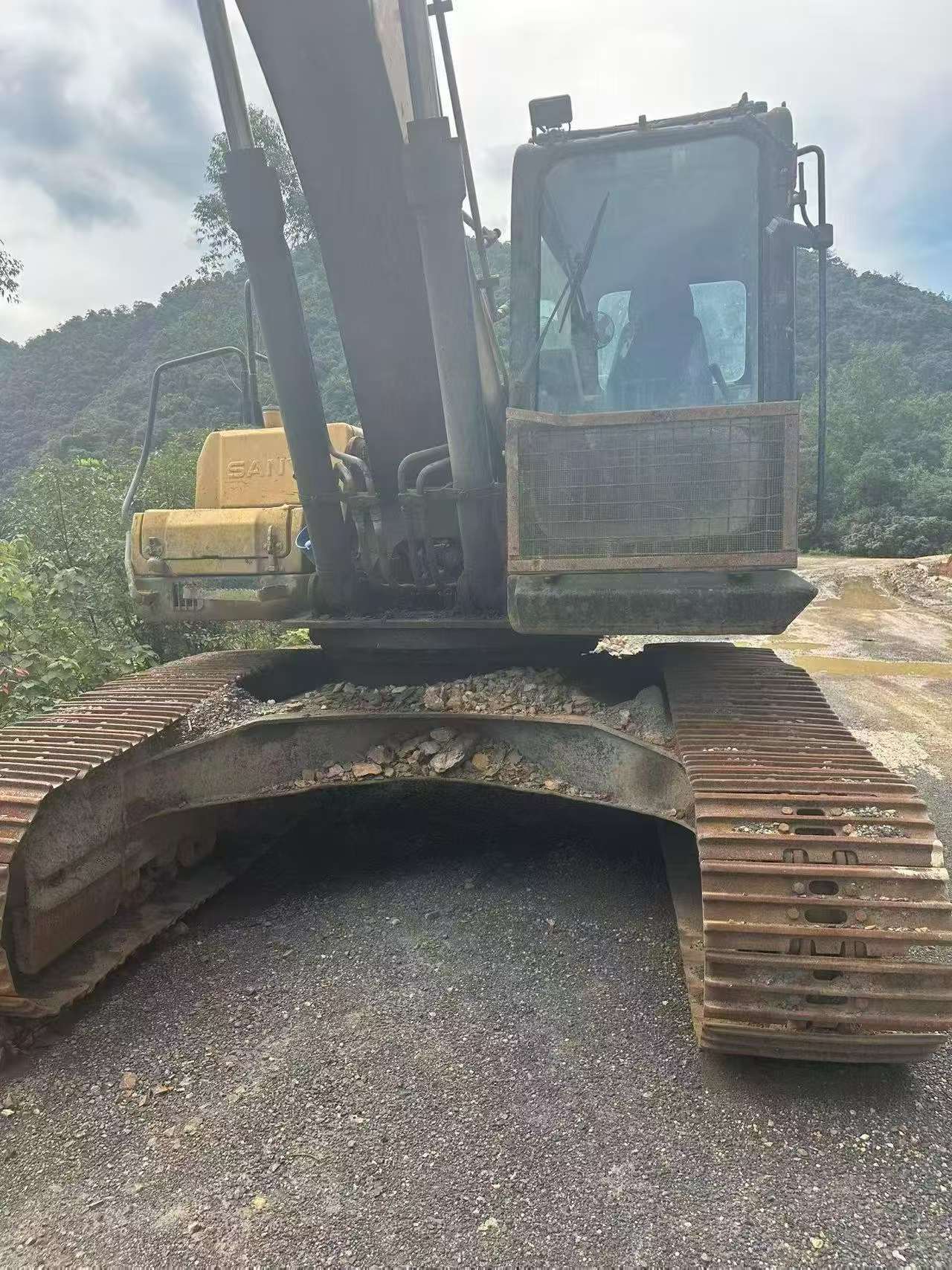

Buy Sany SY245H Used Excavator / 7

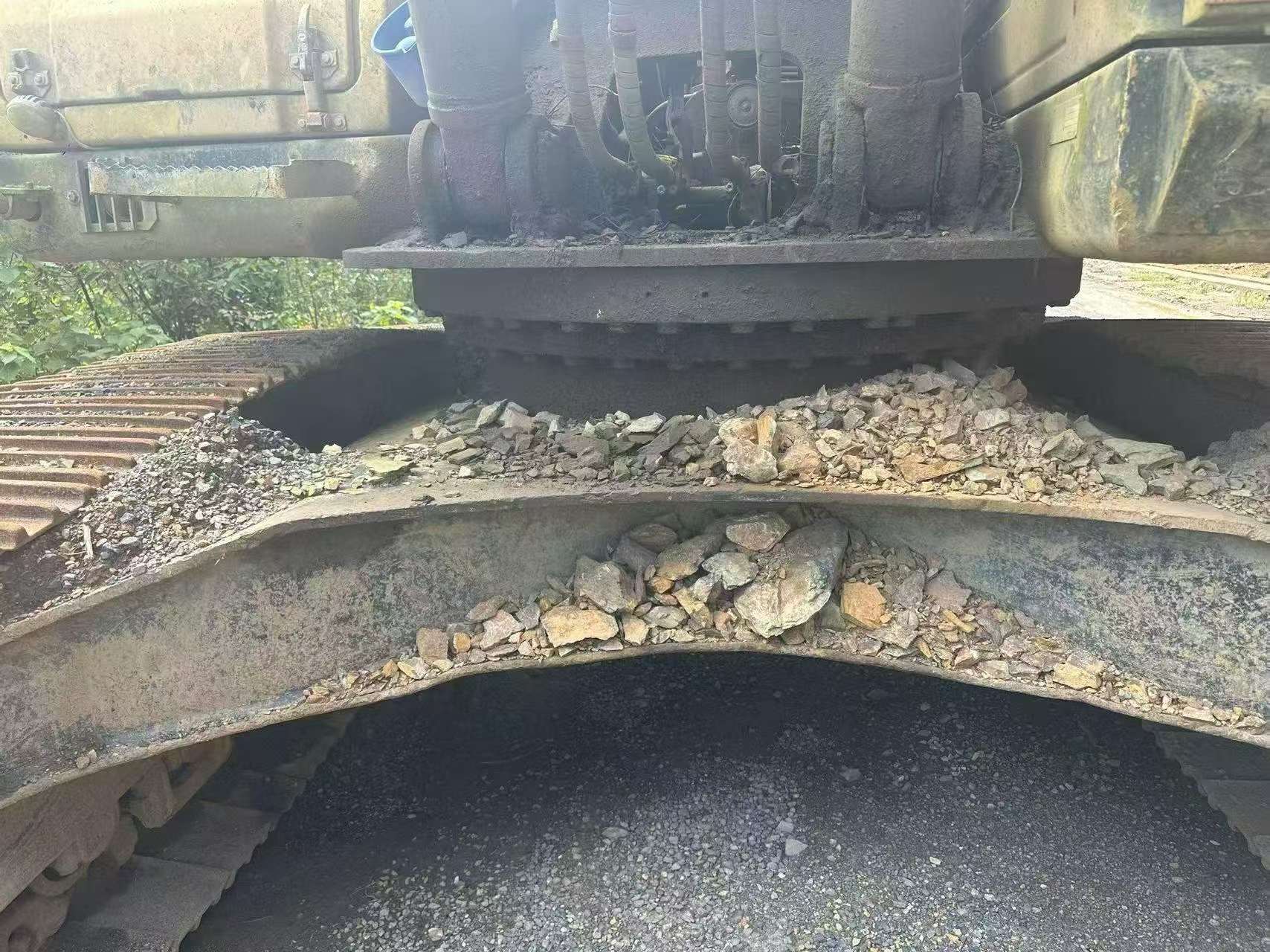

Buy Sany SY245H Used Excavator / 8

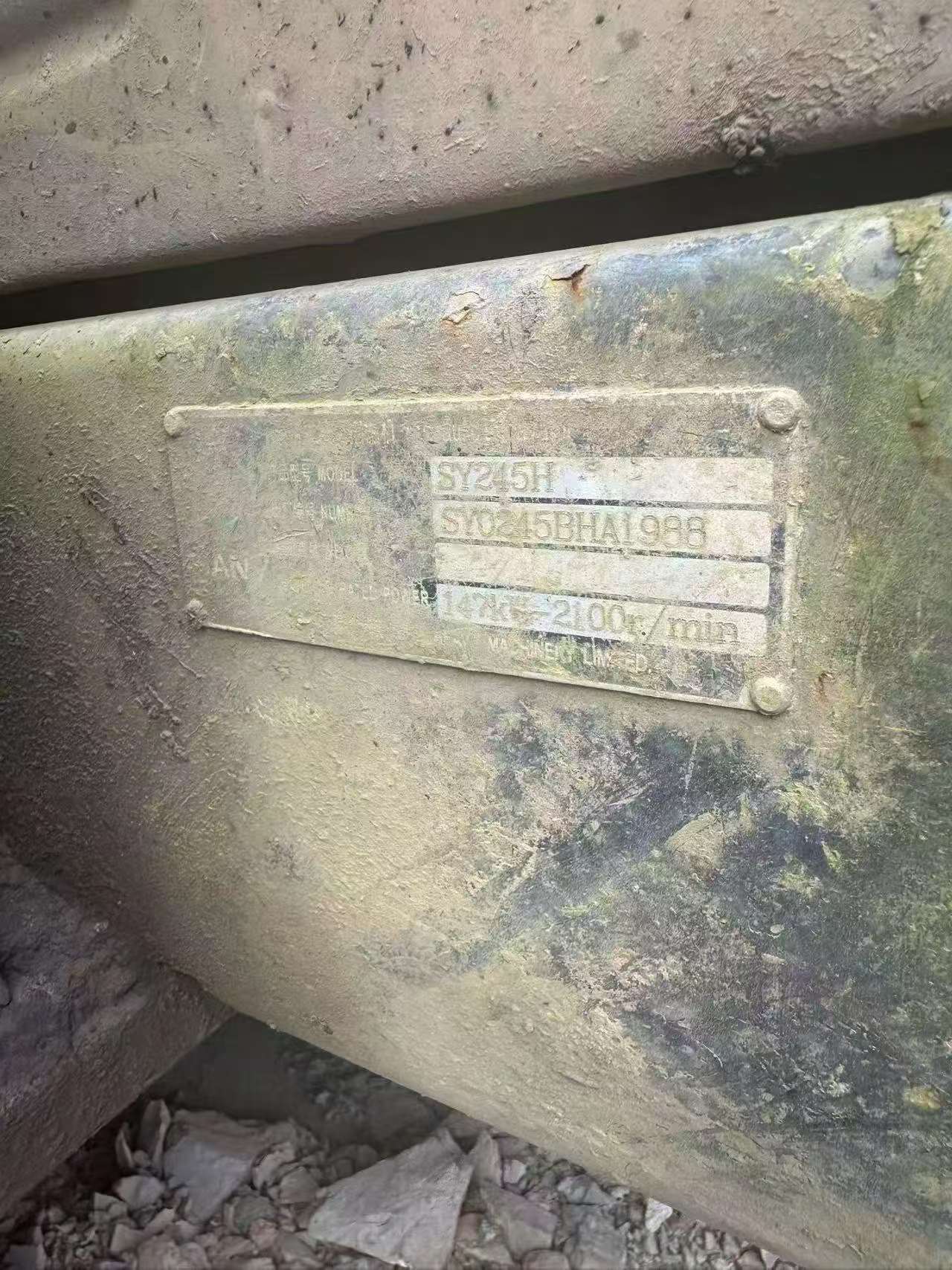

Buy Sany SY245H Used Excavator / 9

Product Description

2017 Sany SY245H hydraulic excavator available in Fujian, China. This mid-sized crawler excavator from Sany's proven H-series lineup offers reliable performance for earthmoving, demolition, and construction applications. The machine is equipped with a hydraulic breaker attachment, expanding its versatility for rock breaking and concrete demolition work. Please note that the bucket is not included with this unit.

Key features of this Sany SY245H:

  • 2017 model year with documented service history
  • Sany H-series hydraulic system for efficient operation
  • Includes hydraulic breaker attachment
  • Suitable for excavation, trenching, and demolition projects
  • Currently located in Fujian Province, China
  • Bucket not included - sold separately or sourced by buyer

This excavator represents a cost-effective solution for contractors seeking a capable mid-range machine with demolition capability. Inspection welcome by appointment.

SpecificationsValue
No.1144217
Tonnage (tons)24
Working weight (kg)25500
Bucket capacity (m³)1.3~1.5(1.5)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeD06FRC
Rated power (kw/rpm)147/2100
Cooling modewater-cooling
Maximum torque (N.m)750/1350
Number of cylinders (PCS)6
Displacement (L)6.373
Ground specific pressure (Kpa)53.2
Rotation speed (rpm)10.6
Climbing ability (%)70
Bucket digging force (kN)175
Rod digging force (kN)120
Travel speed (km/h)5.4/3.4
Fuel Tank (L)475
Hydraulic Tank (L)277
Engine Oil changes (L)29
Total transport length (mm)10290
Total transport width (mm)3190
Total transport height (mm)3190
Full cab height (mm)3255
Minimum ground clearance (mm)470
Minimum turning radius of front working device (mm)3800
Back end turning radius (mm)3105
Onboard width (mm)3045
Total track length (mm)4445
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3640
Maximum height at minimum turning radius (mm)8016
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10225
Maximum digging depth (mm)6705
Maximum excavation height (mm)9745
Maximum unloading height (mm)6715
see more

Overview

No.1144217

Brand Name:

Sany

Model Number:

SY245H

Year:

2017

Location:

Fujian China

Pub Date
