2017 Sany SY245H

1/5
Buy Sany SY245H Used Excavator / 1

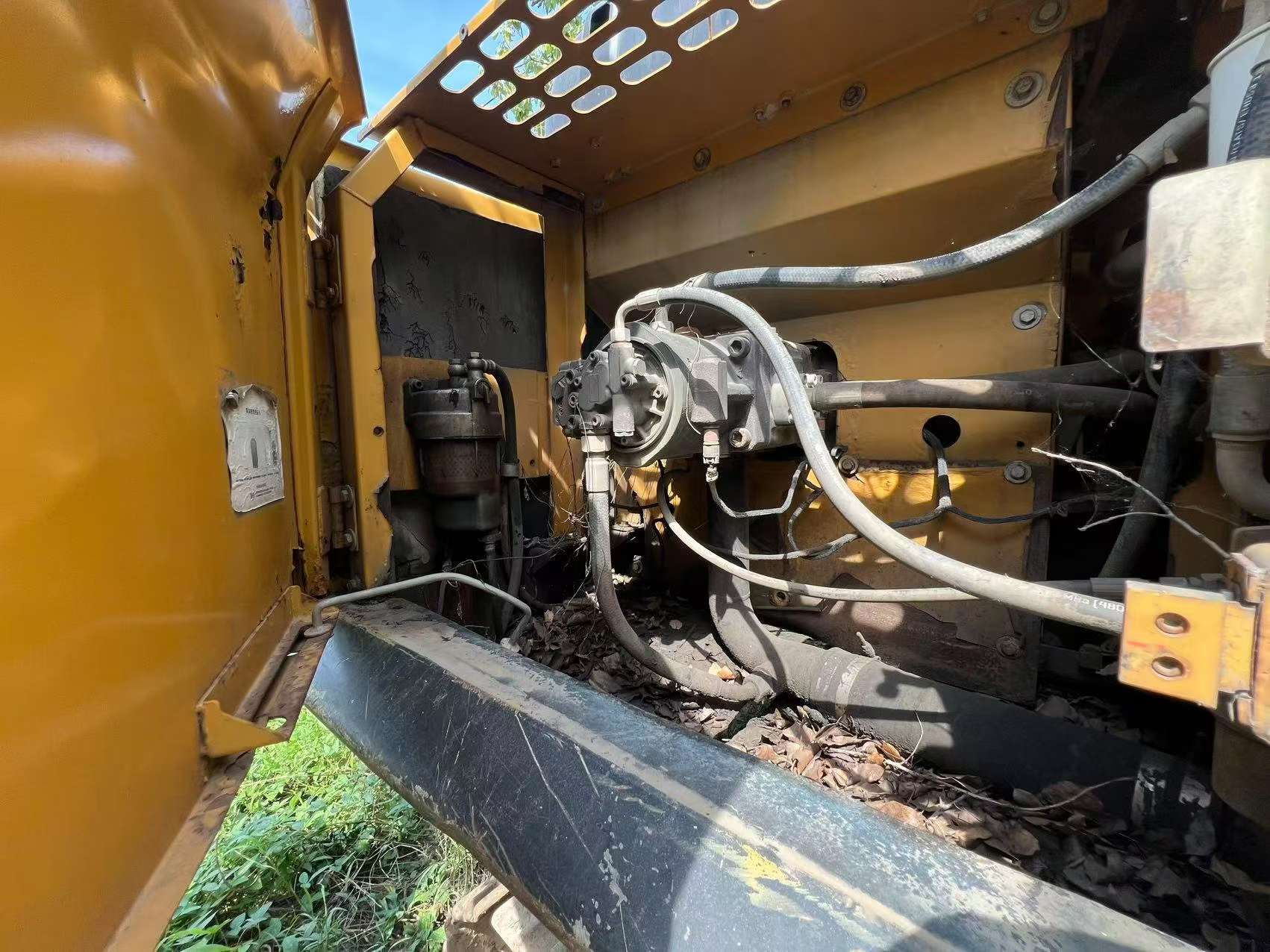

Buy Sany SY245H Used Excavator / 2

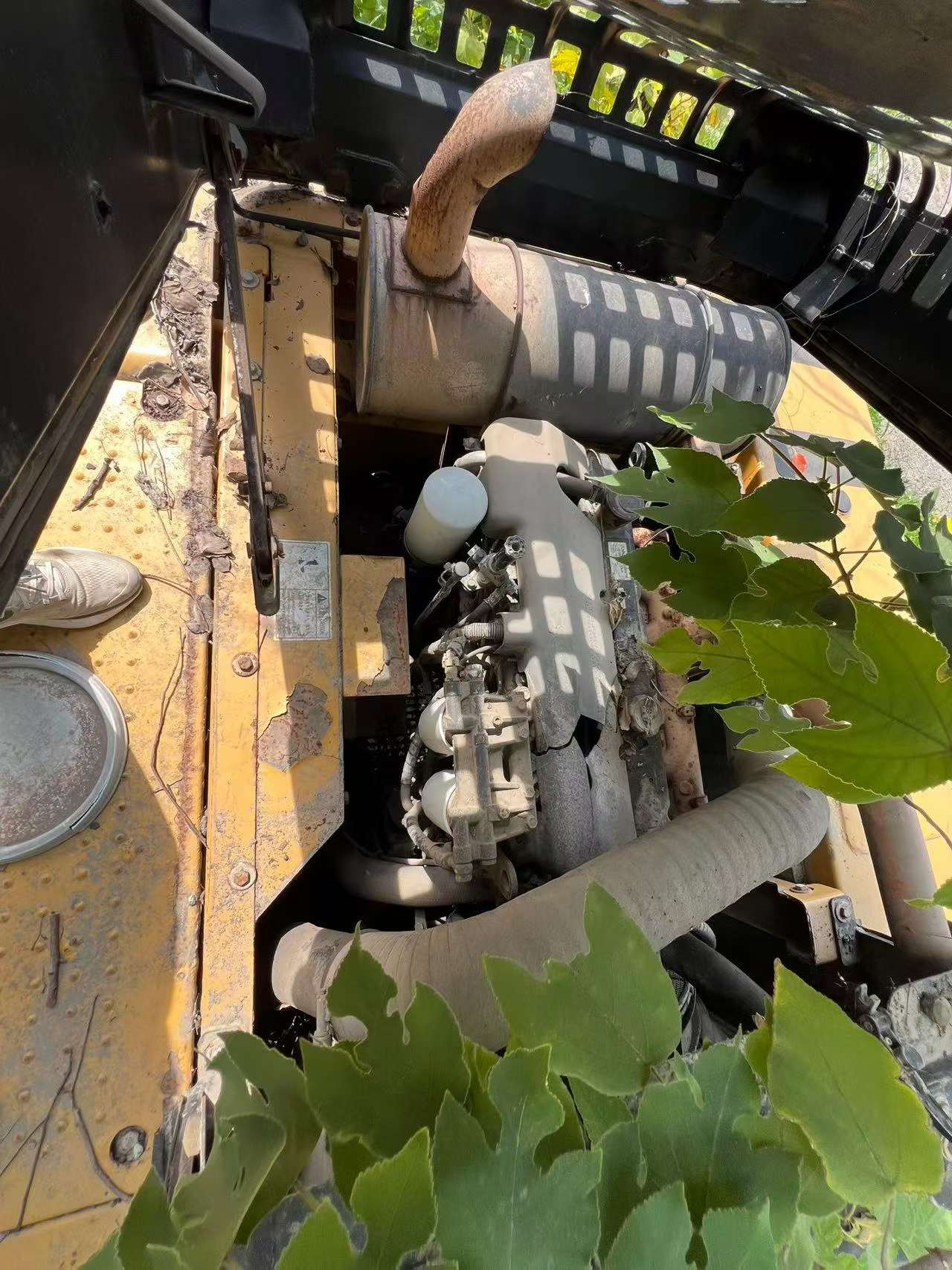

Buy Sany SY245H Used Excavator / 3
Buy Sany SY245H Used Excavator / 4

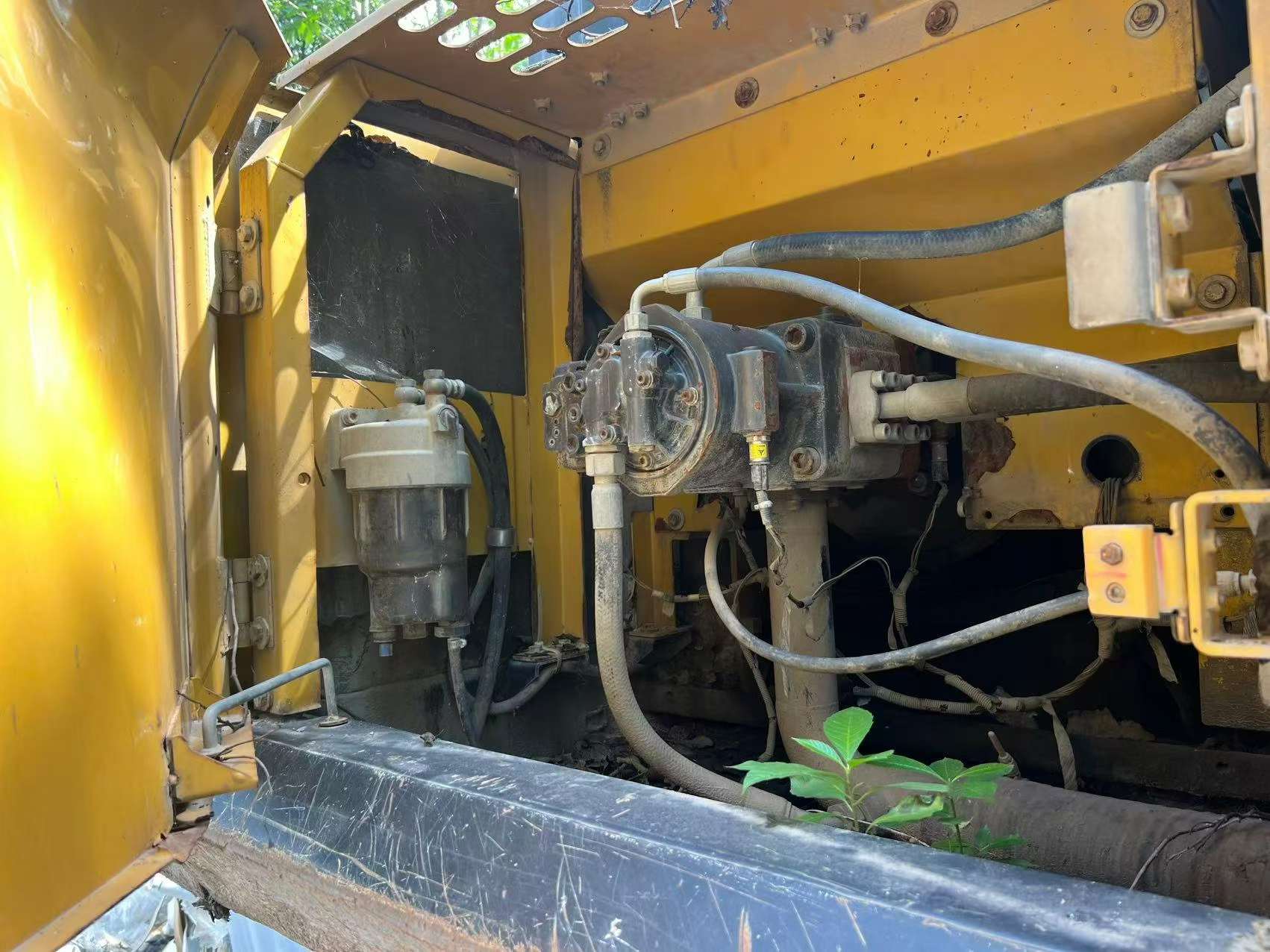

Buy Sany SY245H Used Excavator / 5

Product Description

2017 Sany SY245H hydraulic excavator available for sale from Fujian, China. This mid-size crawler excavator has accumulated moderate operating hours in the low hundred-thousand range, indicating consistent field use with substantial service life remaining. The SY245H is recognized for its 24-ton operating weight class and reliable performance in earthmoving, demolition, and general construction applications.

Key features of this unit include:

  • Sany's proven hydraulic system with efficient fuel consumption
  • Robust undercarriage designed for varied terrain conditions
  • Spacious operator cab with standard controls
  • Available for bulk purchase consideration

This machine represents a cost-effective solution for contractors seeking dependable excavation equipment from an established Chinese manufacturer. Suitable for medium-duty construction and infrastructure projects. Contact us for detailed inspection reports, current photographs, and shipping arrangements to your location.

SpecificationsValue
No.1145718
Tonnage (tons)24
Working weight (kg)25500
Bucket capacity (m³)1.3~1.5(1.5)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeD06FRC
Rated power (kw/rpm)147/2100
Cooling modewater-cooling
Maximum torque (N.m)750/1350
Number of cylinders (PCS)6
Displacement (L)6.373
Ground specific pressure (Kpa)53.2
Rotation speed (rpm)10.6
Climbing ability (%)70
Bucket digging force (kN)175
Rod digging force (kN)120
Travel speed (km/h)5.4/3.4
Fuel Tank (L)475
Hydraulic Tank (L)277
Engine Oil changes (L)29
Total transport length (mm)10290
Total transport width (mm)3190
Total transport height (mm)3190
Full cab height (mm)3255
Minimum ground clearance (mm)470
Minimum turning radius of front working device (mm)3800
Back end turning radius (mm)3105
Onboard width (mm)3045
Total track length (mm)4445
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3640
Maximum height at minimum turning radius (mm)8016
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10225
Maximum digging depth (mm)6705
Maximum excavation height (mm)9745
Maximum unloading height (mm)6715
see more

Overview

No.1145718

Brand Name:

Sany

Model Number:

SY245H

Year:

2017

Location:

Fujian China
