2017 Sany SY245H

1/7
Buy Sany SY245H Used Excavator / 1
Buy Sany SY245H Used Excavator / 2

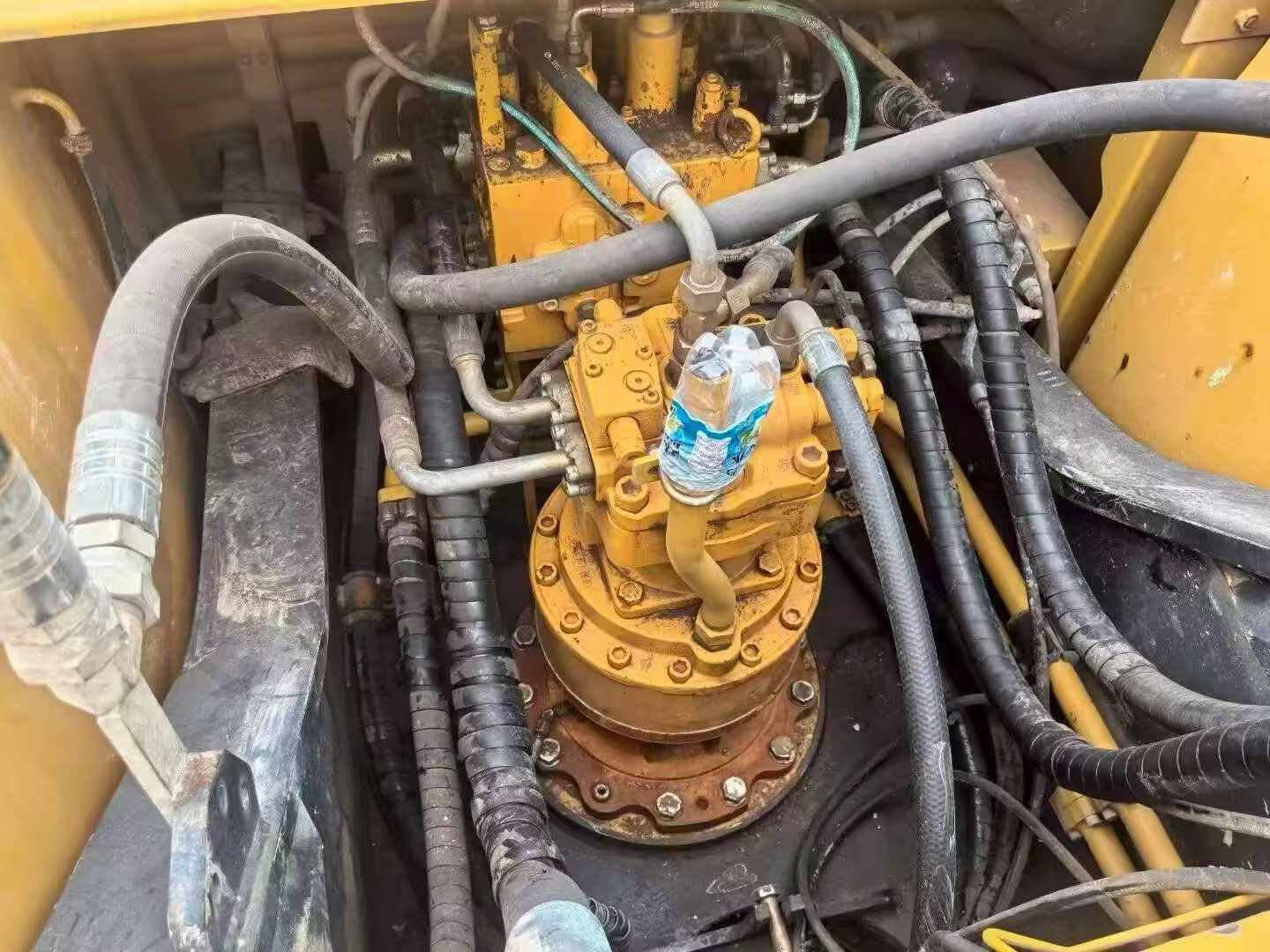

Buy Sany SY245H Used Excavator / 3

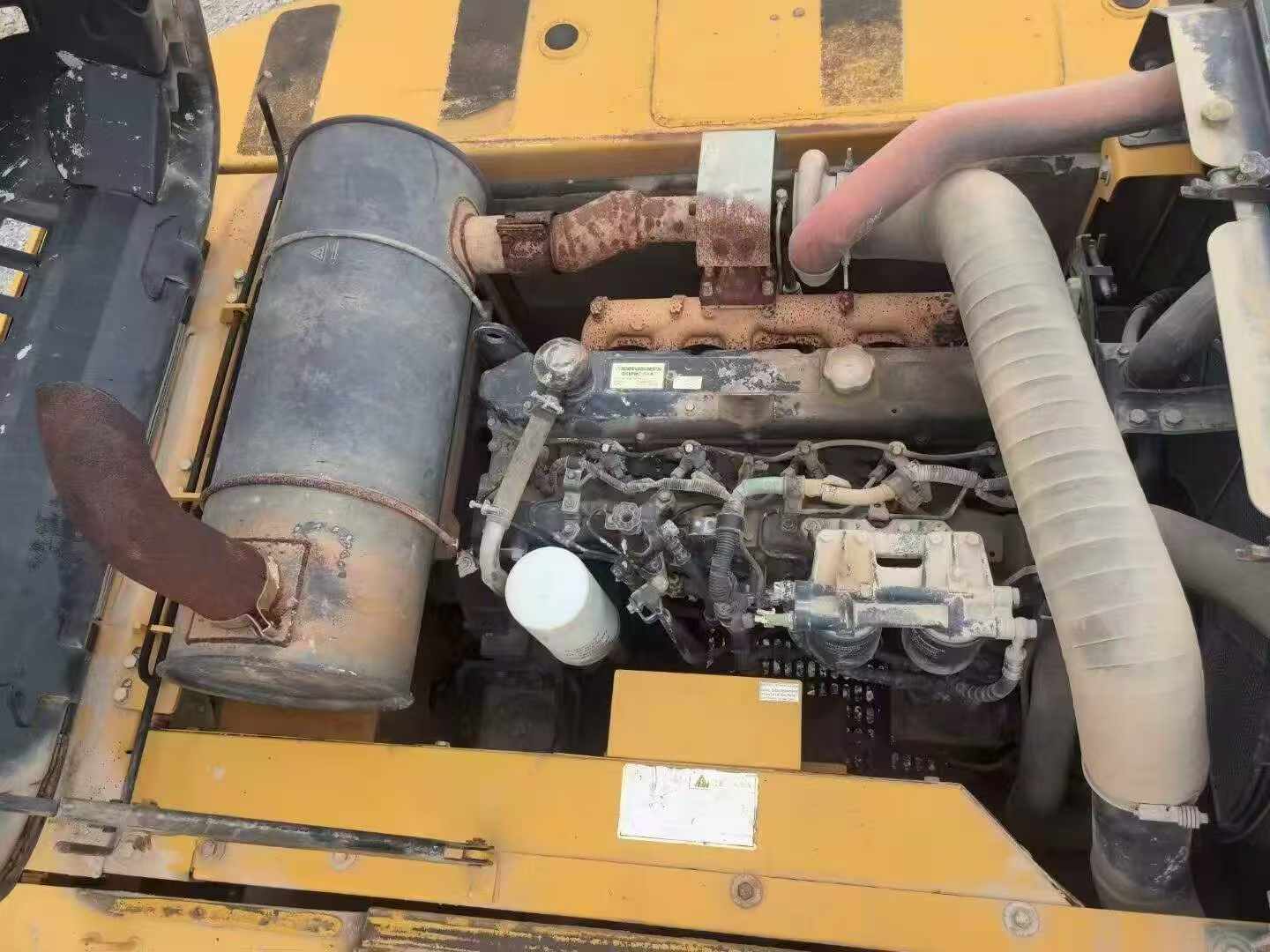

Buy Sany SY245H Used Excavator / 4

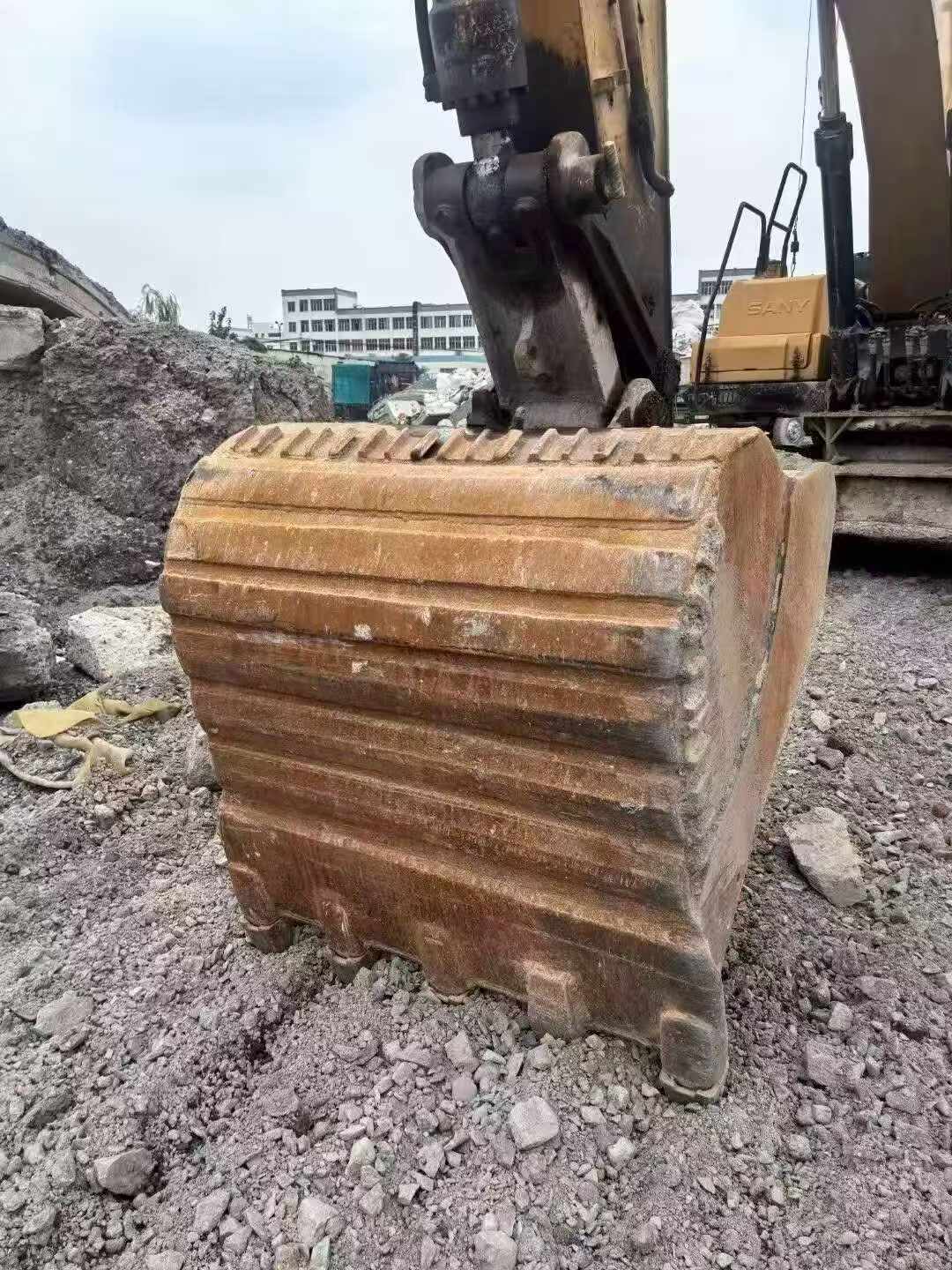

Buy Sany SY245H Used Excavator / 5

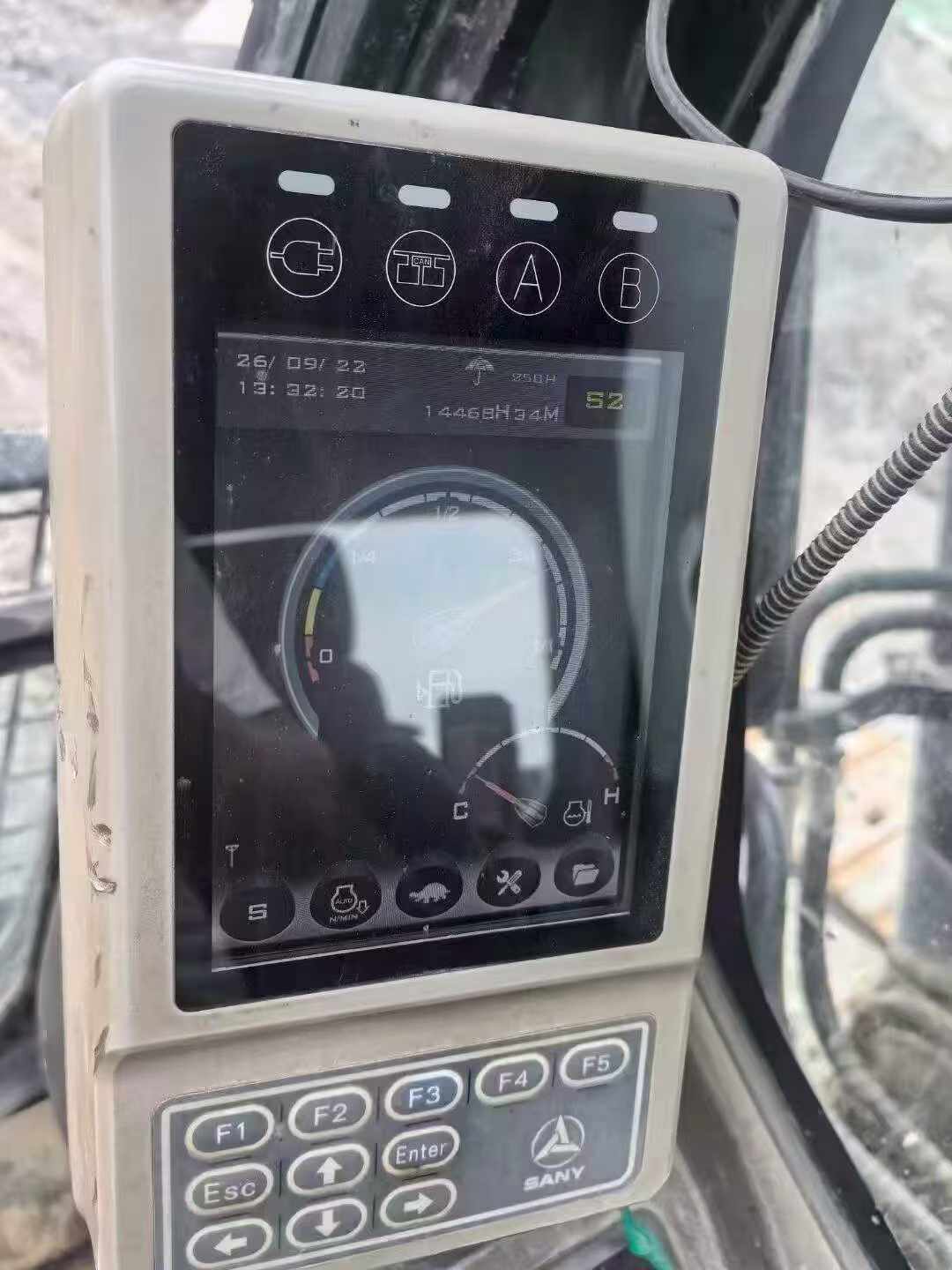

Buy Sany SY245H Used Excavator / 6

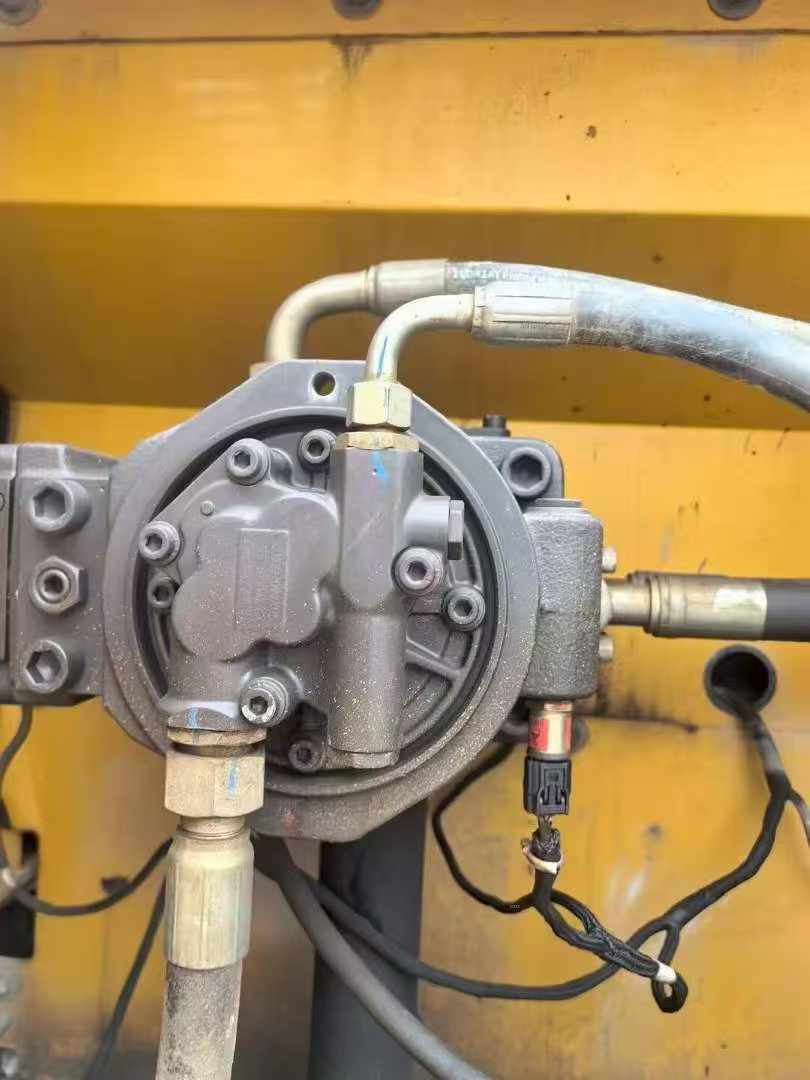

Buy Sany SY245H Used Excavator / 7

Product Description

2017 Sany SY245H hydraulic excavator available from Hunan, China. This mid-size crawler excavator from one of China's leading heavy equipment manufacturers offers proven reliability for earthmoving, demolition, and general construction applications. The machine is currently in stock with detailed imagery and operational video documentation available upon request.

Key details:

  • Year of manufacture: 2017
  • Model: Sany SY245H
  • Current location: Hunan Province, China
  • Condition: Used, operational
  • Documentation: Detailed photos and video available

The SY245H is designed for medium-duty excavation work with hydraulic systems engineered for fuel efficiency and operator comfort. Suitable for contractors seeking reliable used equipment at competitive pricing. Interested buyers are invited to contact us directly to review complete machine documentation and discuss logistics.

SpecificationsValue
No.1156947
Tonnage (tons)24
Working weight (kg)25500
Bucket capacity (m³)1.3~1.5(1.5)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeD06FRC
Rated power (kw/rpm)147/2100
Cooling modewater-cooling
Maximum torque (N.m)750/1350
Number of cylinders (PCS)6
Displacement (L)6.373
Ground specific pressure (Kpa)53.2
Rotation speed (rpm)10.6
Climbing ability (%)70
Bucket digging force (kN)175
Rod digging force (kN)120
Travel speed (km/h)5.4/3.4
Fuel Tank (L)475
Hydraulic Tank (L)277
Engine Oil changes (L)29
Total transport length (mm)10290
Total transport width (mm)3190
Total transport height (mm)3190
Full cab height (mm)3255
Minimum ground clearance (mm)470
Minimum turning radius of front working device (mm)3800
Back end turning radius (mm)3105
Onboard width (mm)3045
Total track length (mm)4445
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3640
Maximum height at minimum turning radius (mm)8016
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10225
Maximum digging depth (mm)6705
Maximum excavation height (mm)9745
Maximum unloading height (mm)6715
see more

Overview

No.1156947

Brand Name:

Sany

Model Number:

SY245H

Year:

2017

Location:

Hunan China
