2017 Sany SY245H

1/9
Buy Sany SY245H Used Excavator / 1

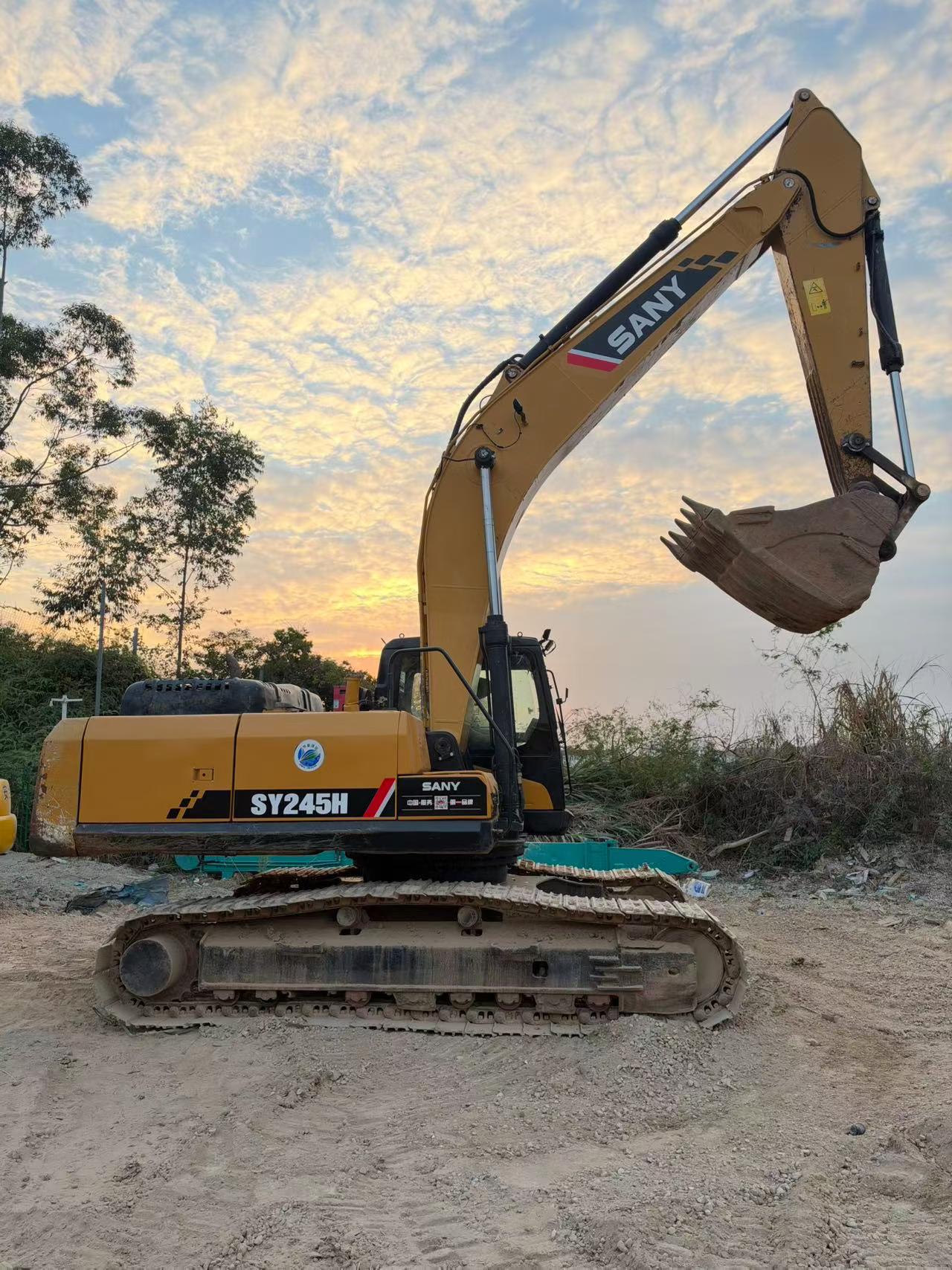

Buy Sany SY245H Used Excavator / 2

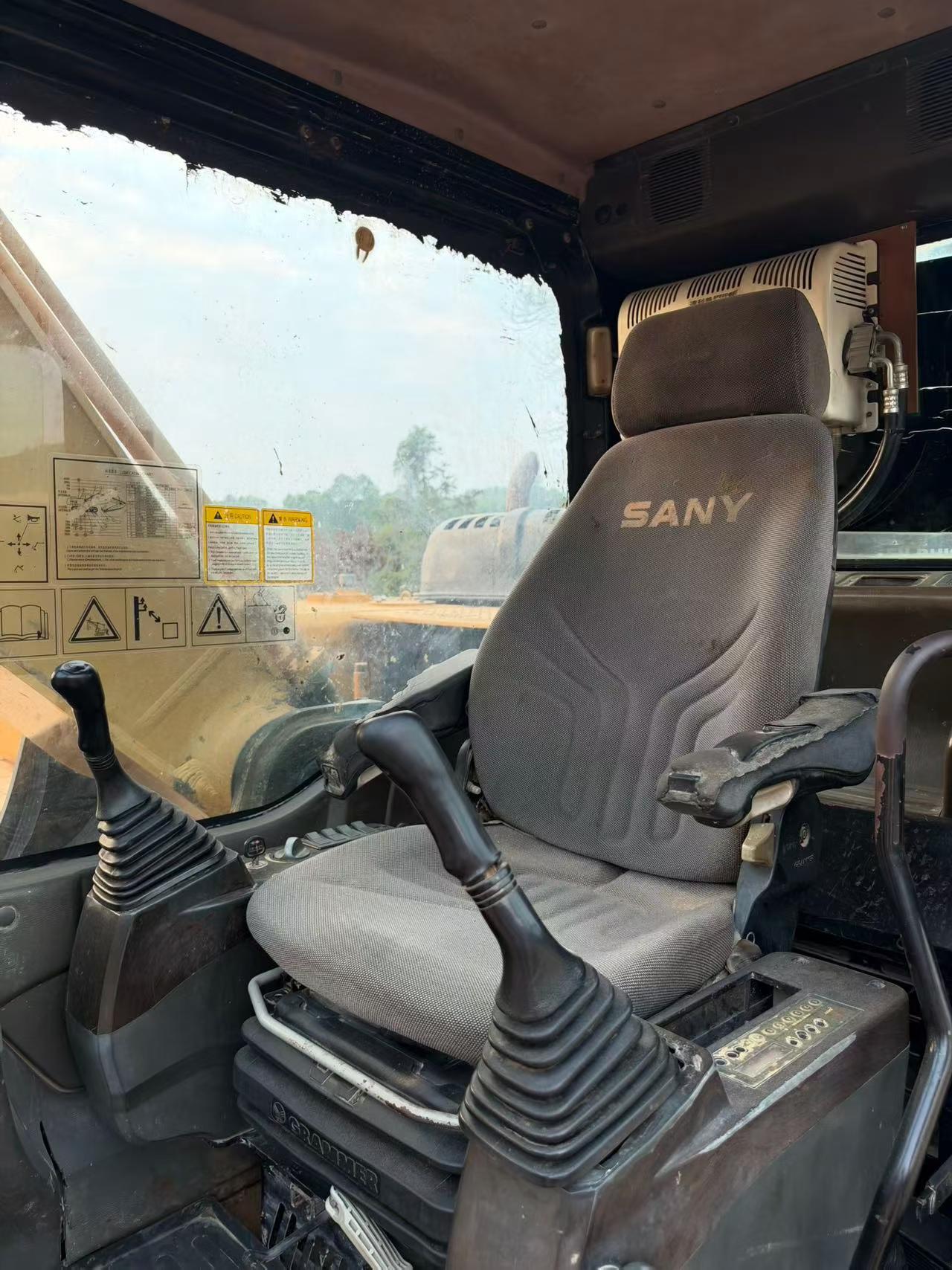

Buy Sany SY245H Used Excavator / 3

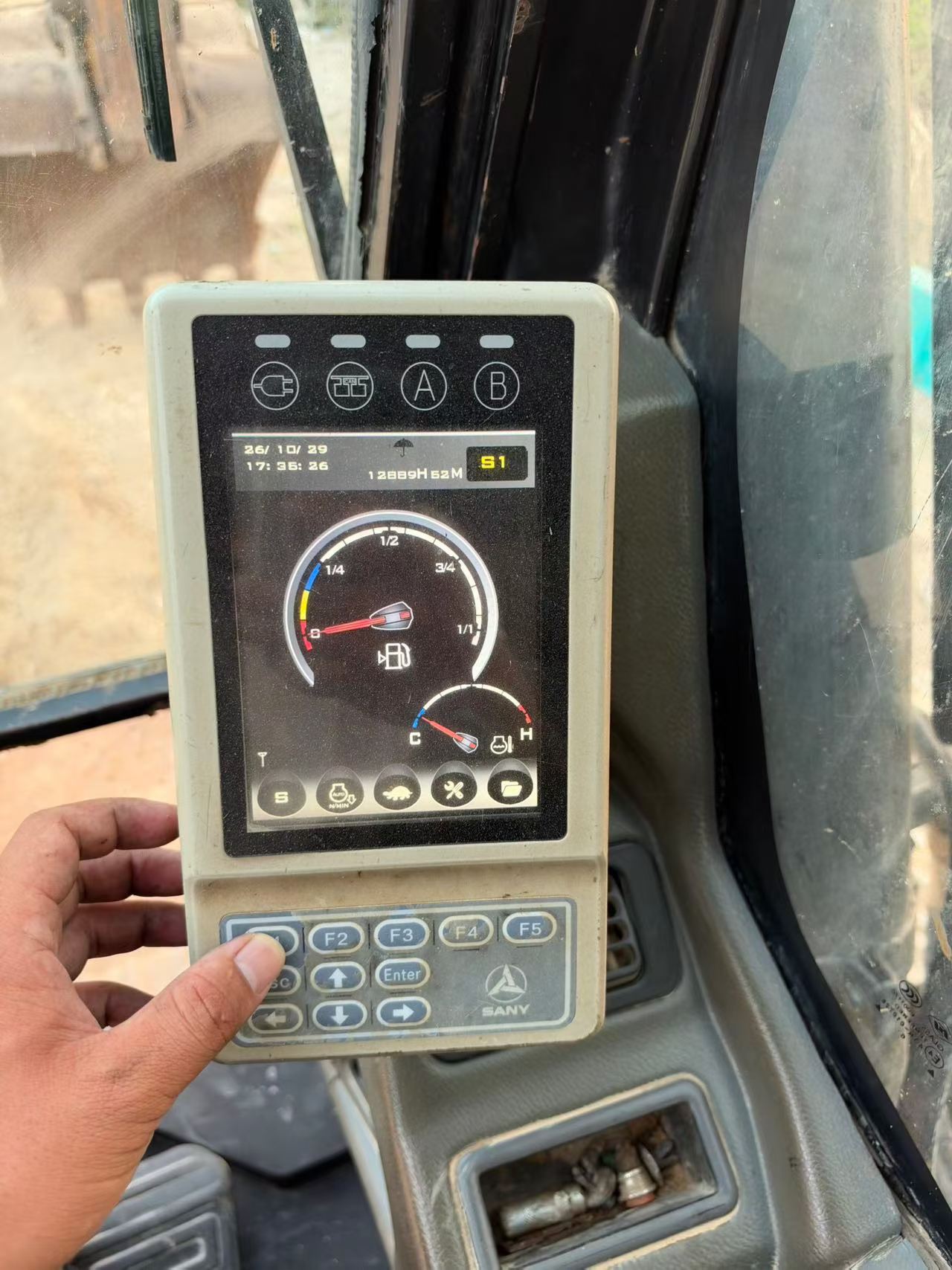

Buy Sany SY245H Used Excavator / 4

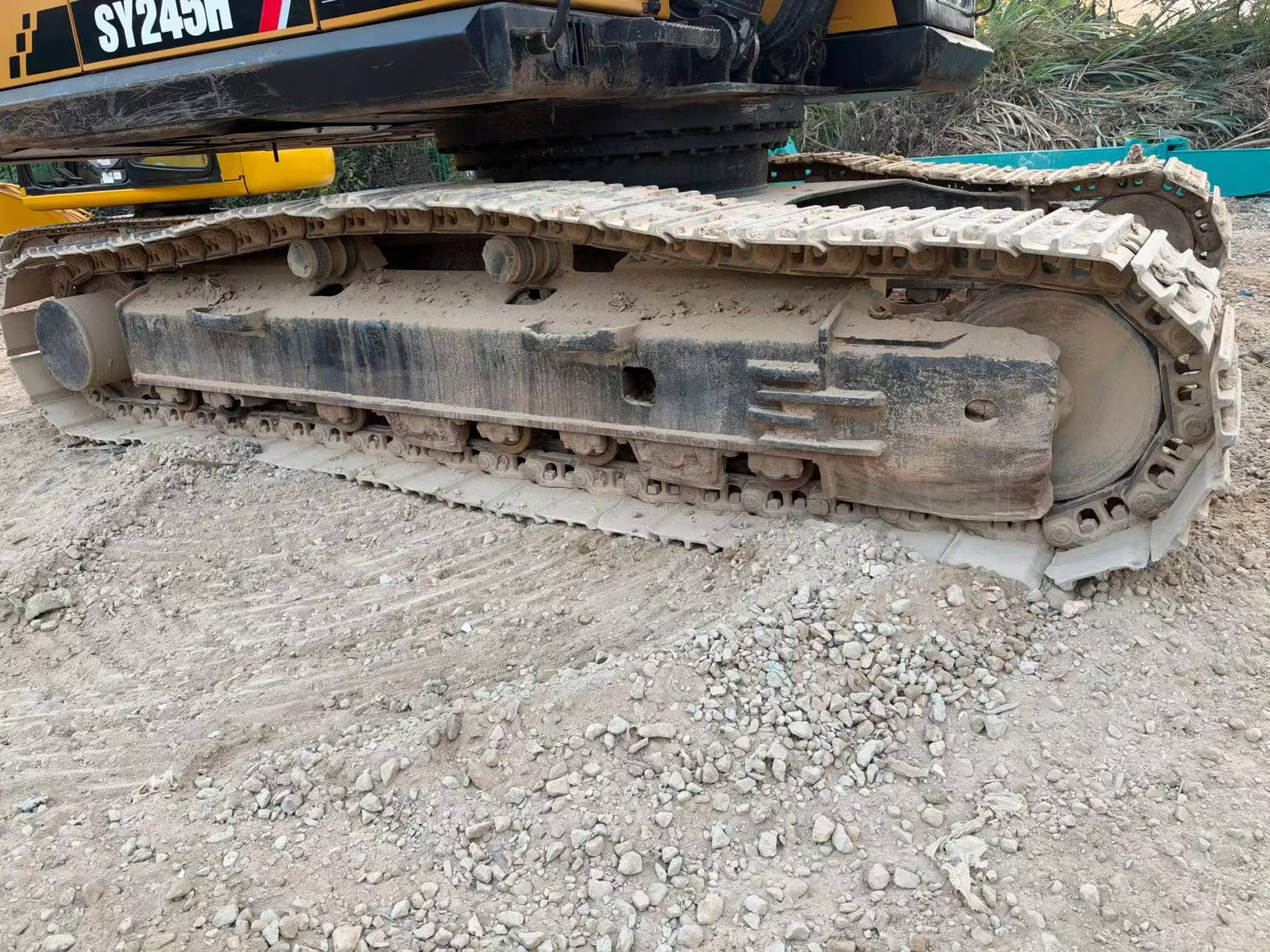

Buy Sany SY245H Used Excavator / 5

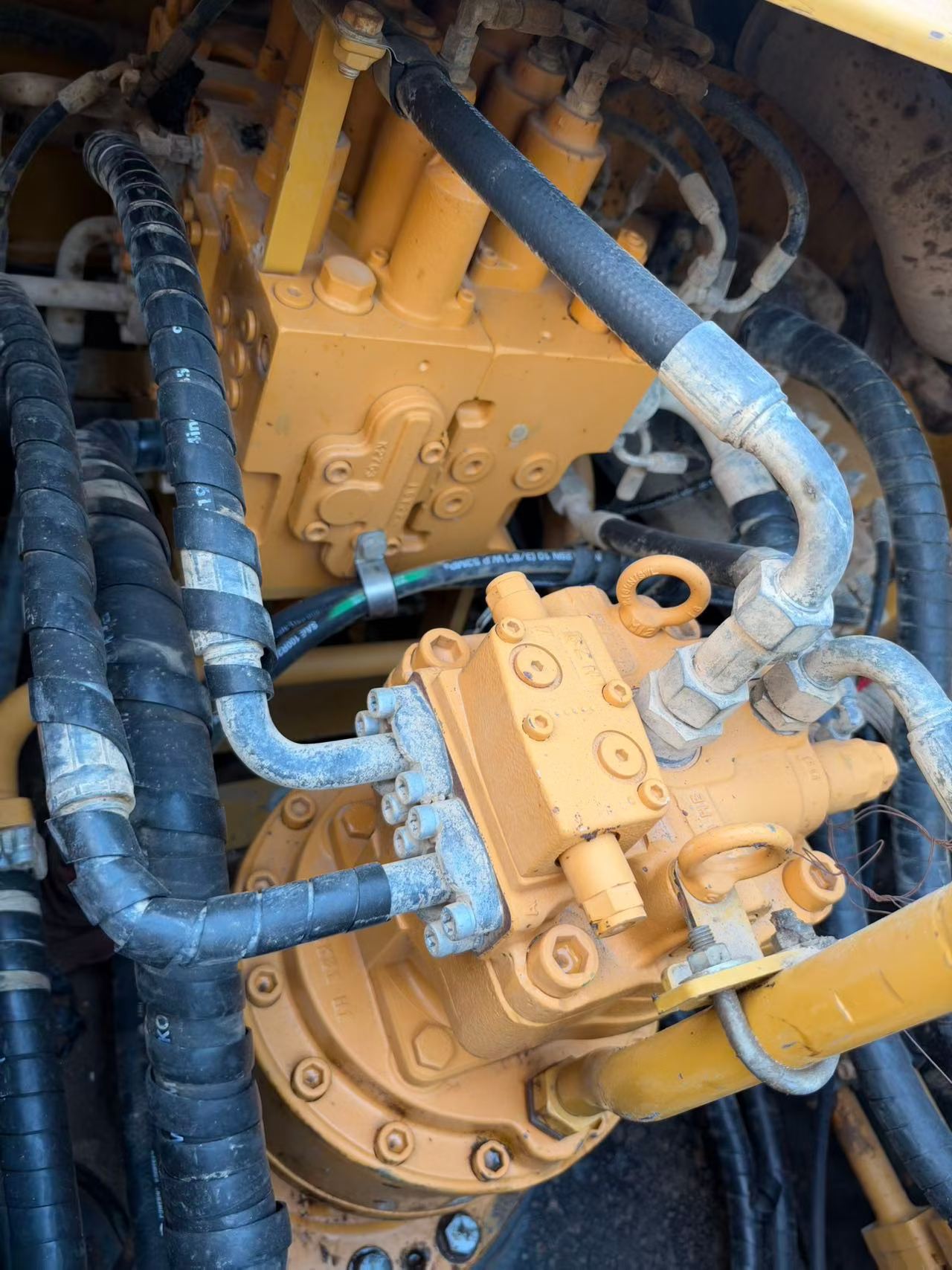

Buy Sany SY245H Used Excavator / 6

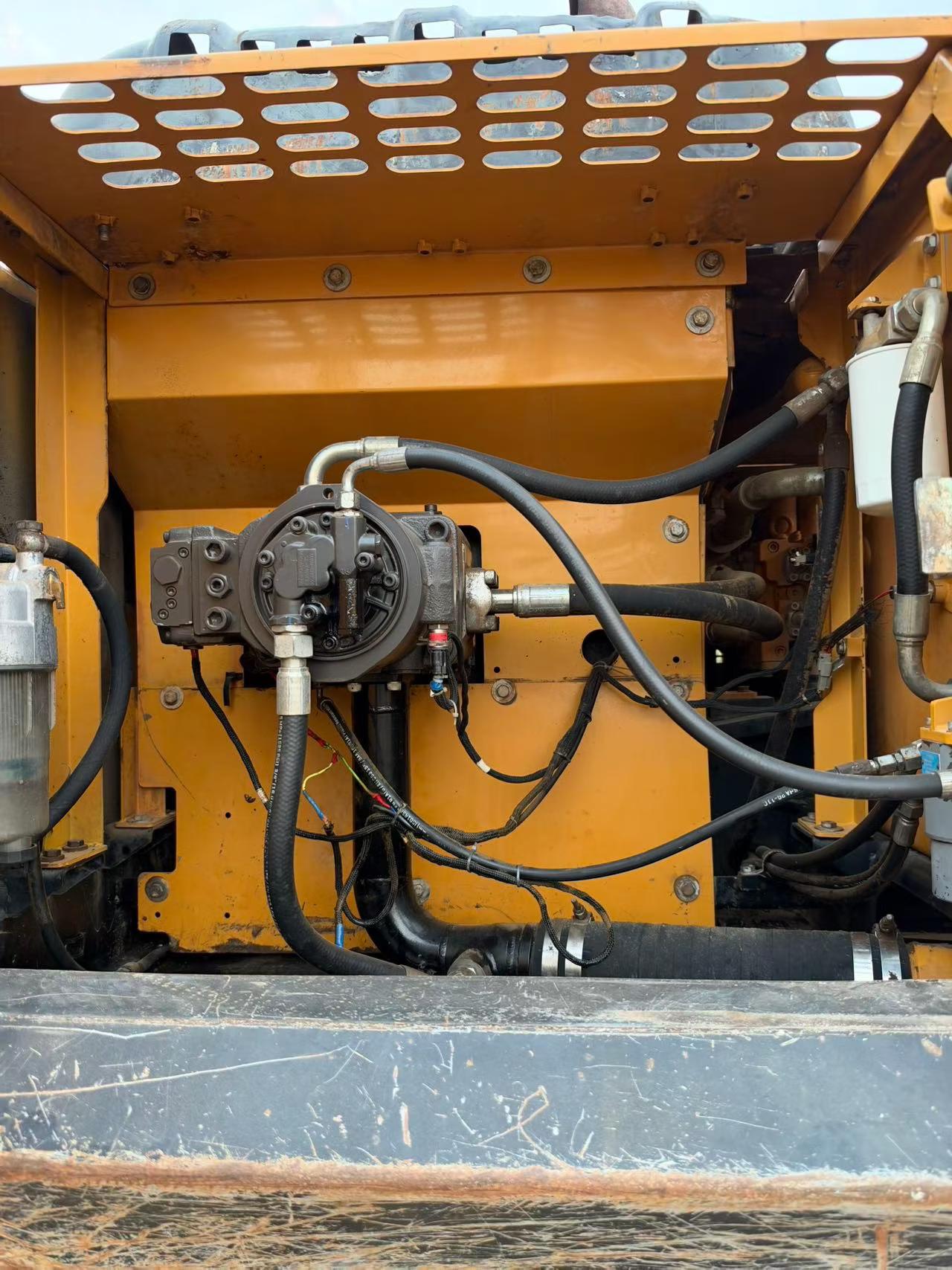

Buy Sany SY245H Used Excavator / 7

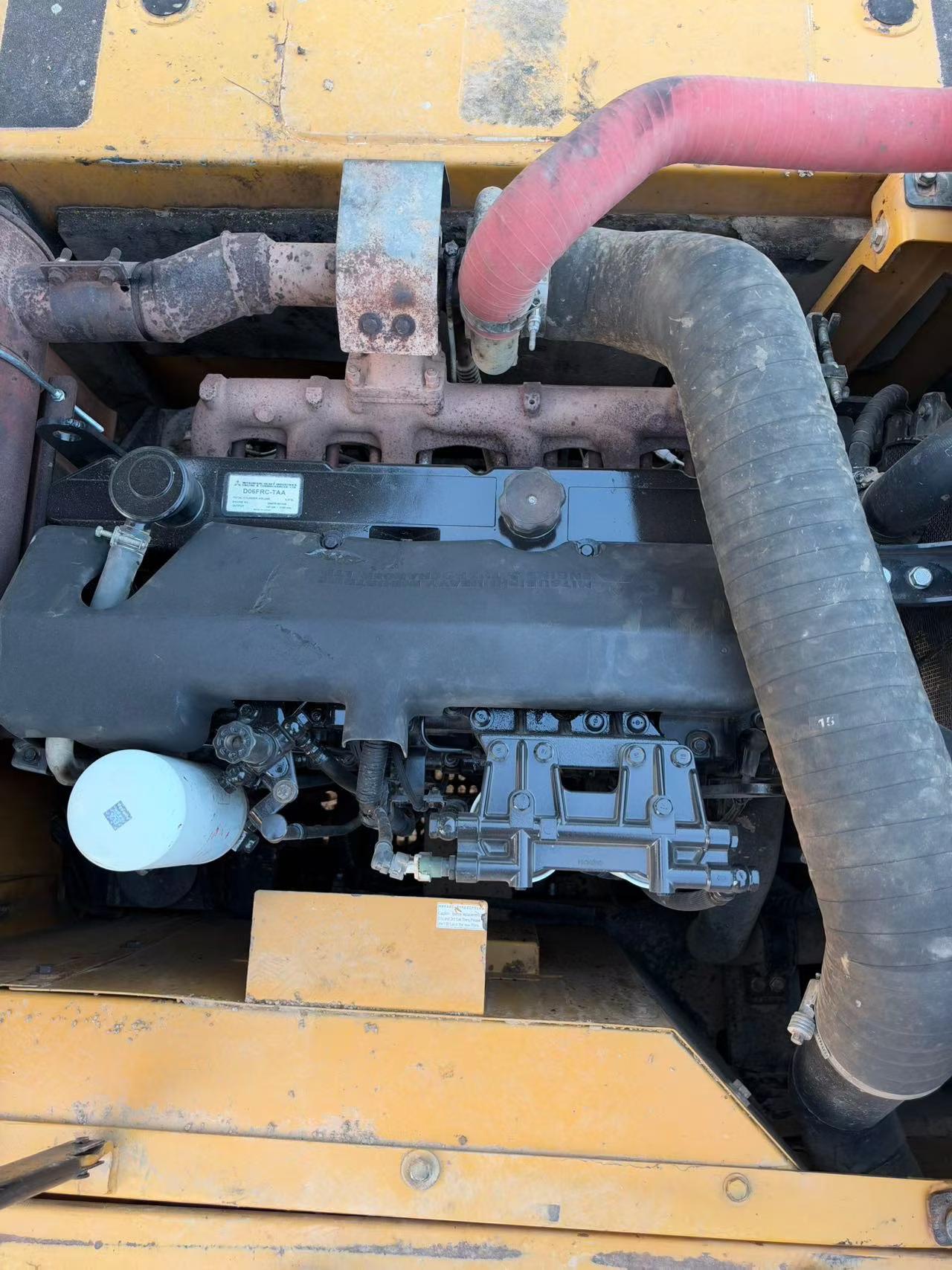

Buy Sany SY245H Used Excavator / 8

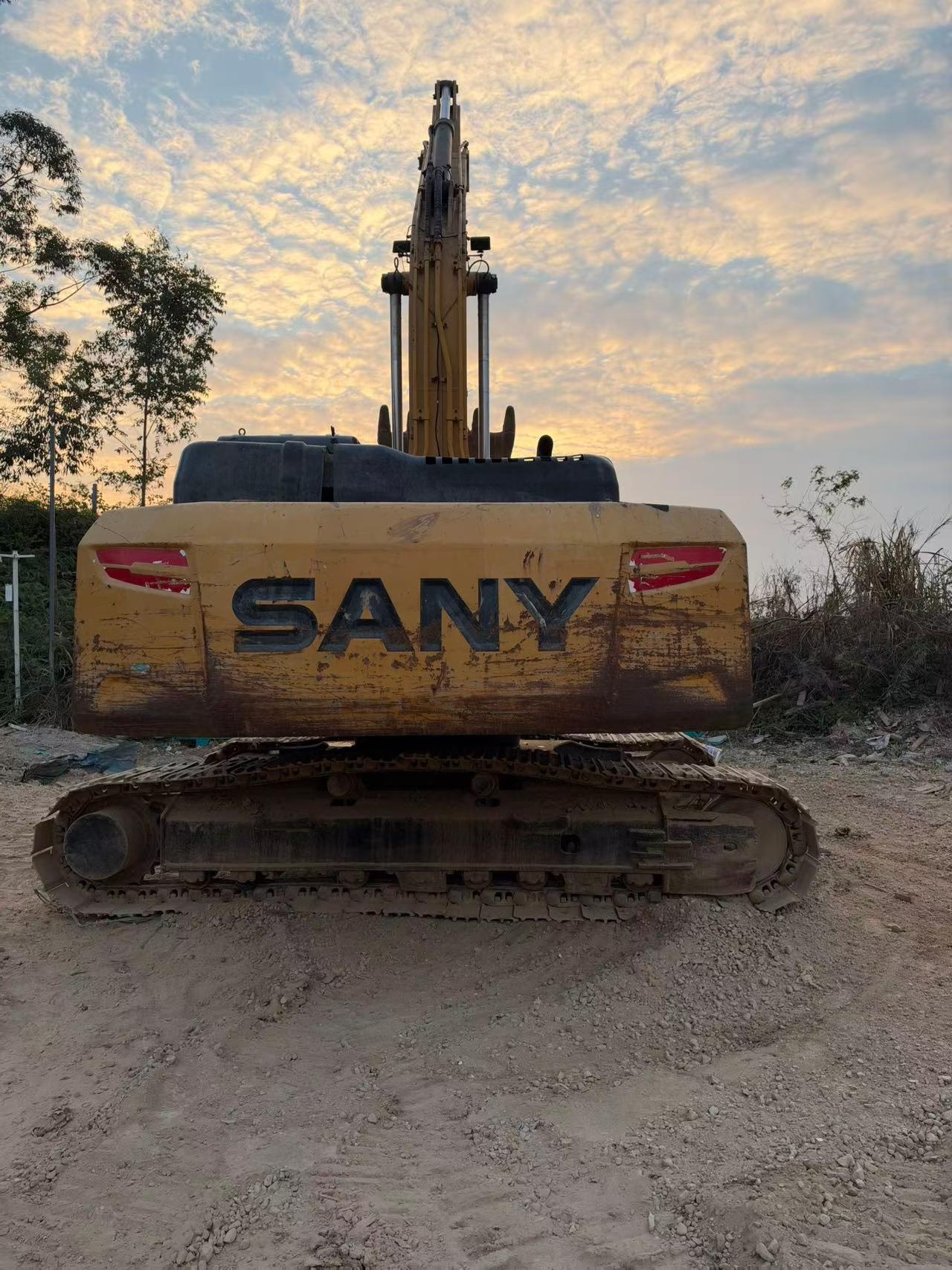

Buy Sany SY245H Used Excavator / 9

Product Description

This 2017 Sany SY245H hydraulic excavator offers reliable performance for demanding construction and earthmoving applications. Equipped with a proven Kawasaki hydraulic system, this mid-size crawler excavator delivers consistent power and efficiency for various job site requirements. The machine is located in Guangdong, China and is ready for immediate deployment.

Key features include:

  • Kawasaki hydraulic system for dependable operation
  • Well-maintained condition with verified performance
  • Suitable for excavation, loading, and material handling
  • Standard operating weight class approximately 24 tons
  • Ready for inspection and immediate use

This excavator represents solid value for contractors seeking dependable used equipment. The SY245H's combination of operational readiness and competitive pricing makes it an attractive option for construction projects requiring reliable excavation capacity. Contact us for detailed specifications and pricing information.

SpecificationsValue
No.1173885
Tonnage (tons)24
Working weight (kg)25500
Bucket capacity (m³)1.3~1.5(1.5)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeD06FRC
Rated power (kw/rpm)147/2100
Cooling modewater-cooling
Maximum torque (N.m)750/1350
Number of cylinders (PCS)6
Displacement (L)6.373
Ground specific pressure (Kpa)53.2
Rotation speed (rpm)10.6
Climbing ability (%)70
Bucket digging force (kN)175
Rod digging force (kN)120
Travel speed (km/h)5.4/3.4
Fuel Tank (L)475
Hydraulic Tank (L)277
Engine Oil changes (L)29
Total transport length (mm)10290
Total transport width (mm)3190
Total transport height (mm)3190
Full cab height (mm)3255
Minimum ground clearance (mm)470
Minimum turning radius of front working device (mm)3800
Back end turning radius (mm)3105
Onboard width (mm)3045
Total track length (mm)4445
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3640
Maximum height at minimum turning radius (mm)8016
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10225
Maximum digging depth (mm)6705
Maximum excavation height (mm)9745
Maximum unloading height (mm)6715
see more

Overview

No.1173885

Brand Name:

Sany

Model Number:

SY245H

Year:

2017

Location:

Guangdong China

Pub Date:
