Product Description

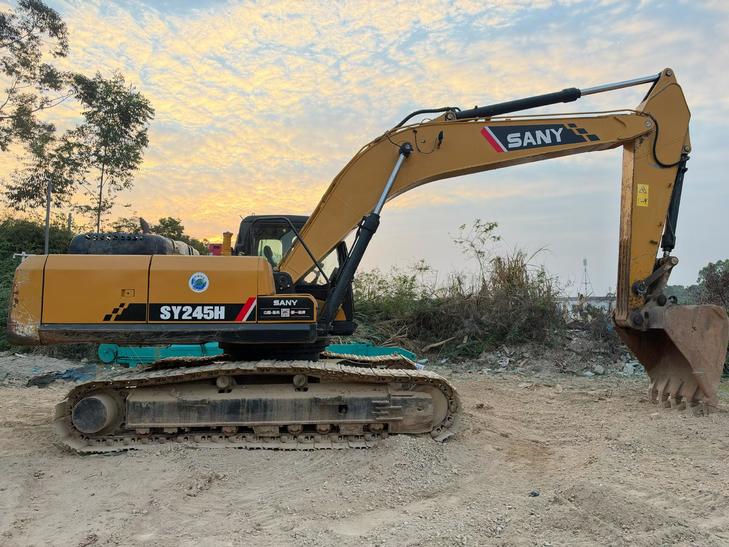

This 2017 Sany SY245H hydraulic excavator offers reliable performance for demanding earthmoving and construction applications. Manufactured by Sany Heavy Industry, a leading Chinese construction equipment producer, this 24-ton class machine combines proven hydraulic technology with robust structural engineering.
Key features include:
- Year of manufacture: 2017
- Model: SY245H medium excavator
- Current location: Guangdong Province, China
- Operating condition: Well-maintained with excellent mechanical status
- Competitive pricing for immediate acquisition
The SY245H is designed for versatility across multiple job sites, from site preparation to utility installation. This unit represents an attractive opportunity for contractors seeking dependable used equipment with substantial service life remaining. Suitable for export or domestic deployment.
Contact us for detailed specifications, inspection arrangements, and shipping logistics to your location.
| Specifications | Value |
|---|---|
| No. | 1174033 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
