Product Description
This 2018 Sany SY245H excavator delivers proven performance for medium to heavy-duty applications. Operating from our facility in Zhejiang, China, this machine shows 6,800 genuine hours on the meter, reflecting steady use with substantial service life remaining. The unit is currently priced in the low 200,000 RMB range, offering competitive value for contractors seeking reliable hydraulic excavator capacity.
- Year of Manufacture: 2018

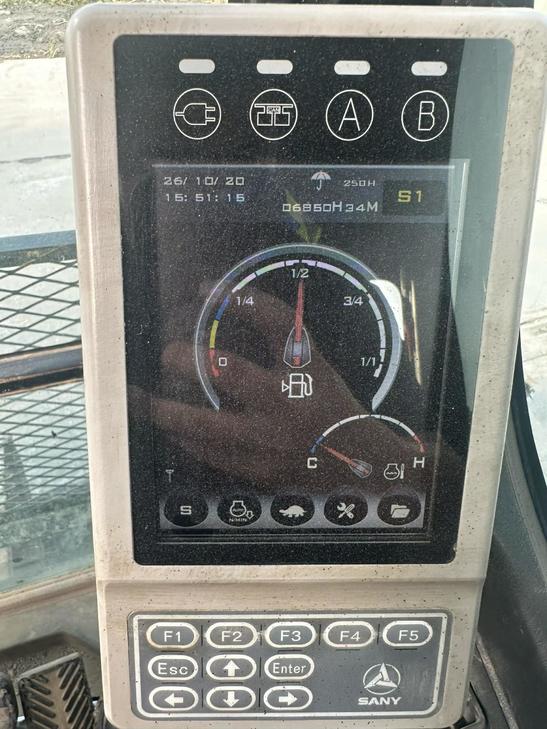

- Verified Hours: 6,800
- Operating Weight Class: 24-ton
- Location: Zhejiang Province, China
- Condition: Used, operational
The SY245H represents Sany's commitment to durable construction equipment with efficient hydraulic systems and operator comfort. This unit is ready for inspection and available for immediate deployment in excavation, earthmoving, and site development projects. Contact us for detailed condition reports and shipping arrangements.
| Specifications | Value |
|---|---|
| No. | 1167108 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
