2018 Sany SY245H

1/7
Buy Sany SY245H Used Excavator / 1
Buy Sany SY245H Used Excavator / 2
Buy Sany SY245H Used Excavator / 3
Buy Sany SY245H Used Excavator / 4
Buy Sany SY245H Used Excavator / 5
Buy Sany SY245H Used Excavator / 6
Buy Sany SY245H Used Excavator / 7

Product Description

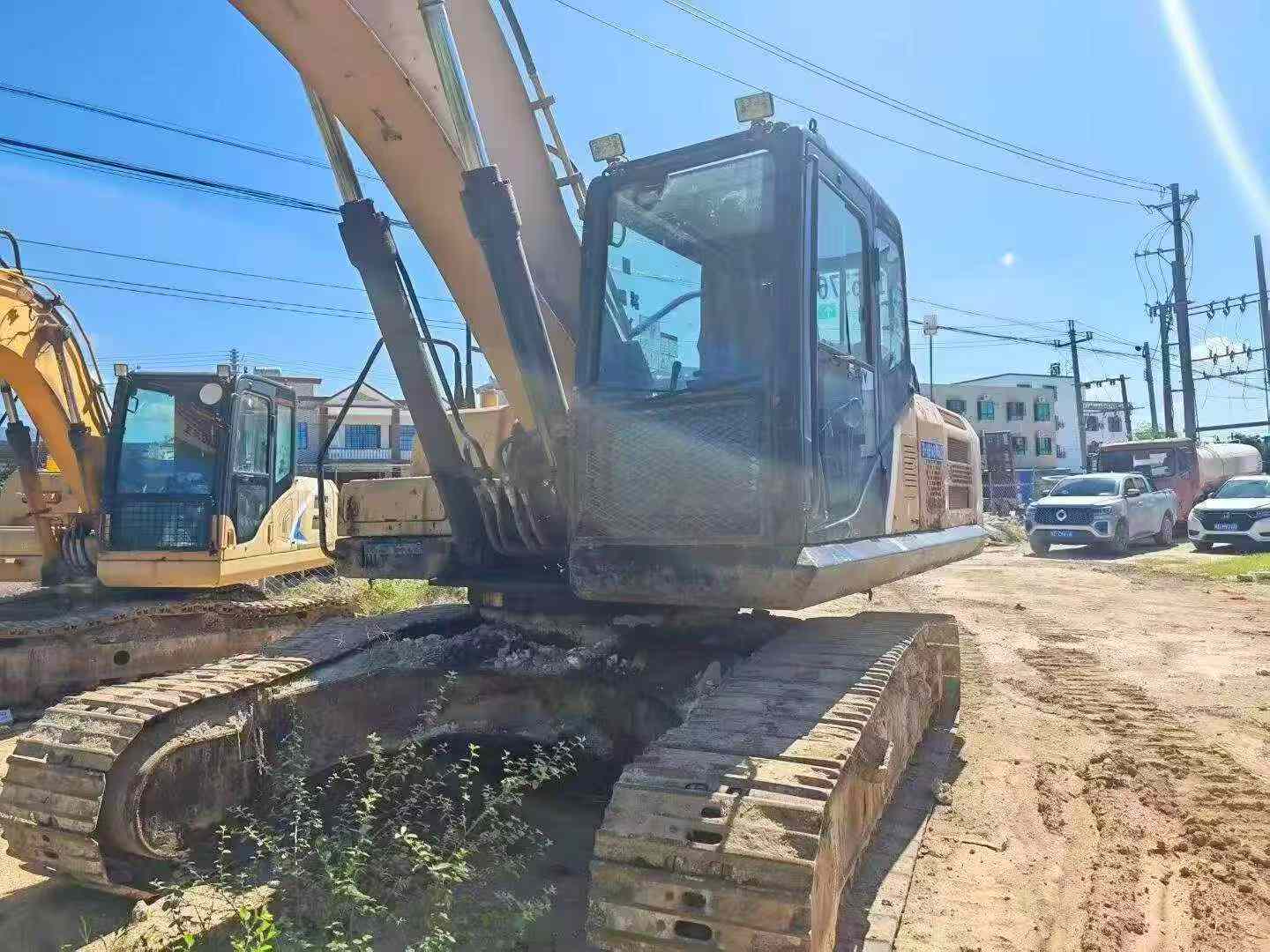

This 2018 Sany SY245H hydraulic excavator offers reliable performance for earthmoving and construction applications. Located in Sichuan, China, this used machine comes from Sany's proven mid-size excavator lineup, designed for demanding jobsite conditions.

The SY245H features a robust hydraulic system and durable undercarriage suited for extended operational cycles. With approximately six years of service, this unit represents a cost-effective solution for contractors seeking dependable excavation capacity without the premium of new equipment.

  • Year of Manufacture: 2018
  • Brand: Sany
  • Model: SY245H
  • Current Location: Sichuan, China
  • Condition: Used
  • Equipment Type: Hydraulic Excavator

Available for inspection in Sichuan. Contact us for detailed service history, current hour meter readings, and shipping arrangements to your project site.

SpecificationsValue
No.1168291
Tonnage (tons)24
Working weight (kg)25500
Bucket capacity (m³)1.3~1.5(1.5)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeD06FRC
Rated power (kw/rpm)147/2100
Cooling modewater-cooling
Maximum torque (N.m)750/1350
Number of cylinders (PCS)6
Displacement (L)6.373
Ground specific pressure (Kpa)53.2
Rotation speed (rpm)10.6
Climbing ability (%)70
Bucket digging force (kN)175
Rod digging force (kN)120
Travel speed (km/h)5.4/3.4
Fuel Tank (L)475
Hydraulic Tank (L)277
Engine Oil changes (L)29
Total transport length (mm)10290
Total transport width (mm)3190
Total transport height (mm)3190
Full cab height (mm)3255
Minimum ground clearance (mm)470
Minimum turning radius of front working device (mm)3800
Back end turning radius (mm)3105
Onboard width (mm)3045
Total track length (mm)4445
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3640
Maximum height at minimum turning radius (mm)8016
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10225
Maximum digging depth (mm)6705
Maximum excavation height (mm)9745
Maximum unloading height (mm)6715
