Product Description

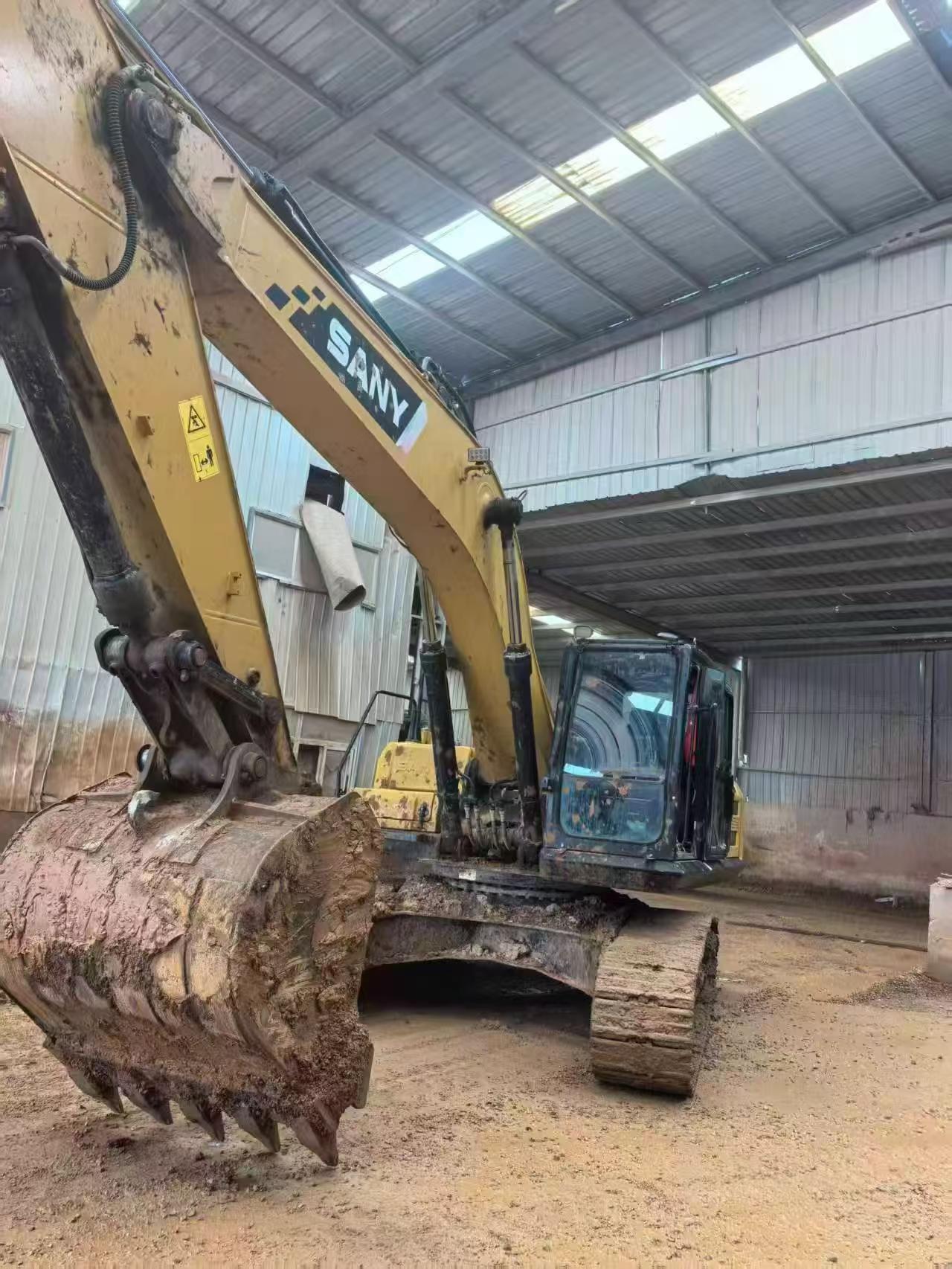

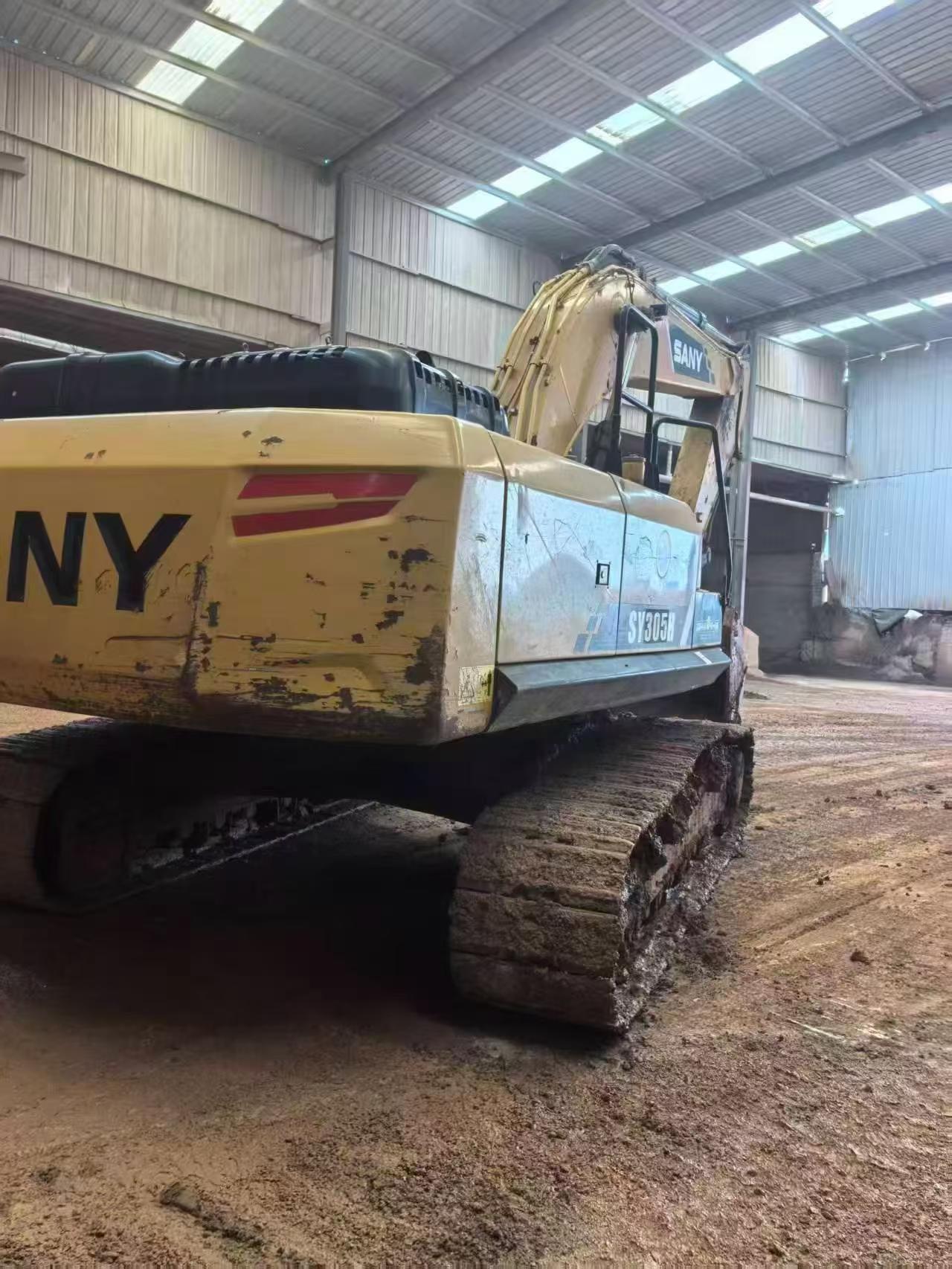

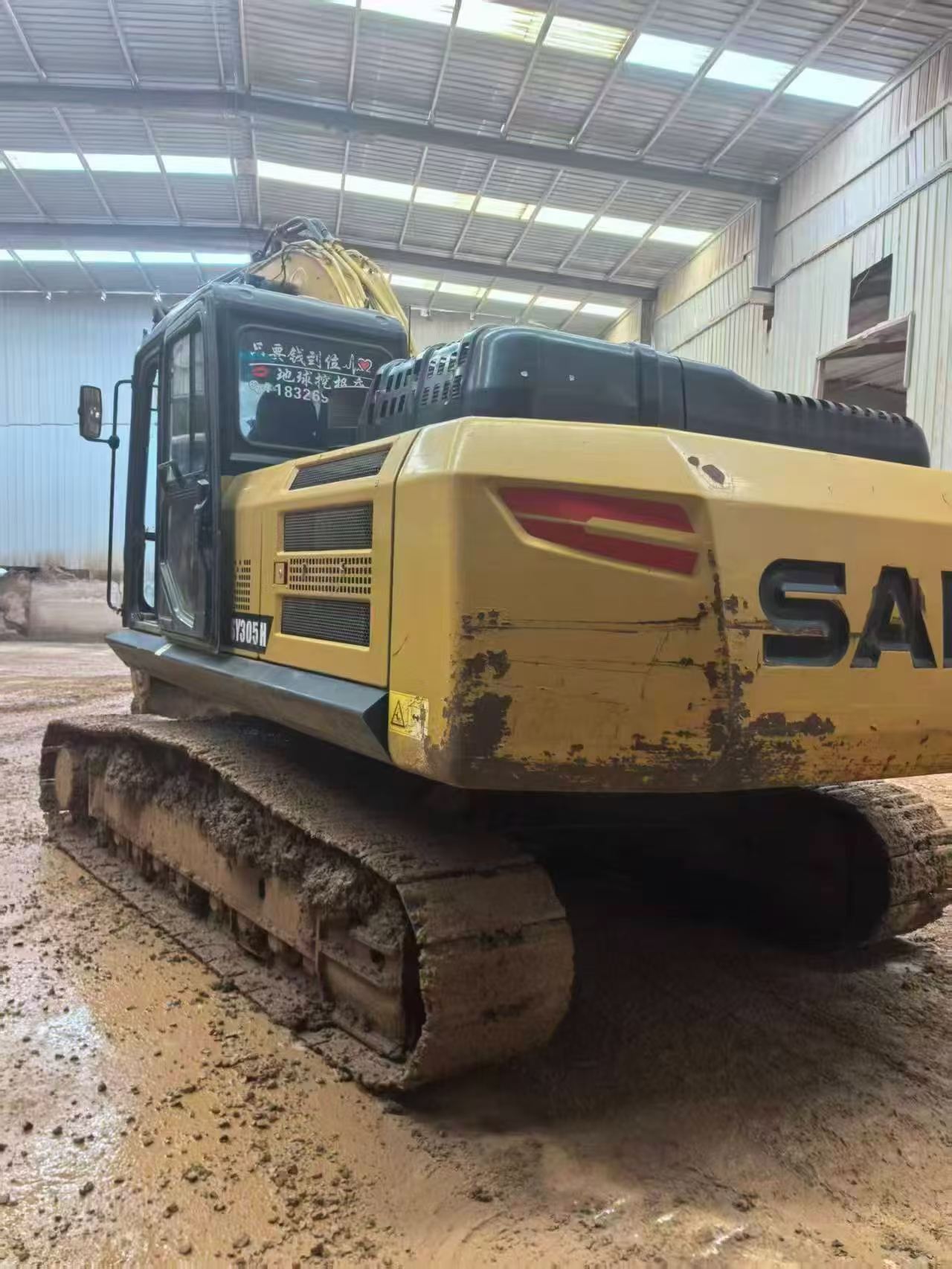

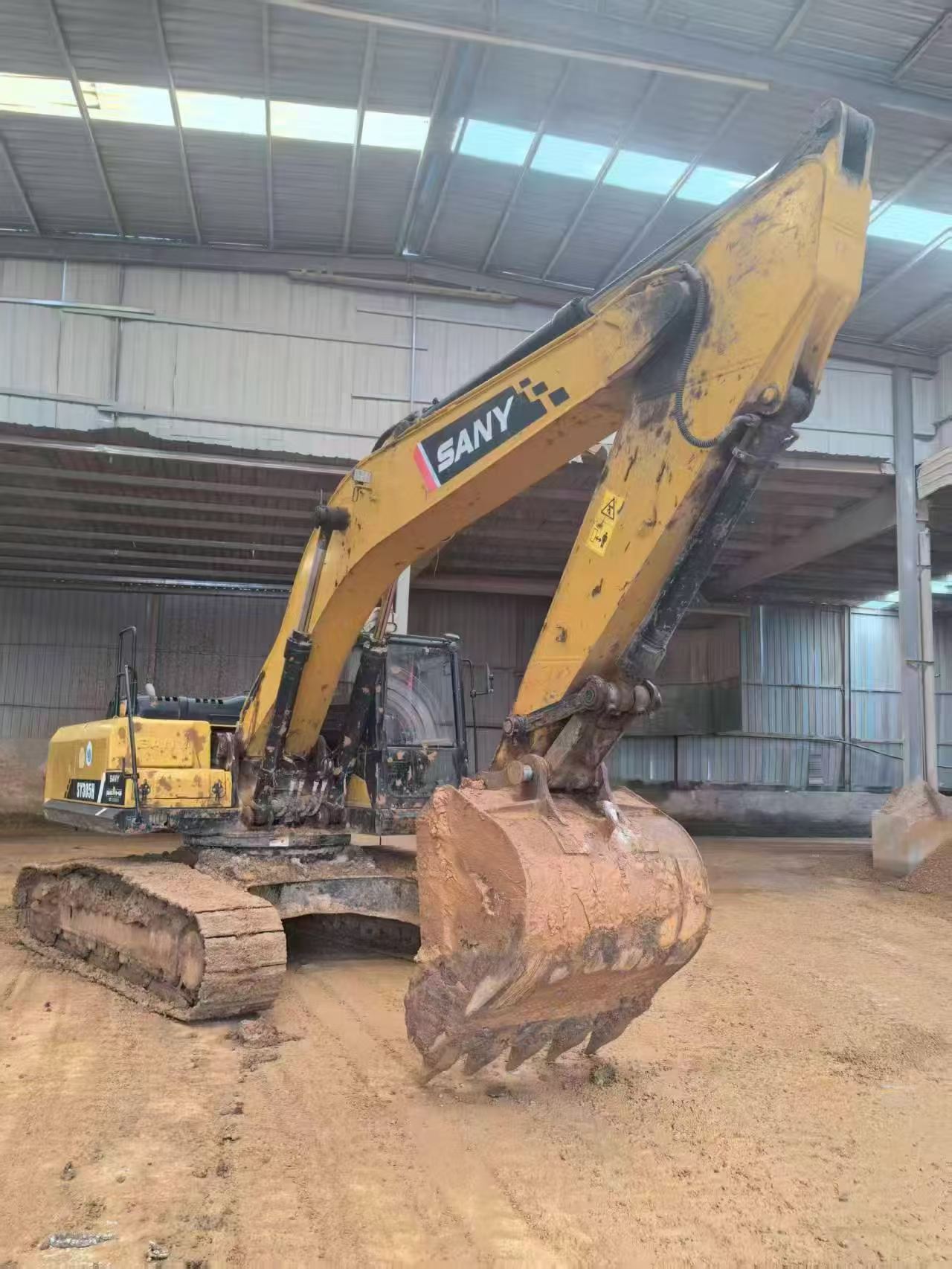

This 2019 Sany SY245H hydraulic excavator represents a premium configuration example from one of China's leading heavy equipment manufacturers. Sourced from Jiangsu Province, this mid-sized crawler excavator features a complete Kawasaki hydraulic system, ensuring reliable performance and efficient power delivery across demanding applications.
The SY245H is well-suited for earthmoving, excavation, and general construction projects. Its full Kawasaki configuration enhances operational precision and fuel efficiency, while the robust undercarriage and proven powertrain deliver consistent productivity in challenging jobsite conditions.
- Year of Manufacture: 2019
- Model: Sany SY245H

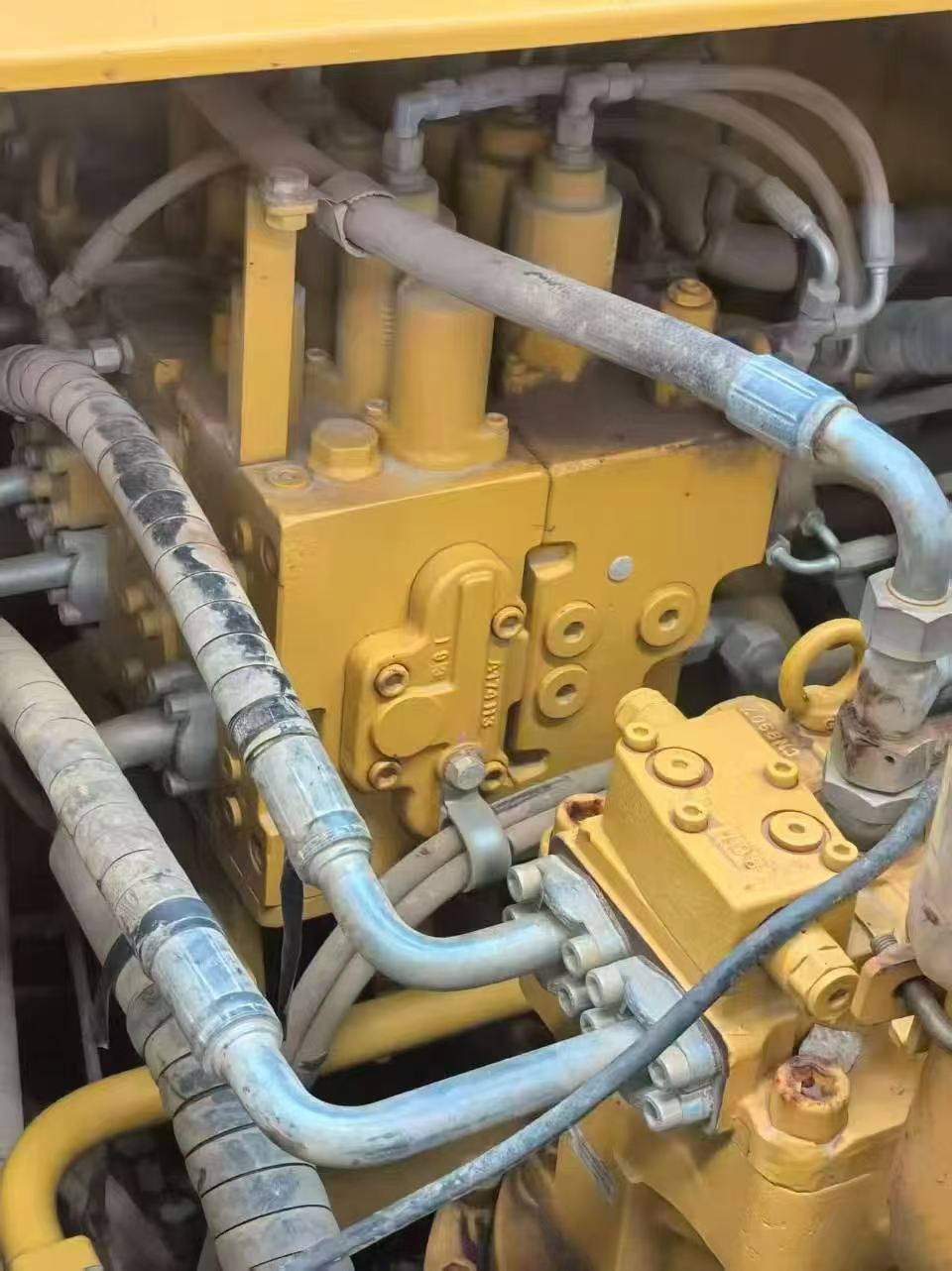

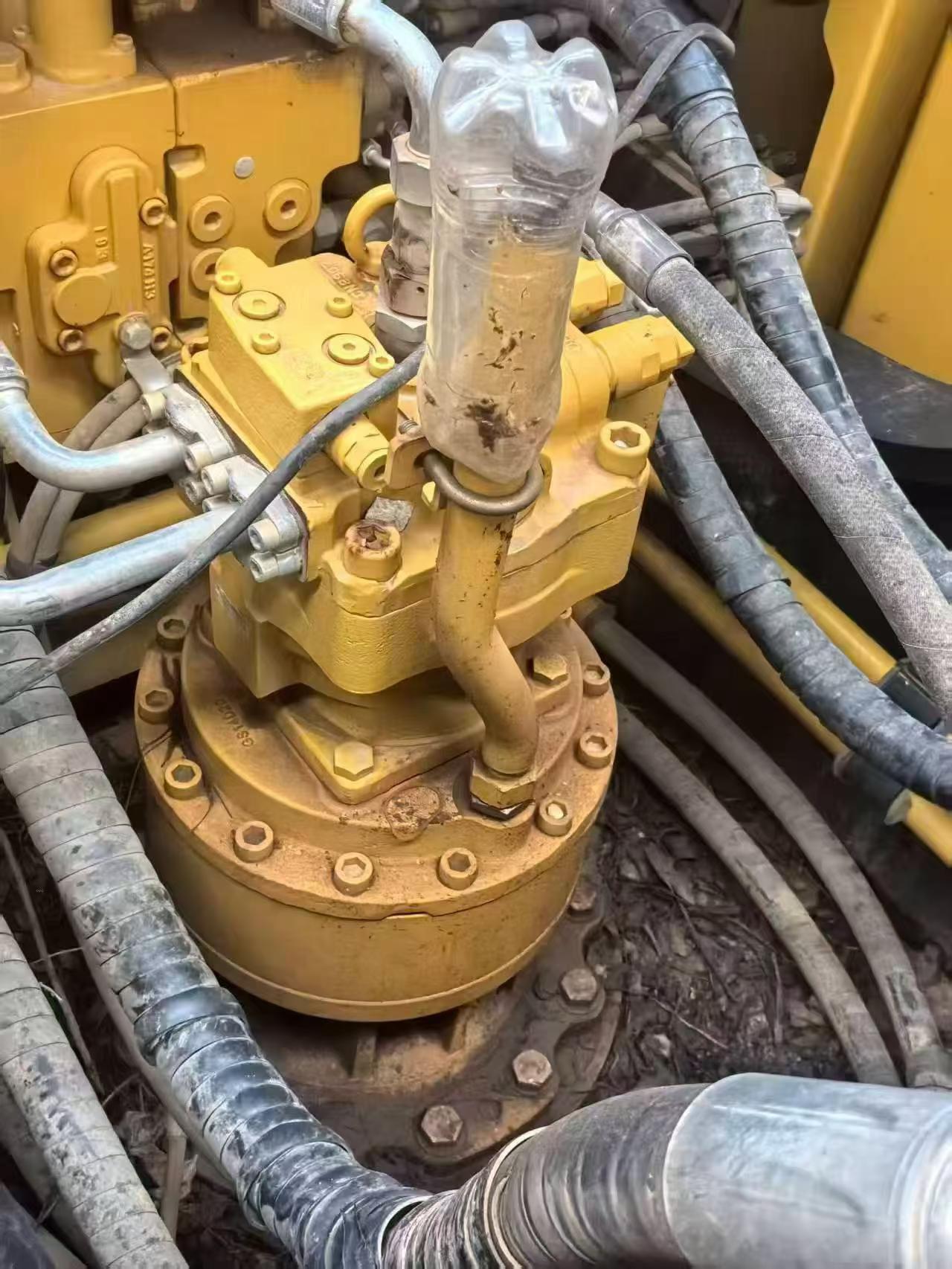

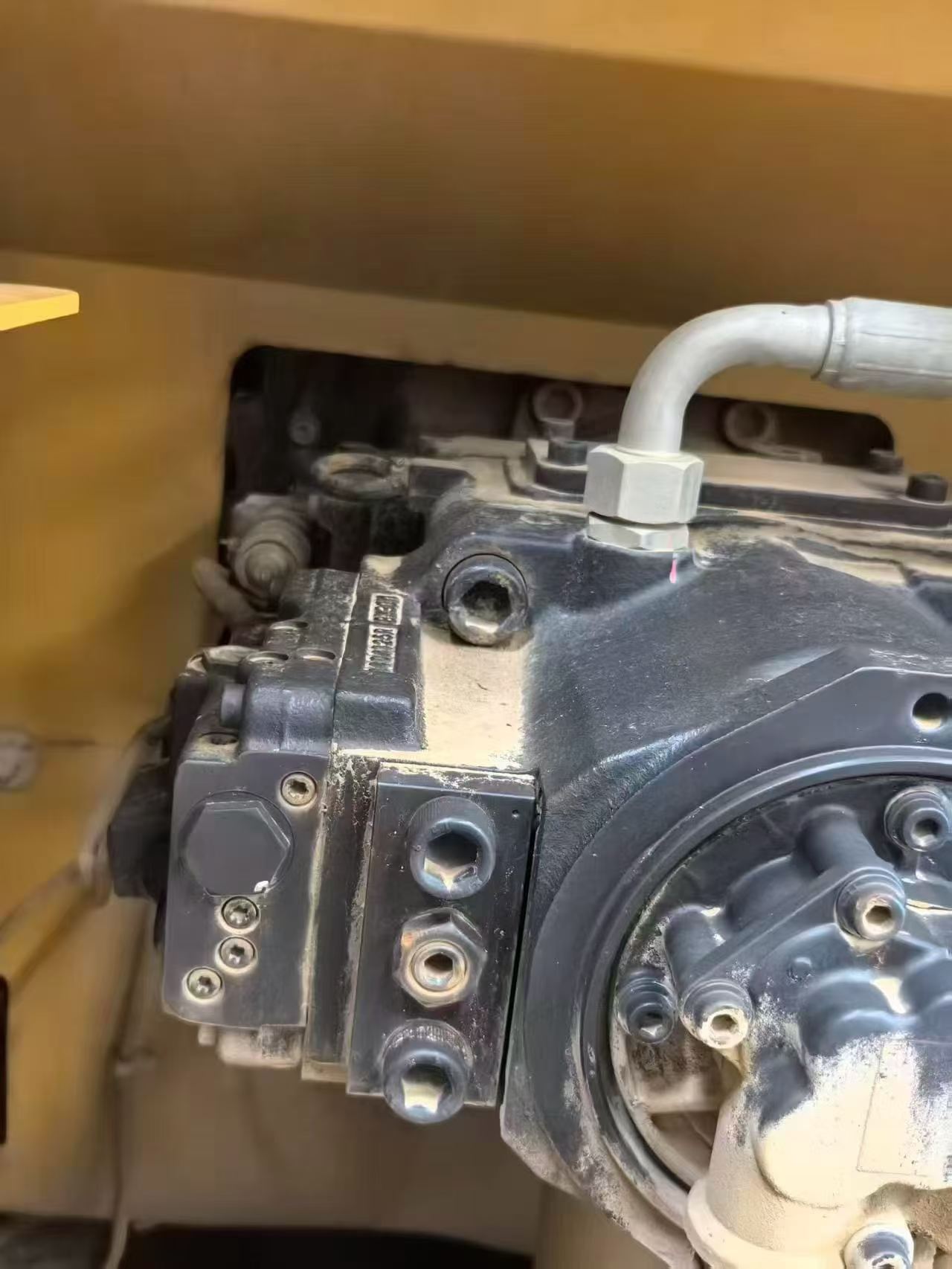

- Complete Kawasaki hydraulic components
- Current Location: Jiangsu, China
- Operating class: 24-ton category

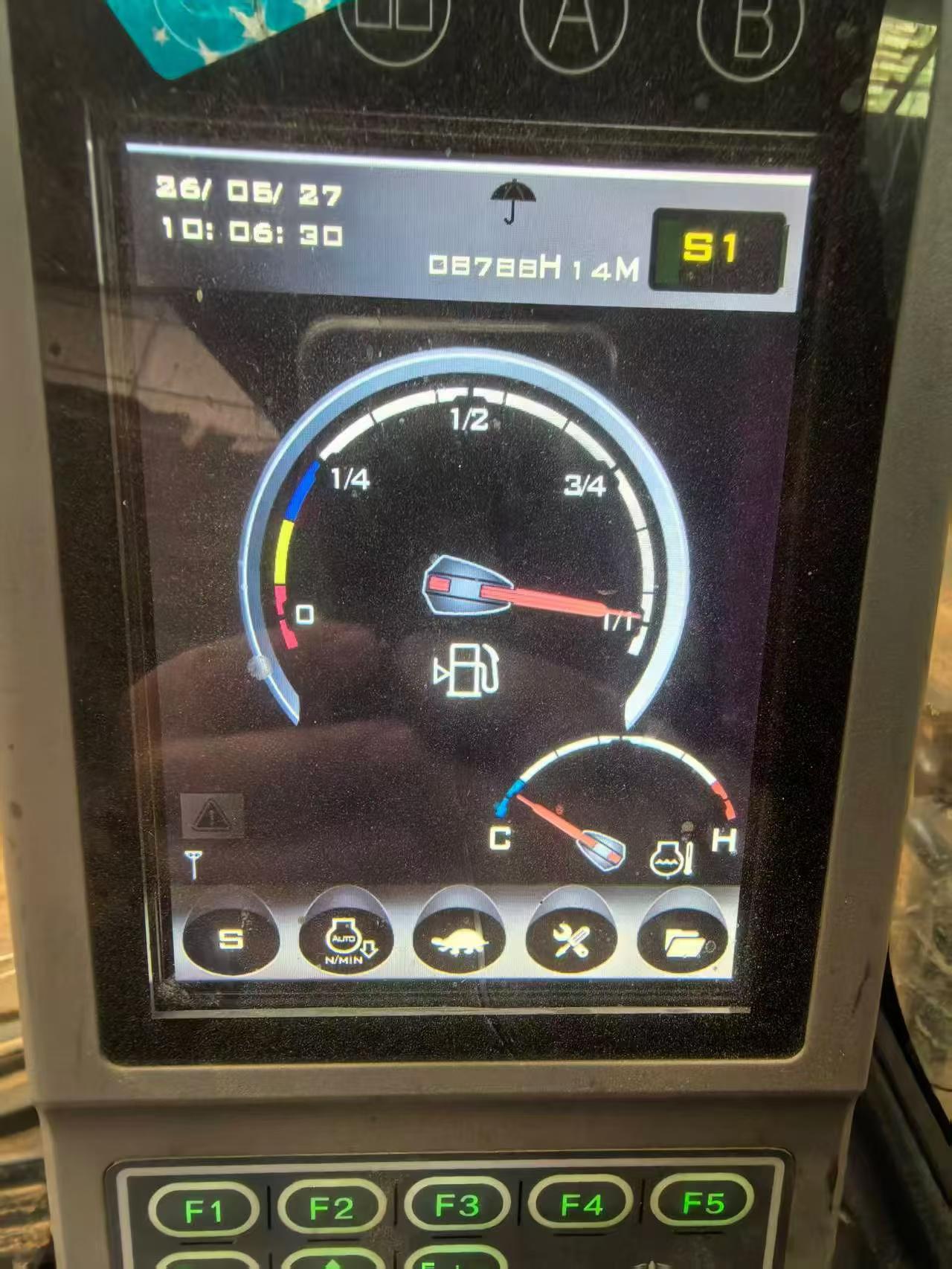

Available for inspection in Jiangsu. Suitable for export or domestic deployment. Contact us for detailed specifications, current hour meter reading, and shipping arrangements.
| Specifications | Value |
|---|---|
| No. | 1076452 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

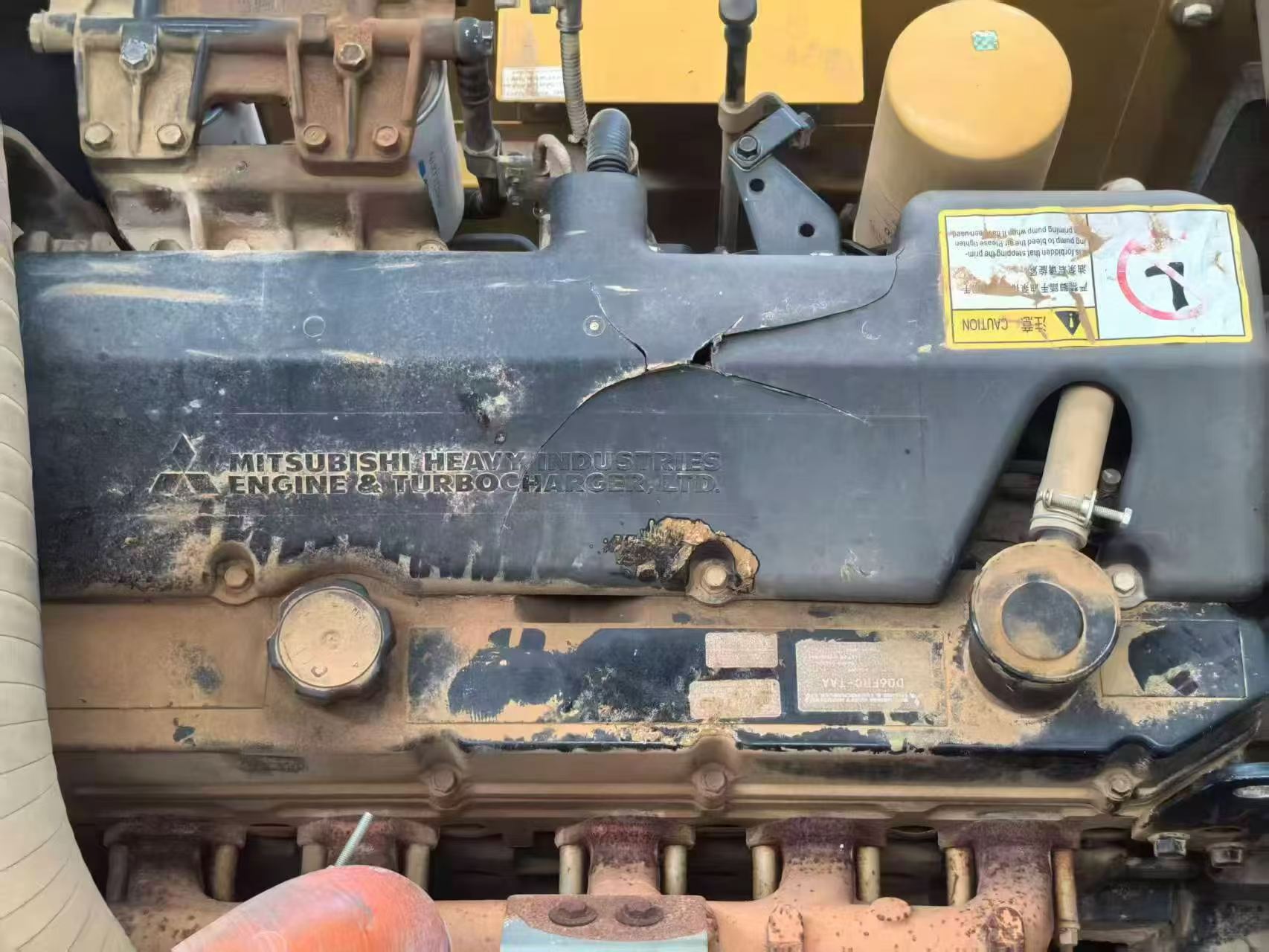

| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
